6.

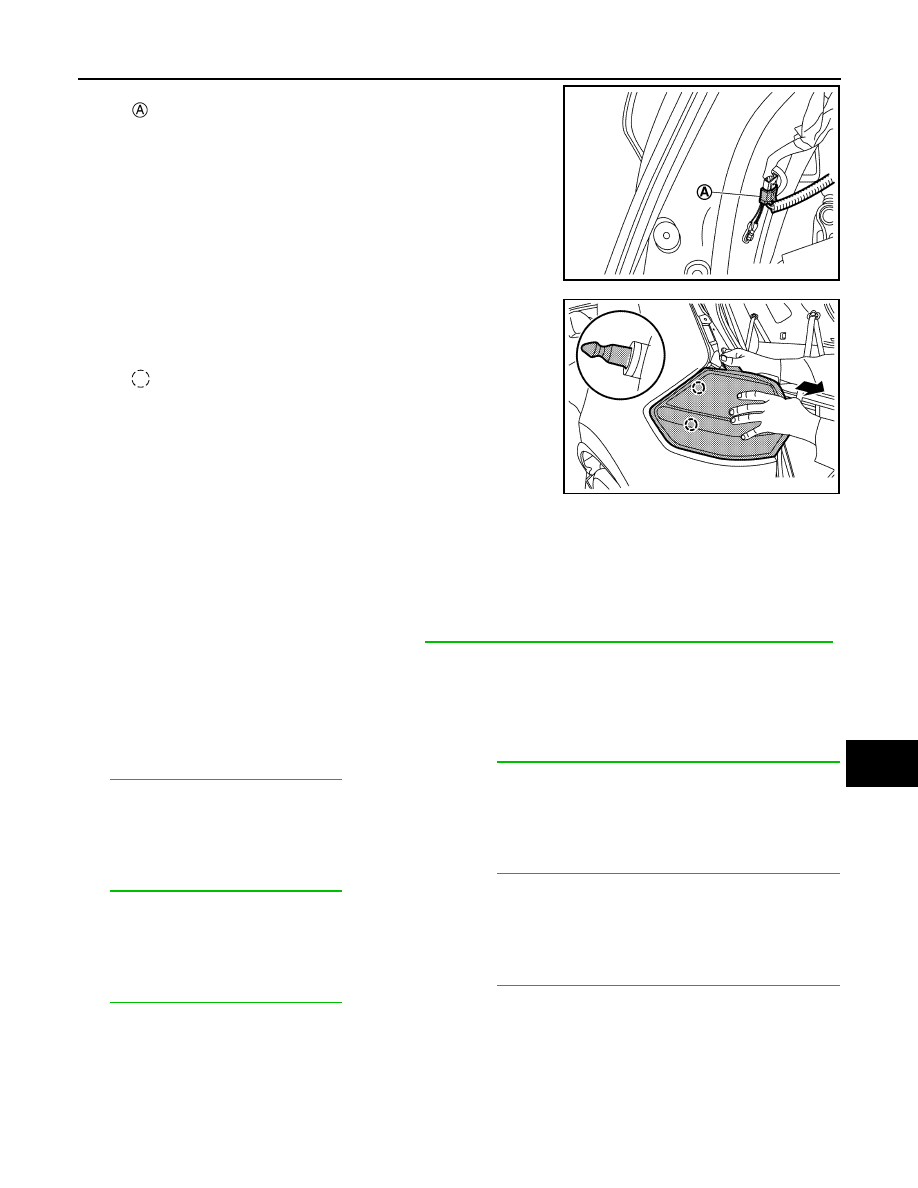

Disconnect rear combination lamp (body side) harness connec-
tor .

7.

Pull rear combination lamp (body side) toward vehicle rear to
disengage fixing clips, and then remove rear combination lamp
(body side).

INSTALLATION

Install in the reverse order of removal.

REAR COMBINATION LAMP (BODY SIDE) : Replacement

INFOID:0000000010789914

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-388, "REAR COMBINATION LAMP (BODY

SIDE) : Removal and Installation"

.

2.

Rotate tail lamp bulb socket counterclockwise, and then remove tail lamp bulb socket.

3.

Remove tail lamp bulb from tail lamp bulb socket.

STOP LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-388, "REAR COMBINATION LAMP (BODY

SIDE) : Removal and Installation"

.

2.

Rotate stop lamp bulb socket counterclockwise, and then remove stop lamp bulb socket.

3.

Remove stop lamp bulb from stop lamp bulb socket.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-388, "REAR COMBINATION LAMP (BODY

SIDE) : Removal and Installation"

.

2.

Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb
socket.

3.

Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

REAR COMBINATION LAMP (BACK DOOR SIDE)

JMLIA4968ZZ

: Clip

JMLIA4969ZZ

EXL-390

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP (BACK DOOR SIDE) : Removal and Installation

INFOID:0000000010789915

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Fully open back door.

2.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

3.

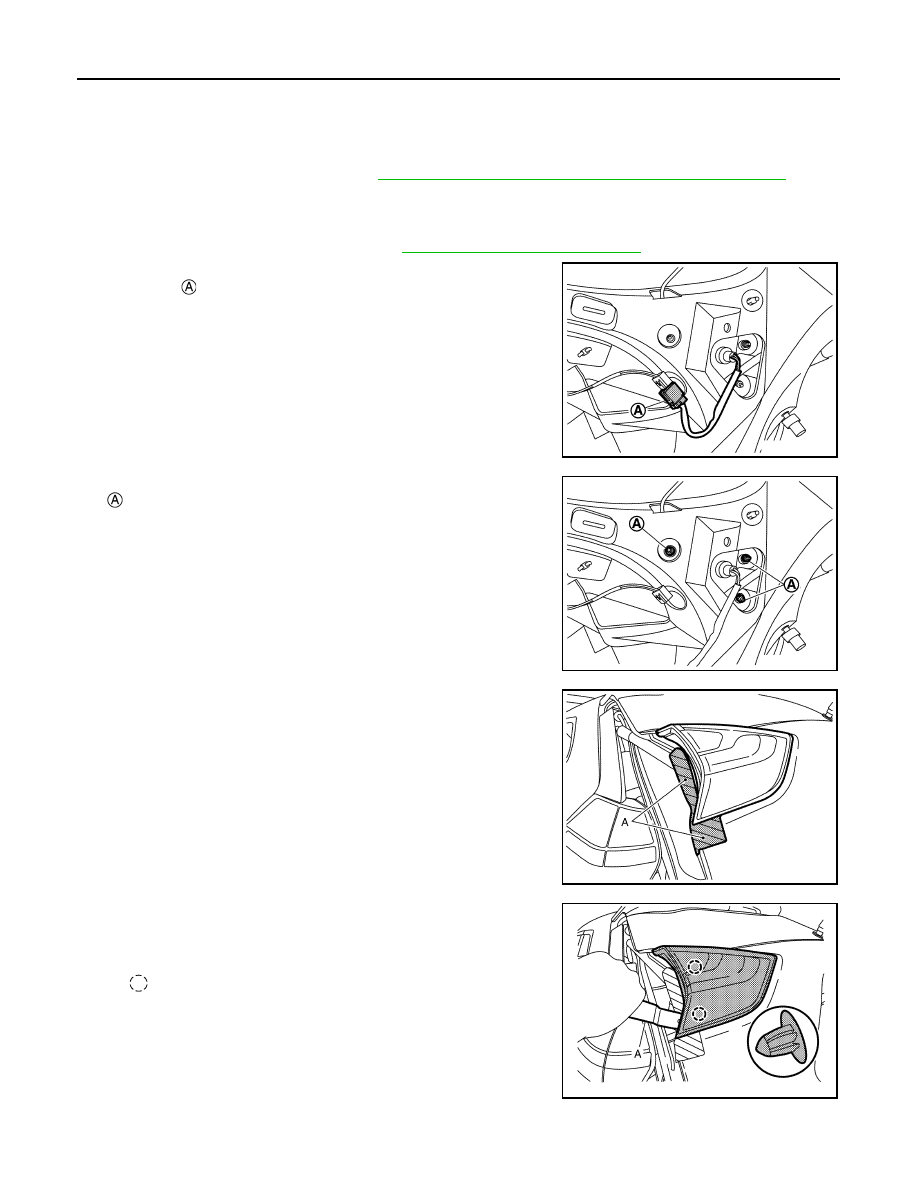

Disconnect rear combination lamp (back door side) harness
connector .

4.

Remove rear combination lamp (back door side) mounting nuts

.

5.

Apply protective tape (A) on the part to protect it from damage.

6.

Disengage rear combination lamp (back door side) fixing clips
using a remover tool (A), and then remove rear combination
lamp (back door side).

INSTALLATION

JMLIA4970ZZ

JMLIA4971ZZ

JMLIA4972ZZ

: Clip

JMLIA4973ZZ

REAR COMBINATION LAMP

EXL-391

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Install in the reverse order of removal.

REAR COMBINATION LAMP (BACK DOOR SIDE) : Replacement

INFOID:0000000010789916

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

1.

Remove rear combination lamp (back door side). Refer to

EXL-390, "REAR COMBINATION LAMP

(BACK DOOR SIDE) : Removal and Installation"

.

2.

Rotate tail lamp bulb socket counterclockwise, and then remove tail lamp bulb socket.

3.

Remove tail lamp bulb from tail lamp bulb socket.

BACK-UP LAMP BULB

1.

Remove rear combination lamp (back door side). Refer to

EXL-390, "REAR COMBINATION LAMP

(BACK DOOR SIDE) : Removal and Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.

EXL-392

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

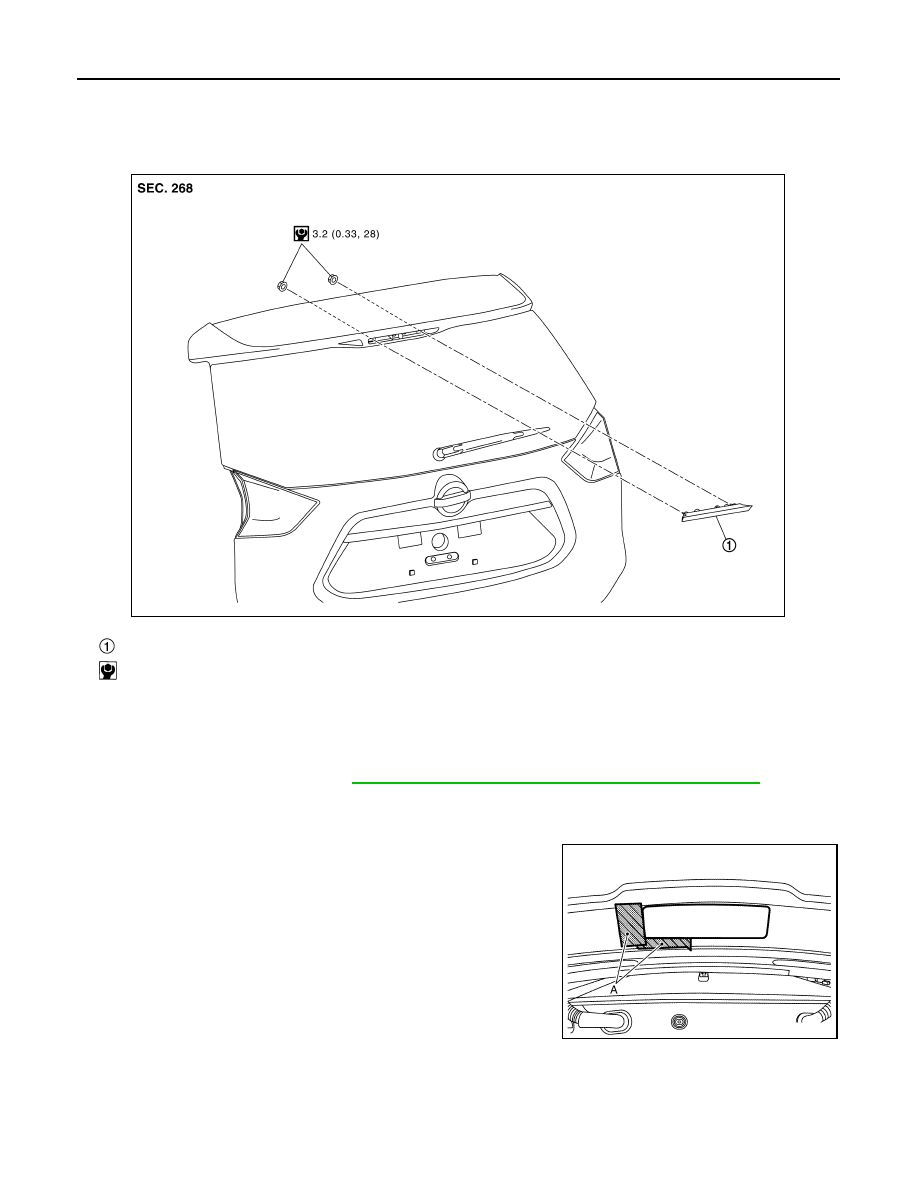

Exploded View

INFOID:0000000010789917

Removal and Installation

INFOID:0000000010789918

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Fully open back door.

2.

Apply protective tapes (A) on the part to protect it from damage.

High-mounted stop lamp

: N·m (kg-m, in-lb)

JMLIA4963GB

JMLIA4974ZZ
