REAR REFLEX REFLECTOR

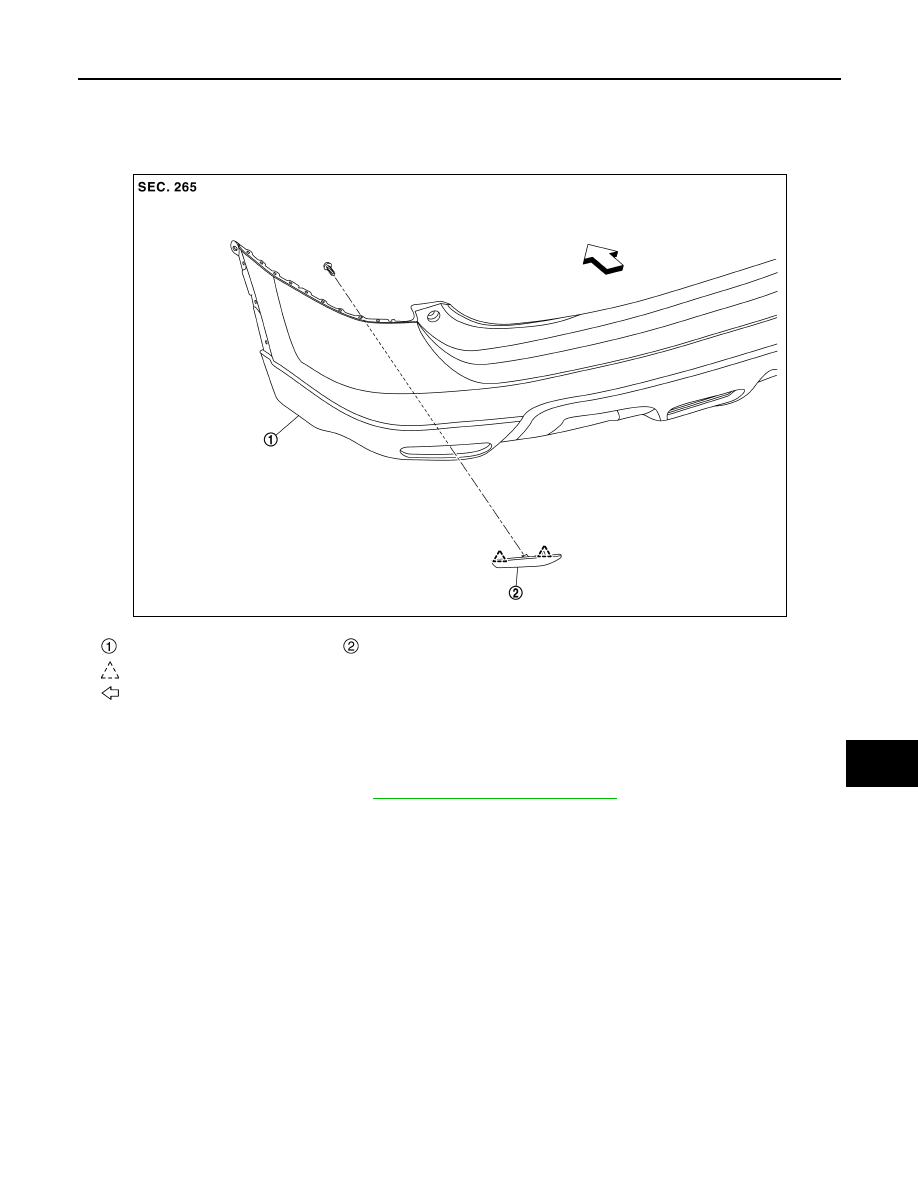

Exploded View

INFOID:0000000010789926

Removal and Installation

INFOID:0000000010789927

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Remove rear reflex reflector fixing screw and pawls, and then remove rear reflex reflector.

INSTALLATION

Install in the reverse order of removal.

Rear bumper fascia

Rear reflex reflector

: Pawl

: Vehicle front

JMLIA4965ZZ

EXL-398

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN HEADLAMP]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000010789928

Bulb Specifications

Item

Type

Wattage (W)

Front combination lamp

Headlamp (Hi)

H9

65

Headlamp (Lo)

H11

55

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

WY21W (Amber)

21

Front fog lamp

H11

55

Side turn signal lamp

LED

—

Rear combination lamp

Stop lamp

W21W

21

Tail lamp

W5W

5

Rear turn signal lamp

WY21W

21

Back-up lamp

W16W

16

Rear fog lamp

W21W

21

License plate lamp

W5W

5

High-mounted stop lamp

LED

—
