REAR COMBINATION LAMP

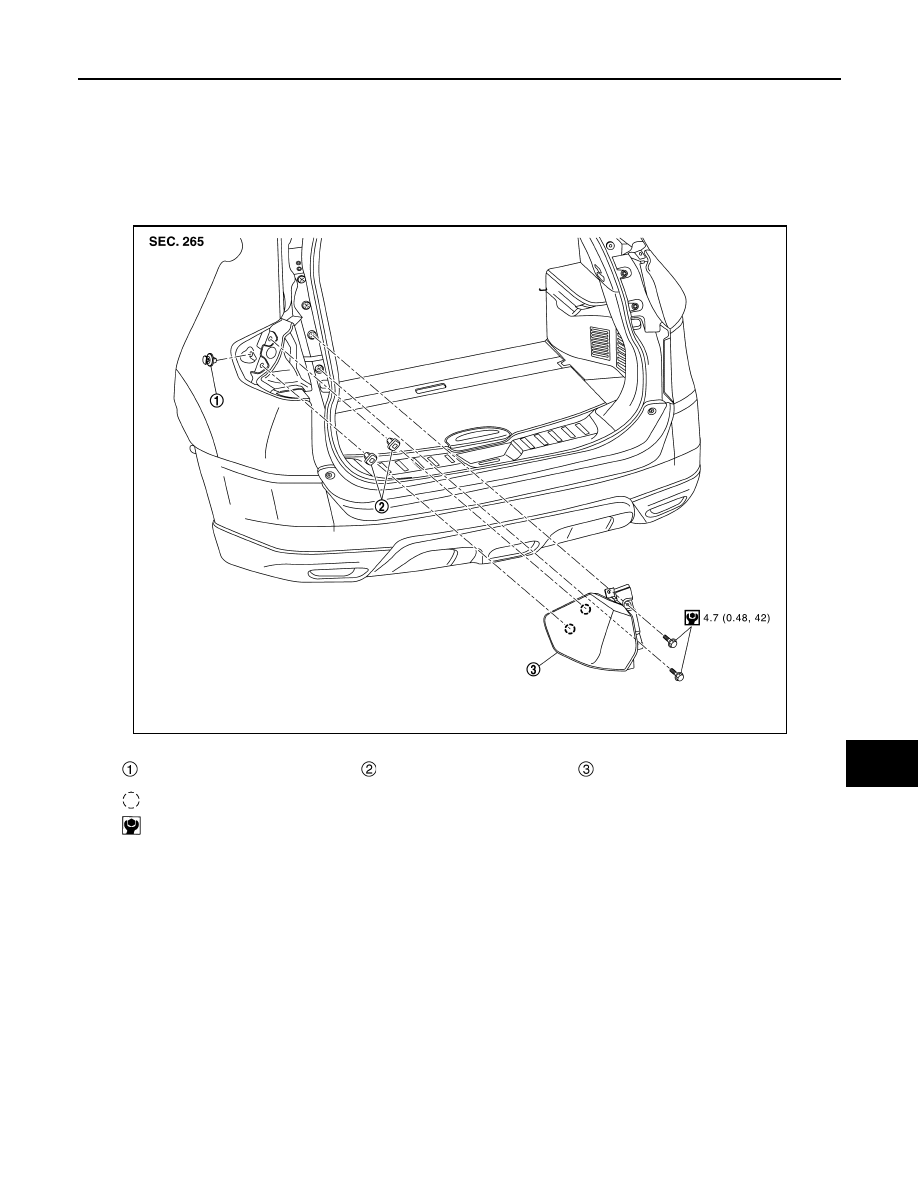

Exploded View

INFOID:0000000010788897

REMOVAL

Body Side

Back Door Side

Clip

Grommet

Rear combination lamp
(body side)

: Clip

: N·m (kg-m, in-lb)

JMLIA4960GB

EXL-202

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

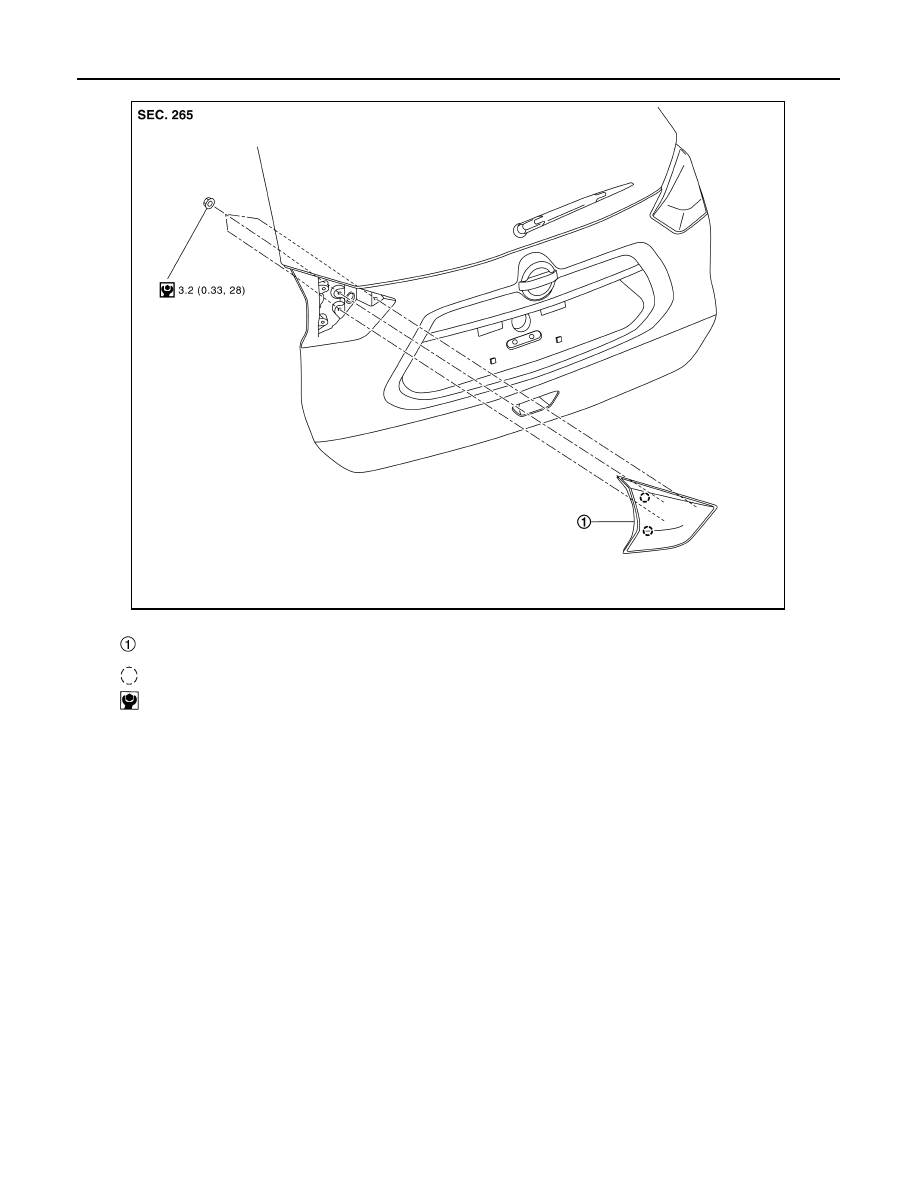

DISASSEMBLY

Rear combination lamp
(back door side)

: Clip

: N·m (kg-m, in-lb)

JMLIA4961GB

REAR COMBINATION LAMP

EXL-203

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP (BODY SIDE)

REAR COMBINATION LAMP (BODY SIDE) : Removal and Installation

INFOID:0000000010788898

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Fully open back door.

2.

Remove rear spoiler. Refer to

EXT-64, "Removal and Installation"

.

3.

Remove rear combination lamp (body side) mounting bolts.

4.

Apply protective tapes (A) on the part to protect it from damage.

5.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

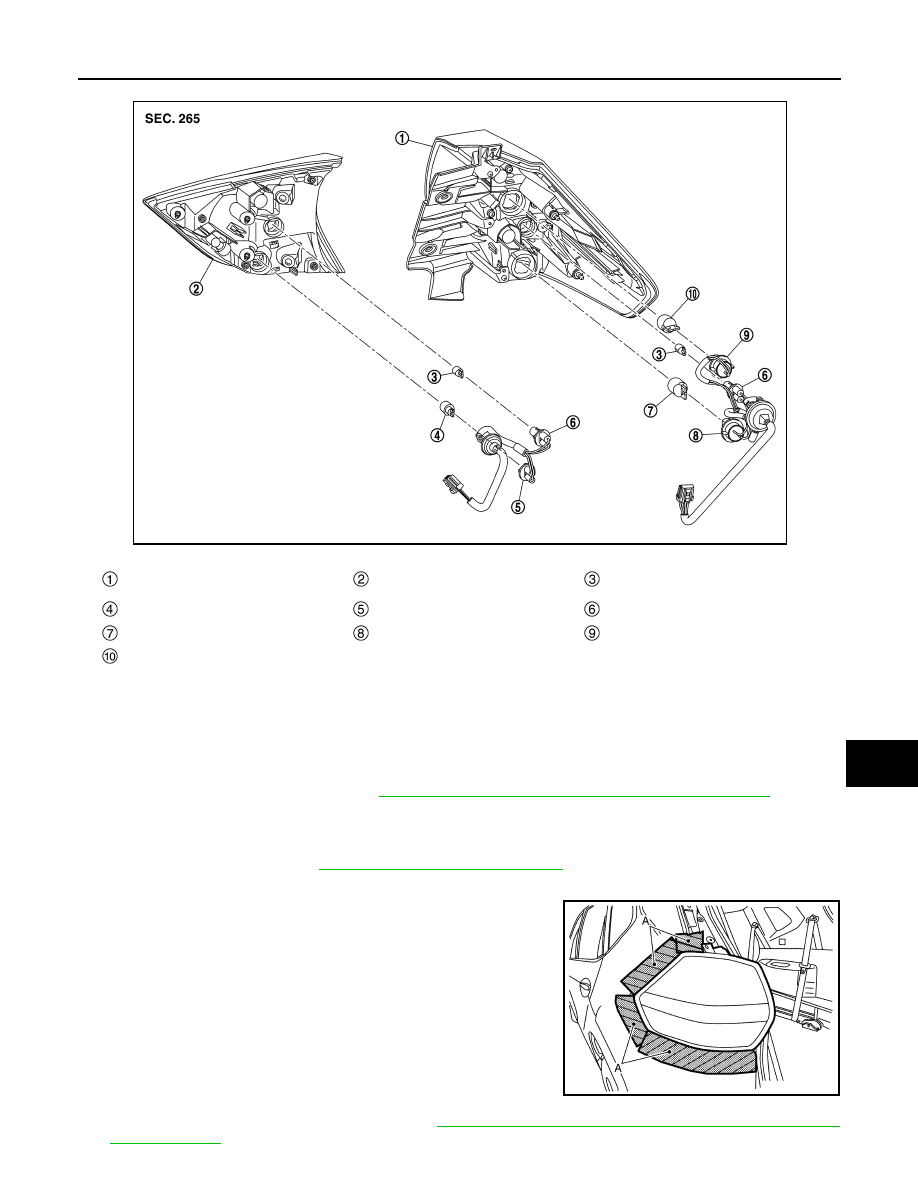

Rear combination lamp
(body side)

Rear combination lamp
(back door side)

Tail lamp bulb

Back-up lamp bulb

Back-up lamp bulb socket

Tail lamp bulb socket

Rear turn signal lamp bulb

Rear turn signal lamp bulb socket

Stop lamp bulb socket

Stop lamp bulb

JMLIA4962ZZ

JMLIA4967ZZ

EXL-204

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

6.

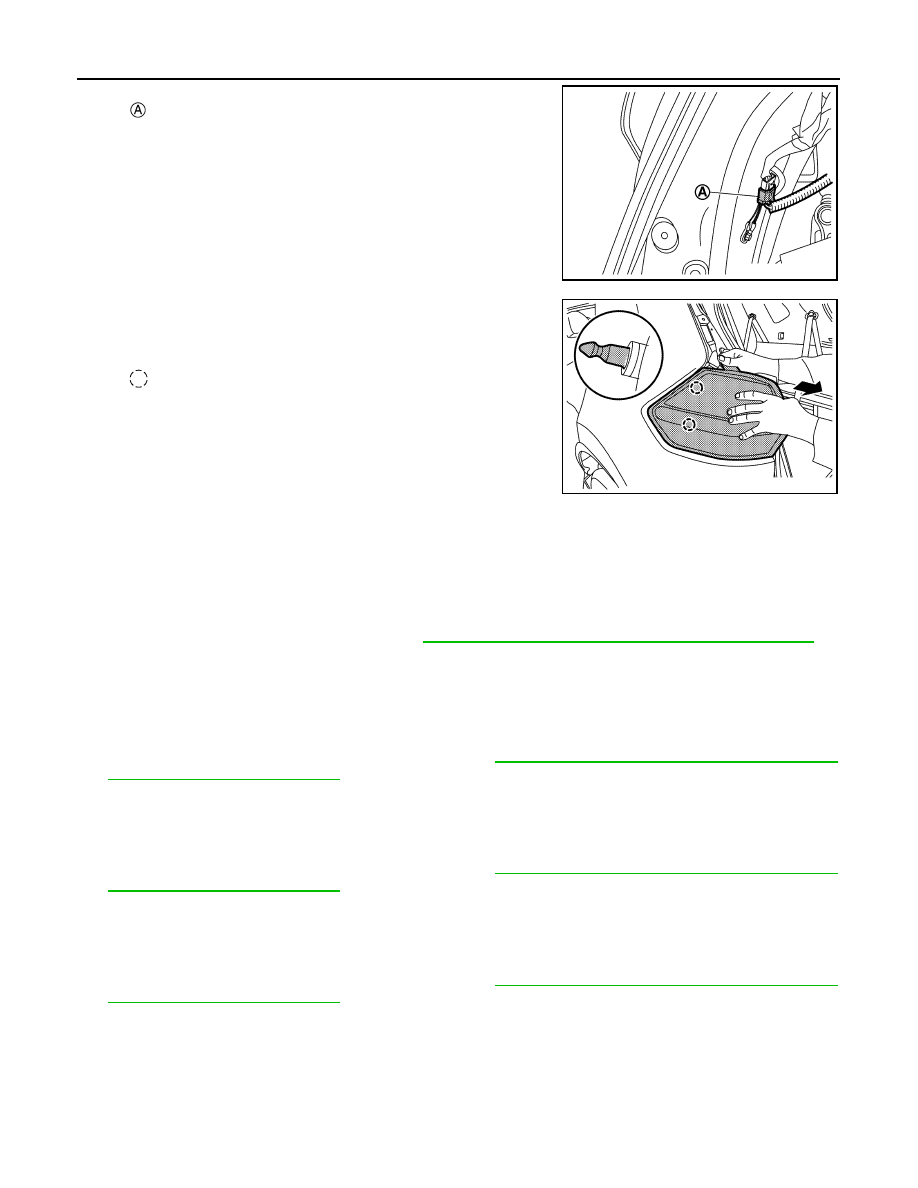

Disconnect rear combination lamp (body side) harness connec-
tor .

7.

Pull rear combination lamp (body side) toward vehicle rear to
disengage fixing clips, and then remove rear combination lamp
(body side).

INSTALLATION

Install in the reverse order of removal.

REAR COMBINATION LAMP (BODY SIDE) : Replacement

INFOID:0000000010788899

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-203, "REAR COMBINATION LAMP (BODY

SIDE) : Removal and Installation"

.

2.

Rotate tail lamp bulb socket counterclockwise, and then remove tail lamp bulb socket.

3.

Remove tail lamp bulb from tail lamp bulb socket.

STOP LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-203, "REAR COMBINATION LAMP (BODY

SIDE) : Removal and Installation"

.

2.

Rotate stop lamp bulb socket counterclockwise, and then remove stop lamp bulb socket.

3.

Remove stop lamp bulb from stop lamp bulb socket.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-203, "REAR COMBINATION LAMP (BODY

SIDE) : Removal and Installation"

.

2.

Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb
socket.

3.

Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

REAR COMBINATION LAMP (BACK DOOR SIDE)

JMLIA4968ZZ

: Clip

JMLIA4969ZZ
