FRONT FOG LAMP

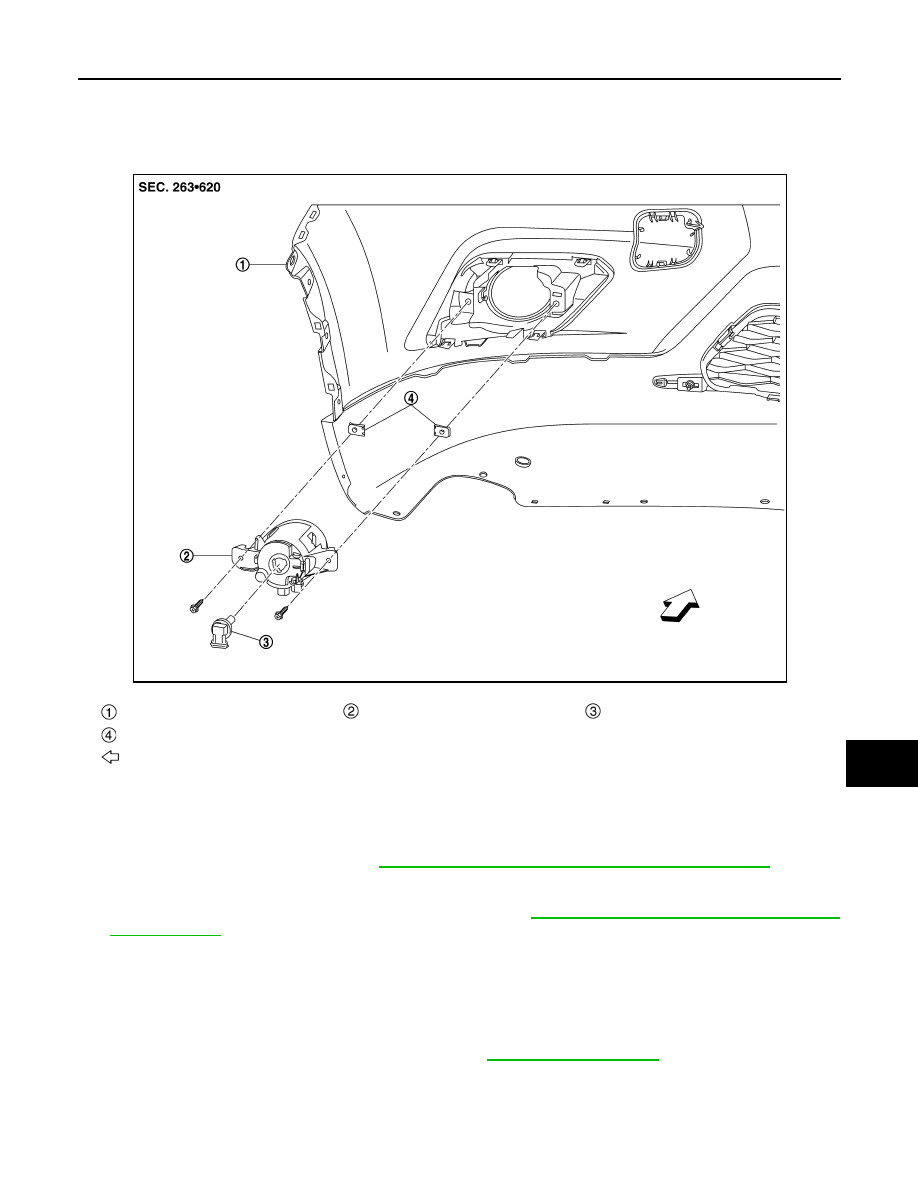

Exploded View

INFOID:0000000010788886

Removal and Installation

INFOID:0000000010788887

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front fender protector to make work space. Refer to

EXT-35, "FENDER PROTECTOR : Removal

and Installation"

.

2.

Disconnect front fog lamp harness connector.

3.

Remove front fog lamp fixing screws, and then remove front fog lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to

EXL-189, "Description"

.

Replacement

INFOID:0000000010788888

CAUTION:

Front bumper fascia

Front fog lamp

Front fog lamp bulb

Spring nut

: Vehicle front

JMLIA4947ZZ

EXL-194

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT FOG LAMP

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove fender protector to make work space. Refer to

EXT-35, "FENDER PROTECTOR : Removal and

Installation"

.

2.

Disconnect front fog lamp harness connector

.

3.

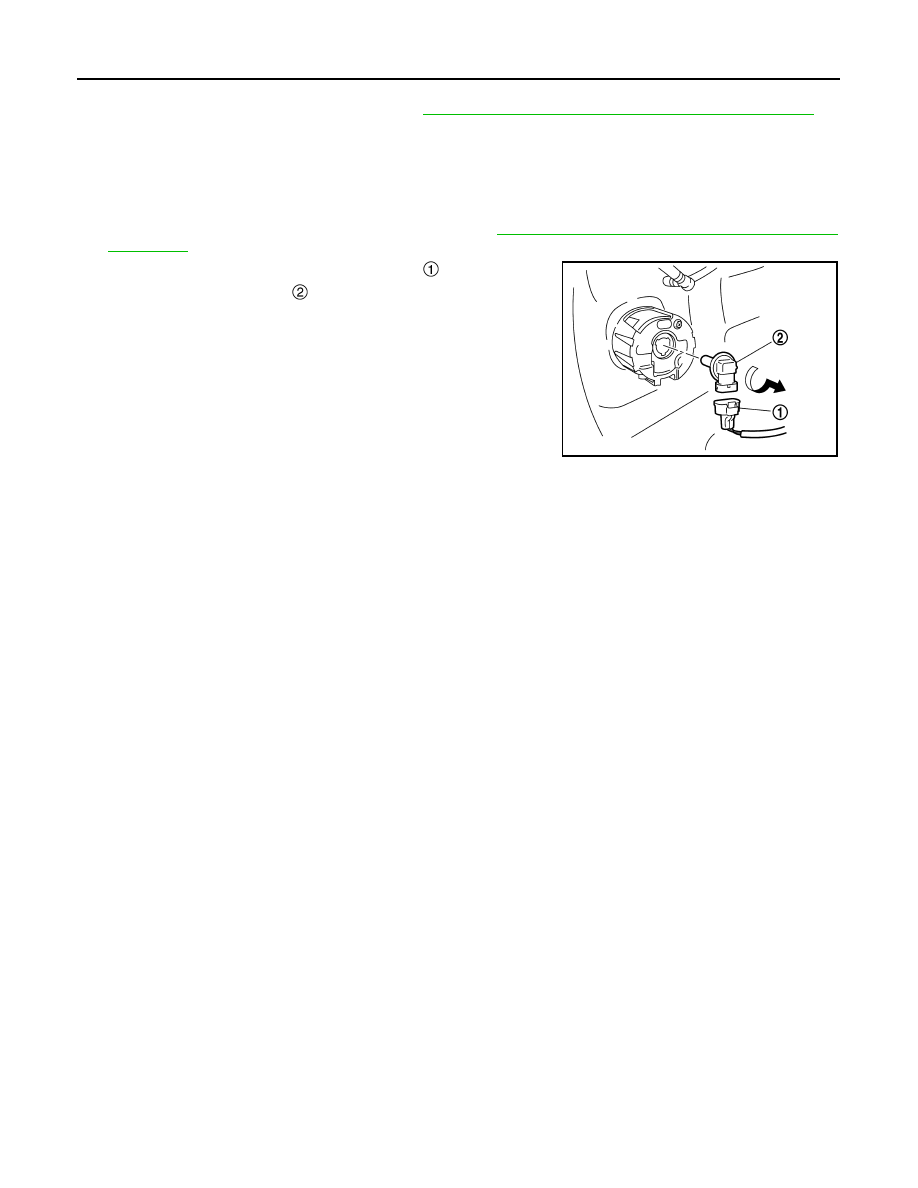

Rotate front fog lamp bulb

 counterclockwise and unlock it.

JPLIA0345ZZ
