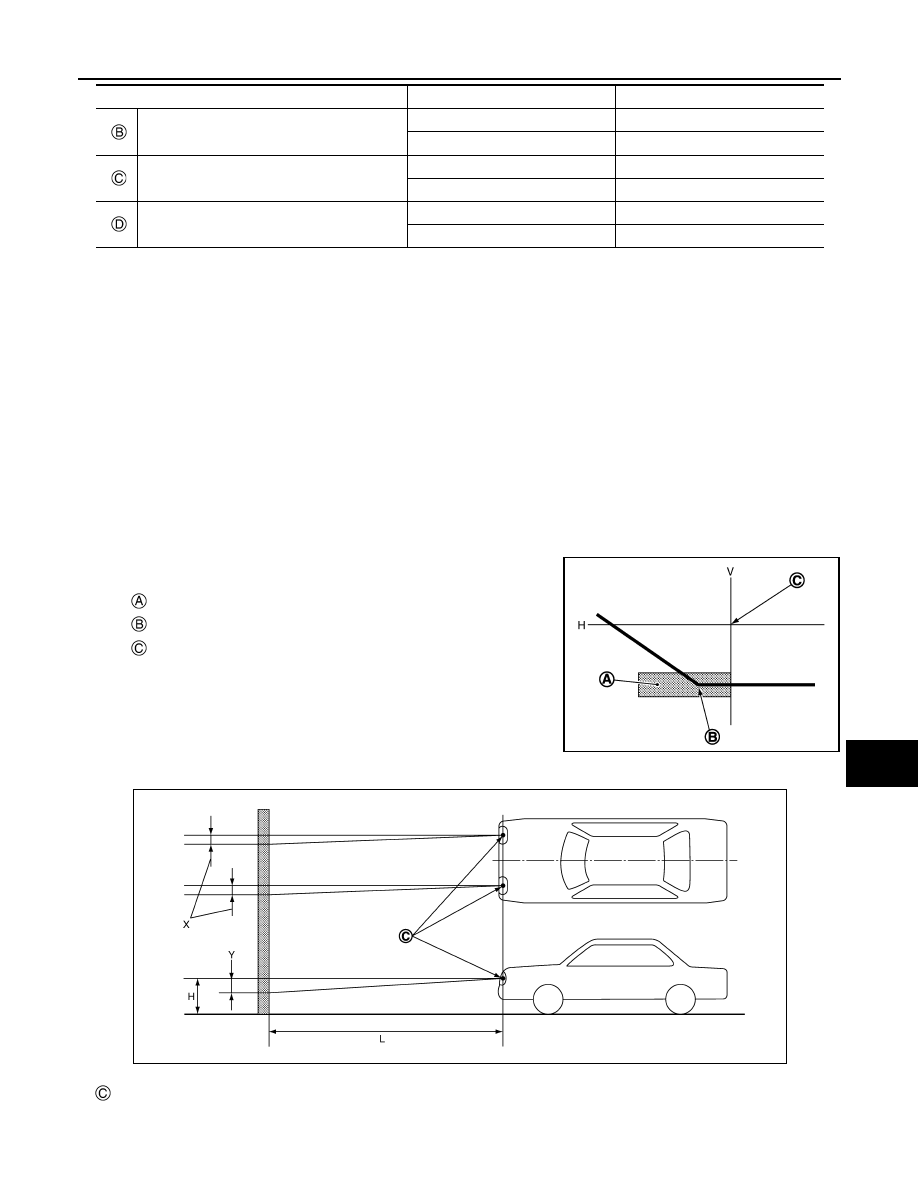

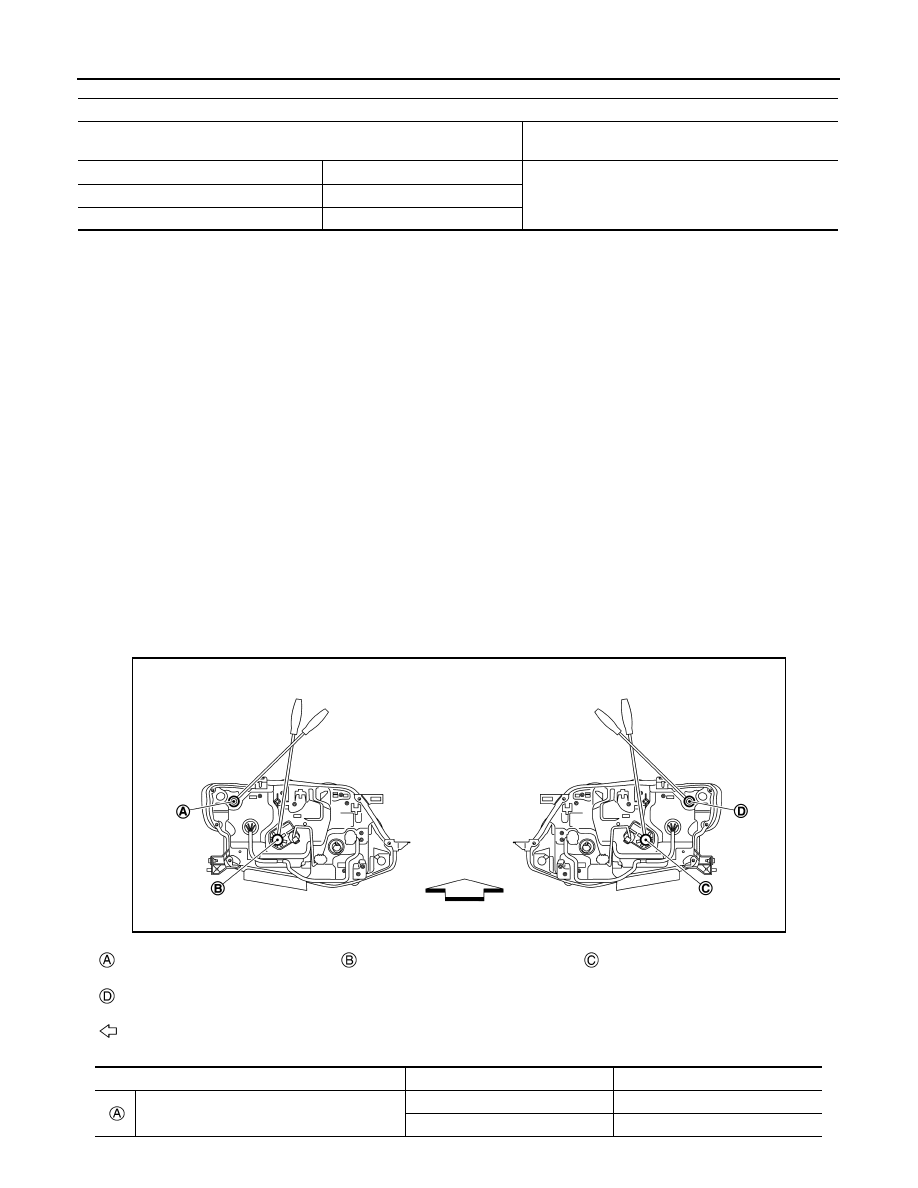

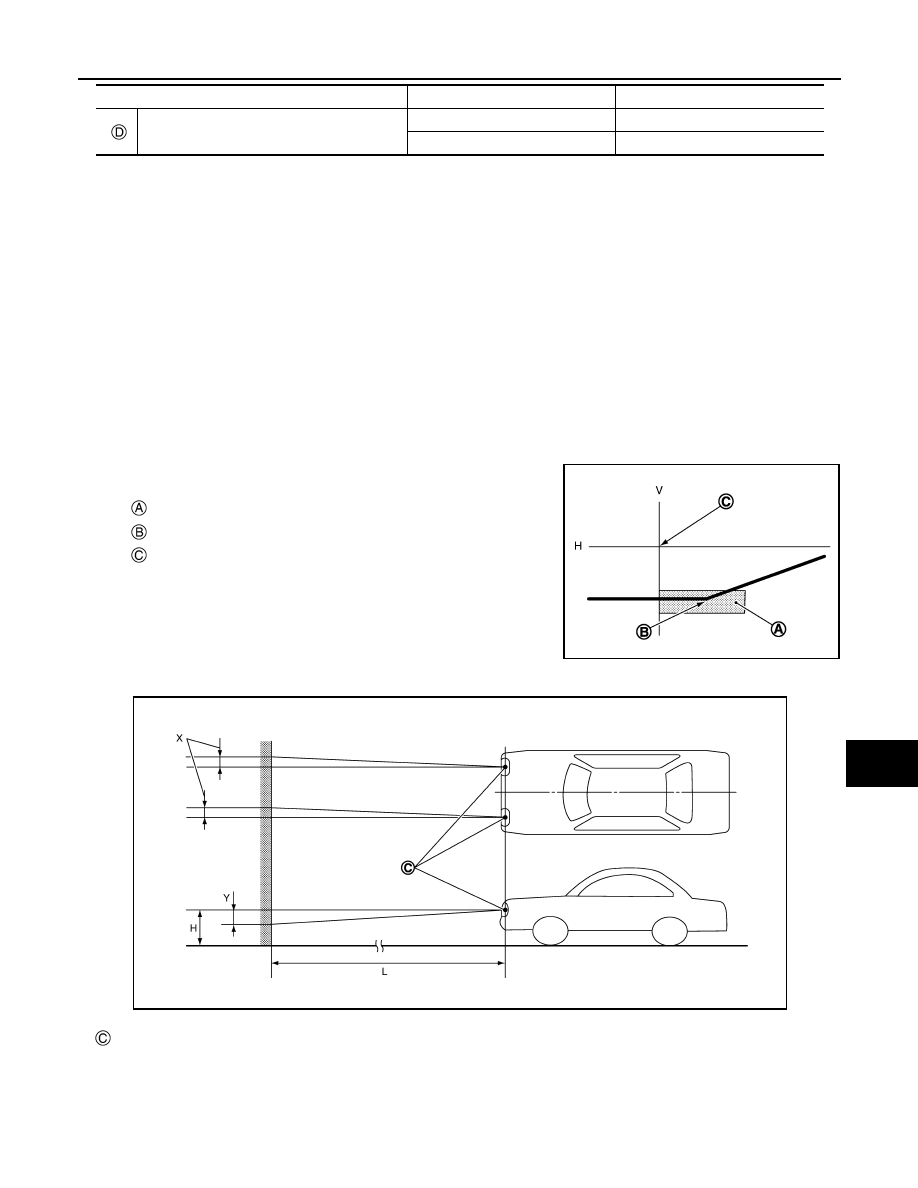

HEADLAMP AIMING ADJUSTMENT EXL-185 < PERIODIC MAINTENANCE > [LED HEADLAMP] C D E F G H I J K M A B EXL N O P LHD MODELS : Aiming Adjustment Procedure INFOID:0000000010788877 1. Place the screen. 2. Face the vehicle squarely toward the screen and make the distance between the headlamp center and 3. Start the engine and illuminate the headlamp (LO). CAUTION: Never cover lens surface with tape, etc. because it is made from plastic. 4. Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so Headlamp RH (INSIDE/OUTSIDE) Clockwise INSIDE Counterclockwise OUTSIDE Adjustment screw Screwdriver rotation Facing direction Aiming adjustment area Elbow point Headlamp center H. Horizontal center line of headlamp V. Vertical center line of headlamp JSLIA0030ZZ Vertical center line of headlamp H. Horizontal center line of headlamp L. Distance from headlamp center to screen X. Aiming adjustment area Y. Aiming adjustment area Distance from headlamp center to screen (L) : 10 m (32.8 ft) JSLIA0031ZZ |
