BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

EXL-181

< SYMPTOM DIAGNOSIS >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

INFOID:0000000010788870

Both side headlamps (LO) are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000010788871

1.

CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-119, "Symptom Table"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK LOW BEAM REQUEST SIGNAL

With CONSULT

1.

Select “LOW BEAM REQ” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

2.

With operating the lighting switch, check the monitor status.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

Monitor item

Condition

Monitor status

LOW BEAM REQ

Lighting switch

2ND

On

OFF

Off

EXL-182

< SYMPTOM DIAGNOSIS >

[LED HEADLAMP]

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000010788872

The parking, license plate and tail lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000010788873

1.

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

BCS-119, "Symptom Table"

.

Is the combination switch normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK POSITION LIGHT REQUEST SIGNAL

With CONSULT

1.

Select “POSITION LIGHT REQ” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

2.

With operating the lighting switch, check the monitor status.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

Monitor item

Condition

Monitor status

POSITION LIGHT REQ

Lighting switch

1ST

On

OFF

Off

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

EXL-183

< SYMPTOM DIAGNOSIS >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000010788874

Both side front fog lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000010788875

1.

COMBINATION SWITCH INSPECTION

Check combination switch. Refer to

BCS-119, "Symptom Table"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LIGHT REQUEST SIGNAL

With CONSULT

1.

Select “FRONT FOG LAMP REQ” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

2.

With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

Monitor item

Condition

Monitor status

FRONT FOG LAMP REQ

Front fog lamp switch
(With lighting switch 1ST)

ON

On

OFF

Off

EXL-184

< PERIODIC MAINTENANCE >

[LED HEADLAMP]

HEADLAMP AIMING ADJUSTMENT

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

LHD MODELS

LHD MODELS : Description

INFOID:0000000010788876

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.
• Perform aiming adjustment if the vehicle front body has been repaired and/or the headlamp assembly has

been replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the lug-

gage room.)
NOTE:
Never remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.).

• Ride alone on the driver seat.

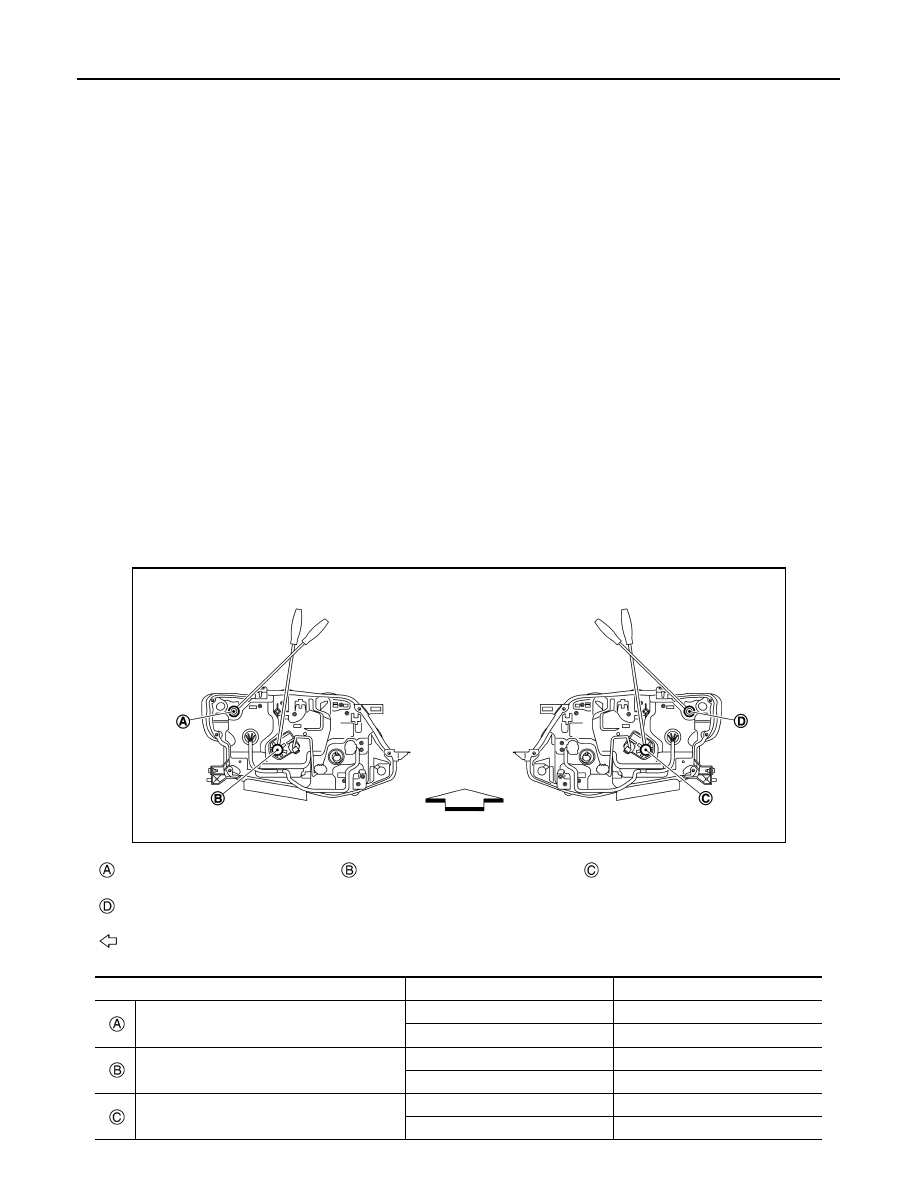

AIMING ADJUSTMENT SCREW

JMLIA4942ZZ

Headlamp LH (INSIDE/OUTSIDE)
adjustment screw

Headlamp LH (UP/DOWN)
adjustment screw

Headlamp RH (UP/DOWN)
adjustment screw

Headlamp RH (INSIDE/OUTSIDE)
adjustment screw

: Vehicle front

Adjustment screw

Screwdriver rotation

Facing direction

Headlamp LH (INSIDE/OUTSIDE)

Clockwise

INSIDE

Counterclockwise

OUTSIDE

Headlamp LH (UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN

Headlamp RH (UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN
