FRONT FOG LAMP AIMING ADJUSTMENT

Description

INFOID:0000000010788880

PREPARATION BEFORE ADJUSTING

NOTE:
For details, refer to the regulations in your own country.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the lug-

gage room.)
NOTE:
Never remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.).

• Ride alone on the driver seat.

AIMING ADJUSTMENT SCREW

• Turn the aiming adjusting screw for adjustment.

Aiming Adjustment Procedure

INFOID:0000000010788881

1.

Place the screen.
NOTE:
• Stop the vehicle facing the wall.
• Place the board on a plain road vertically.

2.

Face the vehicle with the screen. Maintain 10 m (32.8 ft) between the front fog lamp center and the
screen.

3.

Start the engine. Turn the front fog lamp ON.

CAUTION:

Never cover the lens surface with a tape etc. The lens is made of resin.
NOTE:
Shut off the headlamp light with the board to prevent from illuminating the adjustment screen.

4.

Adjust the cutoff line height

 with the aiming adjustment screw so that the distance (X) between the hor-

izontal center line of front fog lamp (H) and

 becomes 150 mm (5.90 in).

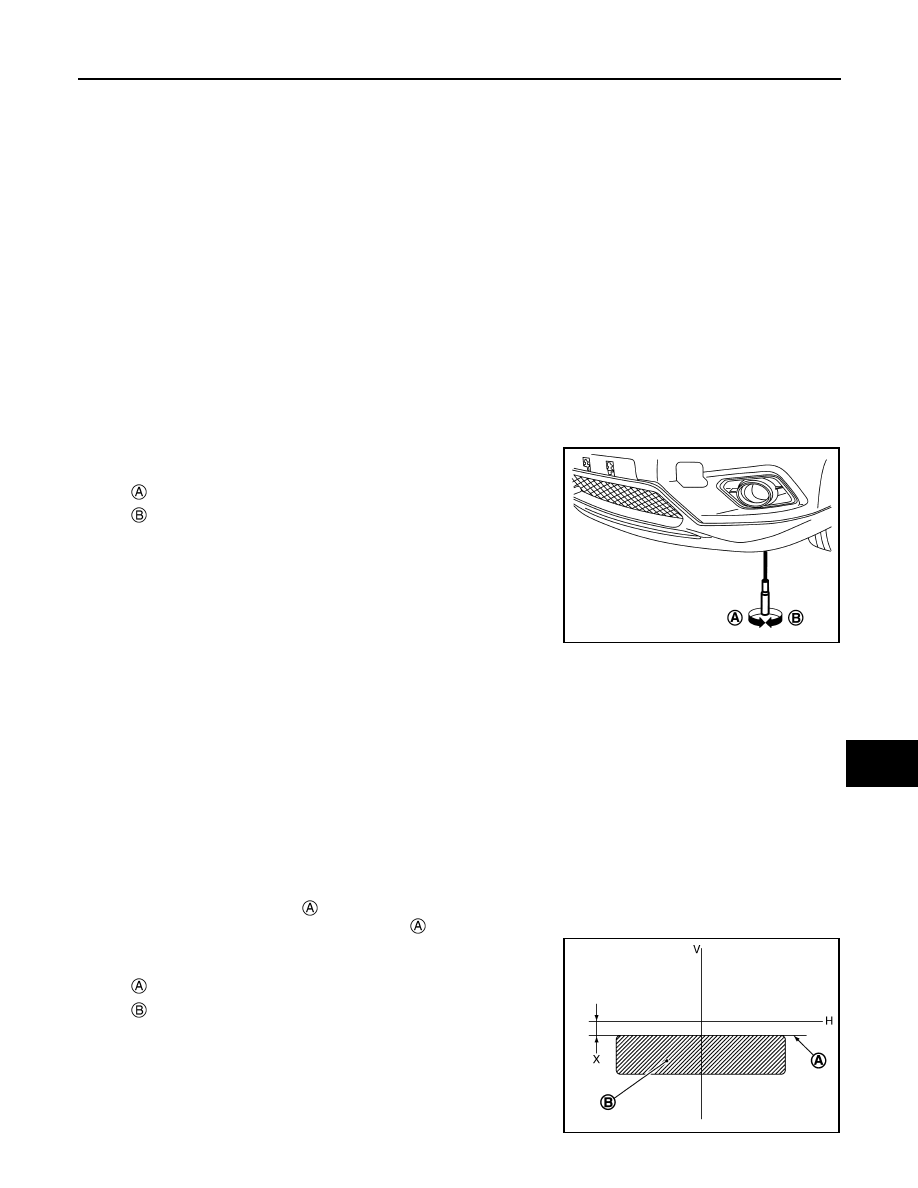

Front fog lamp light distribution on the screen

: DOWN

: UP

JMLIA4843ZZ

: Cutoff line

: High illuminance area

H

: Horizontal center line of front fog lamp

V

: Vertical center line of front fog lamp

X

: Cutoff line height

JPLIA0008ZZ

EXL-190

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

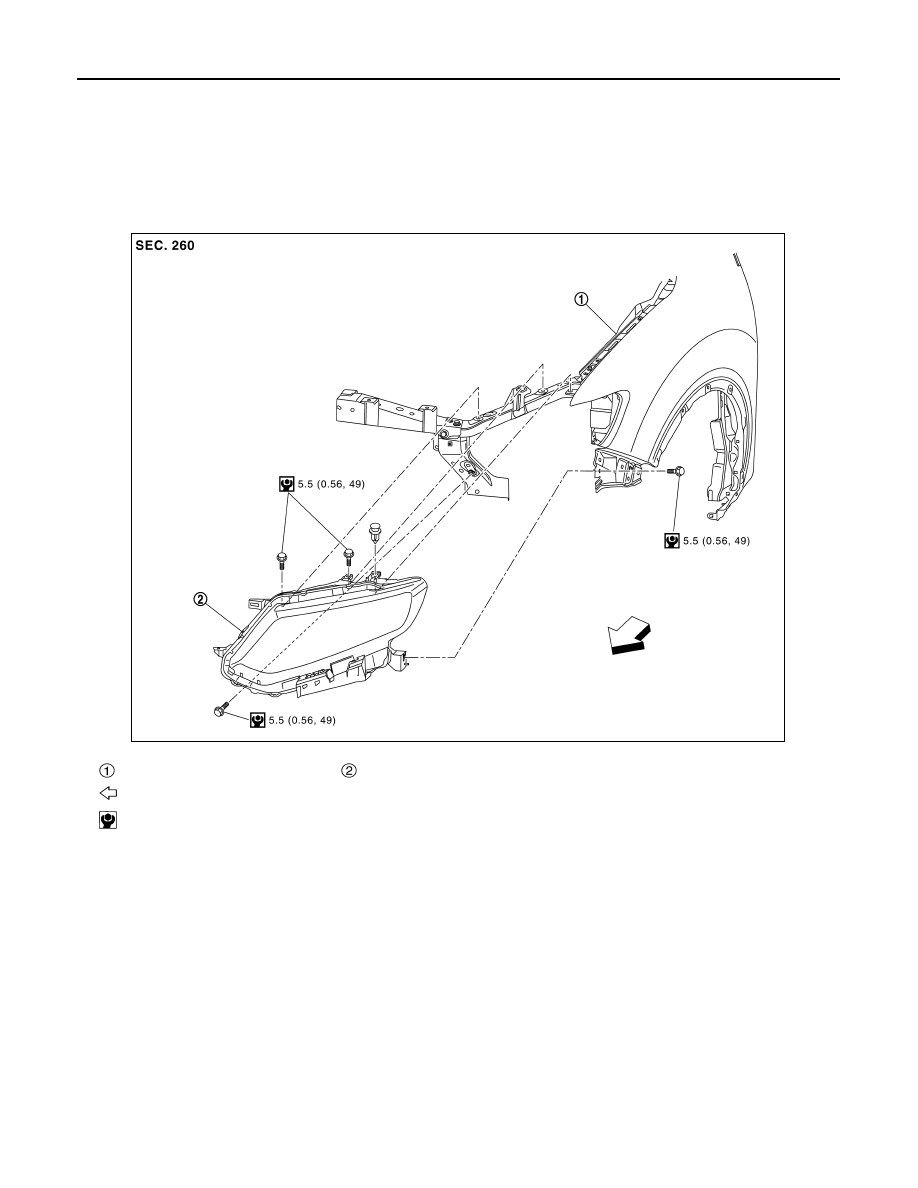

Exploded View

INFOID:0000000010788882

REMOVAL

DISASSEMBLY

Front fender panel

Front combination lamp

: Vehicle front

: N·m (kg-m, in-lb)

JMLIA4944GB

FRONT COMBINATION LAMP

EXL-191

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal and Installation

INFOID:0000000010788883

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

2.

Remove front combination lamp mounting bolts and clip.

3.

Remove harness clip of front combination lamp bracket.

4.

Pull out front combination lamp forward the vehicle.

5.

Disconnect front combination lamp harness connectors and then remove front combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to the following.
• LHD MODELS: Refer to

EXL-184, "LHD MODELS : Description"

.

• RHD MODELS: Refer to

EXL-186, "RHD MODELS : Description"

.

Replacement

INFOID:0000000010788884

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the bulb socket securely for watertightness.

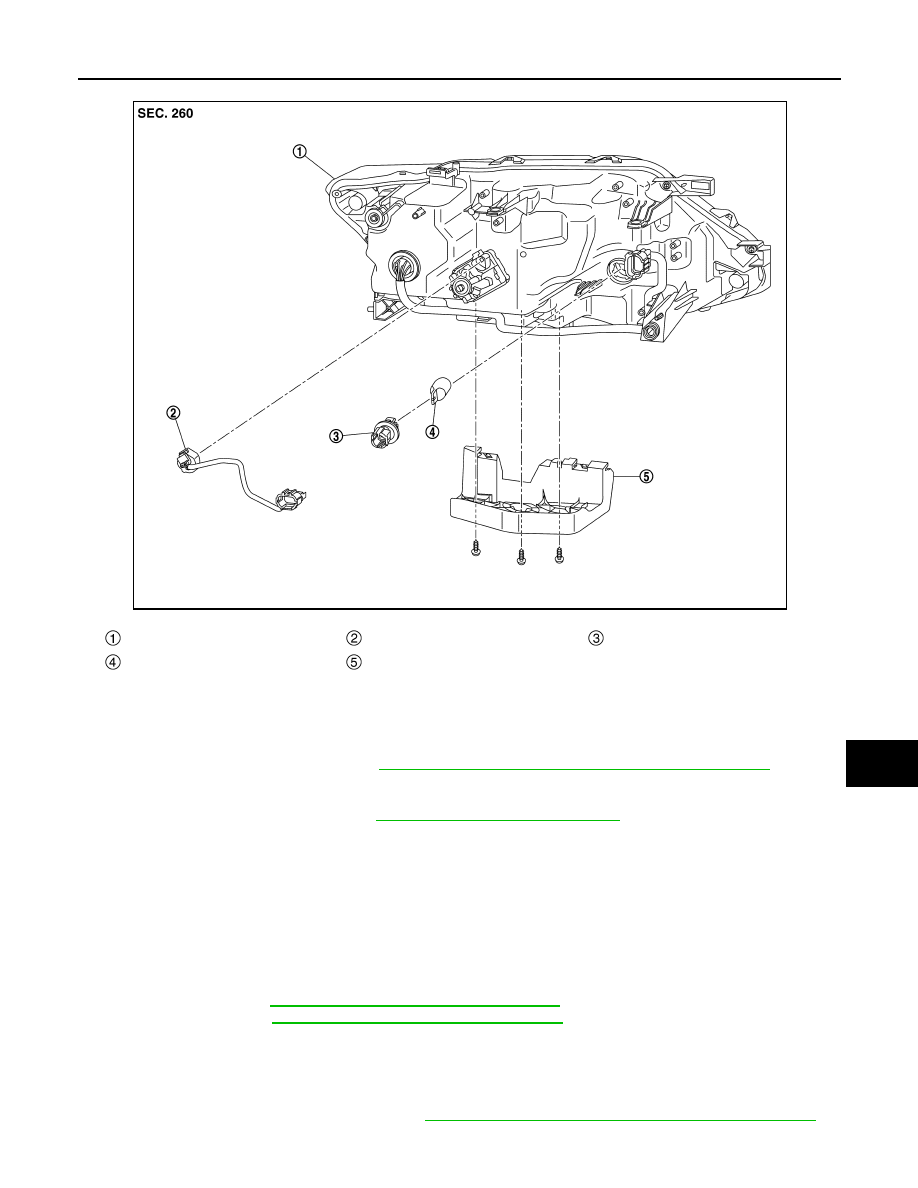

Front combination lamp housing

Front combination lamp harness

Front turn signal lamp bulb socket

Front turn signal lamp bulb

Front combination lamp bracket

JMLIA4945ZZ

EXL-192

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (HI)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
front combination lamp as a set. Refer to

EXL-191, "Removal and Installation"

.

HEADLAMP BULB (LO)

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
front combination lamp as a set. Refer to

EXL-191, "Removal and Installation"

.

DAYTIME RUNNING LIGHT/ PARKING LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
front combination lamp as a set. Refer to

EXL-191, "Removal and Installation"

.

FRONT TURN SIGNAL LAMP BULB

LH side

1.

Remove air duct 1. Refer to the following.
• MR20DD: Refer to

EM-31, "Removal and Installation"

.

• QR25DE: Refer to

EM-175, "Removal and Installation"

.

• R9M: Refer to

EM-308, "Removal and Installation"

.

2.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

3.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

RH side

1.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

2.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

Disassembly and Assembly

INFOID:0000000010788885

DISASSEMBLY

1.

Remove front combination lamp bracket fixing screws, and then remove front combination lamp bracket.

2.

Disconnect front combination lamp harness.

3.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

4.

Remove front turn signal lamp bulb from front turn signal lamp bulb socket.

ASSEMBLY

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installing the bulb, install the bulb socket securely watertightness.
• After installation, perform aiming adjustment. Refer to following.
- LHD MODELS: Refer to

EXL-184, "LHD MODELS : Description"

.

- RHD MODELS: Refer to

EXL-186, "RHD MODELS : Description"

.
