HAZARD SWITCH

EXL-197

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Removal and Installation

INFOID:0000000010788891

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

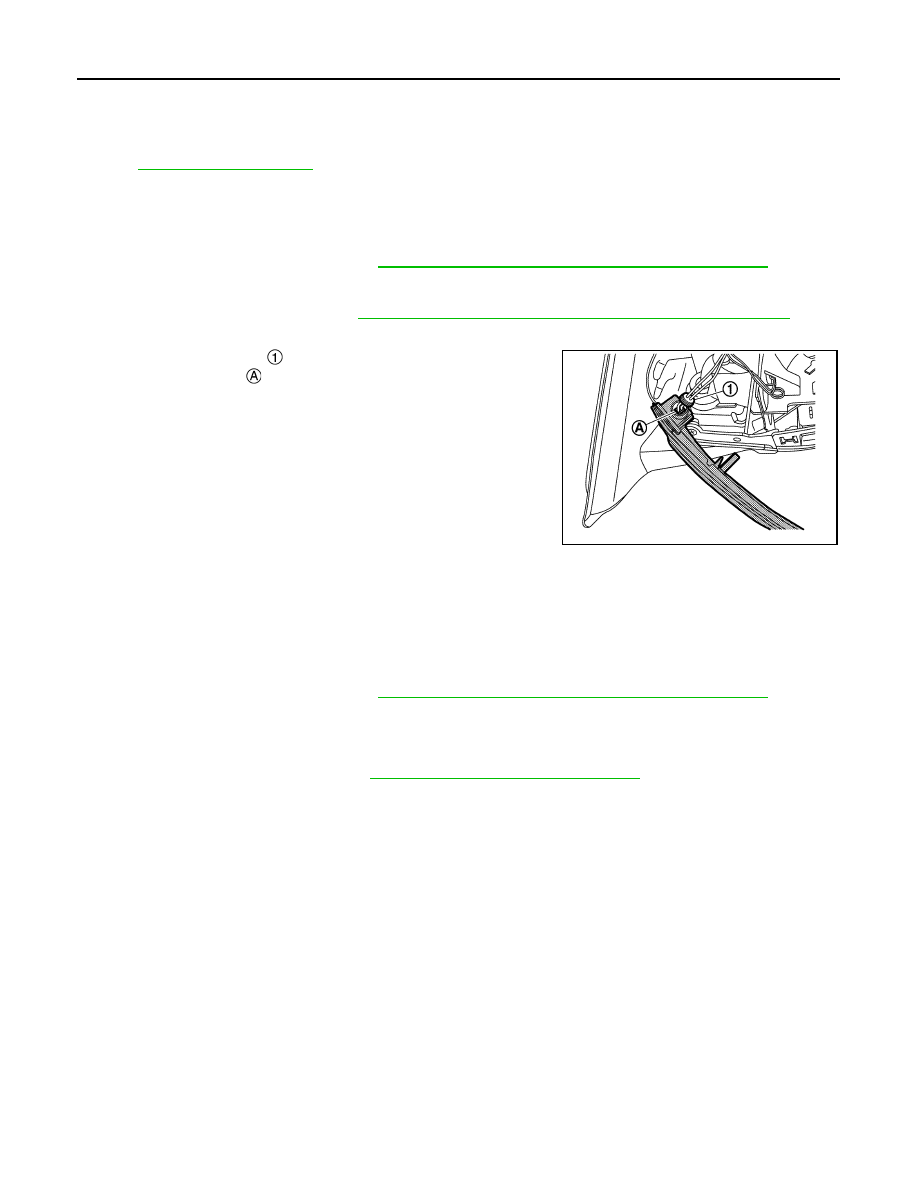

REMOVAL

1.

Remove center ventilator grille. Refer to following.
• LHD MODELS: Refer to

IP-14, "Removal and Installation"

.

• RHD MODELS: Refer to

IP-41, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove hazard switch from center ventilator grille.

INSTALLATION

Install in the reverse order of removal.

EXL-198

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000010788892

Refer to

MIR-27, "Exploded View"

.

Removal and Installation

INFOID:0000000010788893

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove door mirror cover. Refer to

MIR-30, "DOOR MIRROR COVER : Removal and Installation"

.

2.

Remove side turn signal lamp fixing screws.

3.

Remove seal packing

 and disconnect side turn signal lamp

harness connector

, and then remove side turn signal lamp

from door mirror housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010788894

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

SIDE TURN SIGNAL LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
side turn signal lamp as a set. Refer to

EXL-198, "Removal and Installation"

.

JMLIA4978ZZ

HEIGHT SENSOR

EXL-199

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEIGHT SENSOR

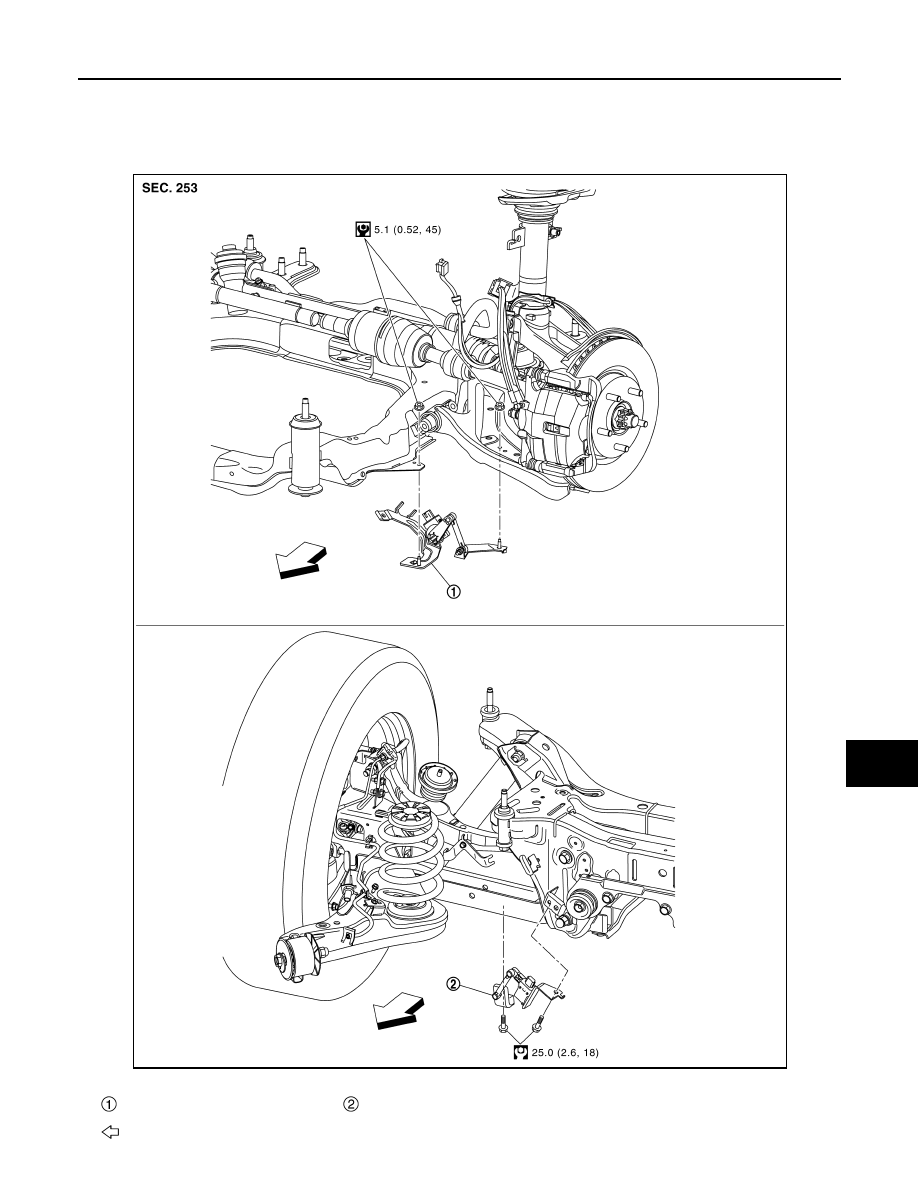

Exploded View

INFOID:0000000010788895

Front height sensor
(with 3 row seat models)

Rear height sensor

: Vehicle front

JMLIA4950GB

EXL-200

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

HEIGHT SENSOR

FRONT HEIGHT SENSOR

FRONT HEIGHT SENSOR : Removal and Installation

INFOID:0000000011008443

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Disconnect front height sensor harness connector.

2.

Remove front height sensor mounting nuts, and then remove rear height sensor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be sure to perform

″

SENSOR INITIALIZE

″

 when removing the rear height sensor. Refer to

EXL-99,

"Description"

.

REAR HEIGHT SENSOR

REAR HEIGHT SENSOR : Removal and Installation

INFOID:0000000010788896

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Disconnect rear height sensor harness connector.

2.

Remove rear height sensor mounting bolts, and then remove rear height sensor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be sure to perform

″

SENSOR INITIALIZE

″

 when removing the rear height sensor. Refer to

EXL-99,

"Description"

.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)
