REAR COMBINATION LAMP

EXL-205

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP (BACK DOOR SIDE) : Removal and Installation

INFOID:0000000010788900

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Fully open back door.

2.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

3.

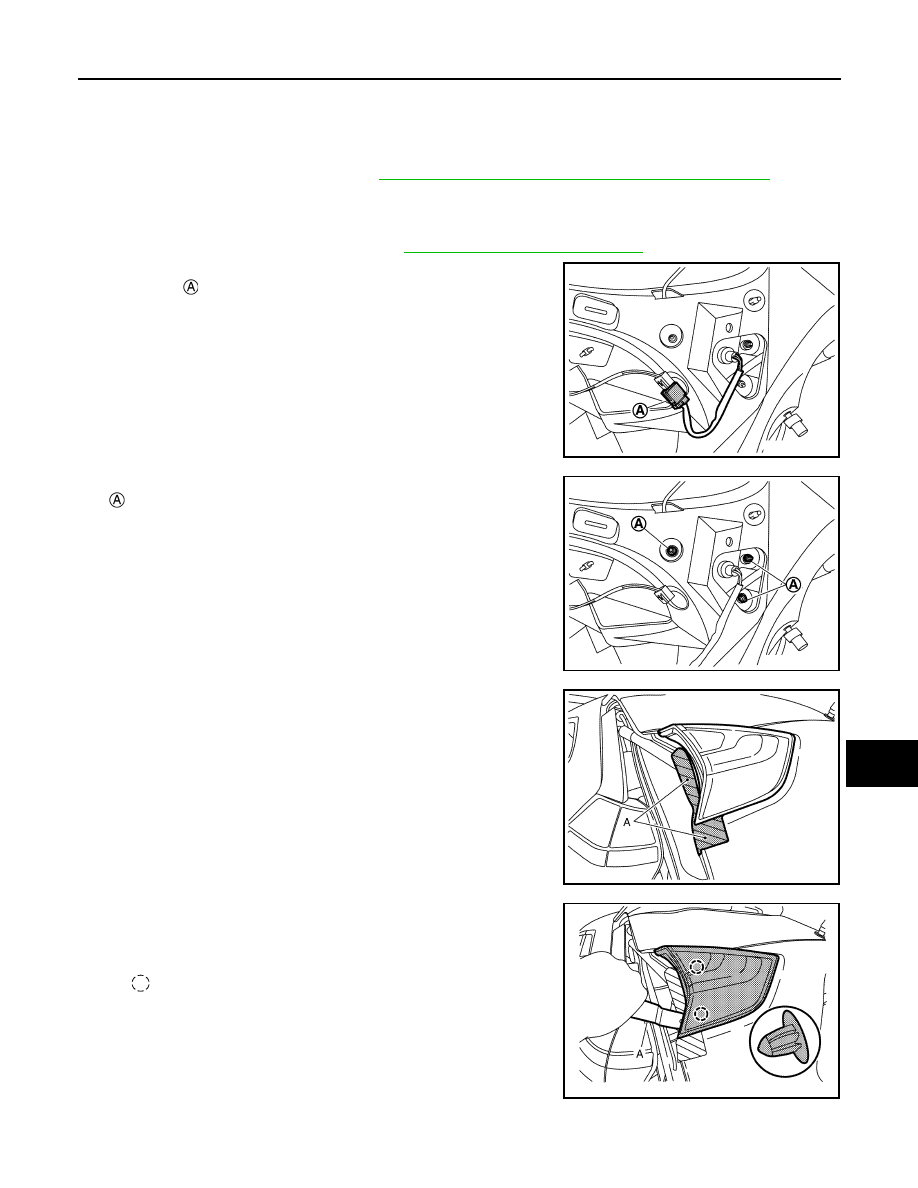

Disconnect rear combination lamp (back door side) harness
connector .

4.

Remove rear combination lamp (back door side) mounting nuts

.

5.

Apply protective tape (A) on the part to protect it from damage.

6.

Disengage rear combination lamp (back door side) fixing clips
using a remover tool (A), and then remove rear combination
lamp (back door side).

INSTALLATION

JMLIA4970ZZ

JMLIA4971ZZ

JMLIA4972ZZ

: Clip

JMLIA4973ZZ

EXL-206

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

REAR COMBINATION LAMP

Install in the reverse order of removal.

REAR COMBINATION LAMP (BACK DOOR SIDE) : Replacement

INFOID:0000000010788901

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

TAIL LAMP BULB

1.

Remove rear combination lamp (back door side). Refer to

EXL-205, "REAR COMBINATION LAMP

(BACK DOOR SIDE) : Removal and Installation"

.

2.

Rotate tail lamp bulb socket counterclockwise, and then remove tail lamp bulb socket.

3.

Remove tail lamp bulb from tail lamp bulb socket.

BACK-UP LAMP BULB

1.

Remove rear combination lamp (back door side). Refer to

EXL-205, "REAR COMBINATION LAMP

(BACK DOOR SIDE) : Removal and Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.

HIGH-MOUNTED STOP LAMP

EXL-207

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

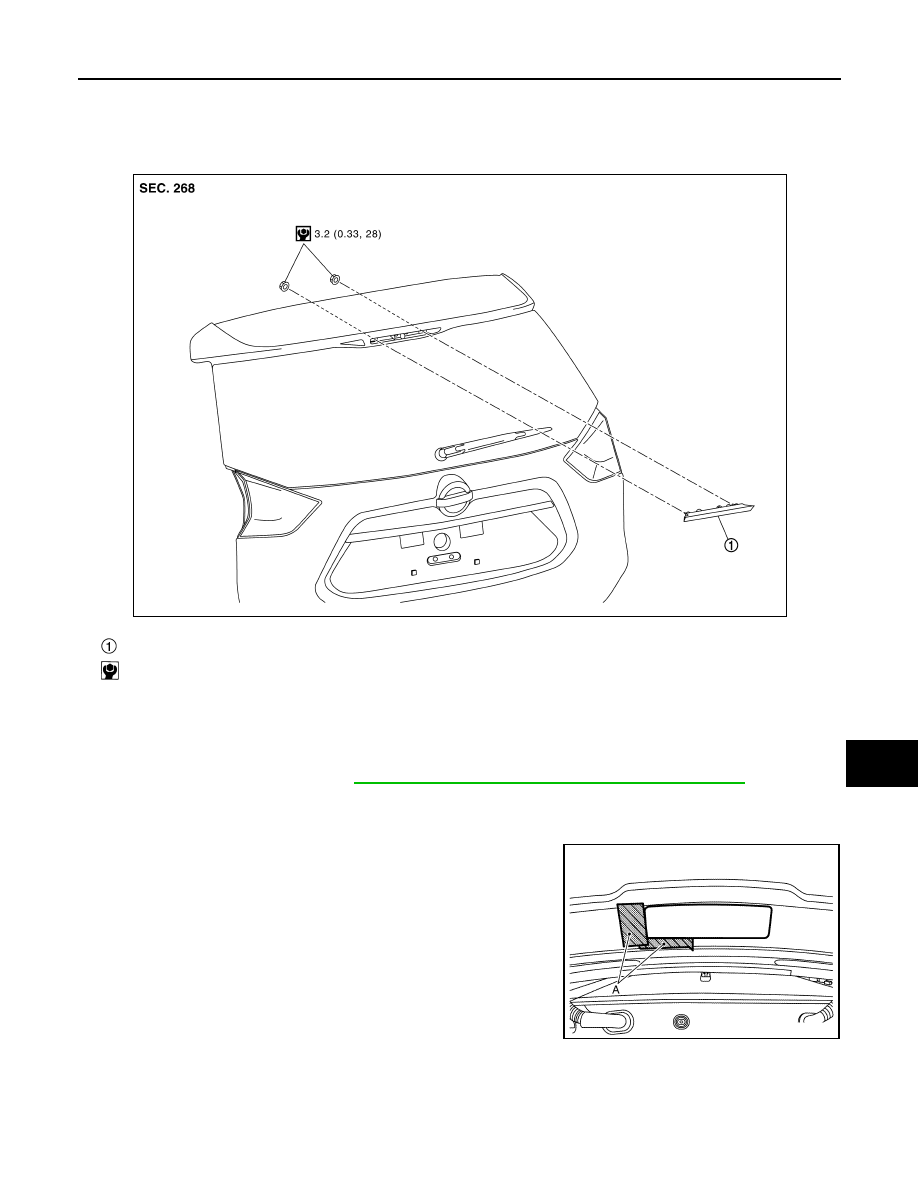

Exploded View

INFOID:0000000010788902

Removal and Installation

INFOID:0000000010788903

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Fully open back door.

2.

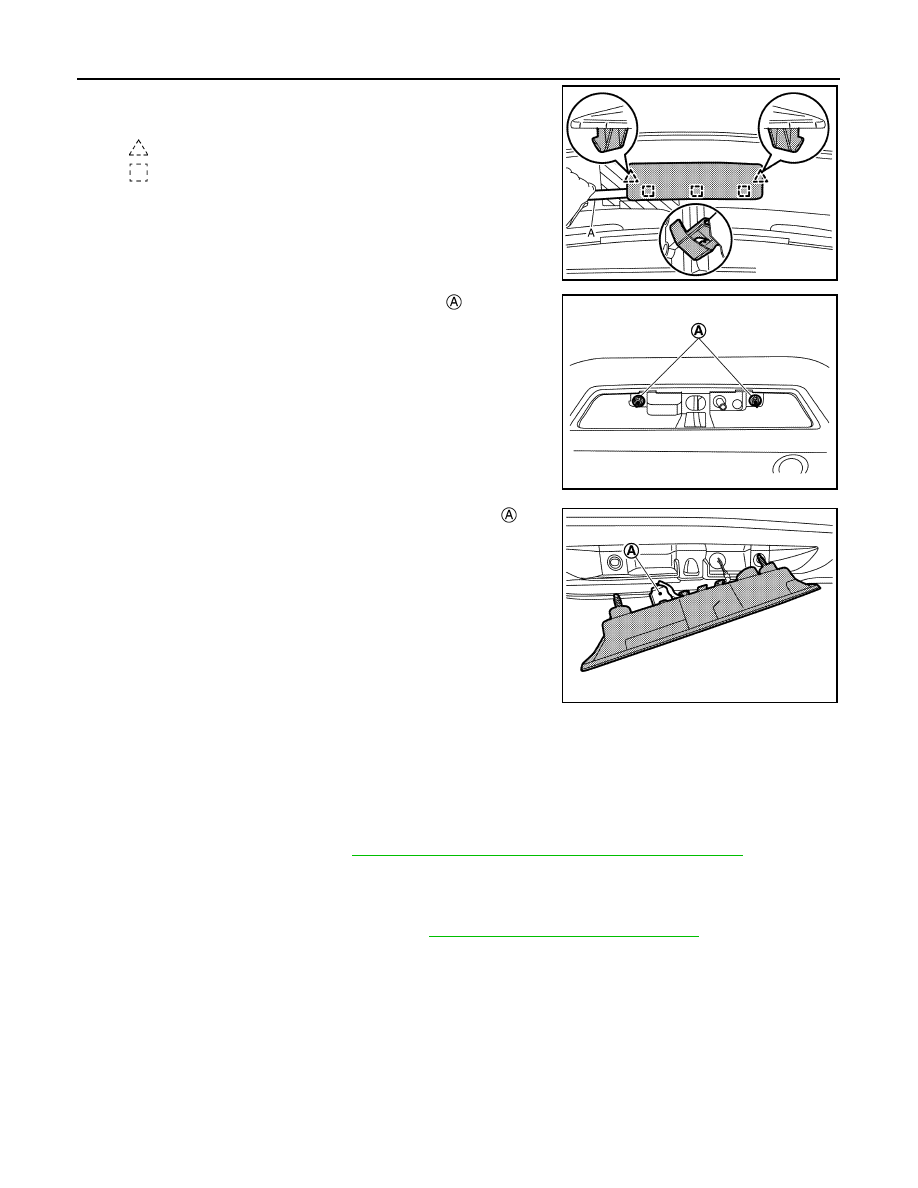

Apply protective tapes (A) on the part to protect it from damage.

High-mounted stop lamp

: N·m (kg-m, in-lb)

JMLIA4963GB

JMLIA4974ZZ

EXL-208

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

HIGH-MOUNTED STOP LAMP

3.

Disengage back door cover fixing metal clips and pawls using a
remover tool (A), and then remove back door cover.

4.

Remove high-mounted stop lamp mounting nuts

.

5.

Disconnect high-mounted stop lamp harness connector

, and

then remove high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010788904

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-9, "Precautions for Removing Battery Terminal"

.

HIGH-MOUNTED STOP LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
high-mounted stop lamp unit as a set. Refer to

EXL-207, "Removal and Installation"

.

: Pawl

: Metal clip

JMLIA4975ZZ

JMLIA4976ZZ

JMLIA4977ZZ
