FLYWHEEL

EM-377

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

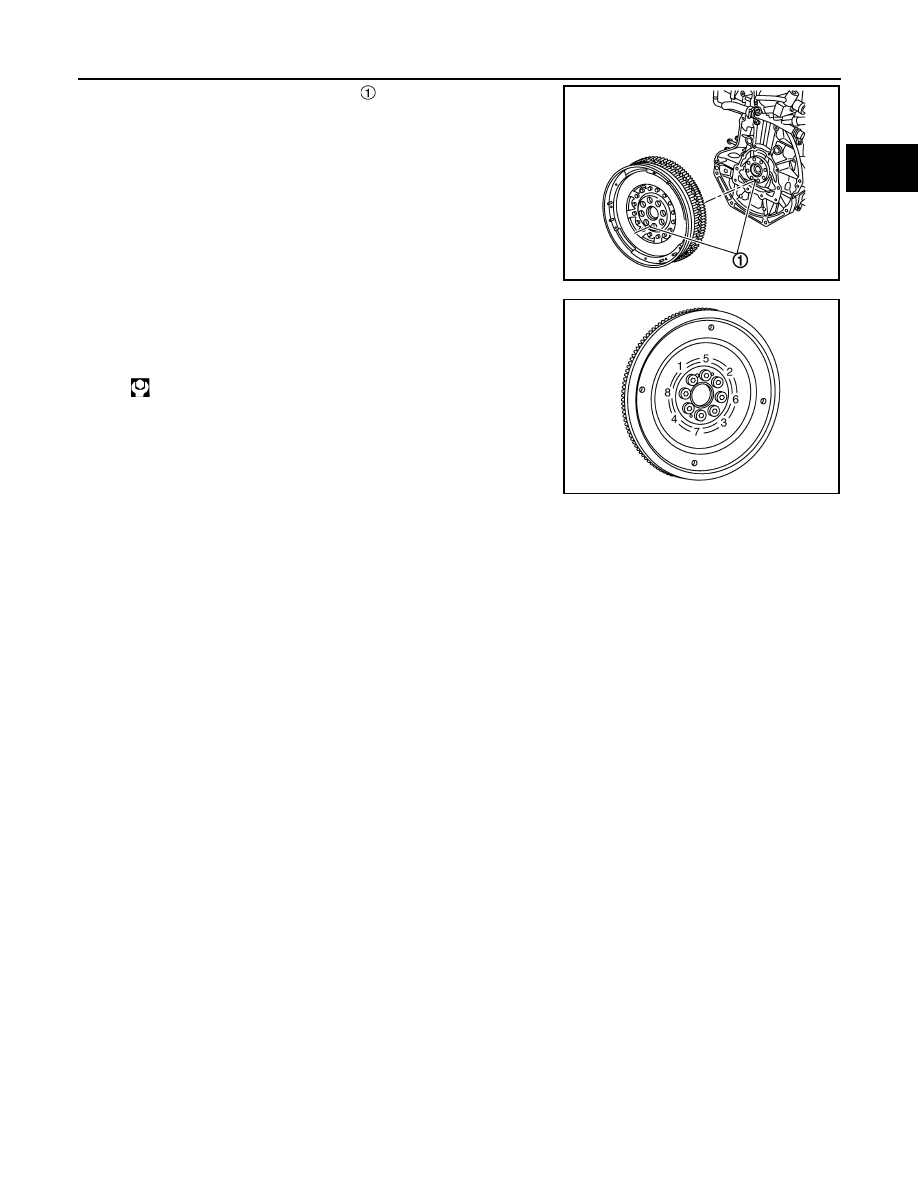

Install flywheel by aligning the mark

.

NOTE:
The openings of the flywheel bolts must be aligned.

a.

Install bolts without tightening them.

b.

Fix flywheel using flywheel locking tool [SST: — (Mot.1431)].

c.

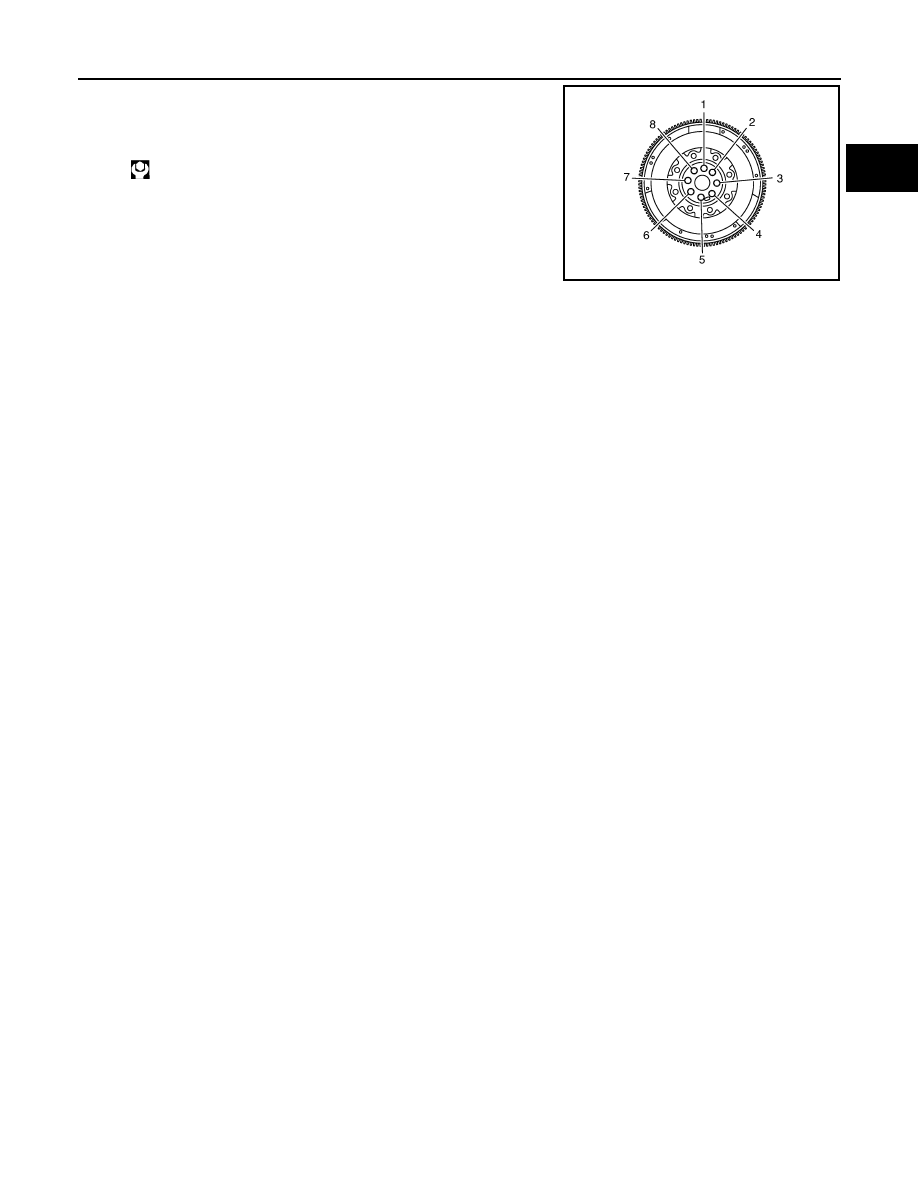

Tighten bolts in numerical order as shown in the figure with the
following procedure:

i.

Tighten mounting bolts.

ii.

Turn 50 degrees clockwise (angle tightening).

E1BIA0773ZZ

: 40.0 N·m (4.1 kg-m, 30 ft-lb)

JPBIA0812ZZ

EM-378

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

DRIVE PLATE

DRIVE PLATE

Exploded View

INFOID:0000000011006380

Removal and Installation

INFOID:0000000011006381

REMOVAL

1.

Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the
engine. Refer to

EM-365, "Exploded View"

.

2.

Remove drive plate.

CAUTION:

• Never disassemble them.

a.

Fix drive plate using flywheel locking tool [SST: — (Mot.1431)].

b.

Loosen bolts in reverse order as shown in the figure with the fol-
lowing procedure:

3.

Remove pilot bushing using the pilot bushing puller (commercial
service tool), if necessary.

INSTALLATION

1.

Install pilot bushing.
• Using the drift, force fit the pilot bushing until its front end contacts crankshaft.

2.

Install drive plate.

a.

Install bolts without tightening them.

b.

Fix drive plate using flywheel locking tool [SST: — (Mot.1431)].

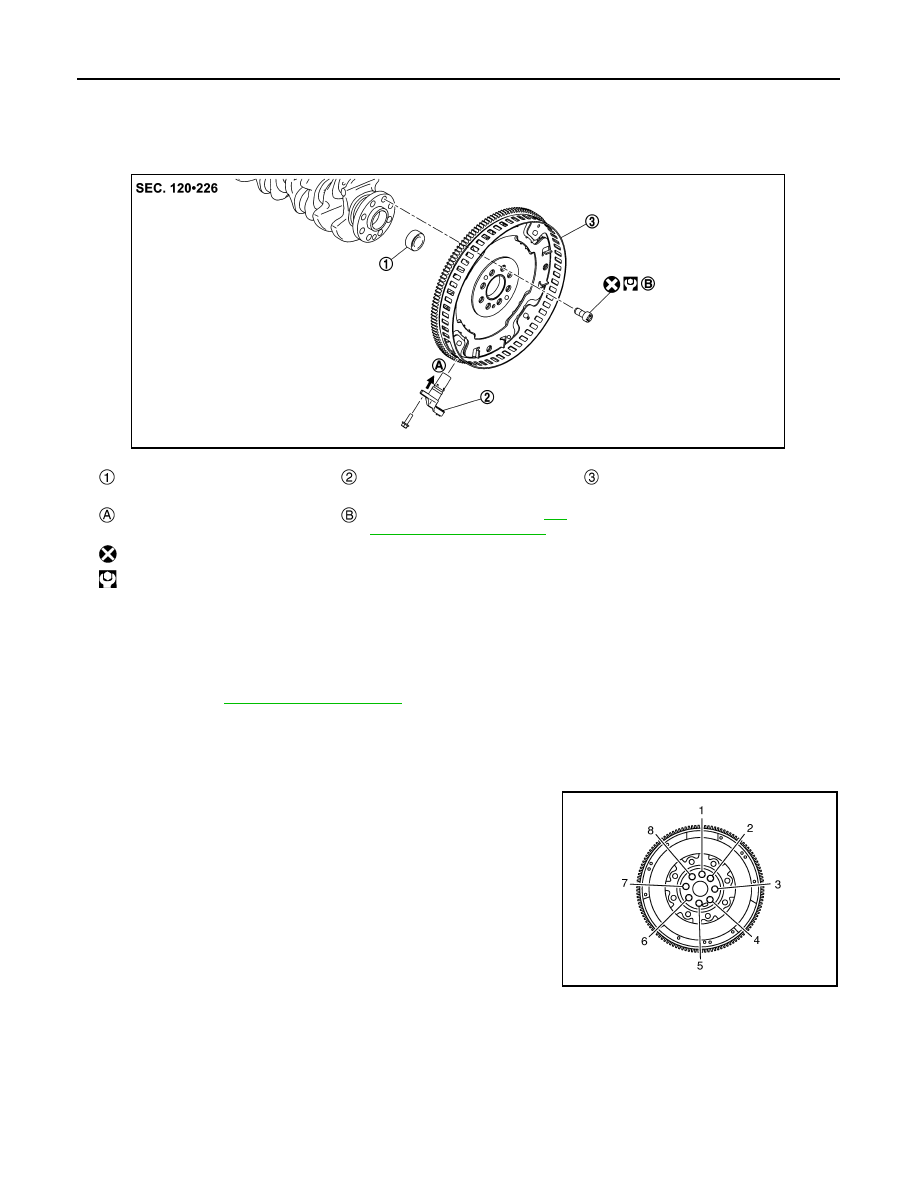

Pilot bushing

Crankshaft position sensor

Drive plate

To CVT

Comply with the installation proce-
dure when tightening. Refer to

EM-

378, "Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPBIA6959GB

E1BIA1163GB

DRIVE PLATE

EM-379

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

c.

Tighten bolts in numerical order as shown in the figure with the
following procedure:

i.

Tighten mounting bolts.

: 50.0 N·m (5.1 kg-m, 37 ft-lb)

E1BIA1163GB

EM-380

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

OIL PAN (UPPER)

OIL PAN (UPPER)

Exploded View

INFOID:0000000011006384

Removal and Installation

INFOID:0000000010784360

REMOVAL

1.

Remove oil pan (lower). Refer to

EM-330, "Exploded View"

.

2.

Remove oil strainer and oil pump. Refer to

LU-44, "Exploded View"

.

3.

Remove rear oil seal retainer. Refer to

EM-389, "Exploded View"

.

4.

Remove oil pan (upper) with the following procedure:

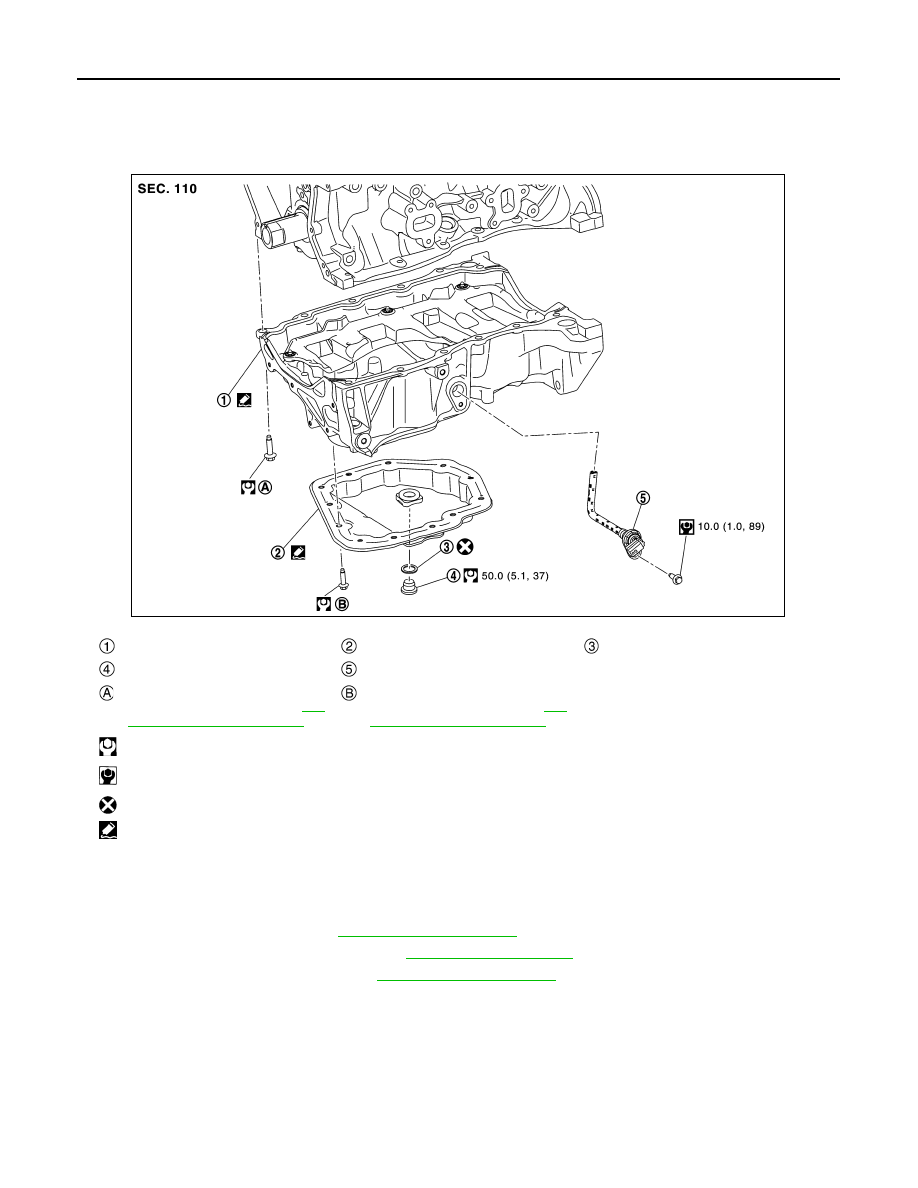

Oil pan (upper)

Oil pan (lower)

Drain plug washer

Oil pan drain plug

Oil level sensor

Comply with the installation proce-
dure when tightening. Refer to

EM-

380, "Removal and Installation"

Comply with the installation proce-
dure when tightening. Refer to

EM-

330, "Removal and Installation"

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Sealing point

JPBIA6951GB
