ENGINE ASSEMBLY

EM-369

< UNIT REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Loosen the mounting bolt as shown in the figure.

3.

Remove engine mounting insulator bolts (RH).
• Loosen the mounting bolts in the reverse order as shown in

the figure.

4.

Separate engine mount (LH).

M/T models

• Remove mounting nut

 on engine mounting insulator (LH).

CVT models

• Remove mounting bolts on engine mounting insulator (LH).
- Loosen the mounting bolts in the reverse order as shown in

the figure.

5.

Carefully lower jack, or raise lift to remove the engine and the transaxle assembly. When performing work,
observe the following caution.

CAUTION:

• Check that no part interferes with the vehicle side.
• Before and during this lifting, always check if any harnesses are left connected.

: Vehicle front

JSBIA4537ZZ

: Vehicle front

JPBIA6932ZZ

JPBIA6803ZZ

: Vehicle front

JPBIA6938ZZ

EM-370

< UNIT REMOVAL AND INSTALLATION >

[R9M]

ENGINE ASSEMBLY

• During the removal, always be careful to prevent the vehicle from falling off the lift due to

changes in the center of gravity.

• If necessary, support the vehicle by setting jack or suitable tool at the rear.

Separation

1.

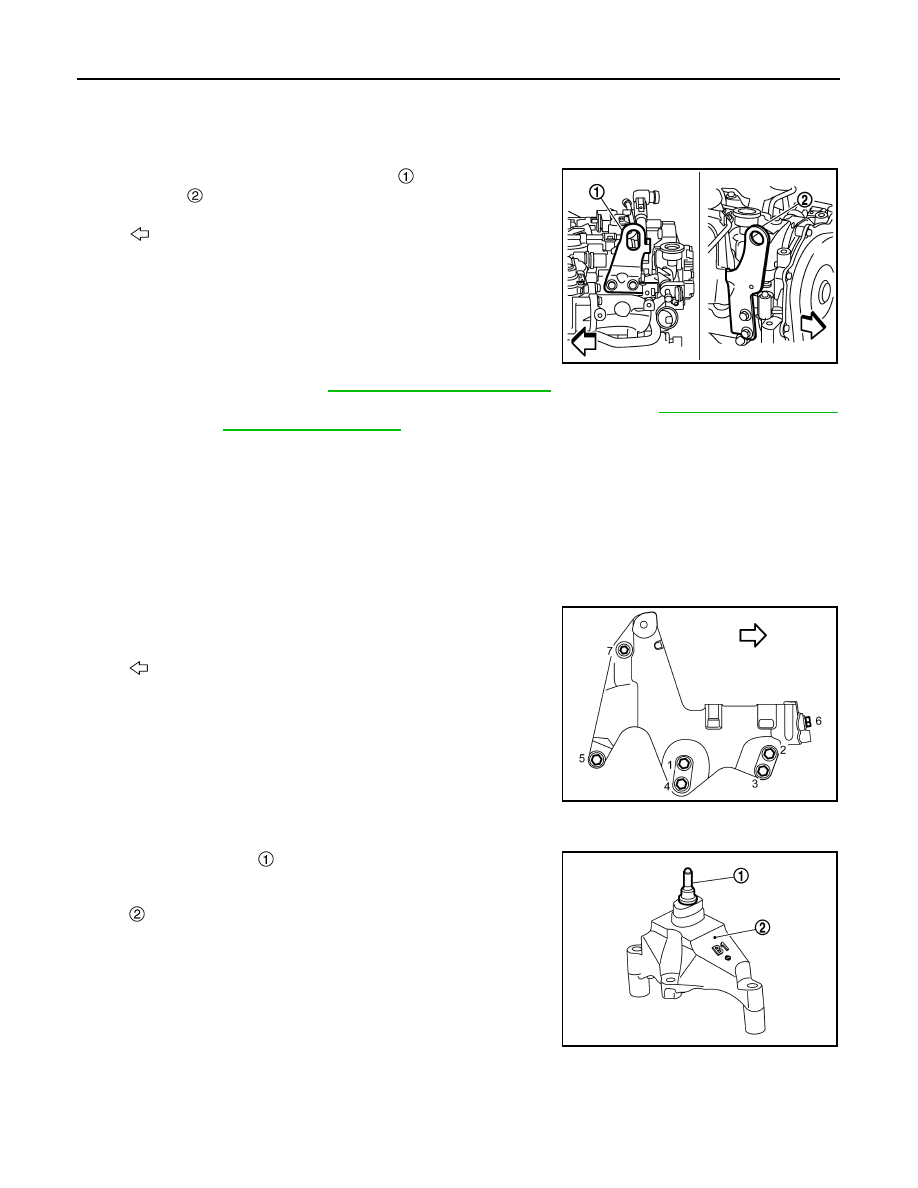

Set a hoist to engine slinger (rear side)

 and engine slinger

(front side)

.

2.

Remove starter motor. Refer to

STR-39, "R9M : Exploded View"

.

3.

Lift with a hoist and separate the engine from the transaxle assembly. Refer to

TM-122, "Exploded View"

(M/T models) or

TM-704, "Exploded View"

 (CVT models).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never allow engine oil to get on engine mounting insulator. Be careful not to damage engine mount-

ing insulator.

• Check that each mounting insulator is seated properly, and tighten mounting nuts and bolts.

Preparation

Engine mounting bracket (RH)

1.

Tighten the bolts No. 1 to 7 as shown in the figure. (specified
torque)

Engine mounting bracket (LH) for M/T models

1.

Check that stud bolt

 shown in the figure is tightened to the

specified torque.

Engine mounting bracket support (LH) for M/T models

: Engine front

JPBIA0719ZZ

: Vehicle front

JSBIA5505ZZ

: Engine mounting bracket (LH)

JPBIA6936ZZ

ENGINE ASSEMBLY

EM-371

< UNIT REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

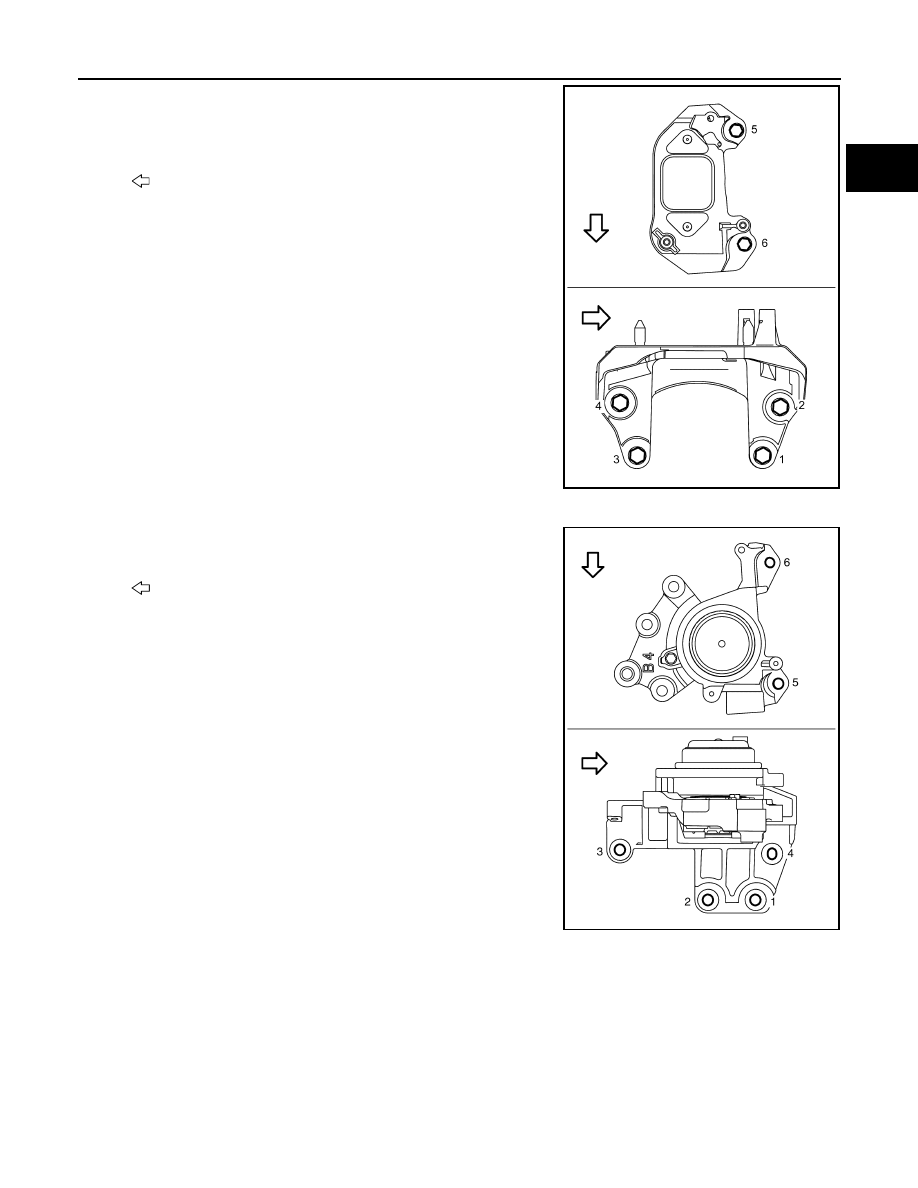

1.

Tighten the bolts in order of No. 6 and No. 4 as shown in the fig-
ure. (temporarily)

2.

Tighten the bolts No. 1 to 6 as shown in the figure. (specified
torque)

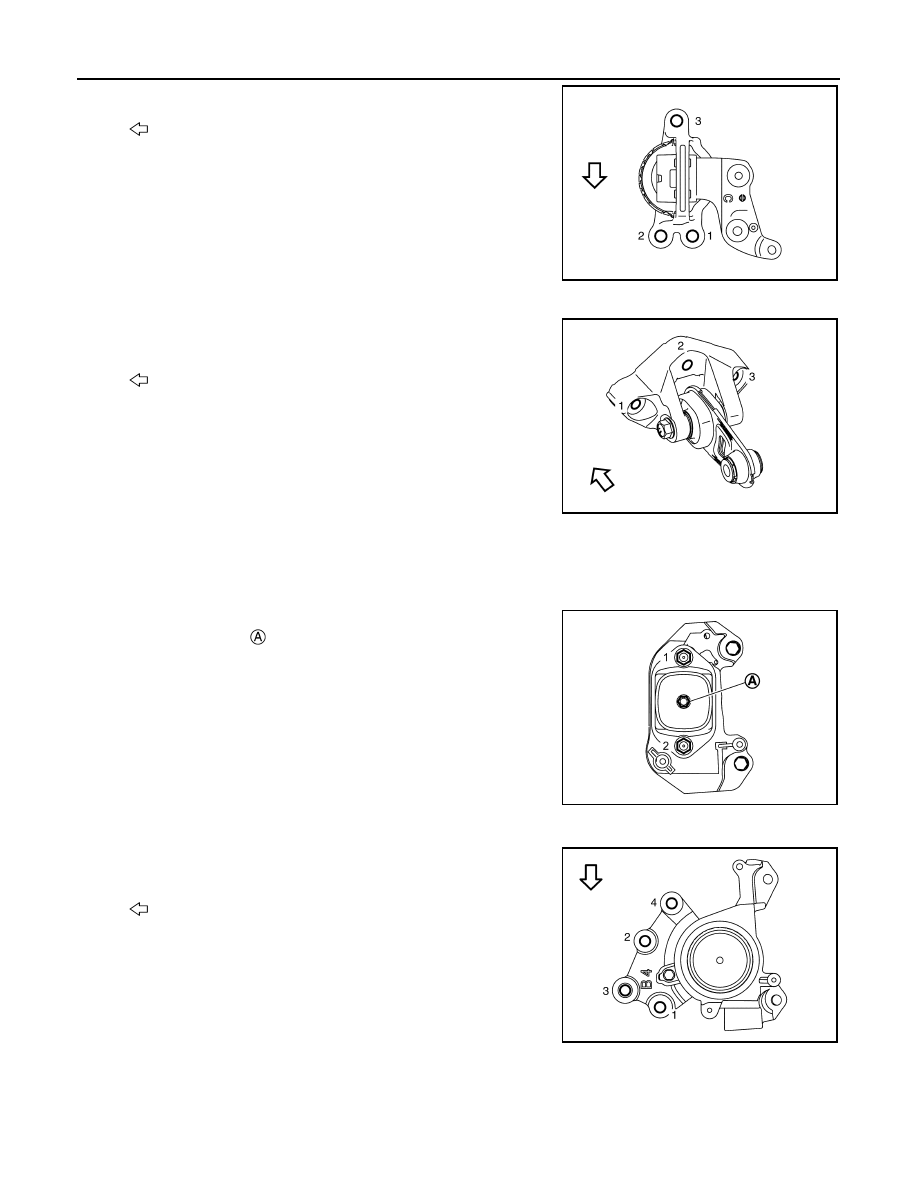

Engine mounting insulator (LH) for CVT models

1.

Tighten the bolt in order of No. 6 and No. 3 as shown in the fig-
ure. (temporarily)

2.

Tighten the bolts in order of No. 1 to 6 as shown in the figure.
(specified torque)

Engine mounting insulator (RH)

: Vehicle front

JPBIA6993ZZ

: Vehicle front

JPBIA6937ZZ

EM-372

< UNIT REMOVAL AND INSTALLATION >

[R9M]

ENGINE ASSEMBLY

1.

Tighten the bolt as shown in the figure. (temporarily)

Rear torque rod bracket

1.

Tighten the bolts in order of No. 1 to 3 as shown in the figure.
(temporarily)

2.

Tighten the bolt as shown in the figure. (specified torque)

Installation

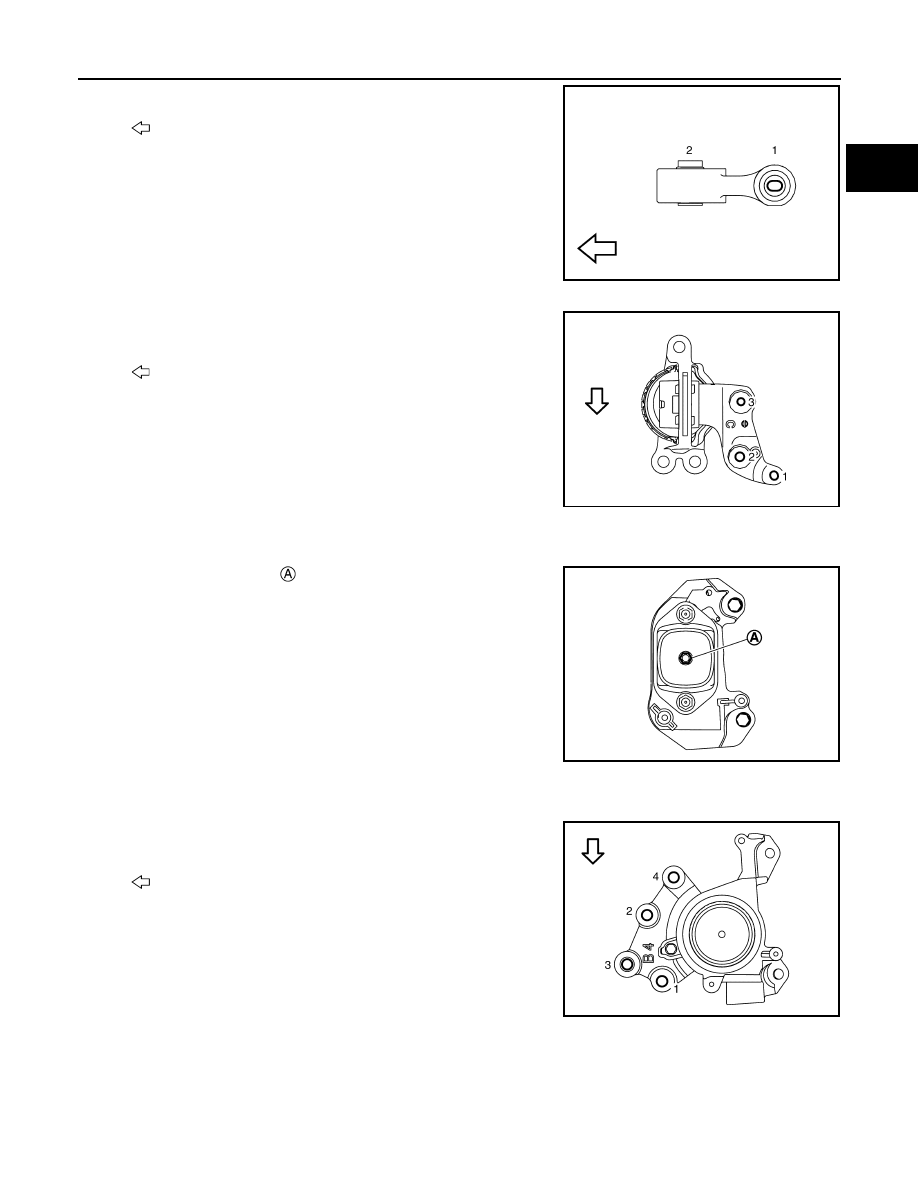

1.

Install engine mount (LH).

M/T models

1.

Tighten the nuts in order of No. 1 to 2 as shown in the figure.
(temporarily)

2.

Tighten the nut

 on engine mounting insulator (LH).

(specified torque)

3.

Tighten the nuts in order of No. 1 to 2 as shown in the figure
after removing the jack.(specified torque)

CVT models

1.

Tighten the bolt in order of No. 3 and 4 to shown in the fig-
ure (temporarily).

2.

Tighten the bolt shown in the figure (specified torque).

2.

Install the engine mounting insulator bolts (RH) as follows:

: Vehicle front

JPBIA6933ZZ

: Vehicle front

JPBIA6934ZZ

JPBIA6994ZZ

: Vehicle front

JPBIA6938ZZ
