Nissan X-Trail 32. Manual - part 1116





CAMSHAFT

EM-361

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

vi. Tighten bolts in numerical order.

CAUTION:

After tightening mounting bolts of cylinder head housing, be sure to wipe off excessive liquid gas-
ket from the mating surface of cylinder head.

4.

Install timing chain and related parts. Refer to

EM-346, "Exploded View"

.

5.

Install in the reverse order of removal, for the rest of parts

Inspection

INFOID:0000000010784350

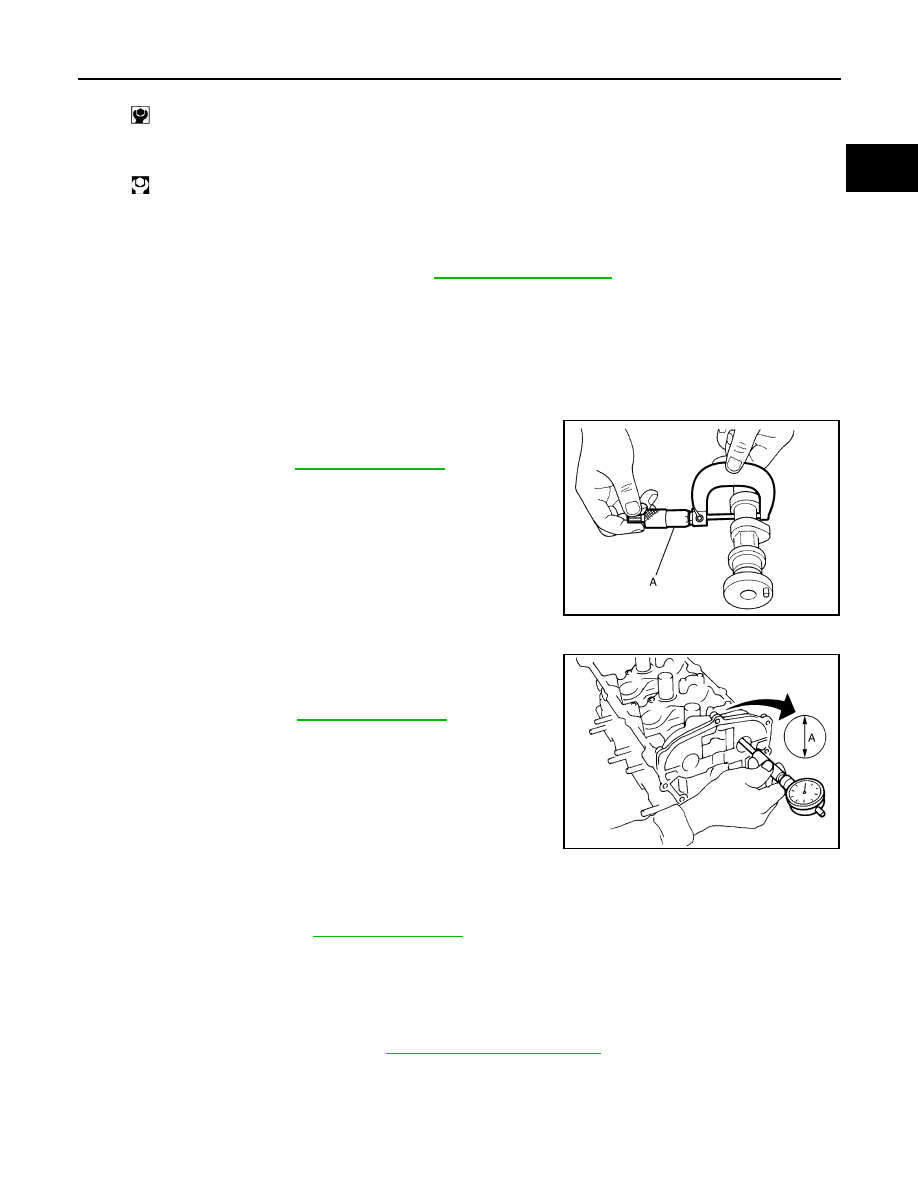

INSPECTION AFTER REMOVAL

Camshaft Journal oil clearance

CAMSHAFT JOURNAL
• Measure the camshaft journal with a micrometer (A).

CYLINDER HEAD HOUSING AND CAMSHAFT BRACKET INNER DIAMETER
• Measure the inner diameter (A) of cylinder head housing and cam-

shaft bracket with a bore gauge.

CAMSHAFT JOURNAL OIL CLEARANCE
• (Oil clearance) = (Bracket inner diameter) – (Camshaft journal diameter)

• If it exceeds the standard, replace camshaft or/and cylinder head housing and cylinder head assembly.

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-23, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 12.0 N·m (1.2 kg-m, 9 ft-lb)

Standard

: Refer to

EM-415, "Camshaft"

.

JPBIA0122ZZ

Standard

: Refer to

EM-415, "Camshaft"

.

PBIC1645E

Standard

: Refer to

EM-415, "Camshaft"

.

EM-362

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

*: Power steering fluid, brake fluid, etc.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission /
transaxle fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

Leakage

OIL SEAL

EM-363

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

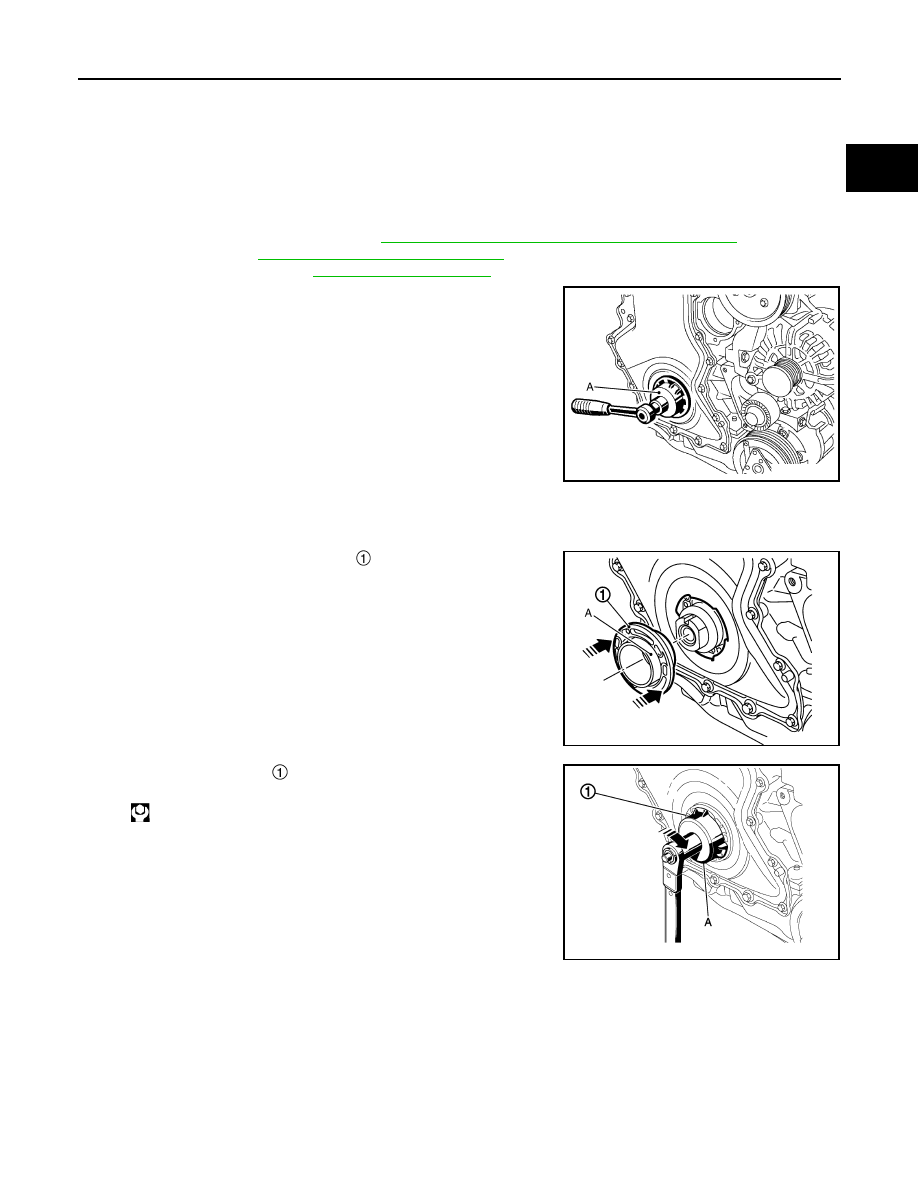

OIL SEAL

FRONT OIL SEAL

FRONT OIL SEAL : Removal and Installation

INFOID:0000000010784351

REMOVAL

1.

Remove the following parts.
• Front fender protector (RH): Refer to

EXT-35, "FENDER PROTECTOR : Exploded View"

.

• Drive belt: Refer to

EM-300, "Removal and Installation"

.

• Crankshaft pulley: Refer to

EM-307, "Exploded View"

.

2.

Remove front oil seal using service tool (A).
NOTE:
The service tool is supplied in the new seal parts kit.

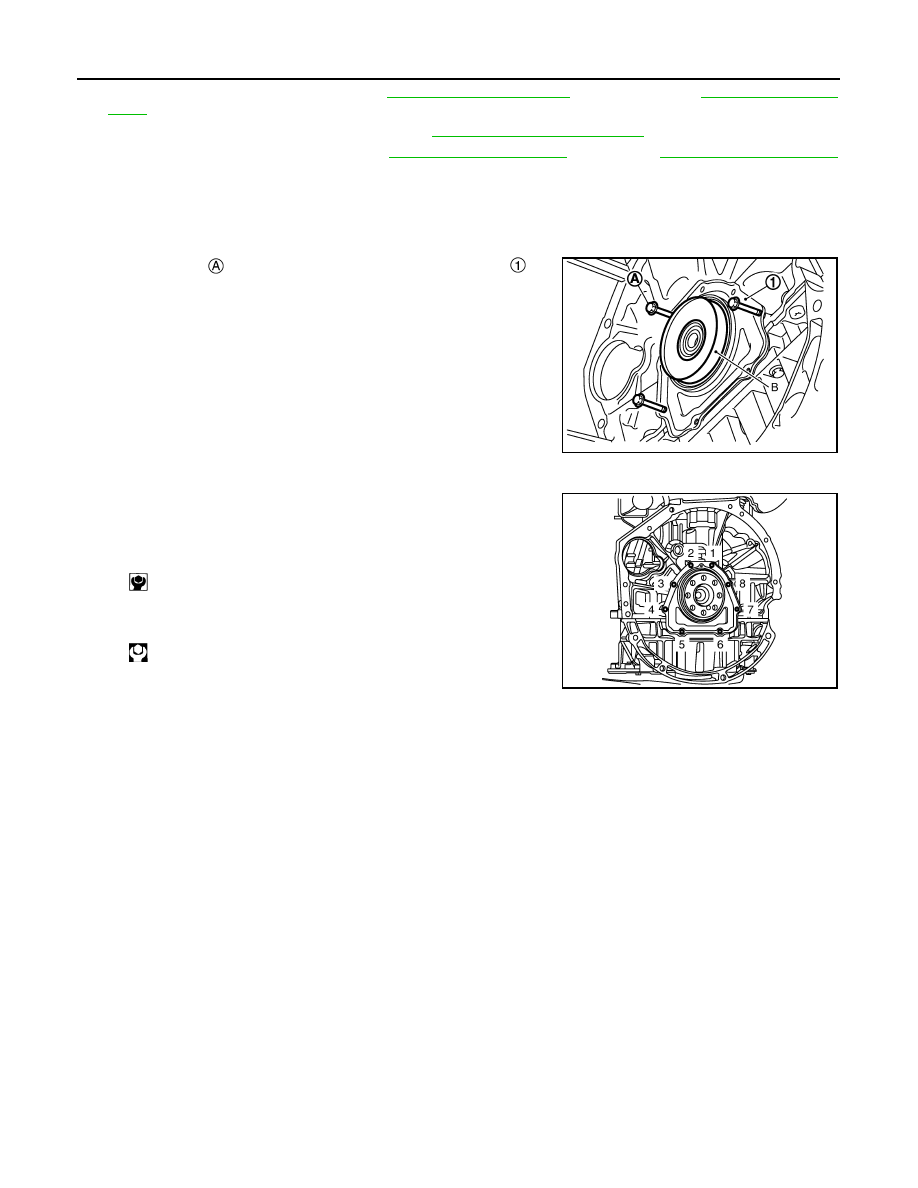

INSTALLATION

1.

Install front oil seal with the following procedure:

a.

Fit the protector (A) to front oil seal

.

• Align the front oil seal notches with front cover notches.

NOTE:
The protector is supplied in the new seal parts kit.

b.

Tighten to front oil seal

 using service tool (A).

NOTE:
The service tool is supplied in the new seal parts kit.

c.

Remove the protector.

2.

Install in the reverse order of removal, for the rest of parts.

REAR OIL SEAL

REAR OIL SEAL : Removal and Installation

INFOID:0000000010784352

REMOVAL

JPBIA0765ZZ

JPBIA0778ZZ

: 47 N·m (4.8 kg-m, 35 ft-lb)

JPBIA0591ZZ

EM-364

< REMOVAL AND INSTALLATION >

[R9M]

OIL SEAL

1.

Remove transaxle assembly. Refer to

TM-122, "Exploded View"

 (M/T models) or

TM-704, "Exploded

View"

 (CVT models).

2.

Remove clutch cover and clutch disk. Refer to

CL-35, "R9M : Exploded View"

 (M/T models).

3.

Remove flywheel or drive plate. Refer to

EM-376, "Exploded View"

 (flywheel) or

EM-378, "Exploded View"

(drive plate).

4.

Remove rear oil seal retainer.

INSTALLATION

1.

Install rear oil seal retainer with the following procedure:

a.

Set guide bolt

 and protector (B) to rear oil seal retainer

.

NOTE:
The protector is supplied in the new seal parts kit.

b.

Move the rear oil seal retainer evenly by hand until it makes con-
tact with the cylinder block.

c.

Remove guide bolts and protector.

d.

Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.

i.

Tighten bolts No. 1and 5.

ii.

Tighten No. 1 to 8 in numerical order as shown.

2.

Install in the reverse order of removal, for the rest of parts.

JPBIA0777ZZ

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 12.0 N·m (1.2 kg-m, 9 ft-lb)

JPBIA0645ZZ
