Nissan X-Trail 32. Manual - part 1121





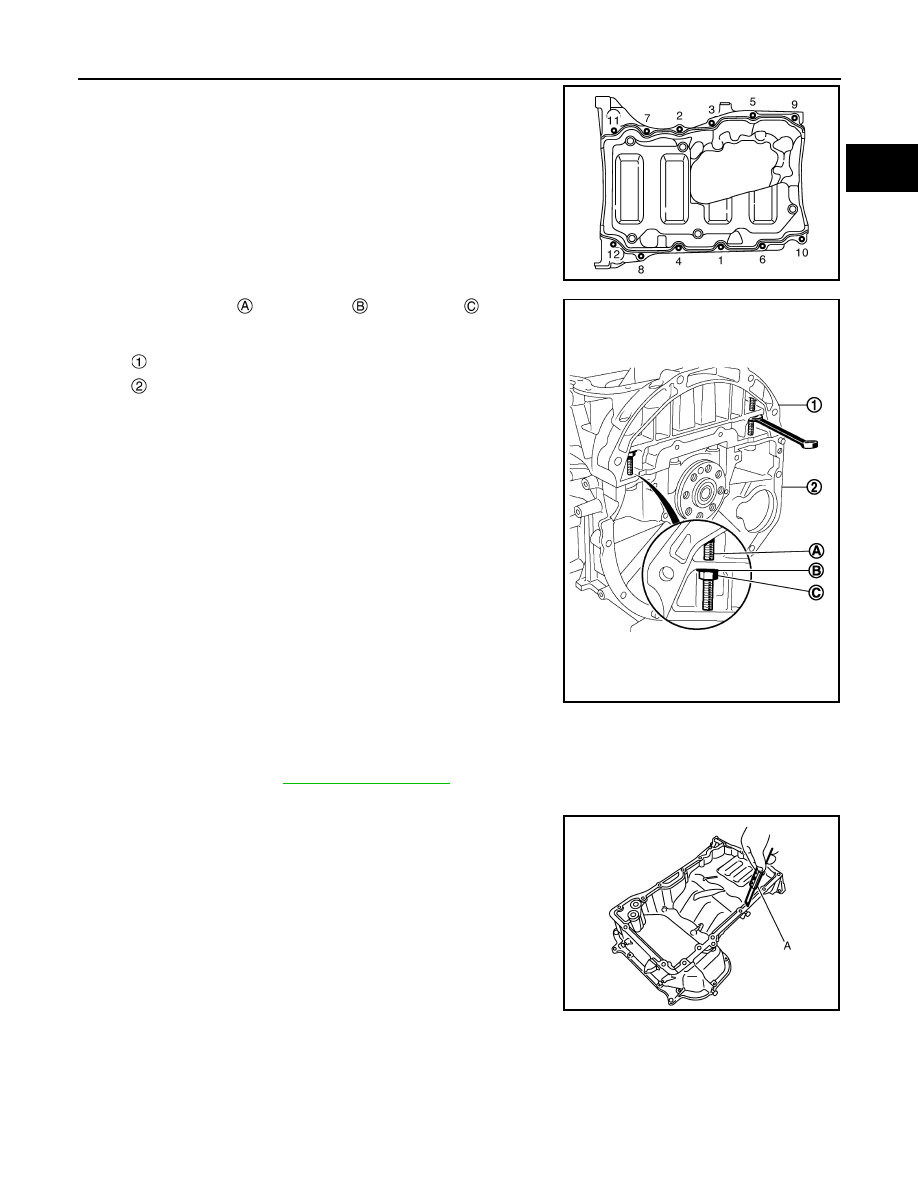

OIL PAN (UPPER)

EM-381

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

Loosen mounting bolts in reverse order as shown in the figure.

b.

Set two stud bolts

, two washers

 and two nuts

 in place of

the oil pan (upper) mounting bolts.

NOTE:
Use M8

×

 90 mm (3.54 in) long stud bolt.

c.

Detach the oil pan (upper) from the cylinder block by gradually
tightening the nuts. Remove oil pan (upper).

5.

Remove oil pump related parts.

INSTALLATION

1.

Install oil pump. Refer to

LU-44, "Exploded View"

.

2.

Install oil pan (upper) with the following procedure:

a.

Use a scraper (A) to remove old liquid gasket from mating sur-
faces.

CAUTION:

Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
• Also remove old liquid gasket from mating surface of cylinder

block.

• Remove old liquid gasket from the bolt holes and threads.

E1BIA0650ZZ

: Oil pan (upper)

: Cylinder block

JPBIA0635ZZ

JPBIA0027ZZ

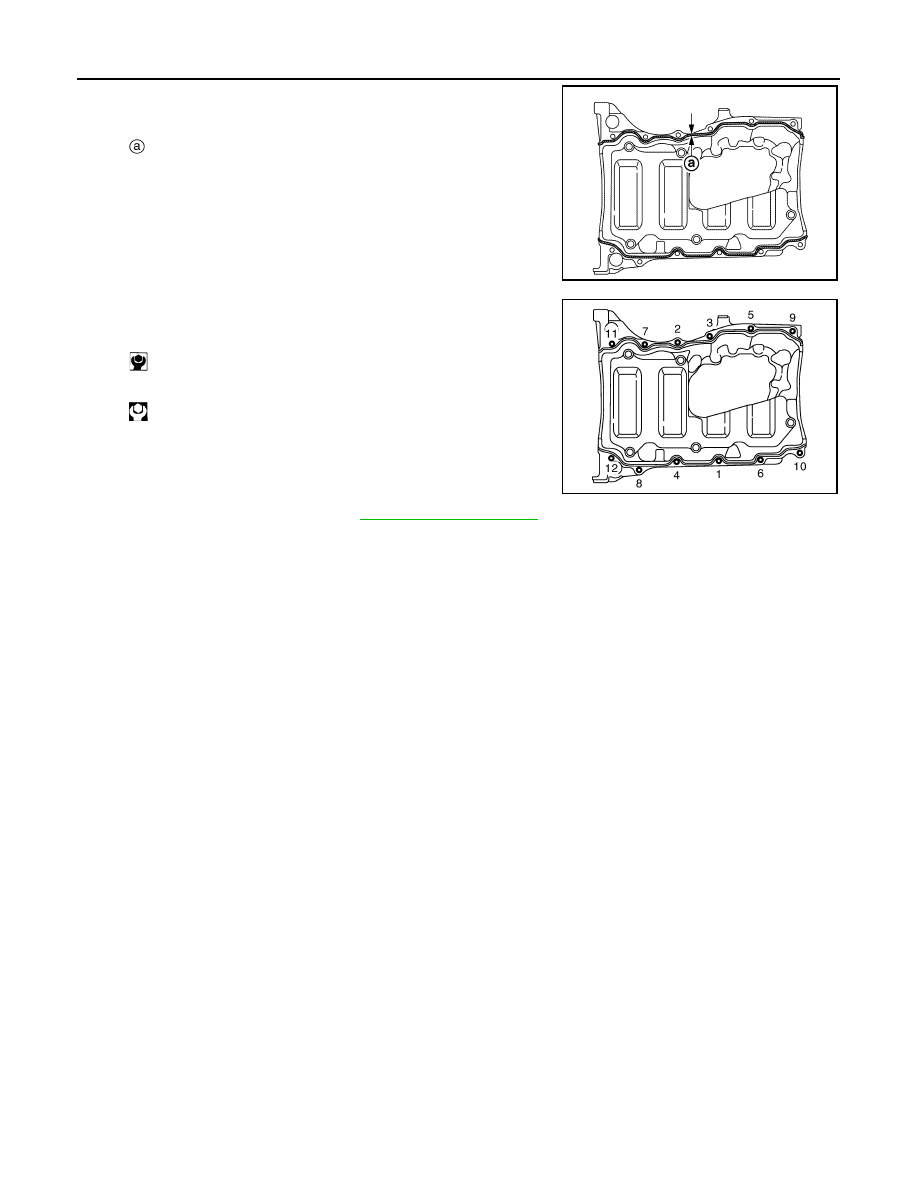

EM-382

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

OIL PAN (UPPER)

b.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to areas shown in the figure.

Use Genuine Liquid Gasket or equivalent

CAUTION:

• At the bolt holes marked, liquid gasket should be applied

inside holes.

• Attaching should be done within 5 minutes after coating.

c.

Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.

3.

Install rear oil seal retainer. Refer to

EM-389, "Exploded View"

.

4.

Install in the reverse order of removal, for the rest of parts.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

φ

3.0 - 7.0 mm (0.118 - 0.276 in)

JPBIA6986ZZ

1st step: 10.0 N·m (1.0 kg-m, 89 in-lb)

2nd step: 25.0 N·m (2.6 kg-m, 18 ft-lb)

E1BIA0650ZZ

CYLINDER HEAD

EM-383

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

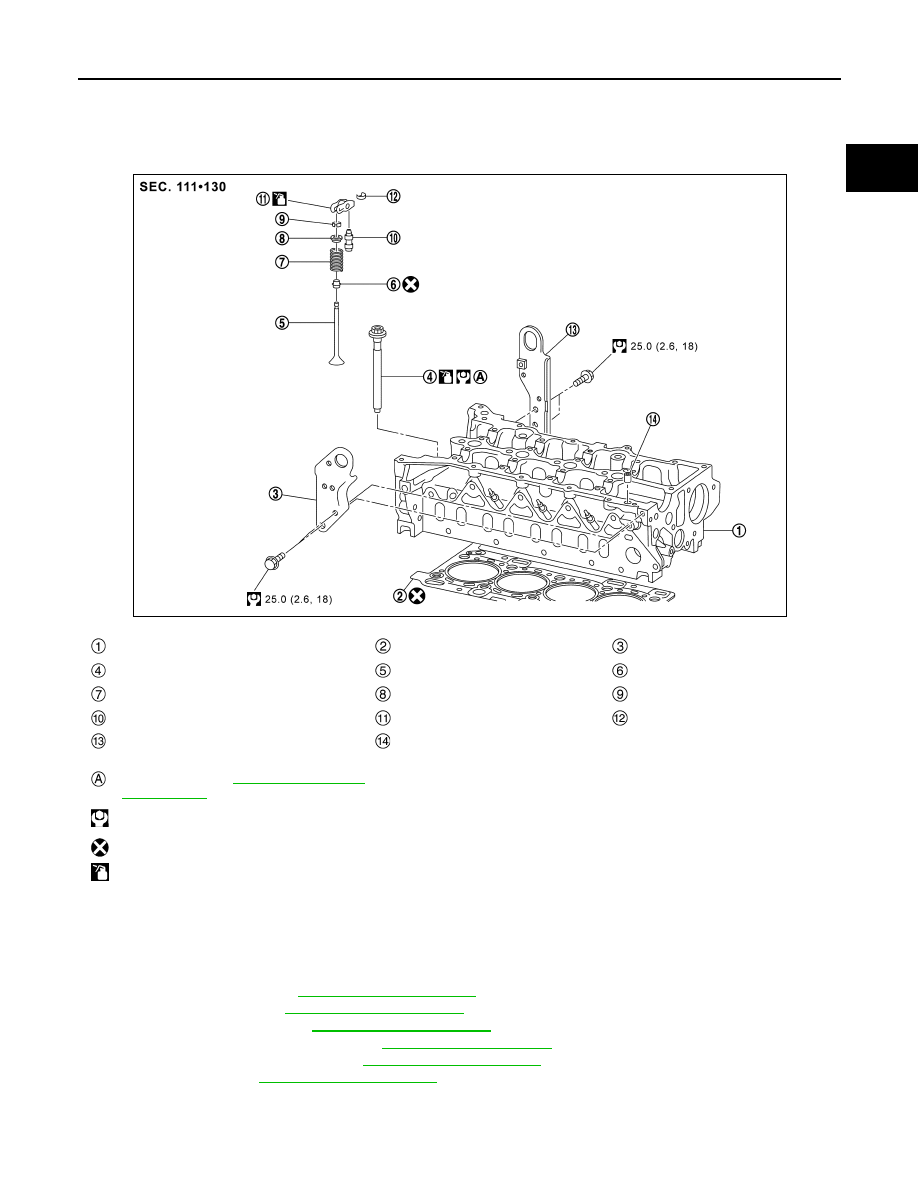

CYLINDER HEAD

Exploded View

INFOID:0000000010784361

Removal and Installation

INFOID:0000000011006818

REMOVAL

1.

Remove the following components and related parts.
• Intake manifold: Refer to

EM-313, "Exploded View"

.

• Turbocharger: Refer to

EM-325, "Exploded View"

.

• Exhaust manifold: Refer to

EM-328, "Exploded View"

.

• Water inlet and water outlet: Refer to

CO-81, "Exploded View"

.

• Front cover, timing chain: Refer to

EM-346, "Exploded View"

.

• Camshaft: Refer to

EM-357, "Exploded View"

Cylinder head

Cylinder head gasket

Engine slinger

Cylinder head bolt

Valve

Valve oil seal

Valve spring

Valve spring retainer

Valve collet

Tappet

Hydraulic tappet

Valve rocker clips

Engine slinger

Bush

Comply with the assembly procedure when
tightening. Refer to

EM-390, "Disassembly

and Assembly"

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Should be lubricated with oil.

JPBIA6956GB

EM-384

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

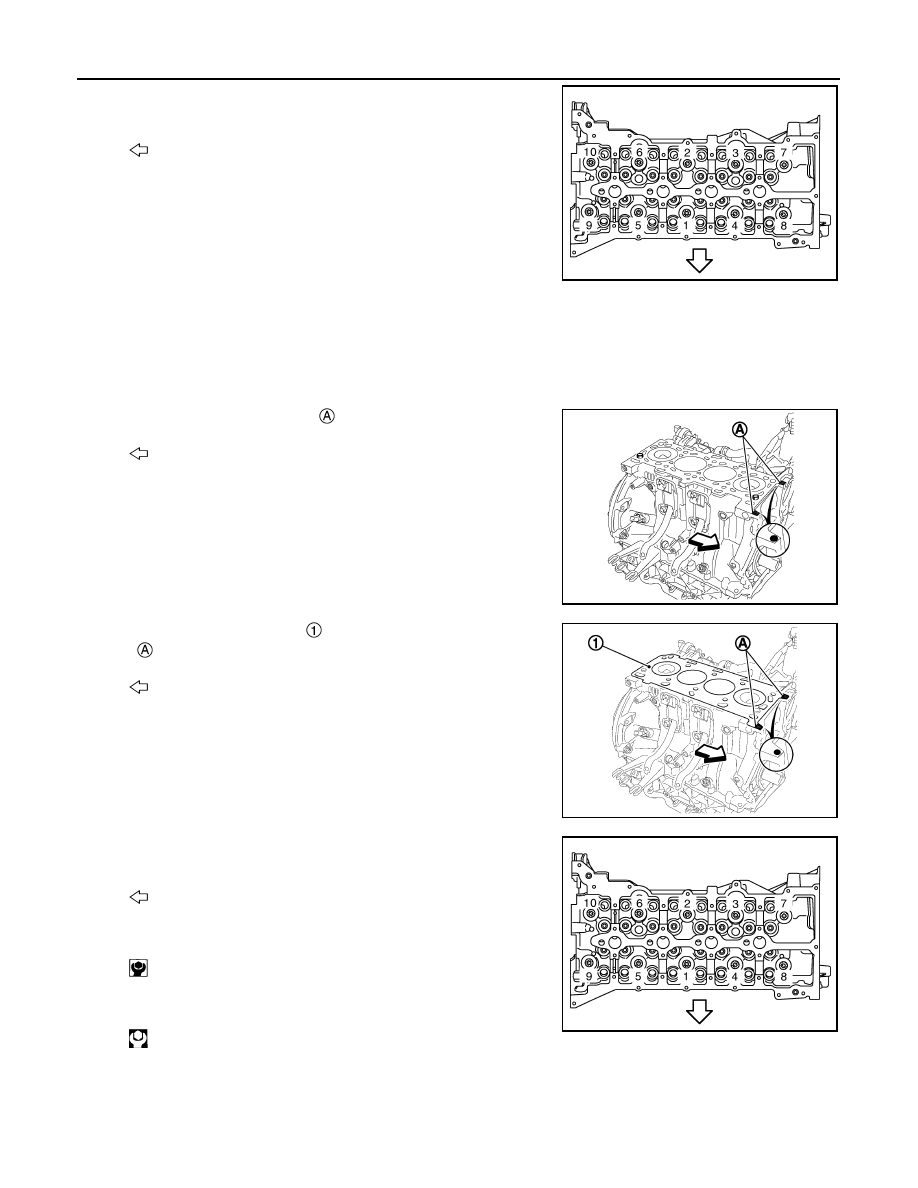

CYLINDER HEAD

2.

Remove cylinder head.
• Loosen mounting bolts in reverse order as shown in the figure.

3.

Remove cylinder head gasket.

INSTALLATION

1.

Install cylinder head gasket with the following procedure:

CAUTION:

Before installing cylinder head, inspect piston protrusion.

a.

Apply liquid gasket to position

 shown in the figure.

Use Genuine Liquid Gasket or equivalent.

b.

Install cylinder head gasket

, and apply liquid gasket to posi-

tion

 shown in the figure.

Use Genuine Liquid Gasket or equivalent.

2.

Install cylinder head, and tighten mounting bolts in numerical
order as shown in figure with the following procedure:

a.

Tighten all bolts.

b.

Tighten all bolts.

: Vehicle front

E1BIA0661ZZ

: Engine front

JPBIA0612ZZ

: Engine front

JPBIA0611ZZ

: Vehicle front

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 30.0 N·m (3.1 kg-m, 22 ft-lb)

E1BIA0661ZZ
