MT-6

[RS6F93R]

DESCRIPTION

DESCRIPTION

PFP:XX000

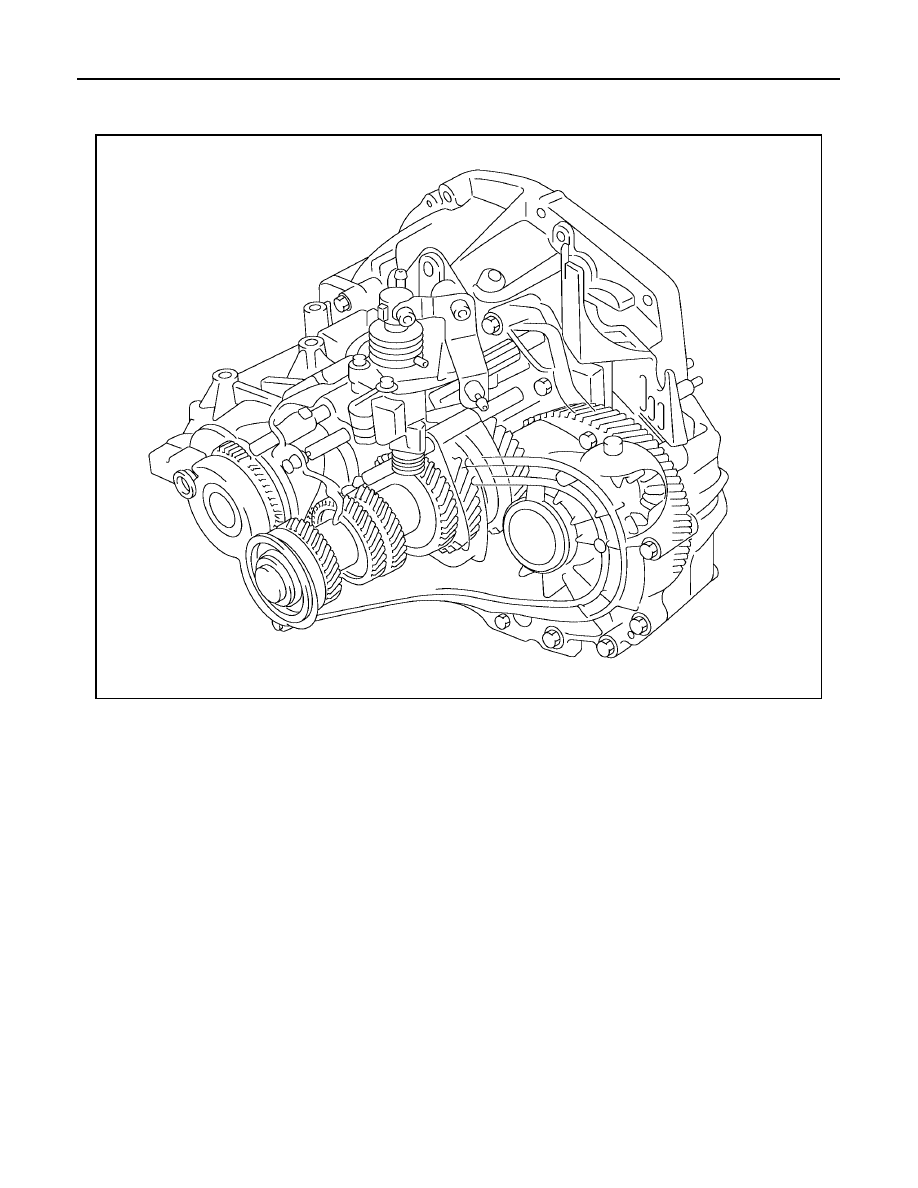

Cross-sectional View — RS6F93R

XXXX0000087

YMT040

M/T OIL

MT-7

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

M/T OIL

PFP:XX000

Description

XXXX0000106

Fill to the level of the fuel filler cap hole.

Capacity

Grade

2.1

(1-7/8 Imp qt)

Genuine Nissan gear oil, SAE viscosity

MCIB0015E

MT-8

[RS6F93R]

POSITION SWITCH

POSITION SWITCH

PFP:XX000

Checking

XXXX0000004

BACK-UP LAMP SWITCH

●

Check continuity.

Gear position

Continuity

Reverse

Yes

Except reverse

No

YMT109

CONTROL LINKAGE

MT-9

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

CONTROL LINKAGE

PFP:XX000

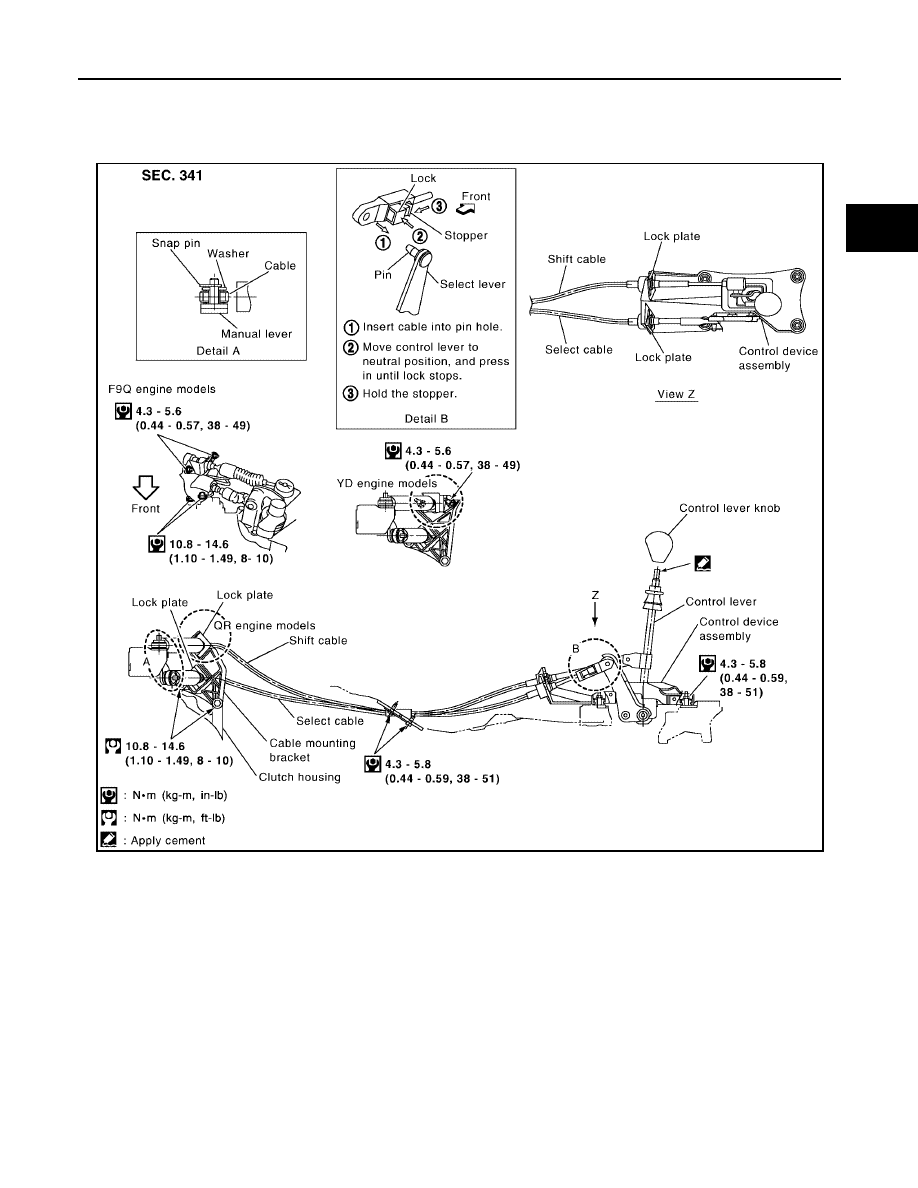

Removal and Installation

XXXX0000007

Refer to the figure for removal and installation procedures.

CAUTION:

●

Keep in mind that the select side lock plate for securing the control cable is different from the one
on the shift side.

●

After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st,
2nd, or Reverse.

YMT150
