Nissan Primera P12. Manual - part 639





MT-62

[RS6F51R]

SERVICE DATA AND SPECIFICATIONS (SDS)

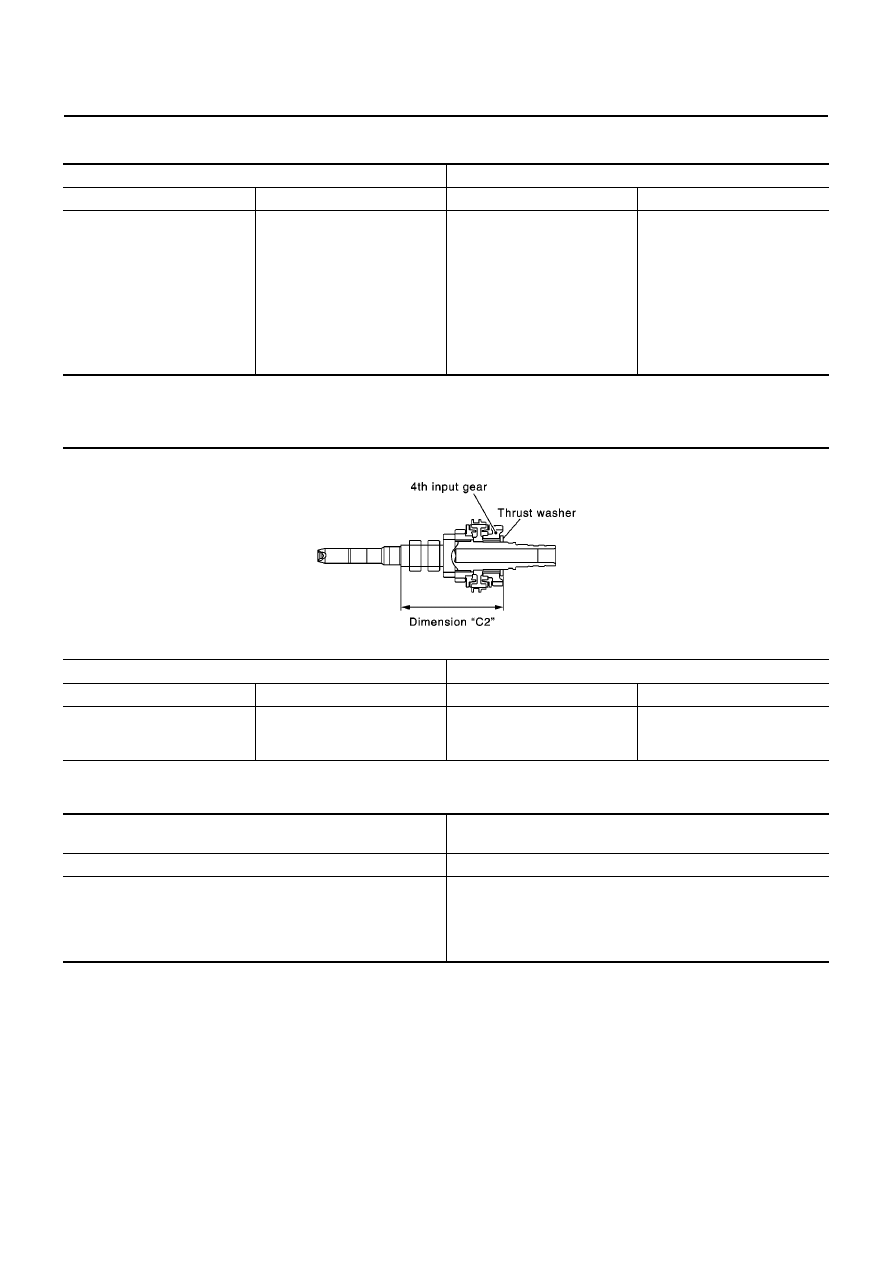

Available C-rings

ECS00ABZ

MAINSHAFT C-RING

*: Always check with the Parts Department for the latest parts information.

Available Thrust Washer

ECS00AC0

INPUT SHAFT THRUST WASHER

*: Always check with the Parts Department for the latest parts information.

DIFFERENTIAL SIDE GEAR THRUST WASHER

*: Always check with the Parts Department for the latest parts information.

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

2.535 (0.0998)
2.565 (0.1010)
2.595 (0.1022)
2.625 (0.1033)
2.655 (0.1045)
2.685 (0.1057)
2.715 (0.1069)
2.745 (0.1081)
2.775 (0.1093)

2.805 (0.1104)

32348 8H800
32348 8H801
32348 8H802
32348 8H803
32348 8H804
32348 8H805
32348 8H806
32348 8H807
32348 8H808
32348 8H809

2.835 (0.1116)

2.865 (0.1128)
2.895 (0.1140)
2.925 (0.1152)
2.955 (0.1163)
2.985 (0.1175)
3.015 (0.1187)
3.045 (0.1199)
3.075 (0.1211)

32348 8H810
32348 8H811
32348 8H812
32348 8H813
32348 8H814
32348 8H815
32348 8H816
32348 8H817
32348 8H818

Standard length “C2”

154.7 - 154.8 mm (6.091 - 6.094 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

3.84 (0.1512)
3.90 (0.1535)
3.96 (0.1559)

32347 8H500
32347 8H501
32347 8H502

4.02 (0.1583)
4.08 (0.1606)
4.14 (0.1630)

32347 8H503
32347 8H504
32347 8H505

SCIA1008E

Allowable clearance between side gear and differential case with

washer

0.1 - 0.2 mm (0.004 - 0.008 in)

Thickness mm (in)

Part number*

0.75 (0.0295)
0.80 (0.0315)
0.85 (0.0335)
0.90 (0.0354)
0.95 (0.0374)

38424 81X00
38424 81X01
38424 81X02
38424 81X03
38424 81X04

SERVICE DATA AND SPECIFICATIONS (SDS)

MT-63

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

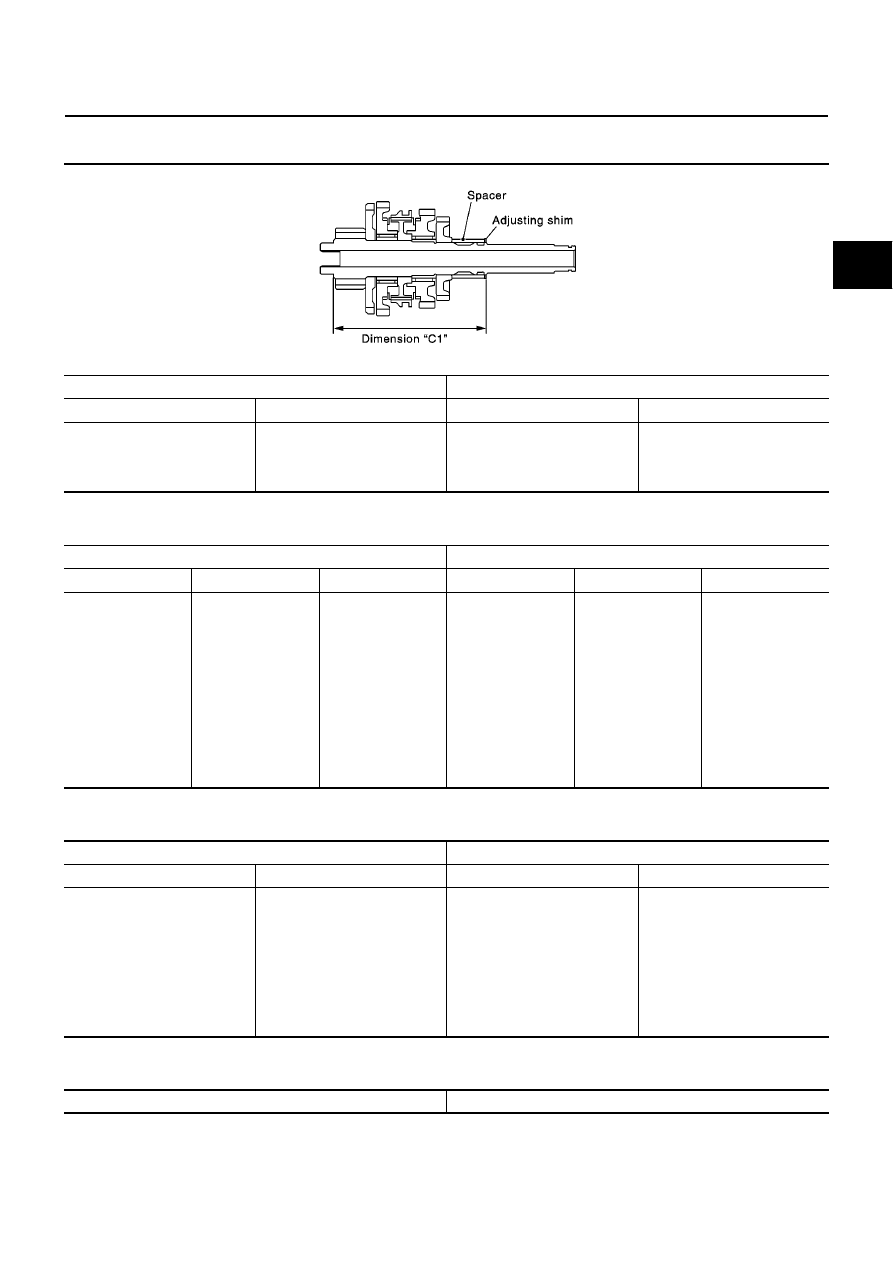

Available Adjusting Shims

ECS00AC1

MAINSHAFT ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

INPUT SHAFT REAR BEARING ADJUSTING SHIM

*: Always check with the parts department for the latest information.

MAINSHAFT REAR BEARING ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

REVERSE IDLER GEAR ADJUSTING SHIM

Standard length “C1”

173.85 - 173.95 mm (6.844 - 6.848 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.52 (0.0205)
0.60 (0.0236)
0.68 (0.0268)
0.76 (0.0299)

32238 8H500
32238 8H501
32238 8H502
32238 8H503

0.84 (0.0331)
0.92 (0.0362)
1.00 (0.0394)
1.08 (0.0425)

32238 8H504
32238 8H505
32238 8H506
32238 8H507

SCIA1009E

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.40 (0.0157)
0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)

32225 8H500
32225 8H501
32225 8H502
32225 8H503
32225 8H504
32225 8H505
32225 8H506
32225 8H507
32225 8H508
32225 8H509
32225 8H510

32225 8H511

0.88 (0.0346)
0.92 (0.0362)
0.96 (0.0378)
1.00 (0.0394)
1.04 (0.0409)
1.08 (0.0425)
1.12 (0.0441)
1.16 (0.0457)
1.20 (0.0472)
1.24 (0.0488)
1.28 (0.0504)
1.32 (0.0520)

32225 8H512
32225 8H513
32225 8H514
32225 8H515
32225 8H516
32225 8H517
32225 8H518
32225 8H519
32225 8H520
32225 8H521
32225 8H522
32225 8H523

1.36 (0.0535)
1.40 (0.0551)
1.44 (0.0567)
1.48 (0.0583)
1.52 (0.0598)
1.56 (0.0614)
1.60 (0.0630)
1.64 (0.0646)

32225 8H524
32225 8H560
32225 8H561
32225 8H562
32225 8H563
32225 8H564
32225 8H565
32225 8H566

End play

0 - 0.06 mm (0 - 0.0024 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.44 (0.0173)
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)

32238 8H510
32238 8H511
32238 8H512
32238 8H513
32238 8H514
32238 8H515
32238 8H516
32238 8H517
32238 8H518

0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)
0.96 (0.0378)
1.00 (0.0394)
1.04 (0.0409)
1.08 (0.0425)

32238 8H519
32238 8H520
32238 8H521
32238 8H522
32238 8H523
32238 8H524
32238 8H560
32238 8H561

End play

0.04 - 0.14 mm (0.0016 - 0.0055 in)

MT-64

[RS6F51R]

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Always check with the Parts Department for the latest parts information.

6TH MAIN GEAR ADJUSTING SHIM

*: Always check with the Parts Department for the latest parts information.

Available Shims

ECS00AC2

— Differential Side Bearing Preload and Adjusting Shim

BEARING PRELOAD

*: Install shims which are “deflection of differential case” + “L” in thickness.

DIFFERENTIAL SIDE BEARING ADJUSTING SHIM (S)

*: Always check with the Parts Department for the latest parts information.

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

1.76 (0.0693)
1.84 (0.0724)
1.92 (0.0756)
2.00 (0.0787)
2.08 (0.0819)
2.16 (0.0850)

32237 8H800
32237 8H802
32237 8H804
32237 8H806
32237 8H808
32237 8H810

2.24 (0.0882)
2.32 (0.0913)
2.40 (0.0945)
2.48 (0.0976)
2.56 (0.1008)
2.64 (0.1039)

32237 8H812
32237 8H814
32237 8H816
32237 8H818
32237 8H820
32237 8H822

End play

0 - 0.1 mm (0 - 0.004 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.88 (0.0346)
0.96 (0.0378)
1.04 (0.0409)
1.12 (0.0441)

32237 8H560
32237 8H561
32237 8H562
32237 8H563

1.20 (0.0472)
1.28 (0.0504)
1.36 (0.0535)

32237 8H564
32237 8H565
32237 8H566

Differential side bearing preload: L*

0.15 - 0.21 mm (0.0059 - 0.0083 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)

31438 80X00
31438 80X01
31438 80X02
31438 80X03
31438 80X04
31438 80X05

0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)

31438 80X06
31438 80X07
31438 80X08
31438 80X09
31438 80X10
31438 80X11

MT-1

MANUAL TRANSAXLE

C  TRANSMISSION/TRANSAXLE

CONTENTS

D

E

F

G

H

I

J

K

L

M

SECTION

MT

A

B

MT

RS6F93R

PRECAUTIONS .......................................................... 2

Caution ..................................................................... 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tools ........................................ 4
Recommended Tool  ................................................. 4

TROUBLE DIAGNOSIS .............................................. 5

Symptom Chart  ........................................................ 5

DESCRIPTION ............................................................ 6

Cross-sectional View — RS6F93R  .......................... 6

M/T OIL  ....................................................................... 7

Description ............................................................... 7

POSITION SWITCH  .................................................... 8

Checking .................................................................. 8

BACK-UP LAMP SWITCH  .................................... 8

CONTROL LINKAGE  ................................................. 9

Removal and Installation  .......................................... 9

TRANSAXLE ASSEMBLY ........................................ 10

Removal and Installation  ........................................ 10

REMOVAL ........................................................... 10
INSTALLATION ................................................... 12

Components ........................................................... 13

GEAR COMPONENTS  ....................................... 13
DIFFERENTIAL GEAR  ....................................... 15
SHIFT CONTROL COMPONENTS  .................... 16
BALLS ................................................................. 17
CASE COMPONENTS ........................................ 18
CLUTCH HOUSING ............................................ 19

Disassembly and Assembly  ................................... 19

DISASSEMBLY ................................................... 19
REMOVING THE GEARING ............................... 22
CHECKING PARTS  ............................................ 23
REFITTING THE GEARING  ............................... 23

ASSEMBLY ......................................................... 27

Adjustment .............................................................. 30

PRIMARY SHAFT END FLOAT ADJUSTMENT ... 30
REVERSE GEAR INTERMEDIATE SHAFT END
FLOAT ................................................................. 31
SECONDARY SHAFT END FLOAT ADJUST-
MENT .................................................................. 31
DIFFERENTIAL BEARING PRETENSIONING
TORQUE ADJUSTMENT  .................................... 32

TIGHTENING TORQUES .......................................... 33

Description .............................................................. 33

RATIOS ..................................................................... 34

RENAULT Gearbox  ................................................ 34
NISSAN Gearbox  ................................................... 34

CONSUMABLES ...................................................... 35

Description .............................................................. 35

PARTS TO BE REPLACED SYSTEMATICALLY  ..... 36

Description .............................................................. 36

CHECKING ............................................................... 37

Bearings ................................................................. 37
Gearing ................................................................... 37
Synchronizer Ring  .................................................. 37
Sliding Gear Hub  .................................................... 37

TRANSAXLE CASE BEARING  ................................ 38

Removal and Installation  ........................................ 38

REMOVAL ........................................................... 38
INSTALLATION ................................................... 38

SELECTOR SHAFT RINGS ...................................... 39

Removal and Installation  ........................................ 39

REMOVAL ........................................................... 39
INSTALLATION ................................................... 39

DIFFERENTIAL BEARINGS ..................................... 40

Removal and Installation  ........................................ 40

REMOVAL ........................................................... 40
INSTALLATION ................................................... 40
