Nissan Primera P12. Manual - part 638





MT-58

[RS6F51R]

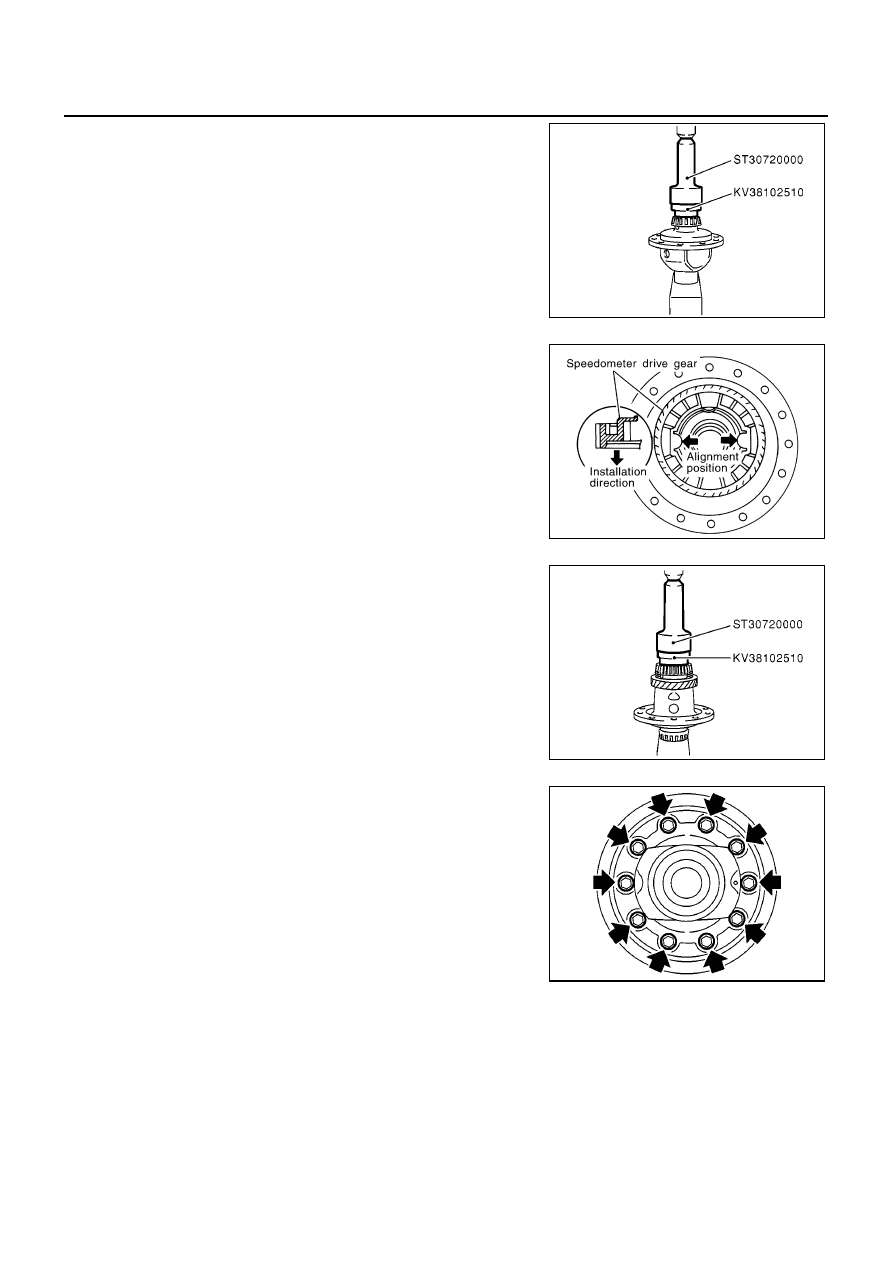

FINAL DRIVE

7.

Using a drift (special service tool), install differential side bearing
(transaxle case side).

8.

Align and install speedometer drive gear onto differential case.

9.

Using a drift (special service tool), install differential side bearing
(clutch housing side).

10. Install final gear into differential case, and tighten final gear

mounting bolts.

SCIA0910E

SMT842D

MCIA0020E

SCIA0912E

SHIFT CONTROL

MT-59

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

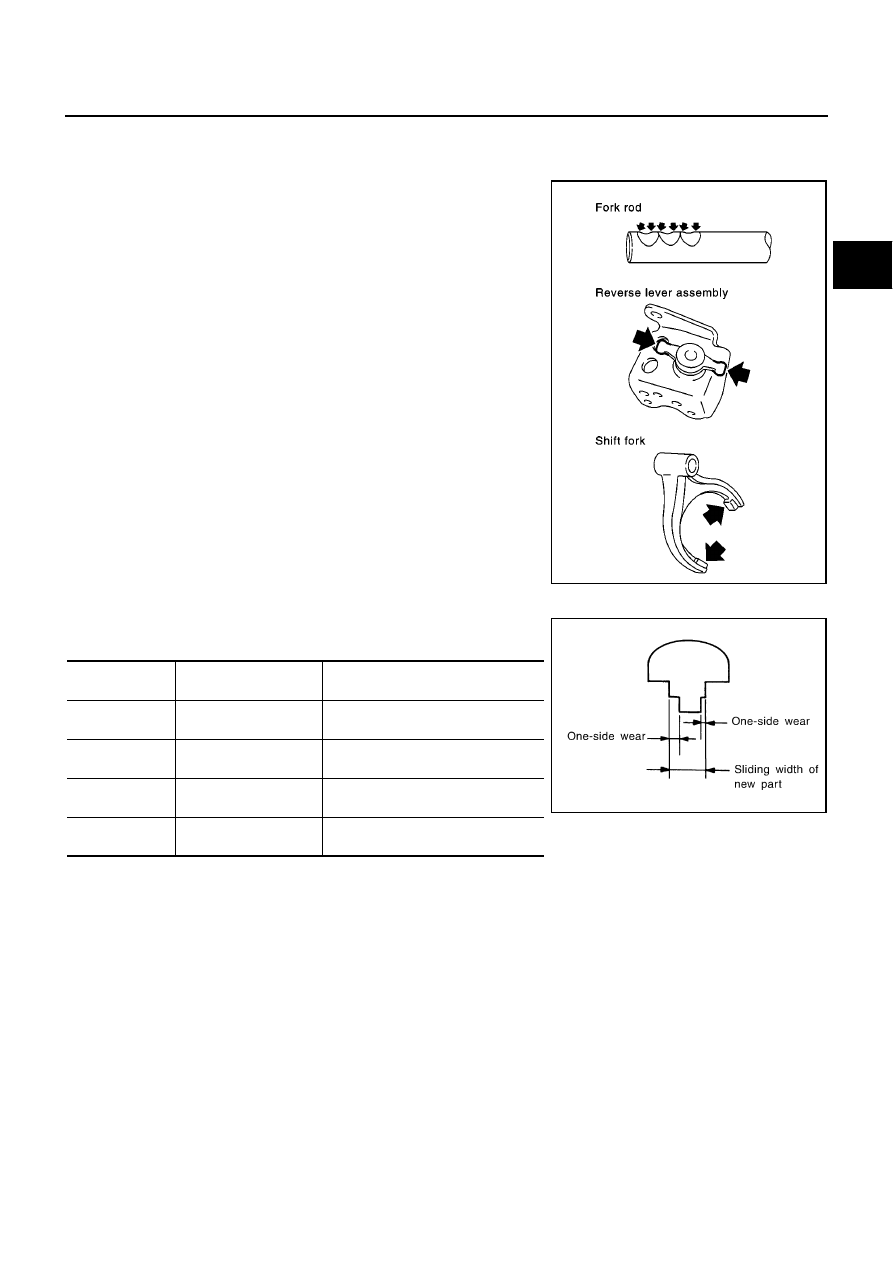

SHIFT CONTROL

PFP:32982

Inspection

ECS00ABU

Check contact surfaces and sliding area for wear, damage,
bending, etc. If necessary, replace parts.

SHIFT FORK

Check if the width of shift fork hook (sliding area with coupling
sleeve) is within allowable specification below.

SCIA0913E

Item

One-side wear specifi-

cation

Sliding width of new part

1st & 2nd

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

3rd & 4th

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

5th & 6th

0.2 mm (0.008 in)

6.10 - 6.23 mm

(0.2402 - 0.2453 in)

Reverse

0.2 mm (0.008 in)

12.80 - 12.93 mm

(0.5039 - 0.5091 in)

SMT801D

MT-60

[RS6F51R]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

ECS00ABV

TRANSAXLE

FINAL GEAR

Engine

YD22DDTi

Transaxle model

RS6F51R

Model code number

AW664

Number of speed

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.500

2nd

1.944

3rd

1.258

4th

0.947

5th

0.722

6th

0.673

Reverse

3.374

Number of teeth

Input gear

1st

14

2nd

18

3rd

31

4th

38

5th

44

6th

49

Reverse

14

Main gear

1st

49

2nd

35

3rd

39

4th

36

5th

34

6th

33

Reverse

38

Reverse idler gear

Front

37

Rear

46

Oil capacity

(Imp pt)

2.3 (4)

Remarks

Reverse synchronizer

Installed

Double baulk ring type synchro-
nizer

1st & 2rd synchronizer

SCIA0955E

Engine

YD22DDTi

Transaxle model

RS6F51R

Model code number

AW664

SERVICE DATA AND SPECIFICATIONS (SDS)

MT-61

[RS6F51R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

*: Refer to MA section, “RECOMMENDED FLUIDS AND LUBRICANTS”.

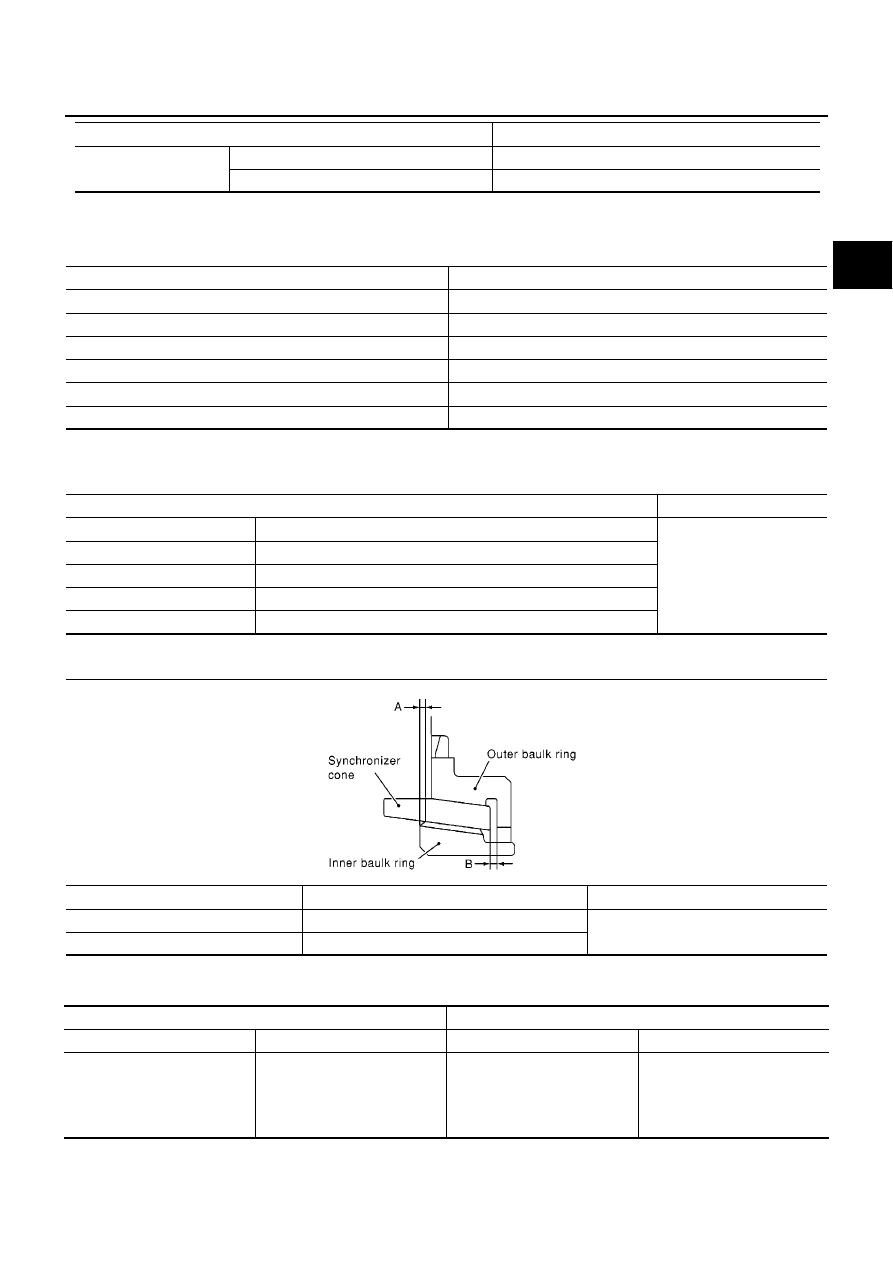

Gear End Play

ECS00ABW

Unit: mm (in)

Clearance Between Baulk Ring and Gear

ECS00ABX

3RD, 4TH, 5TH, 6TH & REVERSE BAULK RING

Unit: mm (in)

1ST AND 2ND DOUBLE BAULK RING

Unit: mm (in)

Available Snap Rings

ECS00ABY

6TH BUSHING

*: Always check with the Parts Department for the latest parts information.

Final gear ratio

3.812

Number of teeth

Final gear/Pinion

61/16

Side gear/Pinion mate gear

14/11

Gear

End play

1st main gear

0.20 - 0.30 (0.0079 - 0.0118)

2nd main gear

0.06 - 0.16 (0.0024 - 0.0063)

3rd input gear

0.18 - 0.31 (0.0071 - 0.0122)

4th input gear

0.20 - 0.30 (0.0079 - 0.0118)

5th input gear

0.06 - 0.16 (0.0024 - 0.0063)

6th input gear

0.06 - 0.16 (0.0024 - 0.0063)

Standard

Wear limit

3rd

0.9 - 1.45 (0.0354 - 0.0571)

0.7 (0.0276)

4th

0.9 - 1.45 (0.0354 - 0.0571)

5th

0.95 - 1.4 (0.0374 - 0.0551)

6th

0.95 - 1.4 (0.0374 - 0.0551)

Reverse

0.95 - 1.4 (0.0374 - 0.0551)

Dimension

Standard

Wear limit

A

0.6 - 0.8 (0.024 - 0.031)

0.2 (0.008)

B

0.6 - 1.1 (0.024 - 0.043)

SMT138E

End play

0 - 0.1 mm (0 - 0.004 in)

Thickness mm (in)

Part number*

Thickness mm (in)

Part number*

1.76 (0.0693)
1.81 (0.0713)
1.86 (0.0732)
1.91 (0.0752)
1.96 (0.0772)

32204 8H511
32204 8H512
32204 8H513
32204 8H514
32204 8H515

2.01 (0.0791)
2.06 (0.0811)
2.11 (0.0831)
2.16 (0.0850)
2.21 (0.0870)

32204 8H516
32204 8H517
32204 8H518
32204 8H519
32204 8H520
