PRECAUTIONS

PRECAUTIONS

PFP:XX000

Caution

XXXX0000111

Removing and handling the parts must be carried out on a workbench with a knockproof cover. (thick rubber or
plastic)
Cover all turning and synchronizer points in oil.
Observe the tightening torques.
Carefully carry out the specific settings and adjustments.
Be sure to properly refit parts in the same order and position after removal.
Marking the position of the sliding rods in relation to the hubs before removal is recommended.
During refitting, make sure the inside of the box remains free of dust or impurities.

PREPARATION

MT-3

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

PREPARATION

PFP:XX000

Special Service Tools

XXXX0000085

NISSAN tool number
(Renault tool number)
Tool name

Description

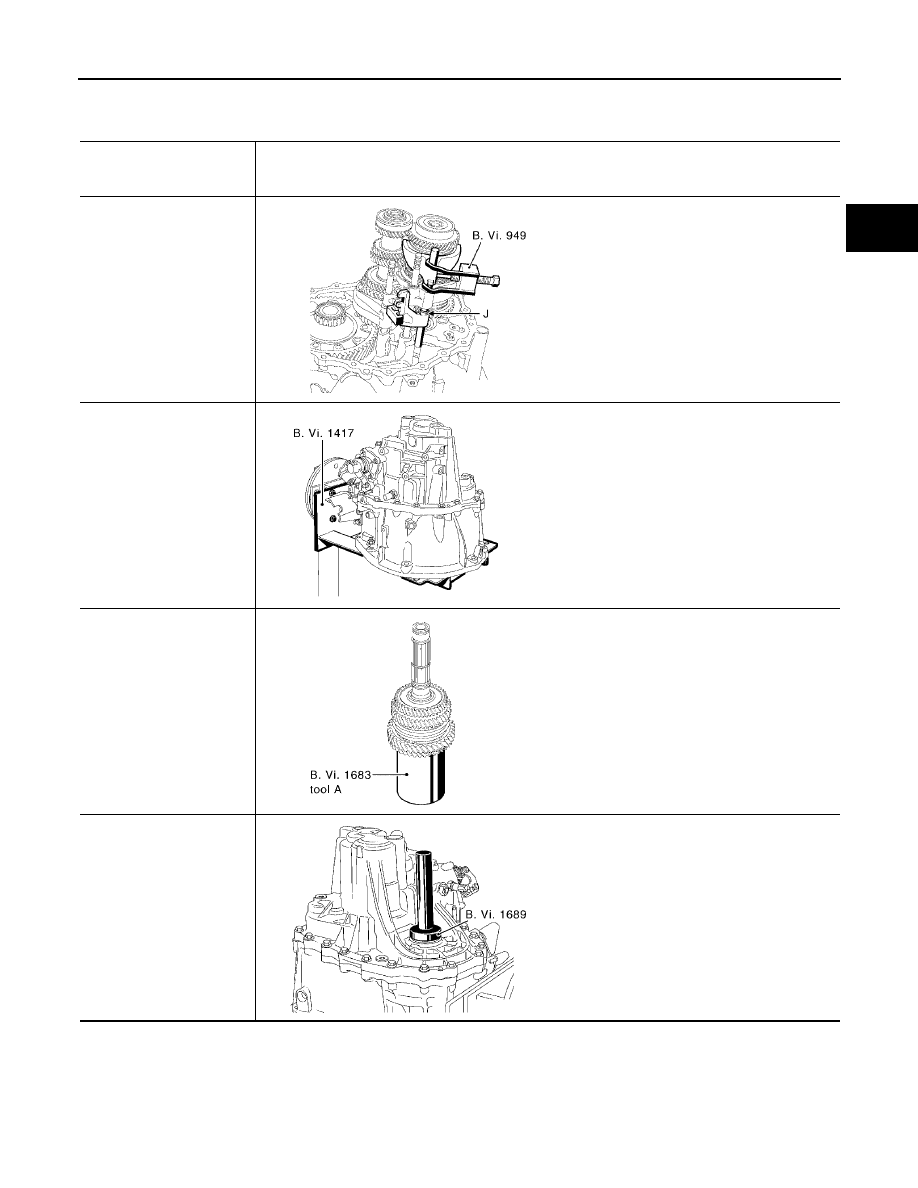

KV32910320
(B. Vi. 949)
Pin removal/refitting tool

Unpinning the 5th-6th fork

KV32910330
(B. Vi. 1417)
Gearbox mounting

Fixing the gearbox

KV32910340
(B. Vi. 1683)
ND0 renovation kit

●

Mark A

gear disassembly tool

●

Mark B

primary shaft holder

●

Mark C

gear fitting tool

●

Mark D

gear fitting tool

●

Mark E

bearing cage fitting tool

●

Mark F

selector fork shaft ring mounting tool

●

Mark G

primary shaft oil seal fitting tool

●

Mark H

differential bearing fitting tool

KV32910350
(B. Vi. 1689)
Differential oil seal fitting tool

Fitting the new differential output seals

YMT047

YMT048

YMT049

YMT050

MT-4

[RS6F93R]

PREPARATION

Commercial Service Tools

XXXX0000001

Recommended Tool

XXXX0000002

Grip and inertial extractor: Ø 42 - Ø 14

Tool name

Description

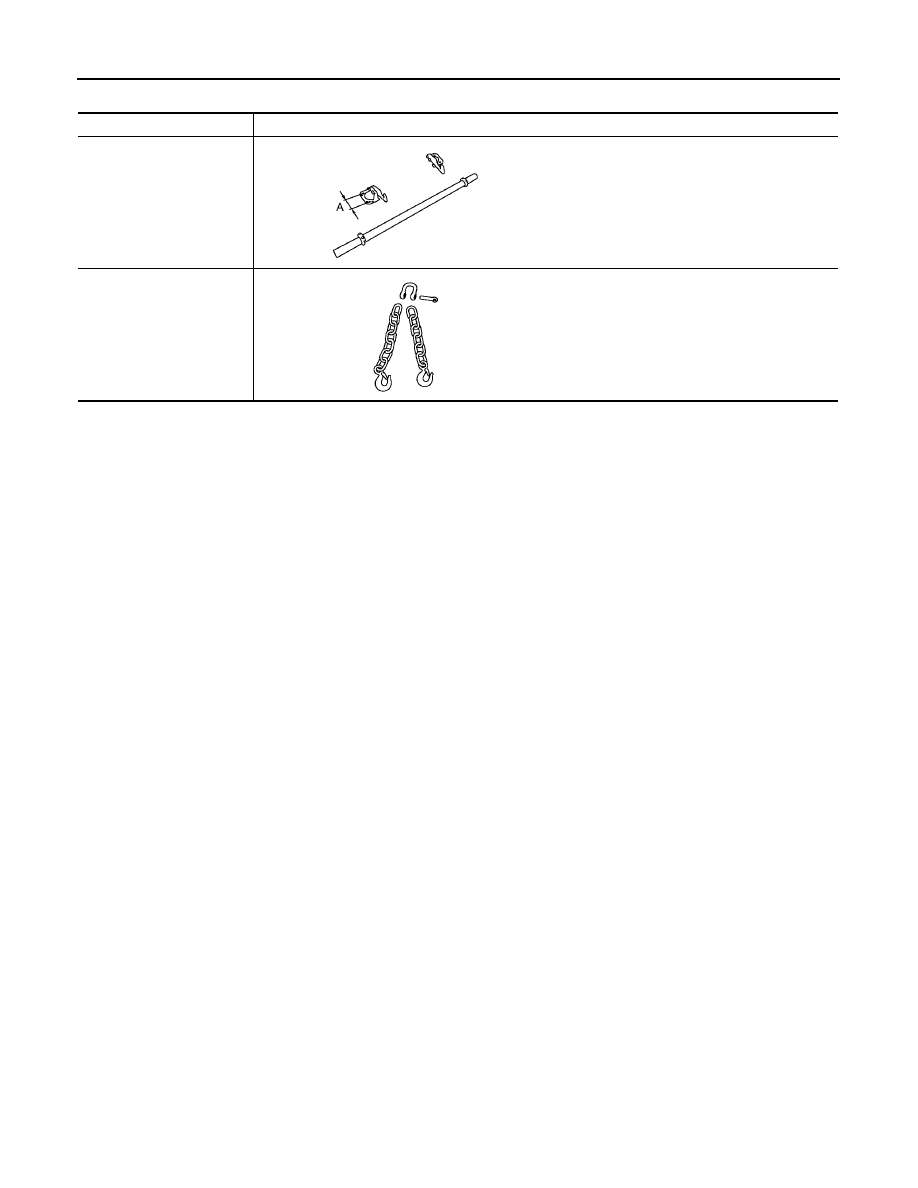

Engine support bar

A: Approx. 12.5 mm (0.492 in)

Engine support chain

MBIB0961E

MBIB0962E

TROUBLE DIAGNOSIS

MT-5

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

TROUBLE DIAGNOSIS

PFP:XX000

Symptom Chart

XXXX0000108

NOTE:
The numbers indicate the order of priority for diagnostics.

Symptoms (after checking

the clutch)

Possible causes

Symptoms

Oil level

or grade

External

control

Synchro-

nizer

Gearing

Sliding

gear hub

Fork and

balls

Bearings

Engine

mounting
- housing

Gear grinding

1

2

3

4

One or more gears
cannot be selected

1

2

3

4

Gear disengagement

2

4

4

3

1

One or more gears
locked

1

4

2

3

Noisy

1

3

2
