Nissan Primera P12. Manual - part 604





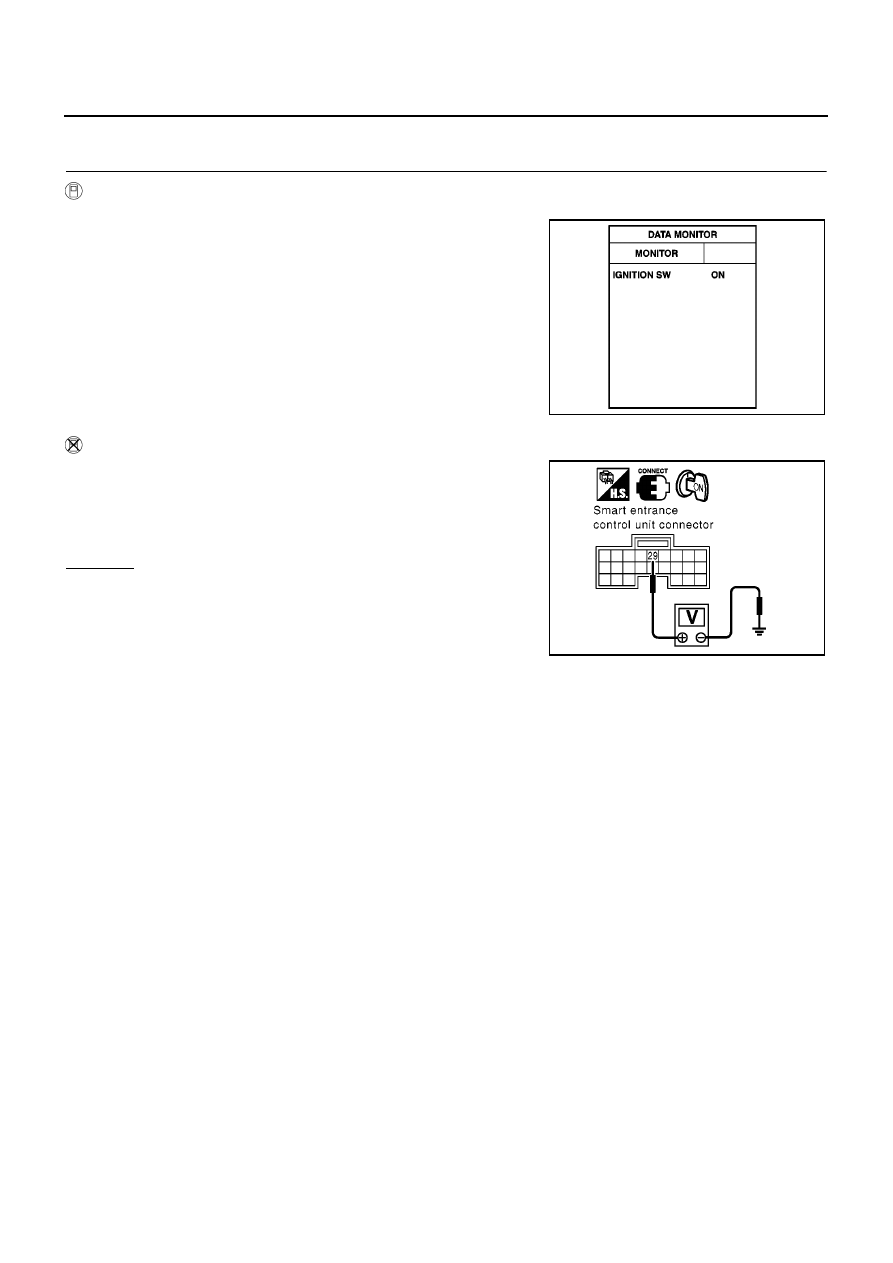

LT-126

INTERIOR ROOM LAMP

Interior Room Lamp Timer Does Not Cancel

EKS009OE

1.

CHECK IGNITION ON SIGNAL

WITH CONSULT-II

Check ignition switch ON signal (“IGNITION SW”) in “DATA MONITOR” mode with CONSULT-II.

WITHOUT CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between smart entrance control unit harness
connector M42 terminal 29 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following.

10A fuse [No. 10, located in fuse block (J/B)]

Harness for open or short between smart entrance
control unit and fuse

Turn ignition switch ON

: ON

Turn ignition switch OFF

: OFF

MKIB0196E

29 (Y/G) - Ground

: Battery voltage

MKIB0581E

INTERIOR ROOM LAMP

LT-127

C

D

E

F

G

H

I

J

L

M

A

B

LT

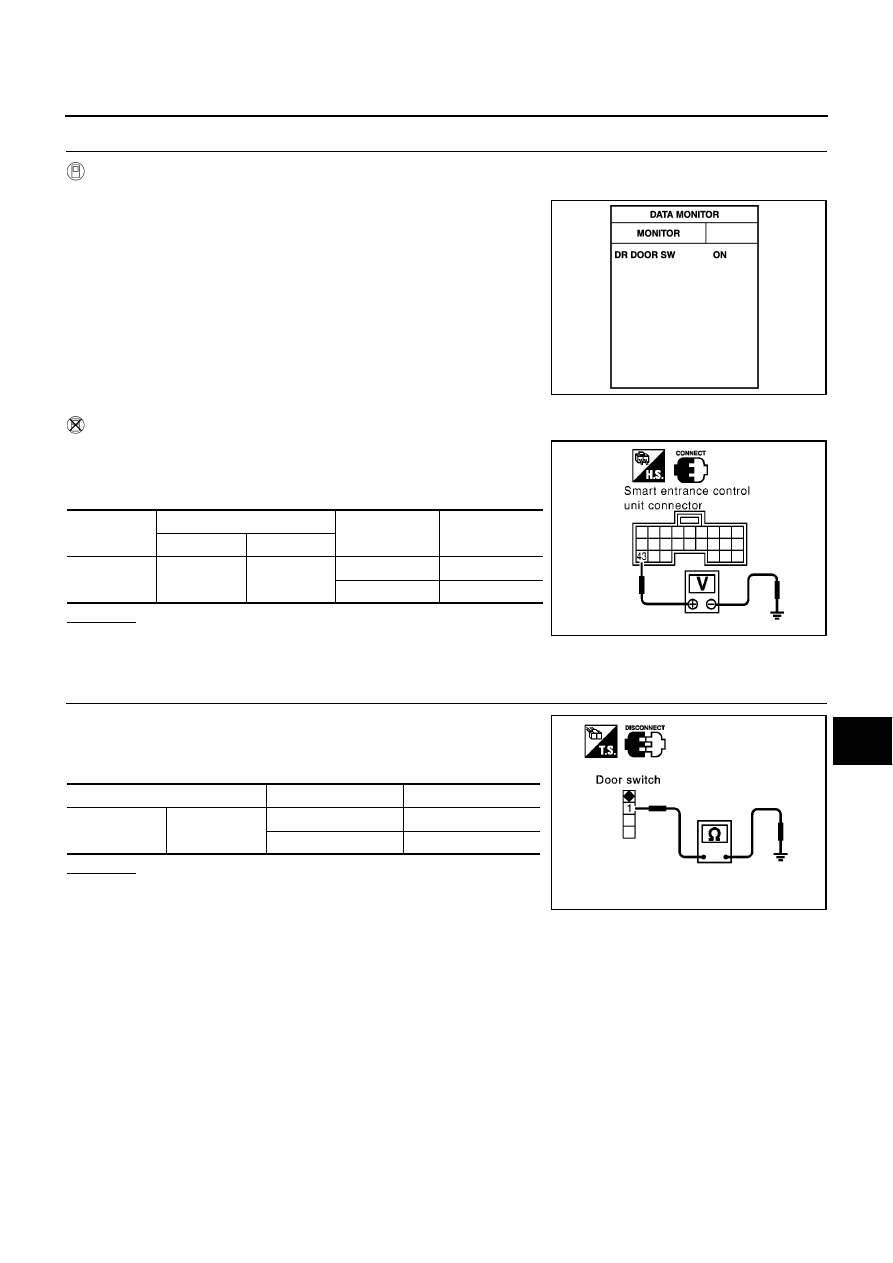

2.

CHECK DOOR SWITCH INPUT SIGNAL

WITH CONSULT-II

Check driver door switch signal (“DR DOOR SW”) in “DATA MONITOR” mode with CONSULT-II.

WITHOUT CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between smart entrance control unit harness
connector and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK DRIVER SIDE DOOR SWITCH

1.

Disconnect front door switch (driver side) connector.

2.

Check continuity between front door switch (driver side) terminal
1 and ground part of door switch.

OK or NG

OK

>> Check harness for open or short between smart

entrance control unit and front door switch (driver side).

NG

>> Replace front door switch (driver side).

DR DOOR SW

Driver side door is open

: ON

Driver side door is closed

: OFF

MKIB0197E

Connector

Terminal (wire color)

Driver side door

condition

Voltage (V)

(Approx.)

( + )

( - )

M42

43 (R/W)

Ground

Open : (ON)

0

Closed : (OFF)

Battery voltage

MKIB0073E

Terminal

Door switch

Continuity

1

Ground part of
door switch

Pushed

No

Released

Yes

PIIA3351E

LT-128

INTERIOR ROOM LAMP

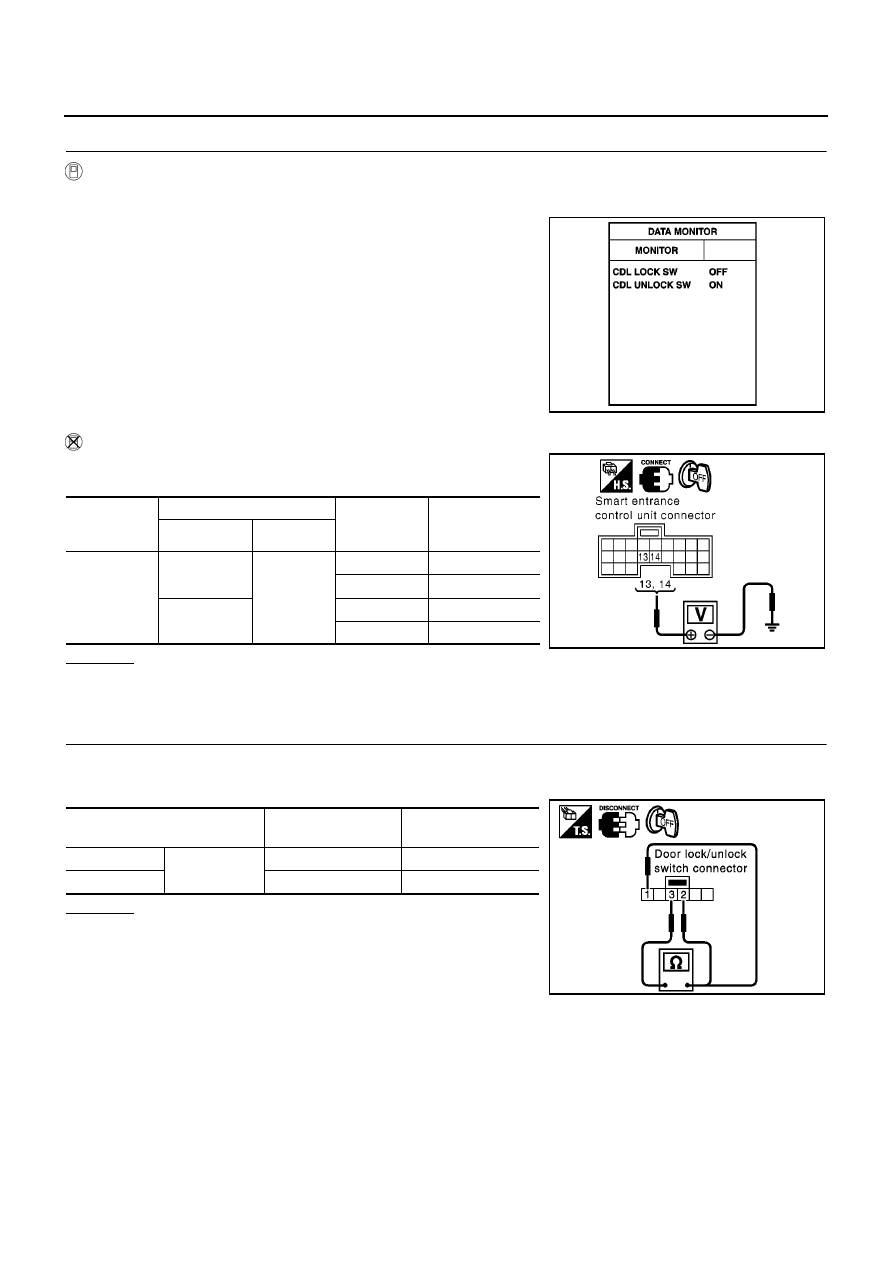

4.

CHECK DOOR LOCK/UNLOCK SWITCH

WITH CONSULT-II

Check door lock/unlock switch signal (“CDL LOCK SW” or “CDL UNLOCK SW”) in “DATA MONITOR” mode
with CONSULT-II.

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connec-
tor M41 terminals 13 or 14 and ground.

OK or NG

OK

>> Door lock/unlock switch is OK.

NG

>> GO TO 2.

5.

CHECK DOOR LOCK/UNLOCK SWITCH

1.

Disconnect door lock/unlock switch connector.

2.

Check continuity between door lock/unlock switch connector terminals 1, 2 and 3.

OK or NG

OK

>> Check the following.

Ground circuit for door lock/unlock switch

Harness for open short between door lock/unlock
switch and smart entrance control unit

NG

>> Replace door lock/unlock switch.

When door lock/unlock is
locked

: CDL LOCK SW ON

When door lock/unlock is
unlocked

: CDL UNLOCK SW ON

MKIB0198E

Connector

Terminals (wire color)

Condition

(Door lock/

unlock switch)

Voltage (V)

(Approx.)

(+)

(

)

M41

13 (GY)

Ground

Locked

0

Unlocked

Battery voltage

14 (BR/Y)

Locked

Battery voltage

Unlocked

0

MKIB0582E

Terminal

Door lock/unlock

switch condition

Continuity

1

3

Lock

Yes

2

Unlock

Yes

MKIB0261E

INTERIOR ROOM LAMP

LT-129

C

D

E

F

G

H

I

J

L

M

A

B

LT

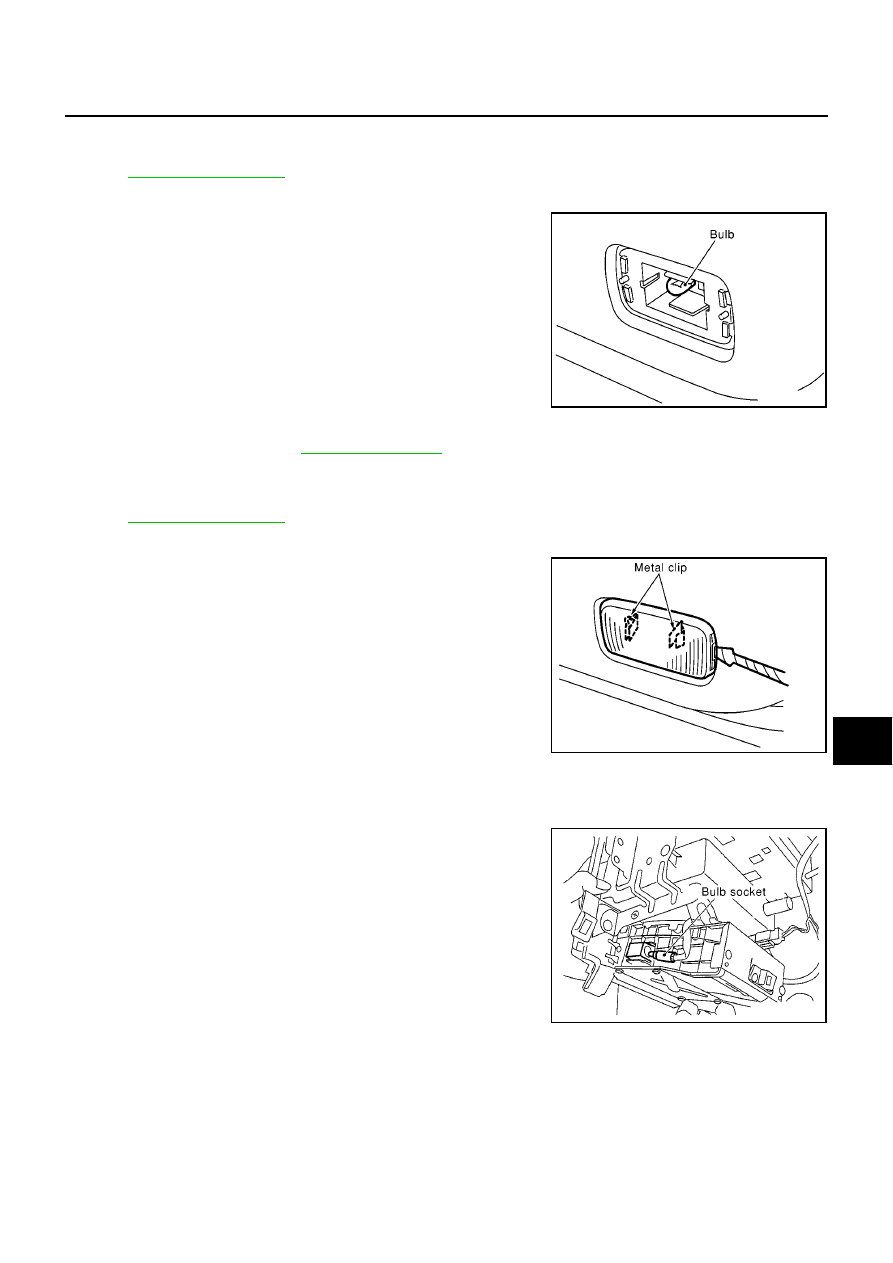

Bulb Replacement

EKS009OF

INTERIOR ROOM LAMP

Refer to

LT-132, "SPOT LAMP"

.

STEP LAMP

1.

Remove the lens using a clip driver or a suitable tool.

2.

Remove the bulb.

ASHTRAY

Removal and installation, refer to

LT-129, "ASHTRAY"

.

Removal and Installation

EKS009OG

INTERIOR ROOM LAMP

Refer to

LT-132, "SPOT LAMP"

.

STEP LAMP

1.

Using a clips driver or a suitable tool, press and remove the
metal clip of the step lamp.

2.

Disconnect the interior step lamp connector.

ASHTRAY

1.

Remove the A/T finisher. Refer to IP section in P12 ESM (SM2E00-1P12E0E).

2.

Remove the console box (front, rear).

3.

Remove the instrument finisher E.

4.

Remove the cluster lid C.

5.

Remove the audio assembly.

6.

Turn the bulb socket counterclockwise and unlock it.

MKIB0155E

MKIB0156E

MKIB0154E
