Nissan Primera P12. Manual - part 574





LT-6

HEADLAMP -CONVENTIONAL TYPE-

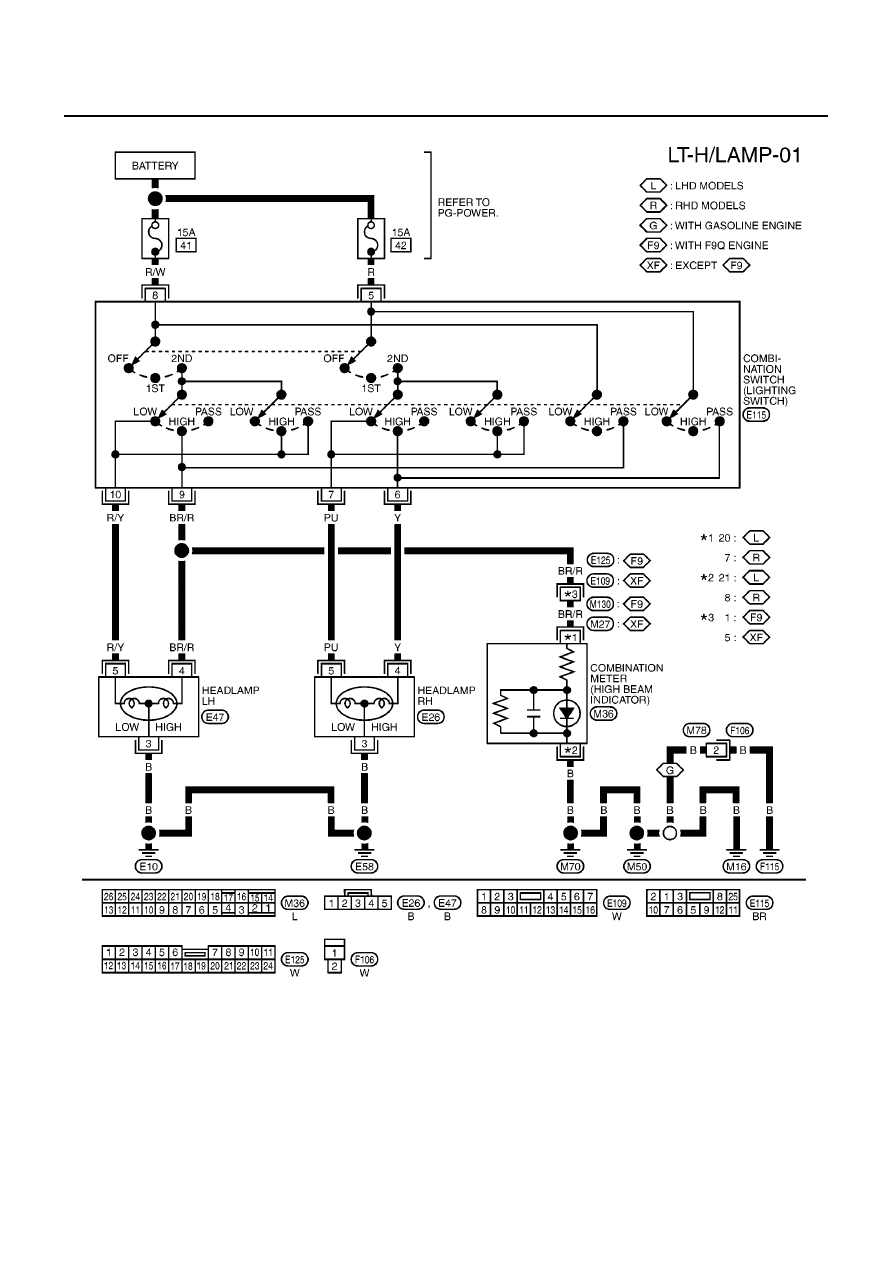

Wiring Diagram — H/LAMP —

EKS009LN

MKWA1085E

HEADLAMP -CONVENTIONAL TYPE-

LT-7

C

D

E

F

G

H

I

J

L

M

A

B

LT

Trouble Diagnoses

EKS009LO

Aiming Adjustment

EKS009LP

When performing headlamp aiming adjustment, use an aiming machine, aiming wall screen or headlamp
tester. Aimers should be in good repair, calibrated and operated in accordance with respective operation man-
uals.
If any aimer is not available, aiming adjustment can be done as follows:
For details, refer to the regulations in your own country.

Keep all tires inflated to correct pressures.

Place vehicle and tester on one and same flat surface.

See that there is no-load in vehicle (coolant, engine oil filled up to correct level and full fuel tank) other
than the driver (or equivalent weight placed in driver

s position).

Symptom

Possible cause

Repair order

LH headlamps do not operate.

1. Bulb

2. Grounds E10 and E58

3. 15A fuse

4. Lighting switch

1. Check bulb.

2. Check grounds E10 and E58.

3. Check 15A fuse (No. 41, located in fuse

and fusible link box).
Verify battery positive voltage is present
at terminal 8 (R/W) of lighting switch.

4. Check lighting switch.

RH headlamps do not operate.

1. Bulb

2. Grounds E10 and E58

3. 15A fuse

4. Lighting switch

1. Check bulb.

2. Check grounds E10 and E58.

3. Check 15A fuse (No. 42, located in fuse

and fusible link box).
Verify battery positive voltage is present
at terminal 5 (R) of lighting switch.

4. Check lighting switch.

LH high beam does not operate, but LH
low beam operates.

1. Bulb

2. Open in LH high beams circuit

3. Lighting switch

1. Check bulb.

2. Check continuity between lighting switch

terminal 9 (BR/R) and LH headlamp ter-
minal 4 (BR/R) for an open circuit.

3. Check lighting switch.

LH low beam does not operate, but LH
high beam operates.

1. Bulb

2. Open in LH low beam circuit

3. Lighting switch

1. Check bulb.

2. Check continuity between lighting switch

terminal 10 (R/Y) and LH headlamp ter-
minal 5 (R/Y) for an open circuit.

3. Check lighting switch.

RH high beam does not operate, but RH
low beam operates.

1. Bulb

2. Open in RH high beams circuit

3. Lighting switch

1. Check bulb.

2. Check continuity between lighting switch

terminal 6 (Y) and RH headlamp termi-
nal 4 (Y) for an open circuit.

3. Check lighting switch.

RH low beam does not operate, but RH
high beam operates.

1. Bulb

2. Open in RH low beam circuit

3. Lighting switch

1. Check bulb.

2. Check continuity between lighting switch

terminal 7 (PU) and RH headlamp termi-
nal 5 (PU) for an open circuit.

3. Check lighting switch.

High beam indicator does not work.

1. Bulb

2. Grounds M16, M50 and M70 or M16,

M50, M70 and F115 (Gasoline engine)

3. Open in high beam circuit

1. Check bulb in combination meter.

2. Check grounds M16, M50 and M70.

3. Check continuity between lighting switch

terminal 9 (BR/R) and combination
meter terminal 20 (BR/R) LHD or 7 (BR/
R) RHD for an open circuit.

LT-8

HEADLAMP -CONVENTIONAL TYPE-

CAUTION:

Be sure aiming switch is set to “0” when performing aiming adjustment.

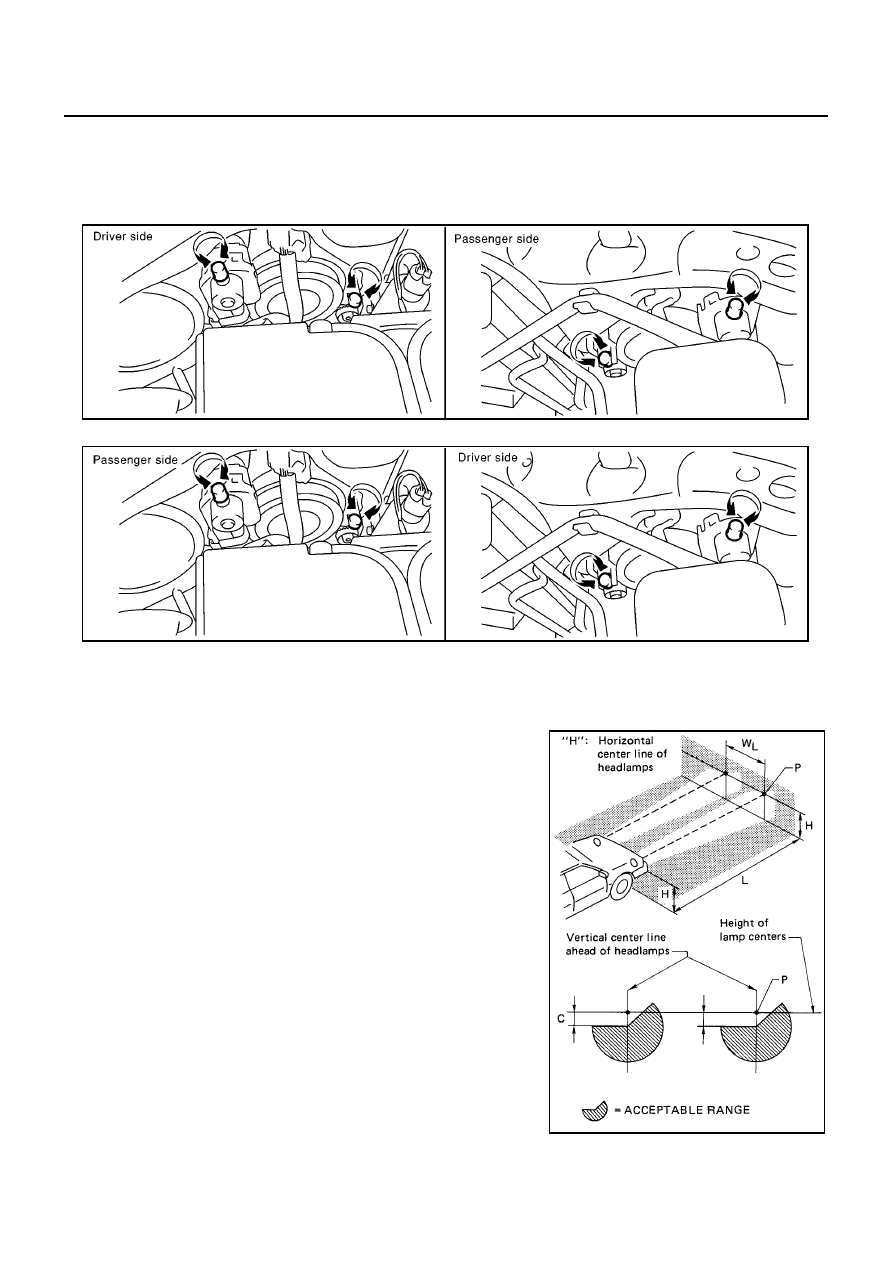

LOW BEAM

1.

Turn headlamp low beam on.
LHD models

RHD models

2.

Use adjusting pots to perform aiming adjustment.

First tighten the adjusting pot all the way and then make adjustment by loosening the pot.

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aim-
ing. Use the aiming chart shown in the figure.

Adjust headlamps so that main axis of light is parallel to cen-
ter line of body and is aligned with point P shown in illustra-
tion.

Figure shows headlamp aiming pattern for driving on right
side of road; for driving on left side of road, aiming pattern is
reversed.

Dotted lines to point P in illustration show center of headlamp.

Basic illuminating area for adjustment should be within the
range shown in the figure. Adjust headlamps accordingly.

CAUTION:

Be sure aiming switch is set to “0” when preforming aiming
adjustment.

“H”

: Horizontal center line of headlamps

“W

L

: Distance between each headlamp center

“L”

: 25 m (98.43 in)

“C”

: 250 mm (9.84 in)

MKIA0048E

MKIA0049E

SEL254L

HEADLAMP -CONVENTIONAL TYPE-

LT-9

C

D

E

F

G

H

I

J

L

M

A

B

LT

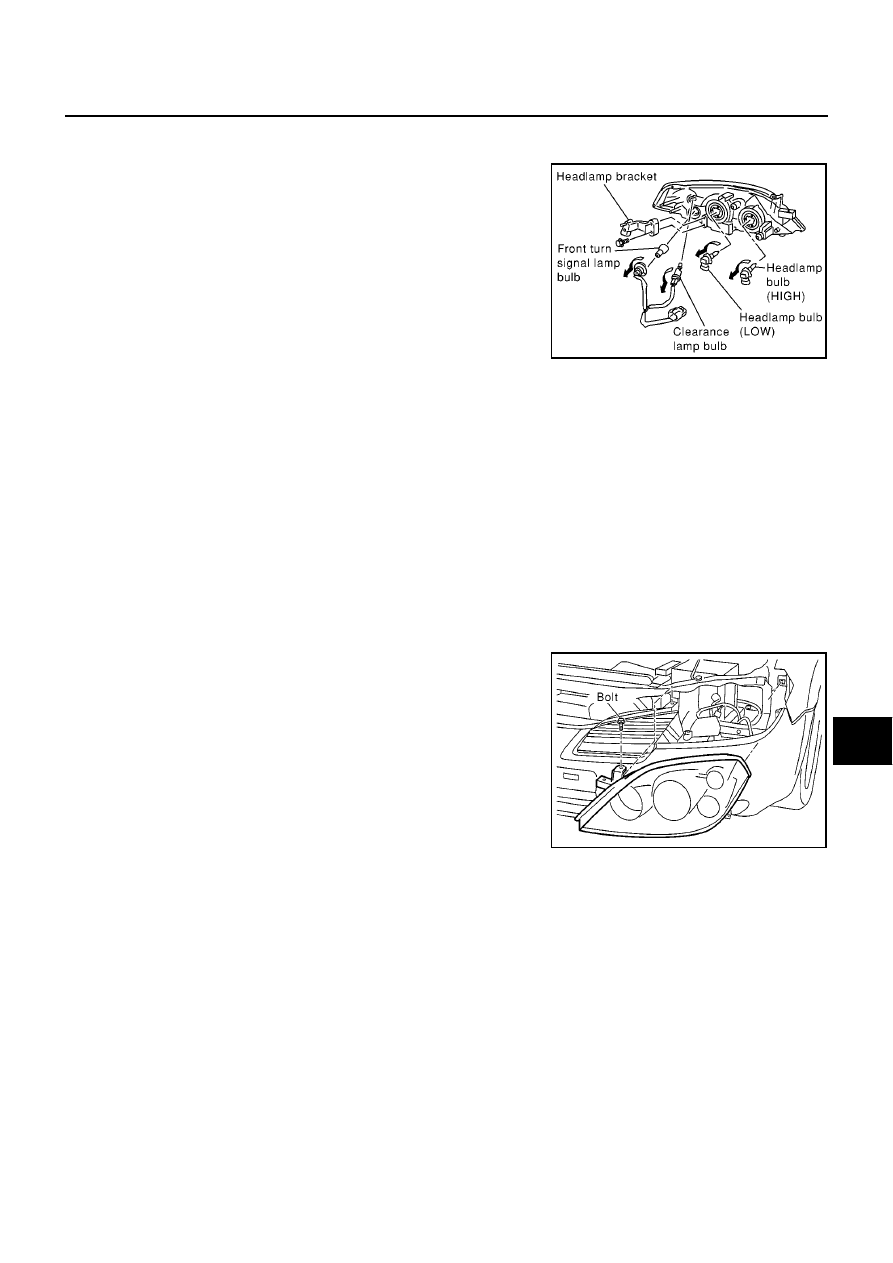

Bulb Replacement

EKS009LQ

HEADLAMP

1.

Disconnect connector of headlamp.

2.

Unlock retaining spring, then remove bulb.

CLEARANCE LAMP, FRONT TURN SIGNAL LAMP

1.

Turn the bulbsocket counterclockwise and unlock it.

2.

Remove the bulb from its socket.

CAUTION:

Do not touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

Do not leave bulb out of headlamp reflector for a long time because dust, moisture smoke, etc.
may affect the performance of headlamp. When replacing bulb, be sure to replace it with new one.

When bulb is installed, be sure to lock rubber cap to ensure watertightness.

Removal and Installation

EKS009LR

REMOVAL

1.

Disconnect connector of headlamp and clearance lamp.

2.

Remove the front grille. Refer to EI section in P12 ESM
(SM2E00-1P12E0E).

3.

Remove the headlamp mounting bolts.

4.

Pull the headlamp toward the front of the vehicle.

INSTALLATION

Install in the reverse order of removal, taking care of the following points.
Headlamp mounting screws and nut

Headlamp (Low)

: 12V - 55W (H7)

Headlamp (High)

: 12V - 55W (H7)

MKIB0116E

Clearance lamp

: 12V - 5W

Front turn signal lamp

: 12V - 21W

MKIB0117E

Tightening torque

: 4.4 - 5.8 N·m (0.45 - 0.59 kg-m, 39 - 51 in-lb)
