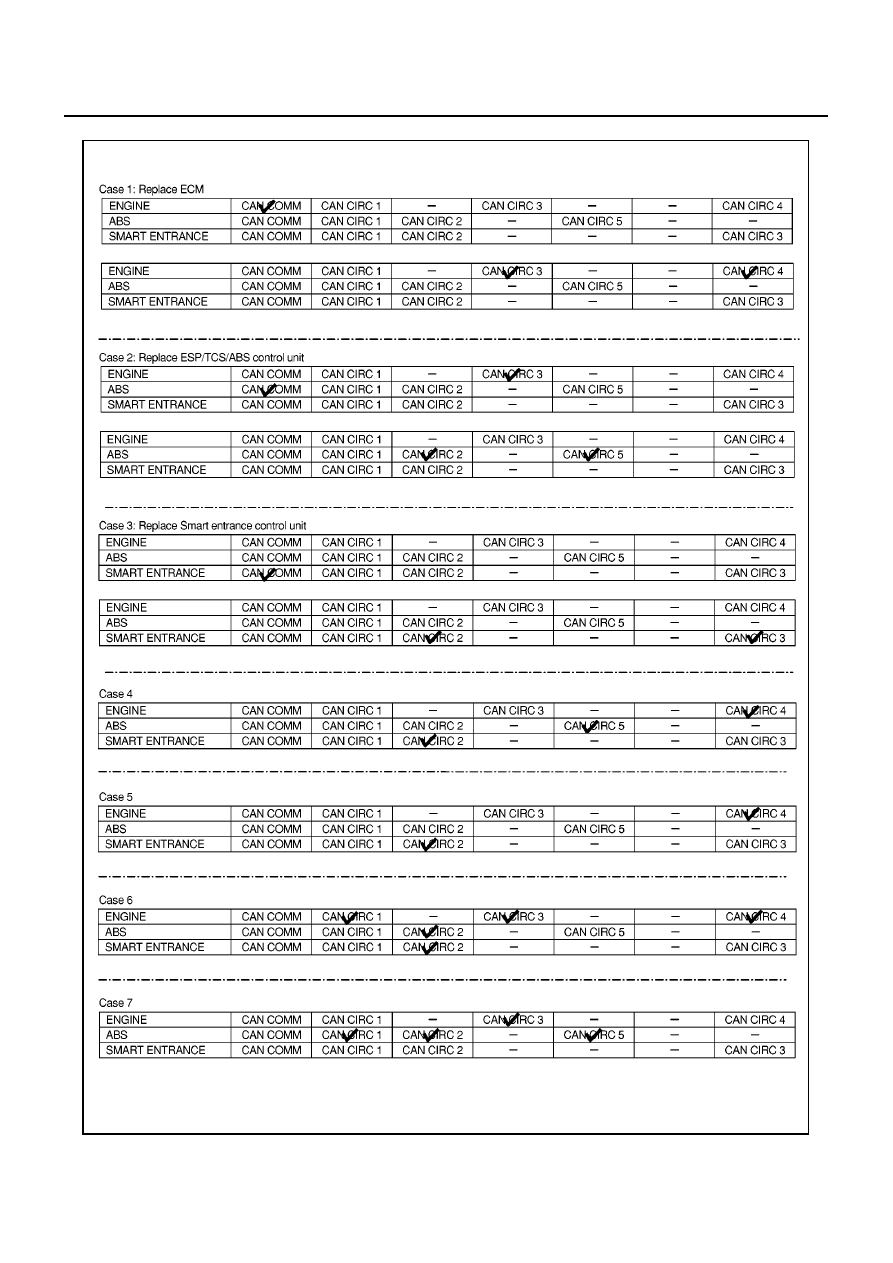

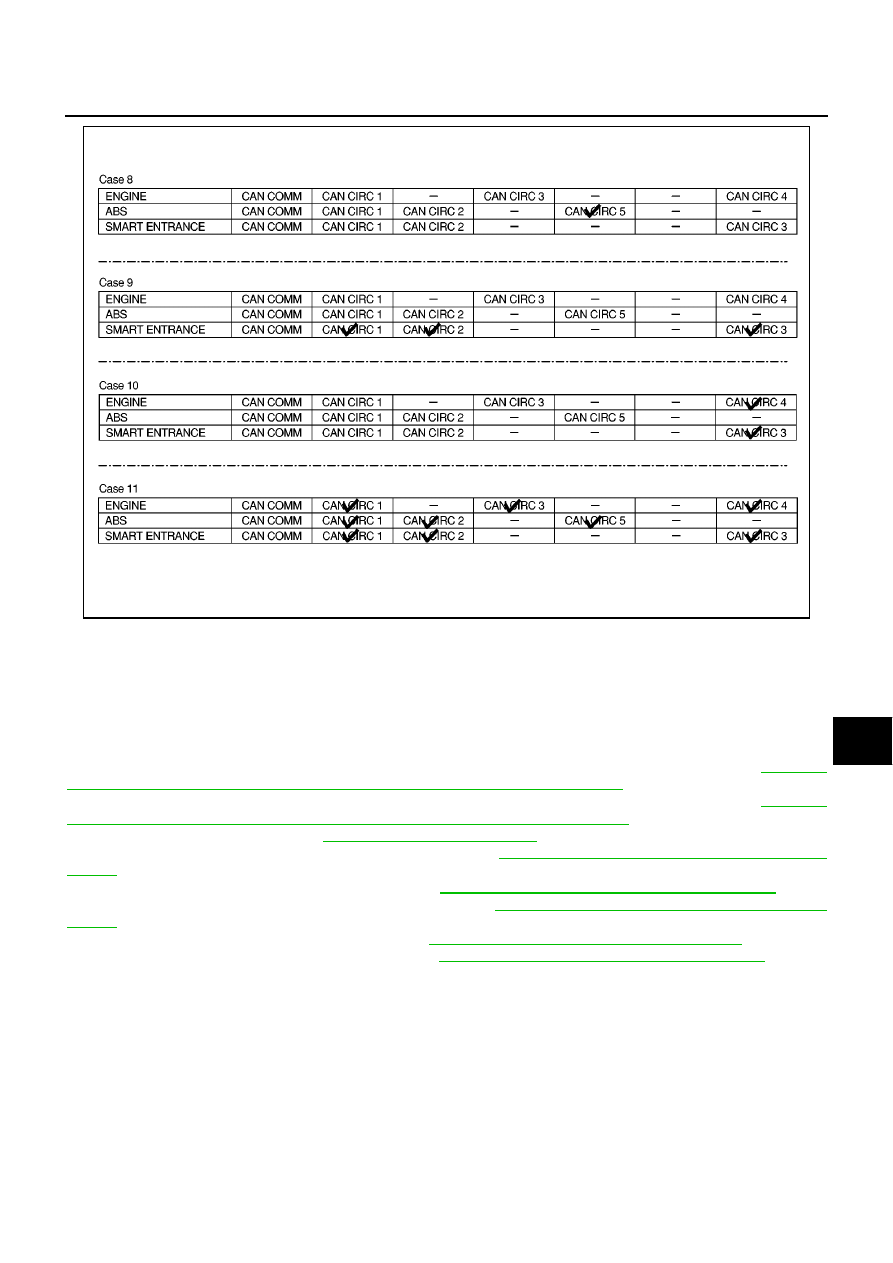

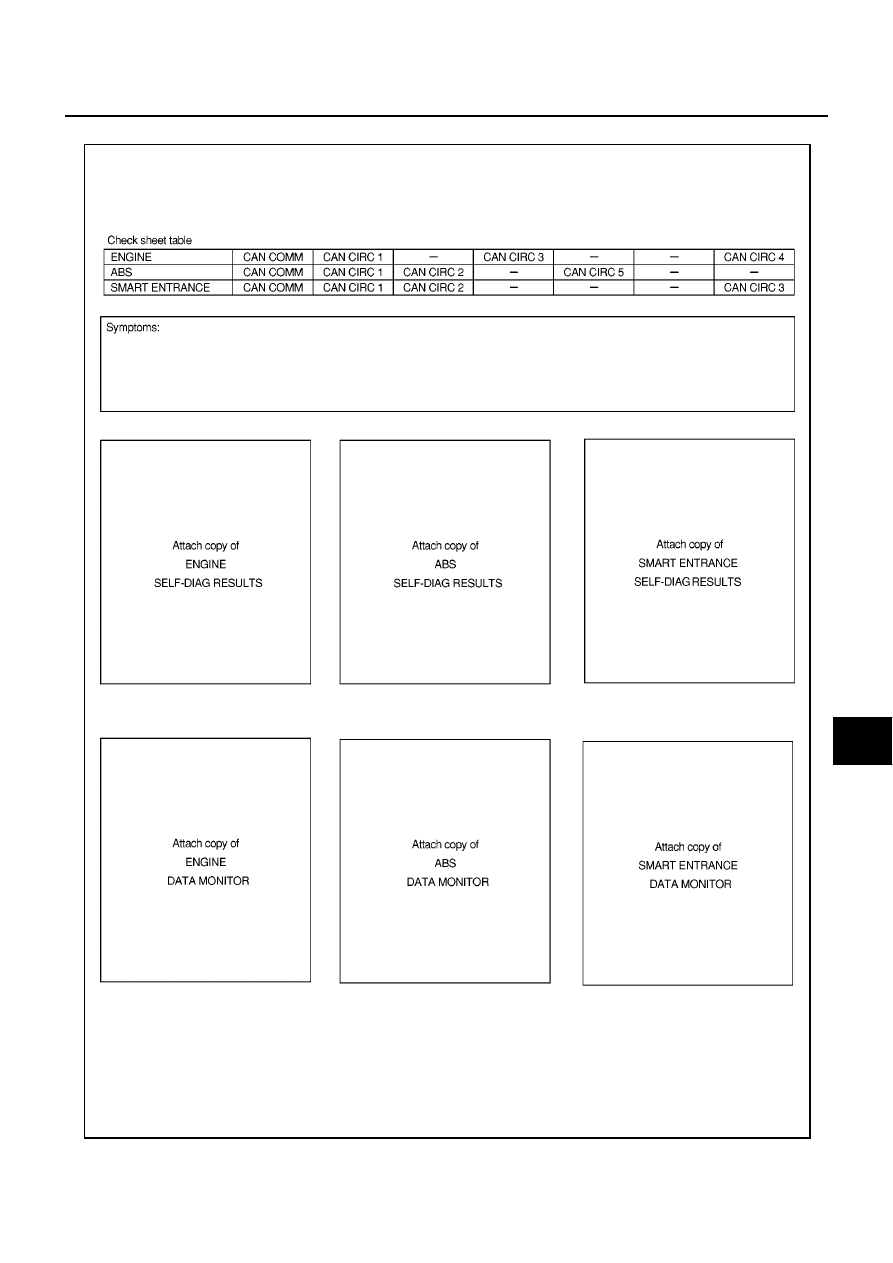

LAN-160 [CAN] CAN SYSTEM (TYPE 30) Work Flow EKS00ASB 1. Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “ABS”, and “SMART ● EC-83, "DTC U1000 CAN COMMUNICATION LINE" for “ENGINE” ● BRC-94, "Inspection 15 CAN Communication Circuit, ESP/TCS/ABS Control Unit and Steering Angle for “ABS” ● BCS-23, "CAN Communication Line Check" for “SMART ENTRANCE” 2. Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer to . 3. Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet . NOTE: 4. According to the check sheet results (example), start inspection. Refer to . |
