Nissan Primera P12. Manual - part 185





LCD DISPLAY

DI-69

C

D

E

F

G

H

I

J

L

M

A

B

DI

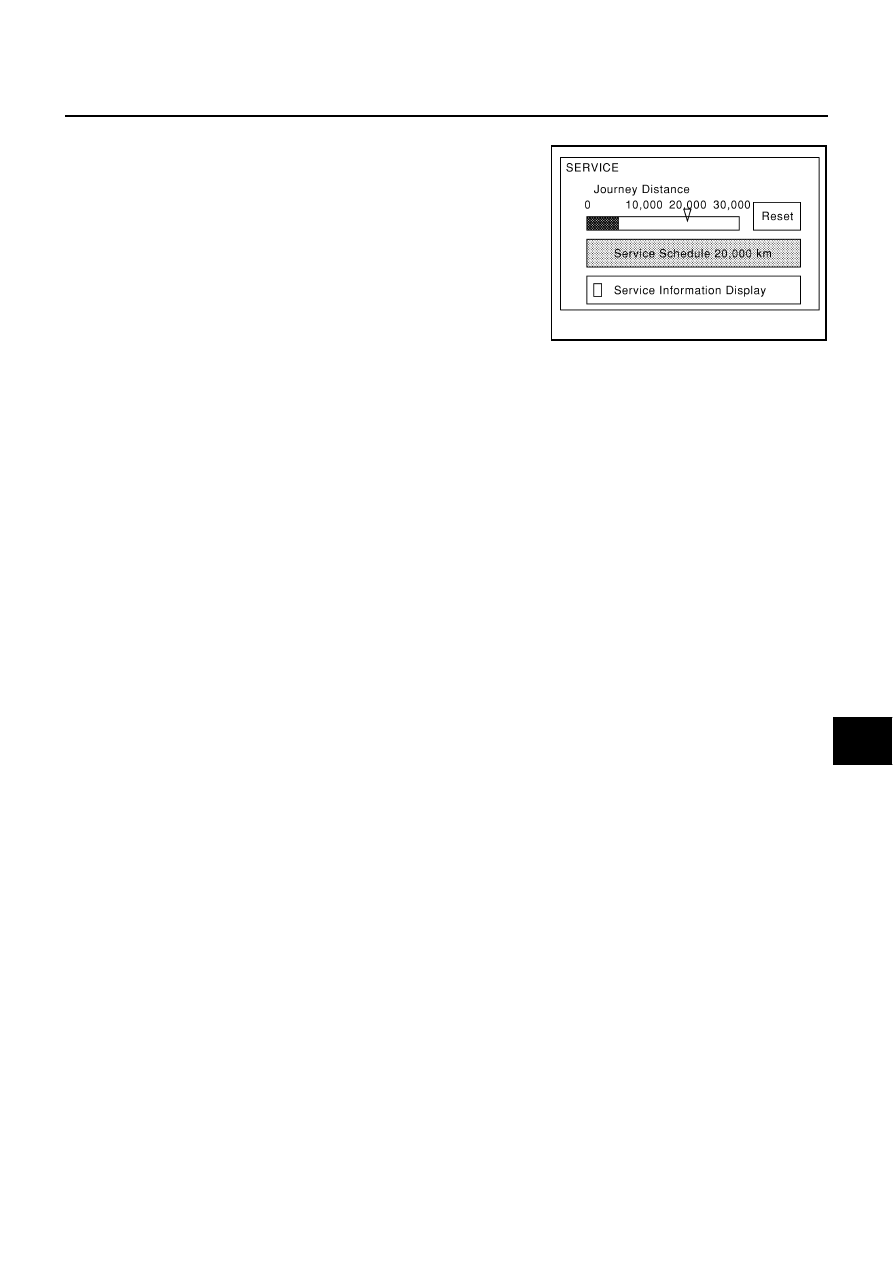

SERVICE

In this mode, service schedule can be set on this display.

NOTE:

To set service schedule, change journey distance.

When the indicator of “Service Information Display” is set
green, the color of the journey distance marker will be red.
And automatically service information screen will be displayed
when journey distance is reached on service schedule.

MKIB0148E

DI-70

LCD DISPLAY

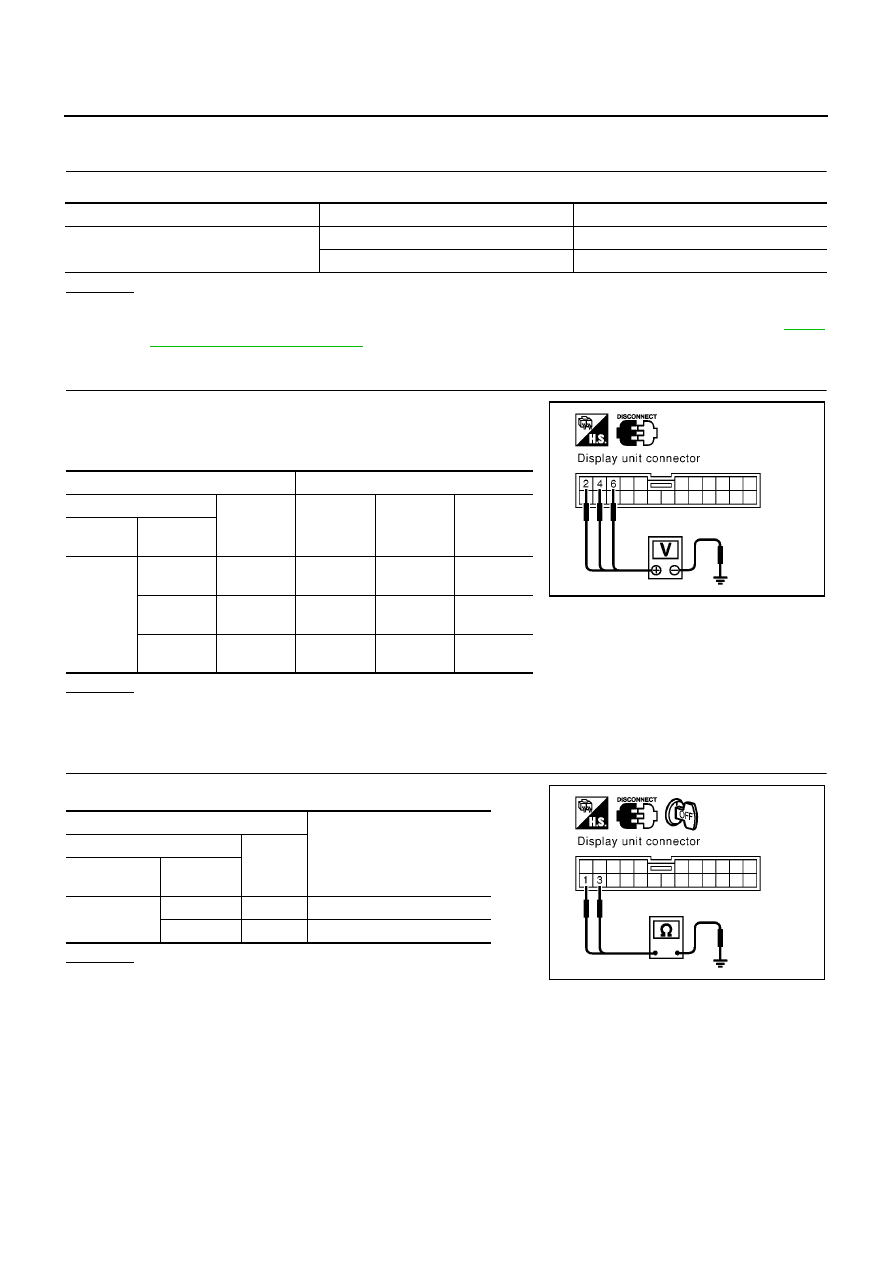

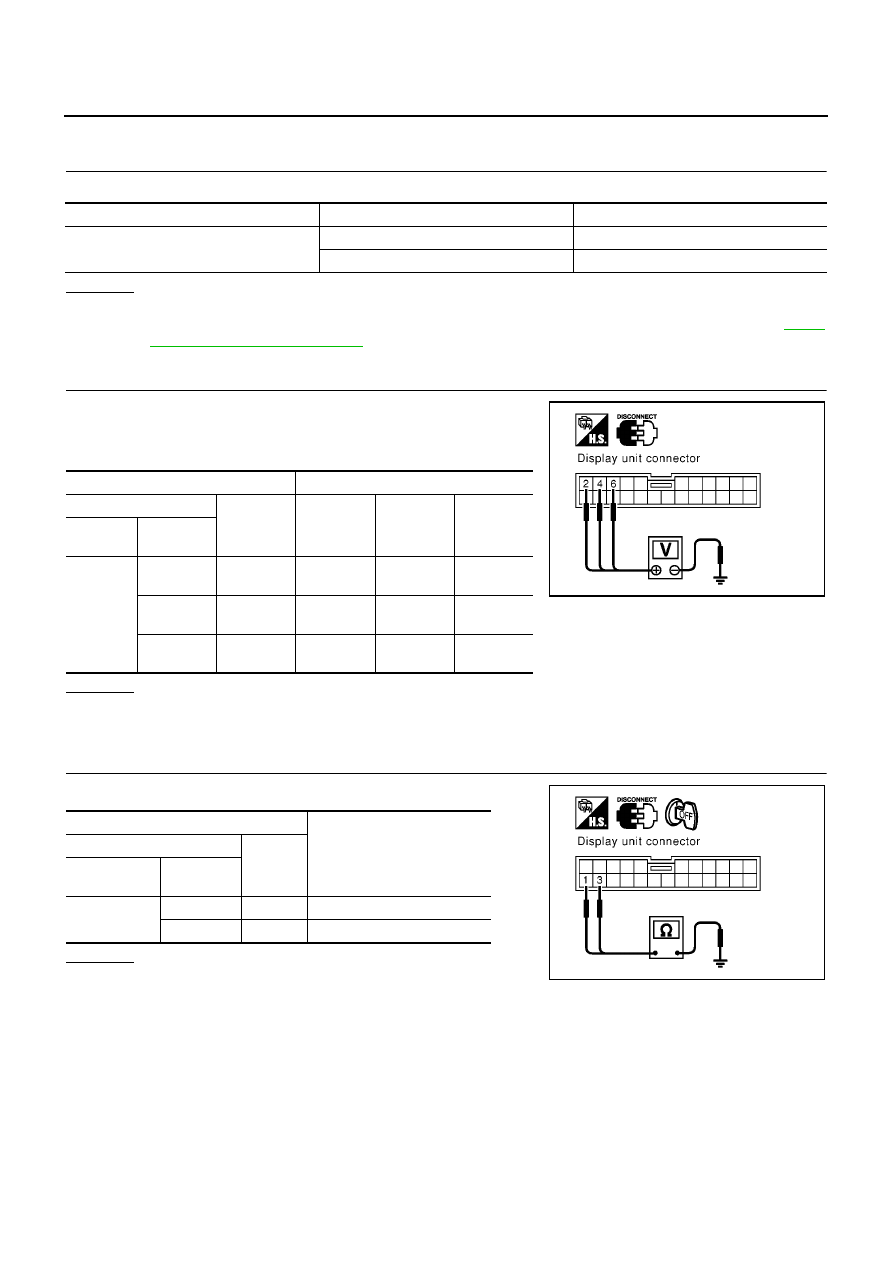

Power Supply and Ground Circuit Check for Display Unit

EKS009C3

1.

CHECK FUSE

Check that the following fuses in display are blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to

PG-3,

"POWER SUPPLY ROUTING"

.

2.

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect display connector.

2.

Check voltage between display unit harness connector and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between display and fuse.

3.

GROUND CIRCUIT CHECK

Check continuity between display unit and ground.

OK or NG

OK

>> Inspection end.

NG

>> Check ground harness.

Unit

Power souse

Fuse No.

Display

Battery power

33

Ignition switch ACC or ON

1

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

(Wire color)

M61

2 (Y)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

4 (Y)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

6 (P)

Ground

0V

Battery
voltage

Battery
voltage

MKIB0101E

Terminals

Continuity

(+)

(–)

Connector

Terminal

(wire color)

M61

1 (B)

Ground

Yes

3 (B)

Ground

Yes

MKIB0102E

LCD DISPLAY

DI-71

C

D

E

F

G

H

I

J

L

M

A

B

DI

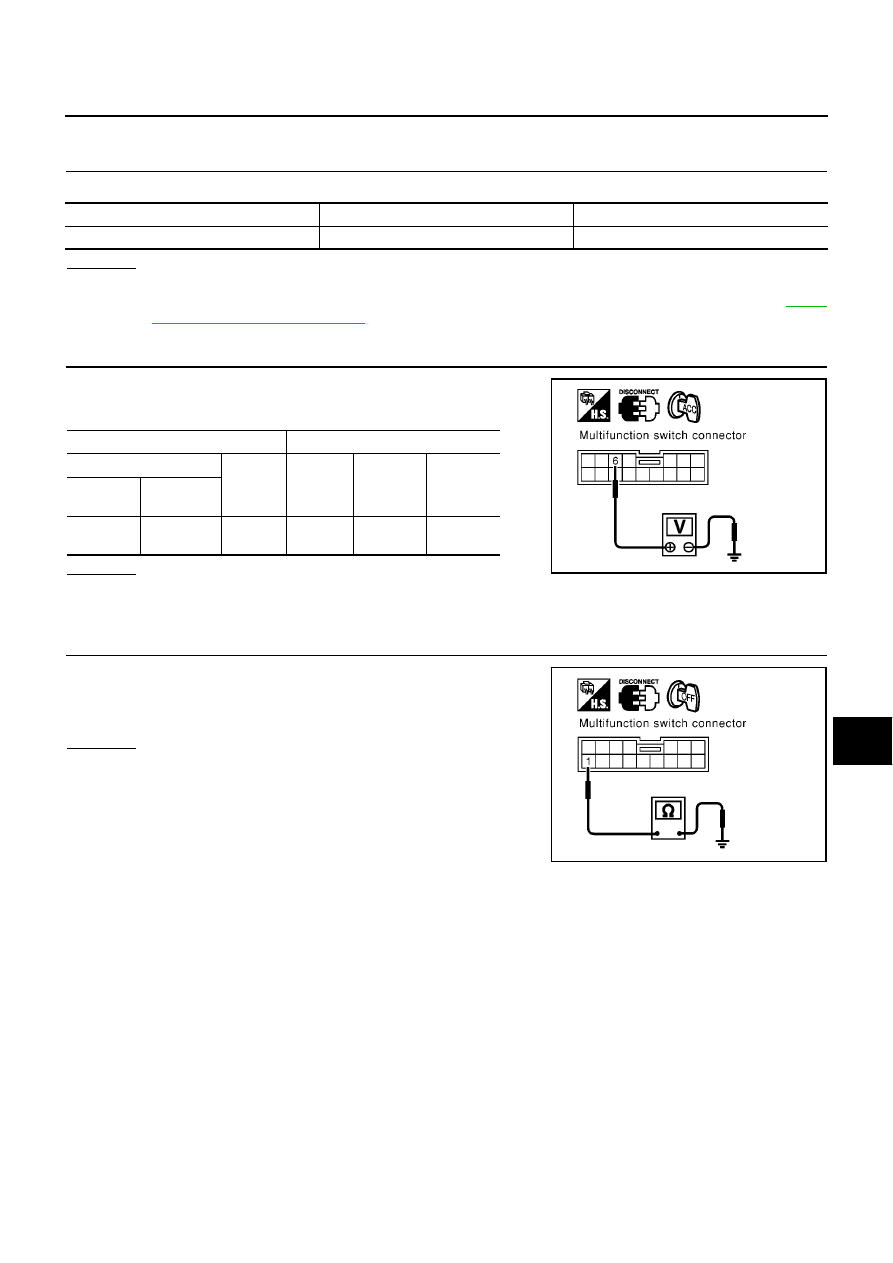

Power Supply and Ground Circuit Check for Multifunction Switch

EKS009C4

1.

CHECK FUSES

Check the fuse below.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to

PG-3,

"POWER SUPPLY ROUTING"

.

2.

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect multifunction switch connector.

2.

Check voltage between multifunction switch and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between multifunction switch and fuse.

3.

GROUND CIRCUIT CHECK

1.

Check continuity between multifunction switch harness connec-
tor M49 terminal 1 (B) and ground.

OK or NG

OK

>> Inspection end.

NG

>> Check ground harness.

Unit

Power source

Fuse No.

Multifunction switch

Ignition switch ACC or ON

1

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

(Wire color)

M49

6 (P)

Ground

0V

Battery
voltage

Battery
voltage

MKIB0103E

Continuity should exist.

MKIB0104E

DI-72

LCD DISPLAY

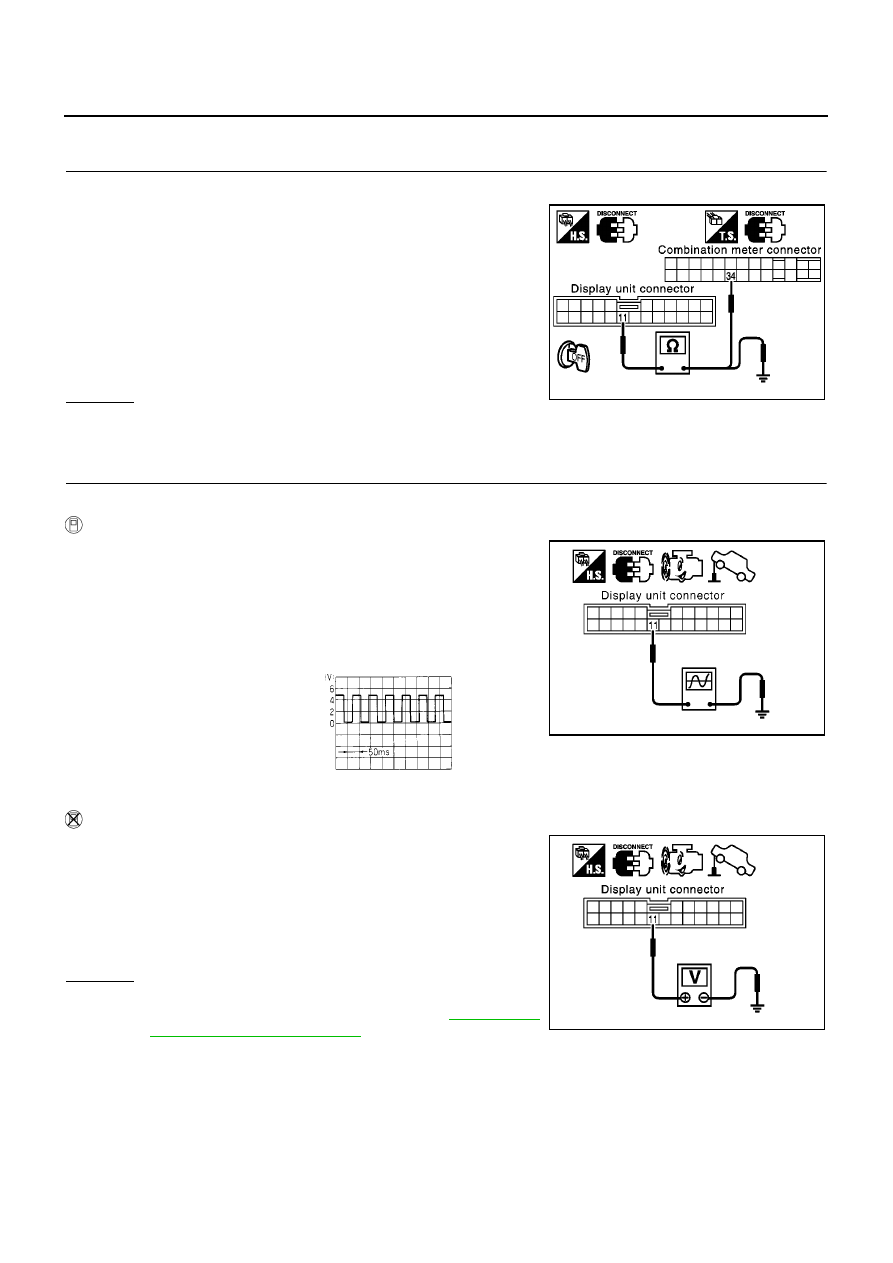

Vehicle Speed Signal Check/LHD Models

EKS009C5

1.

HARNESS CHECK

1.

Disconnect display unit connector and combination meter connector.

2.

Check the following.

Continuity between display unit harness connector M61 terminal
11 (L/B) and combination meter harness connector M37 terminal
34 (L/B).

Continuity between display unit harness connector M61 terminal
11 (L/B) and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Replace harness or connector.

2.

VEHICLE SPEED SIGNAL CHECK

Connect combination meter connector and display unit connector.

With CONSULT-II

1.

Lift up drive wheels.

2.

Start engine and drive vehicle at more than 20 km/h (12MPH).

3.

Check signal between display unit harness connector M61 ter-
minal 11(L/B) and ground when rotating wheels with engine at
idle. (Use “SIMPLE OSCILLOSCOPE” in “SUB MODE” with
CONSULT-II.)

Without CONSULT-II

1.

Lift up drive wheels.

2.

Start engine and drive vehicle at more than 20 km/h (12MPH).

3.

Check voltage between display unit harness connector M61 ter-
minal 11(L/B) and ground when rotating wheels with engine at
idle.

OK or NG

OK

>> Replace display unit.

NG

>> Check combination meter system. Refer to

DI-14, "Com-

bination Meter Self-Diagnosis"

.

Continuity should exist.

Continuity should not exist.

MKIB0207E

11– Ground:

MKIB0723E

ELF1080D

Voltage: Approximately 0 – 5V

MKIB0208E
