Nissan Primera P12. Manual - part 186





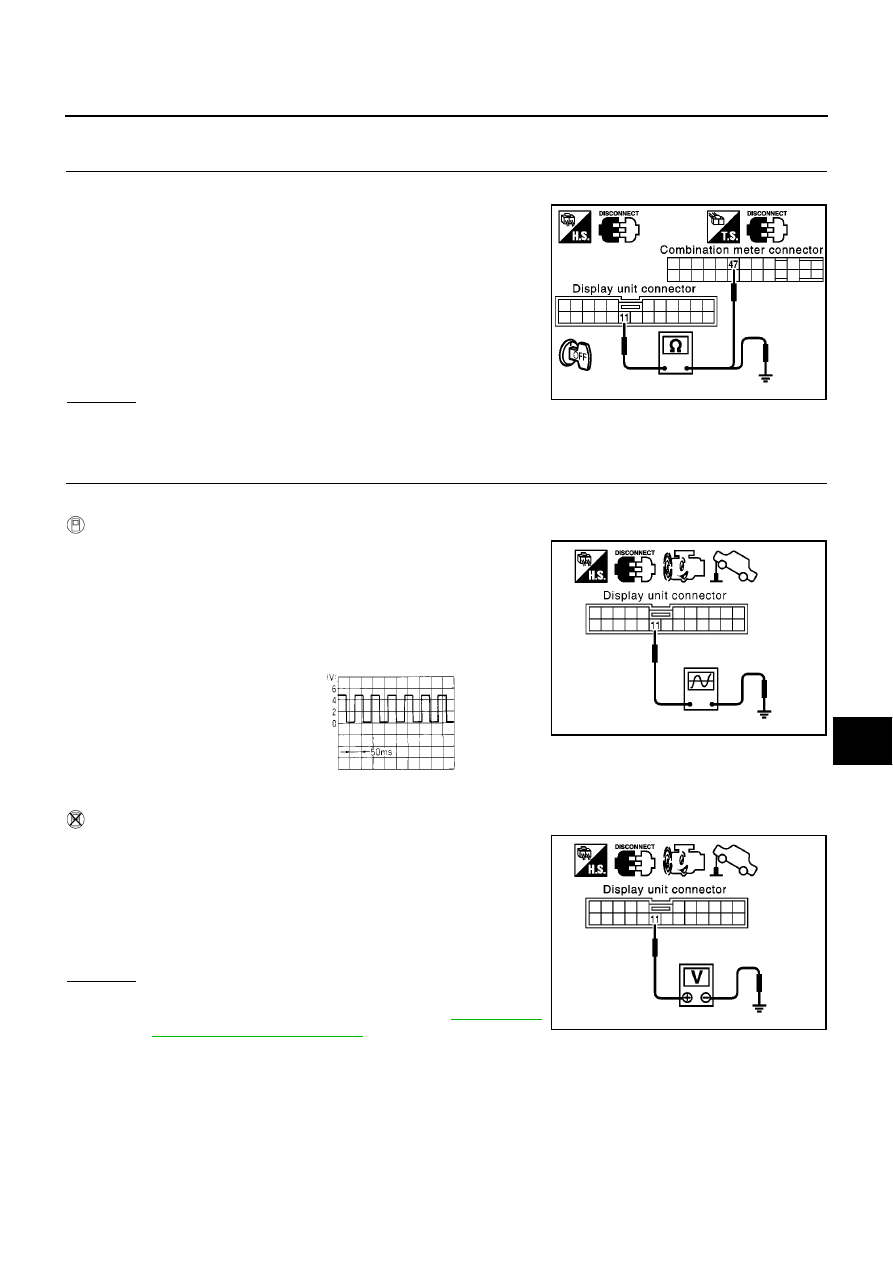

LCD DISPLAY

DI-73

C

D

E

F

G

H

I

J

L

M

A

B

DI

Vehicle Speed Signal Check/RHD Models

EKS009C6

1.

HARNESS CHECK

1.

Disconnect display unit connector and combination meter connector.

2.

Check the following.

Continuity between display unit harness connector M61 terminal
11 (L/B) and combination meter harness connector M37 terminal
47 (L/B)

Continuity between display unit harness connector M61 terminal
11 (L/B) and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Replace harness or connector.

2.

VEHICLE SPEED SIGNAL CHECK

Connect combination meter connector and display unit connector.

With CONSULT-II

1.

Lift up drive wheels.

2.

Start engine and drive vehicle at more than 20 km/h (12MPH).

3.

Check signal between display unit harness connector M61 ter-
minal 11(L/B) and ground when rotating wheels with engine at
idle. (Use “SIMPLE OSCILLOSCOPE” in “SUB MODE” with
CONSULT-II.)

Without CONSULT-II

1.

Lift up drive wheels.

2.

Start engine and drive vehicle at more than 20 km/h (12MPH).

3.

Check voltage between display unit harness connector M61 ter-
minal 11(L/B) and ground when rotating wheels with engine at
idle.

OK or NG

OK

>> Replace display unit.

NG

>> Check combination meter system. Refer to

DI-37, "Com-

bination Meter Self-Diagnosis"

.

Continuity should exist.

Continuity should not exist.

MKIB0209E

11– Ground:

MKIB0723E

ELF1080D

Voltage: Approximately 0 – 5V

MKIB0208E

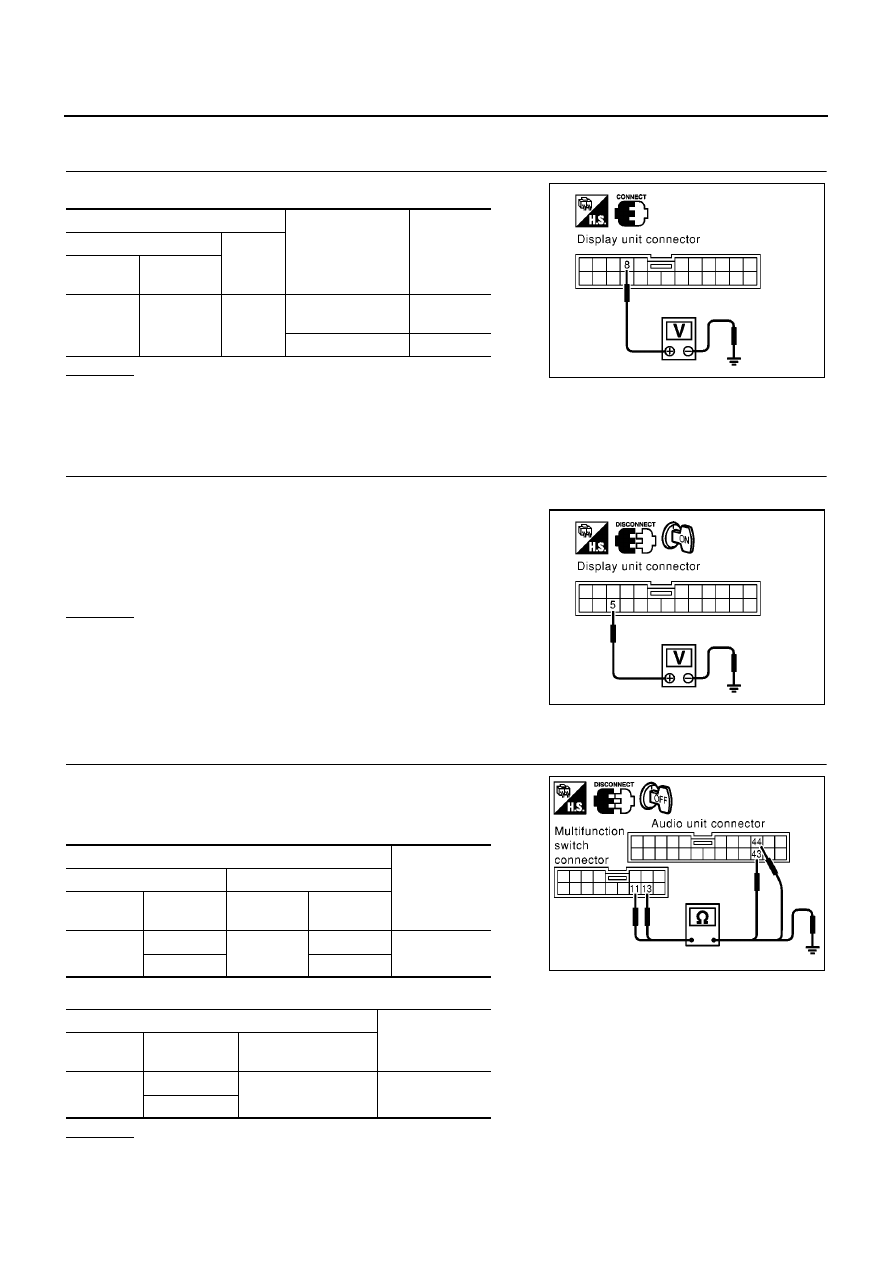

DI-74

LCD DISPLAY

Illumination Control Signal Check

EKS009C7

1.

ILLUMINATION CONTROL SIGNAL CHECK

1.

Check voltage between display unit and ground.

OK or NG

OK

>> Replace display unit.

NG

>> Check harness for open or short between display unit and lighting switch.

Ignition Signal Check

EKS009C8

1.

IGNITION SIGNAL CHECK

1.

Turn ignition switch ON.

2.

Disconnect the display unit connector.

3.

Check voltage between display unit harness connector M61 ter-
minal 5 (Y/G) and ground.

OK or NG

OK

>> Replace display unit.

NG

>> Check harness for open or short between display unit

and fuse.

Audio Circuit Check

EKS009C9

1.

AUDIO UNIT CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect audio unit connector.

3.

Check continuity between multifunction switch and audio unit.

4.

Check continuity between multifunction switch and ground.

OK or NG

OK

>> Replace audio unit.

NG

>> Replace harness or connector.

Terminals

Condition

Voltage [V]

(+)

(-)

Connector

Terminal

(wire color)

M61

8 (Y/R)

Ground

Lighting switch 1st
or 2nd position

Battery volt-
age

OFF

Approx.0

MKIB0105E

Battery voltage should exist.

MKIB0106E

Terminals

Continuity

Multifunction switch

Audio unit

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

M49

11 (L)

M53

44 (L)

Yes

13 (P)

43 (P)

Terminals

Continuity

Connector

Terminal

(Wire color)

Terminal

M49

11 (L)

Ground

No

13 (P)

MKIB0132E

LCD DISPLAY

DI-75

C

D

E

F

G

H

I

J

L

M

A

B

DI

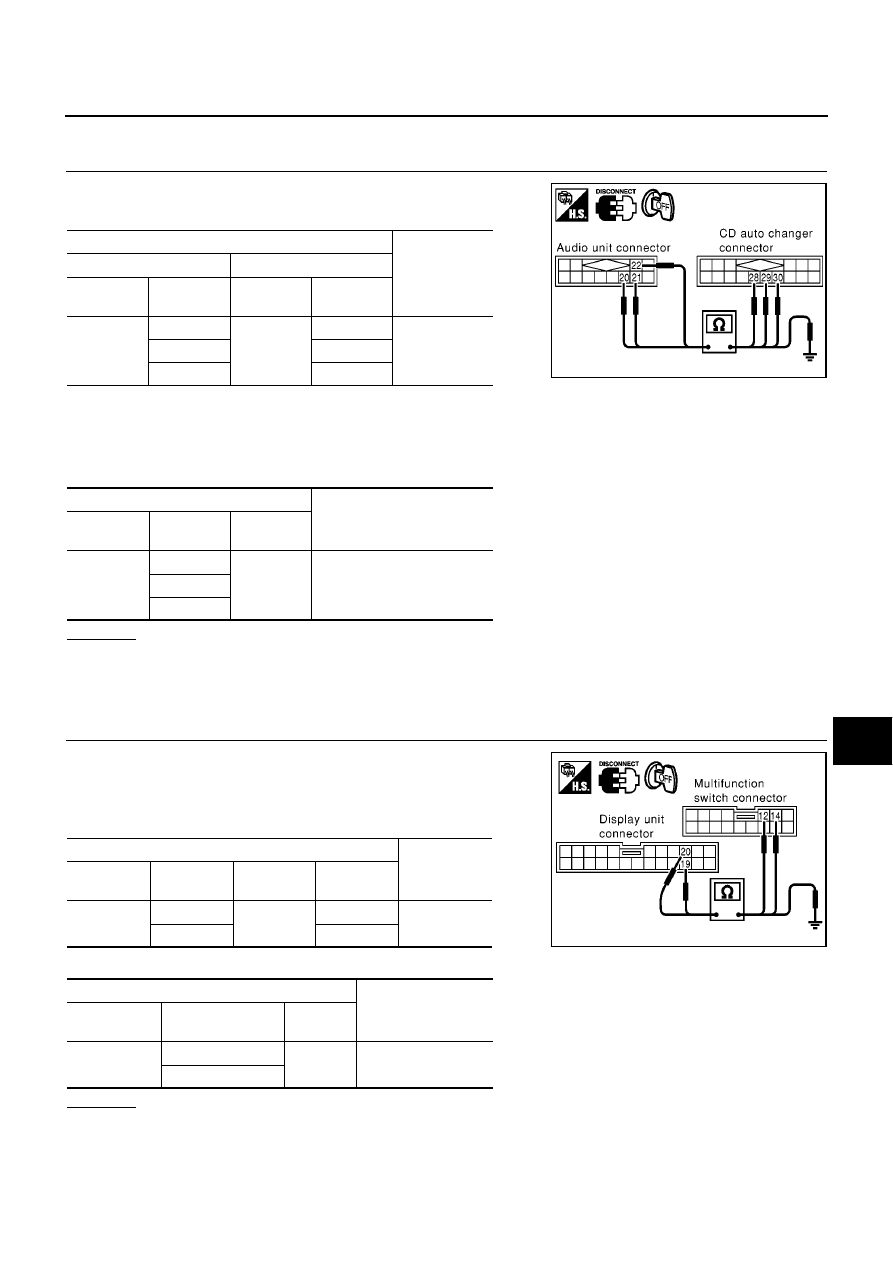

CD Auto Changer Circuit Check

EKS009CA

1.

CD AUTO CHANGER CIRCUIT CHECK

1.

Disconnect CD auto changer connector.

2.

Check continuity between audio unit and CD auto changer.

*1: Sedan and wagon models (W)

Hatchback models (R/L)

*2: Sedan and wagon models (B)

Hatchback models (R/W)

3.

Check continuity between multifunction switch and ground.

OK or NG

OK

>> Replace CD auto changer.

NG

>> Replace harness or connector.

AV Communication Line Check

EKS009CB

1.

MULTIFUNCTION SWITCH CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect display unit connector and multifunction switch con-
nector.

3.

Check continuity between display unit and multifunction switch.

4.

Check continuity between display unit and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Replace harness or connector

Terminals

Continuity

Audio unit

CD auto changer

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

M52

20 (R/G)

B31

28 (R/G)

Yes

21 (R/L)

29 (*1)

22 (R/W)

30 (*2)

Terminals

Continuity

Connector

Terminal

(Wire color)

Terminal

M49

20 (R/G)

Ground

No

21 (R/L)

22 (R/W)

MKIB0133E

Terminals

Continuity

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

M61

19 (L)

M49

14 (L)

Yes

20 (B/W)

12 (B/W)

Terminals

Continuity

Connector

Terminal

(Wire color)

Terminal

M61

19 (L)

Ground

No

20 (B/W)

MKIB0131E

DI-76

LCD DISPLAY

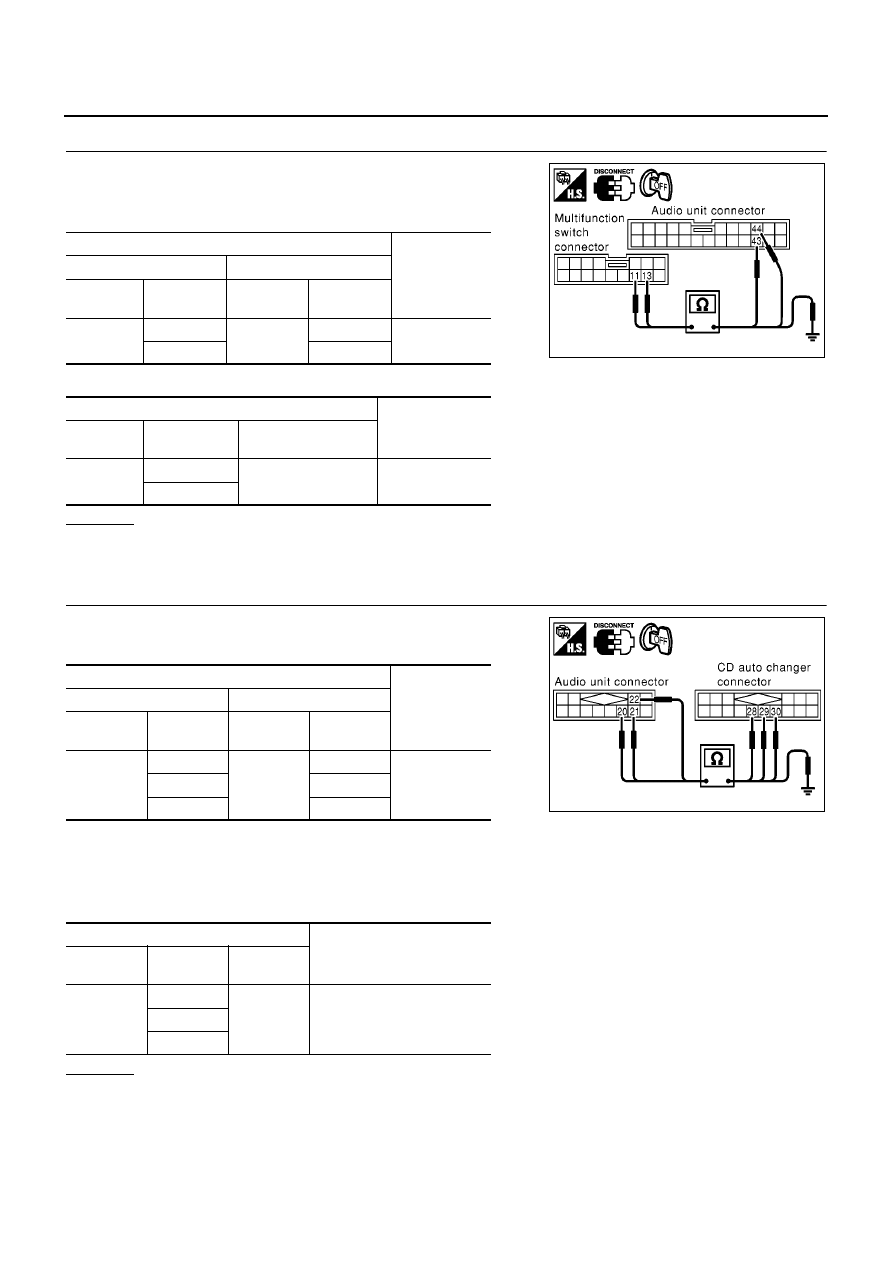

2.

AUDIO UNIT CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect audio unit connector.

3.

Check continuity between multifunction switch and audio unit.

4.

Check continuity between multifunction switch and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Replace harness or connector.

3.

CD CHANGER CIRCUIT CHECK

1.

Disconnect CD auto changer connector.

2.

Check continuity between audio unit and CD auto changer.

*1: Sedan and wagon models (W)

Hatchback models (R/L)

*2: Sedan and wagon models (B)

Hatchback models (R/W)

3.

Check continuity between multifunction switch and ground.

OK or NG

OK

>> Replace display unit.

NG

>> Replace harness or connector.

Terminals

Continuity

Multifunction switch

Audio unit

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

M49

11 (L)

M53

44 (L)

Yes

13 (P)

43 (P)

Terminals

Continuity

Connector

Terminal

(Wire color)

Terminal

M49

11 (L)

Ground

No

13 (P)

MKIB0132E

Terminals

Continuity

Audio unit

CD auto changer

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

M52

20 (R/G)

B31

28 (R/G)

Yes

21 (R/L)

29 (*1)

22 (R/W)

30 (*2)

Terminals

Continuity

Connector

Terminal

(Wire color)

Terminal

M49

20 (R/G)

Ground

No

21 (R/L)

22 (R/W)

MKIB0133E
