Nissan Primera P12. Manual - part 109





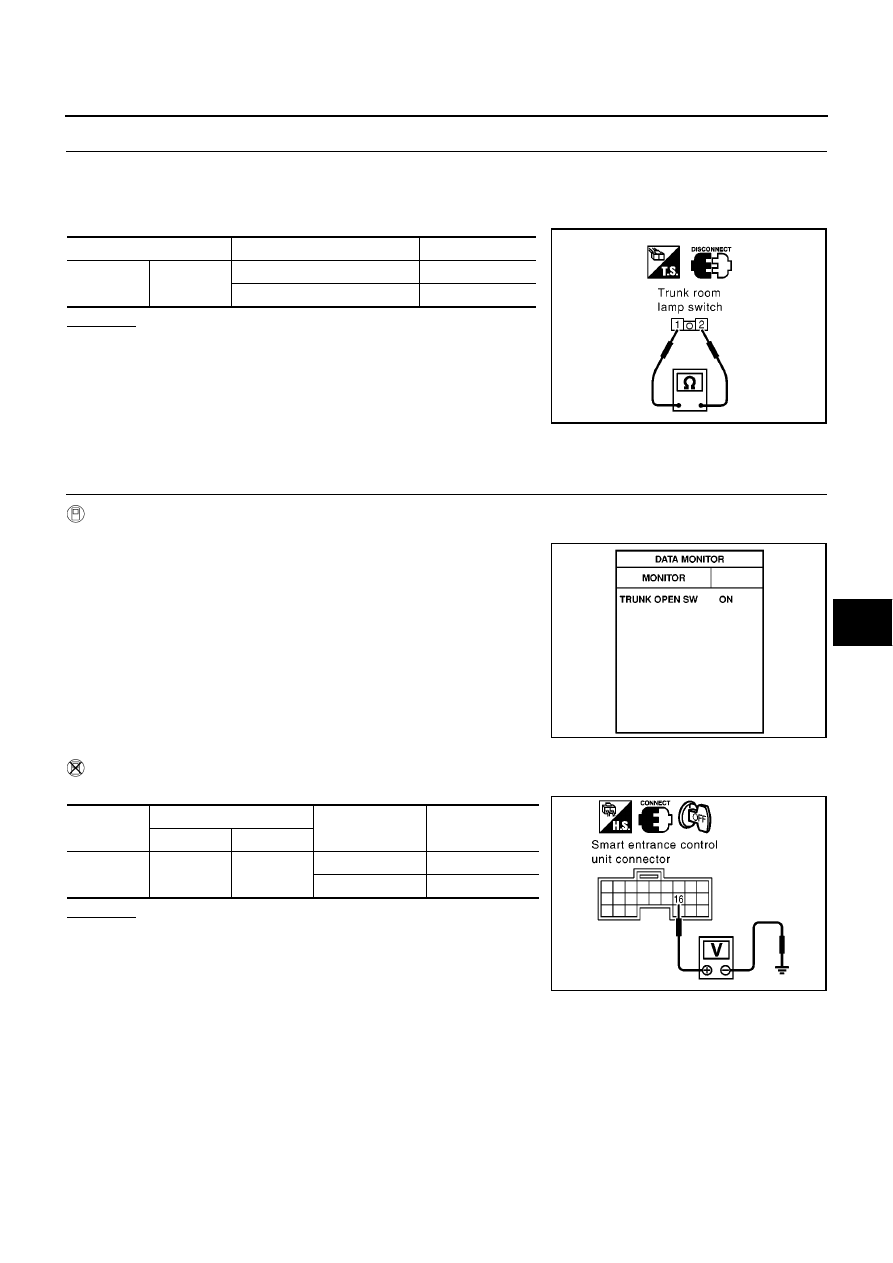

THEFT WARNING SYSTEM

BL-145

C

D

E

F

G

H

J

K

L

M

A

B

BL

2.

CHECK TRUNK ROOM LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect trunk room lamp switch harness connector.

3.

Check continuity between trunk room lamp switch terminals 1 and 2.

OK or NG

OK

>> Check the following.

Trunk room lamp switch ground circuit

Harness for open or short between smart entrance
control unit and trunk room lamp switch

NG

>> Replace trunk room lamp switch.

BACK DOOR SWITCH

1.

CHECK BACK DOOR SWITCH INPUT SIGNAL

With CONSULT- II

Check door switch “TRUNK OPEN SWITCH” in “DATA MONITOR” mode with CONSULT- II.

Without CONSULT- II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Back door switch is OK.

NG

>> GO TO 2

Terminal

Trunk lid condition

Continuity

1

2

Opened

Yes

Closed

No

SIIA1637E

TRUNK OPEN SW

Back door open

: ON

Back door close

: OFF

SIIA1635E

Connector

Terminal (wire color)

Back door

Voltage (V)

(Approx.)

(+)

(–)

M41

16 (G)

Ground

Closed

5

Open

0

SIIA1636E

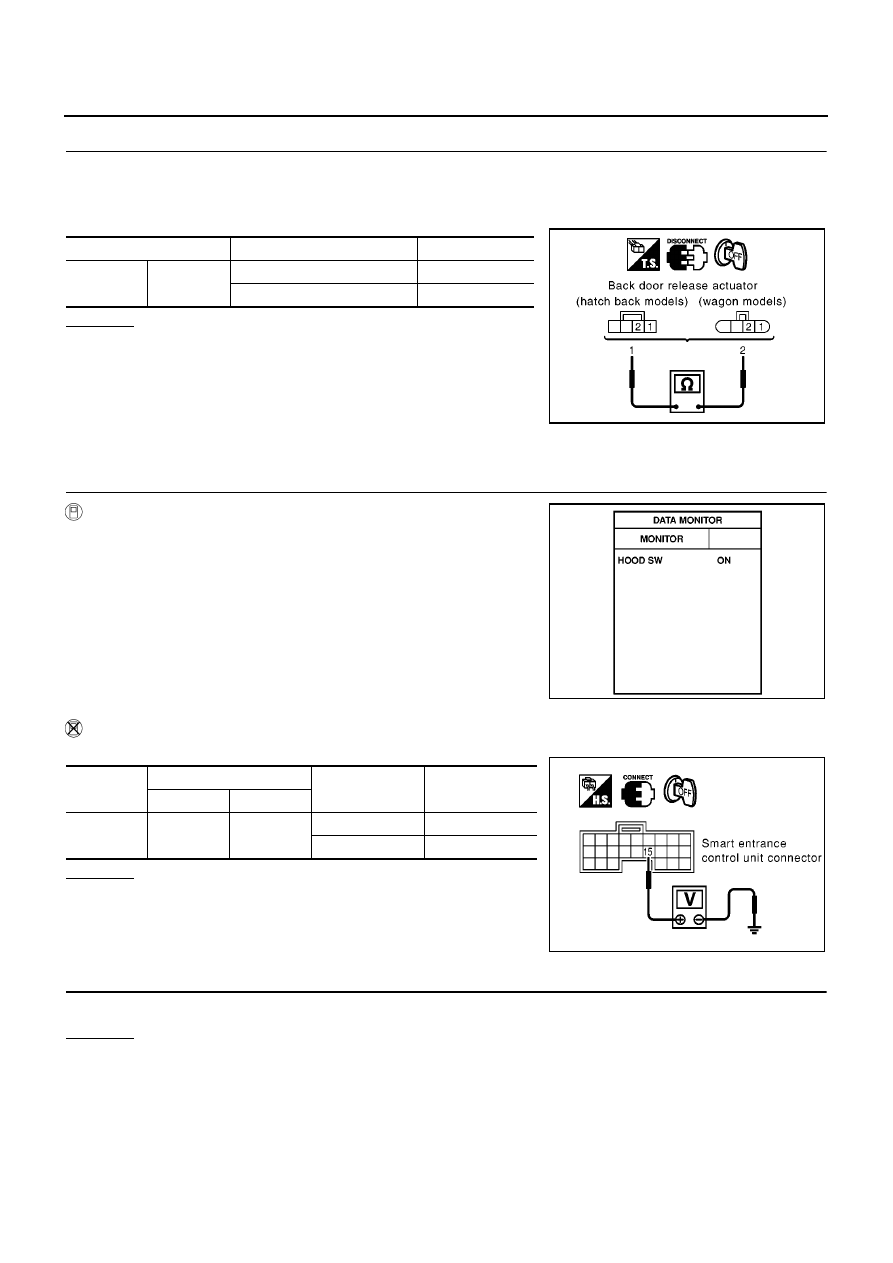

BL-146

THEFT WARNING SYSTEM

2.

CHECK BACK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect back door release actuator connector.

3.

Check continuity between back door release actuator terminals 1 and 2.

OK or NG

OK

>> Check the following.

Back door release actuator ground circuit

Harness for open or short between smart entrance
control unit and back door release actuator

NG

>> Replace back door release actuator.

Hood Switch Check

EIS005J0

1.

CHECK HOOD SWITCH INPUT SIGNAL

With CONSULT

II

Check “HOOD SWITCH” in “DATA MONITOR” mode with CON-
SULT

II.

Without CONSULT

II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Hood switch is OK.

NG

>> GO TO 2.

2.

CHECK DOOR SWITCH

Check hood switch and hood fitting condition.

OK or NG

OK

>> GO TO 3.

NG

>> Adjust installation of hood switch.

Terminal

Back door condition

Continuity

1

2

Opened

Yes

Closed

No

MIIB0456E

HOOD SW

Engine hood is open

: HOOD SW ON

Engine hood is closed

: HOOD SW OFF

SIIA1682E

Connector

Terminal (wire color)

Engine hood

Voltage (V)

(Approx.)

(+)

(–)

M41

15 (LG)

Ground

Open

0

Closed

5

SIIA1649E

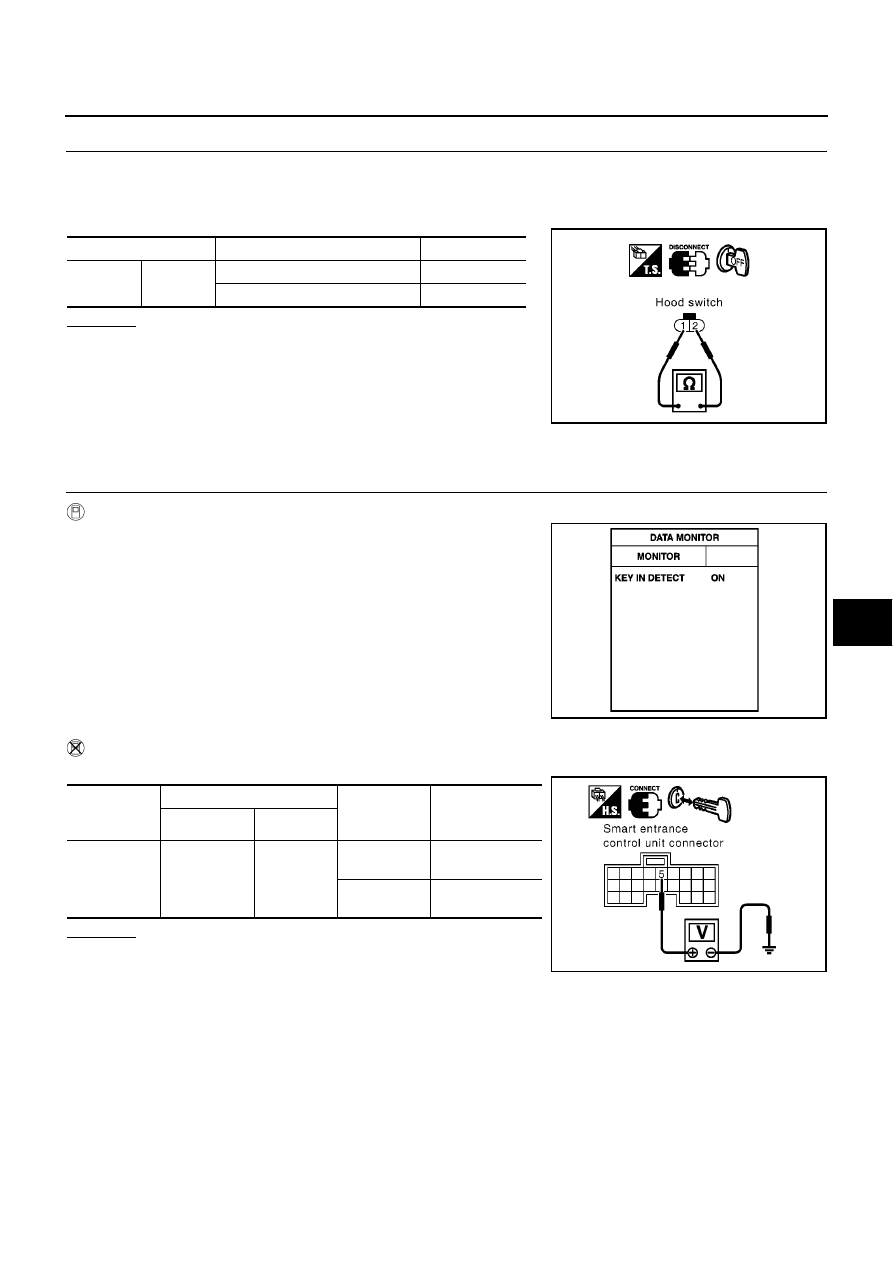

THEFT WARNING SYSTEM

BL-147

C

D

E

F

G

H

J

K

L

M

A

B

BL

3.

CHECK HOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect hood switch connector.

3.

Check continuity between hood switch terminals.

OK or NG

OK

>> Check the following.

Hood switch ground circuit

Harness for open or short between hood switch and
smart entrance control unit

NG

>> Replace hood switch.

Key Switch Check

EIS005J1

1.

CHECK KEY SWITCH INPUT SIGNAL

WITH CONSULT-II

Check key switch signal (“KEY IN DETECT”) in “DATA MONITOR”
mode with CONSULT-II.

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connector M41 terminal 5 and ground.

OK or NG

OK

>> Key switch is OK.

NG

>> GO TO 2.

Terminals

Condition

Continuity

1

2

Pushed

No

Released

Yes

SIIA1549E

KEY IN DETECT

Key is inserted in ignition cylinder

: ON

Key is removed from ignition key cylinder

: OFF

MKIB0200E

Connector

Terminals (wire color)

Condition

(Door lock/

unlock switch)

Voltage (V)

(Approx.)

(+)

(

)

M41

5 (B/R)

Ground

Key is

inserted

Battery voltage

Key is

removed

0

MKIB0585E

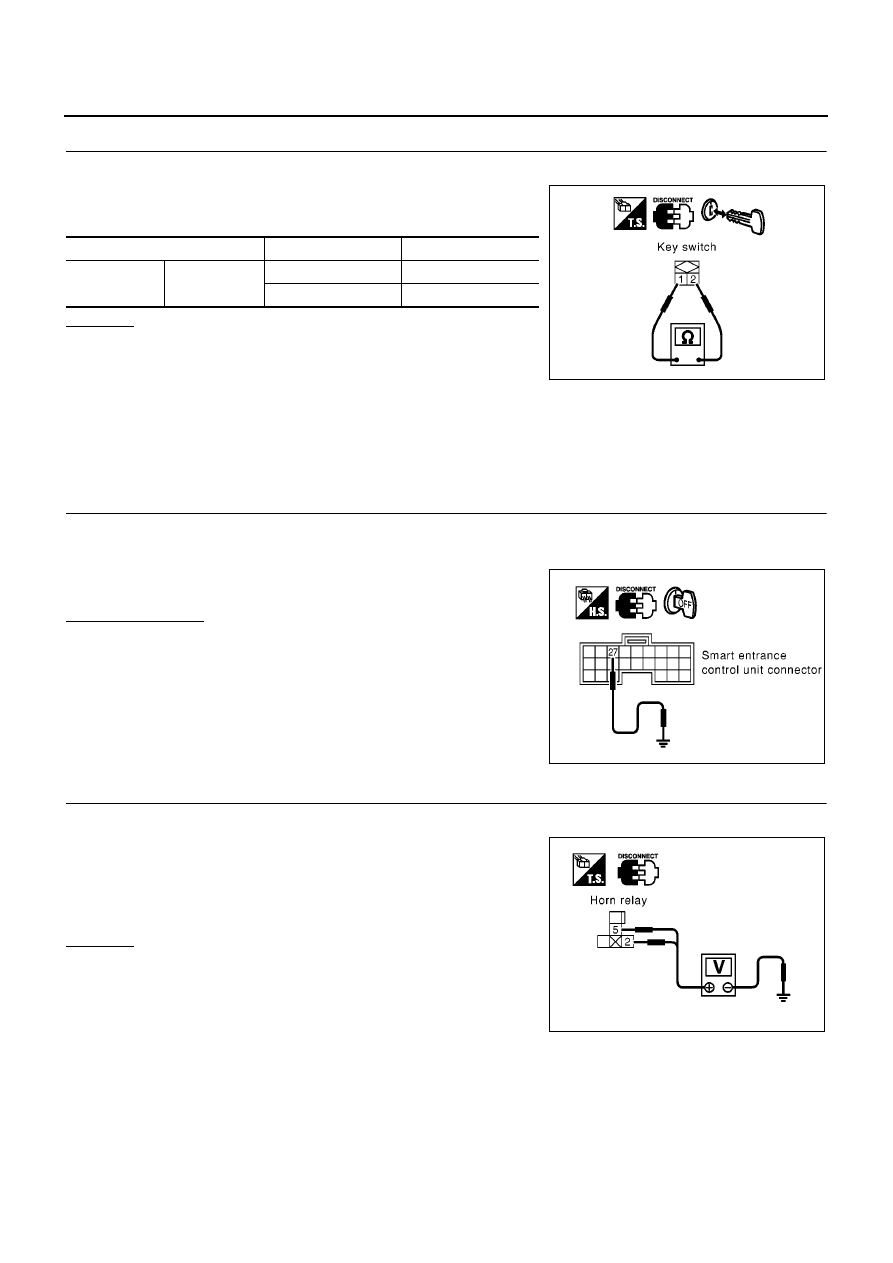

BL-148

THEFT WARNING SYSTEM

2.

CHECK KEY SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect key switch connector.

3.

Check continuity between key switch terminal 1 and 2.

OK or NG

OK

>> Check the following.

10A fuse [No. 12, located in fuse block (J/B)]

Harness for open or short between key switch and
fuse

Harness for open or short between smart entrance control unit and key switch

NG

>> Replace key switch.

Vehicle Security Horn Alarm Check

EIS005J2

1.

CHECK VEHICLE SECURITY HORN OPERATION

1.

Turn ignition switch OFF.

2.

Disconnect smart entrance control unit harness connector.

3.

Apply ground to smart entrance control unit harness connector
M42 terminal 27(Y/B).

Does horn operate?

Yes

>> Replace smart entrance control unit.

No

>> GO TO 2.

2.

CHECK VEHICLE SECURITY HORN RELAY POWER SUPPLY

1.

Disconnect vehicle security horn relay connector.

2.

Check voltage between vehicle security horn relay harness con-
nector B43 terminal 2, 5 and ground.

OK or NG

OK

>> Check the following.

Harness for open or short between smart entrance
control unit and vehicle security horn relay

Harness open or short between vehicle security horn
relay and ground

Harness open or short between vehicle security horn relay and vehicle security horn

NG

>> Check harness open or short between vehicle security horn relay and fuse.

Terminal

Condition

Continuity

1

2

Key is inserted

Yes

Key is removed

Yes

MKIB0586E

SIIA1650E

2 - Ground

: Battery voltage

5 - Ground

: Battery voltage

SIIA1651E
