Nissan Primera P12. Manual - part 108





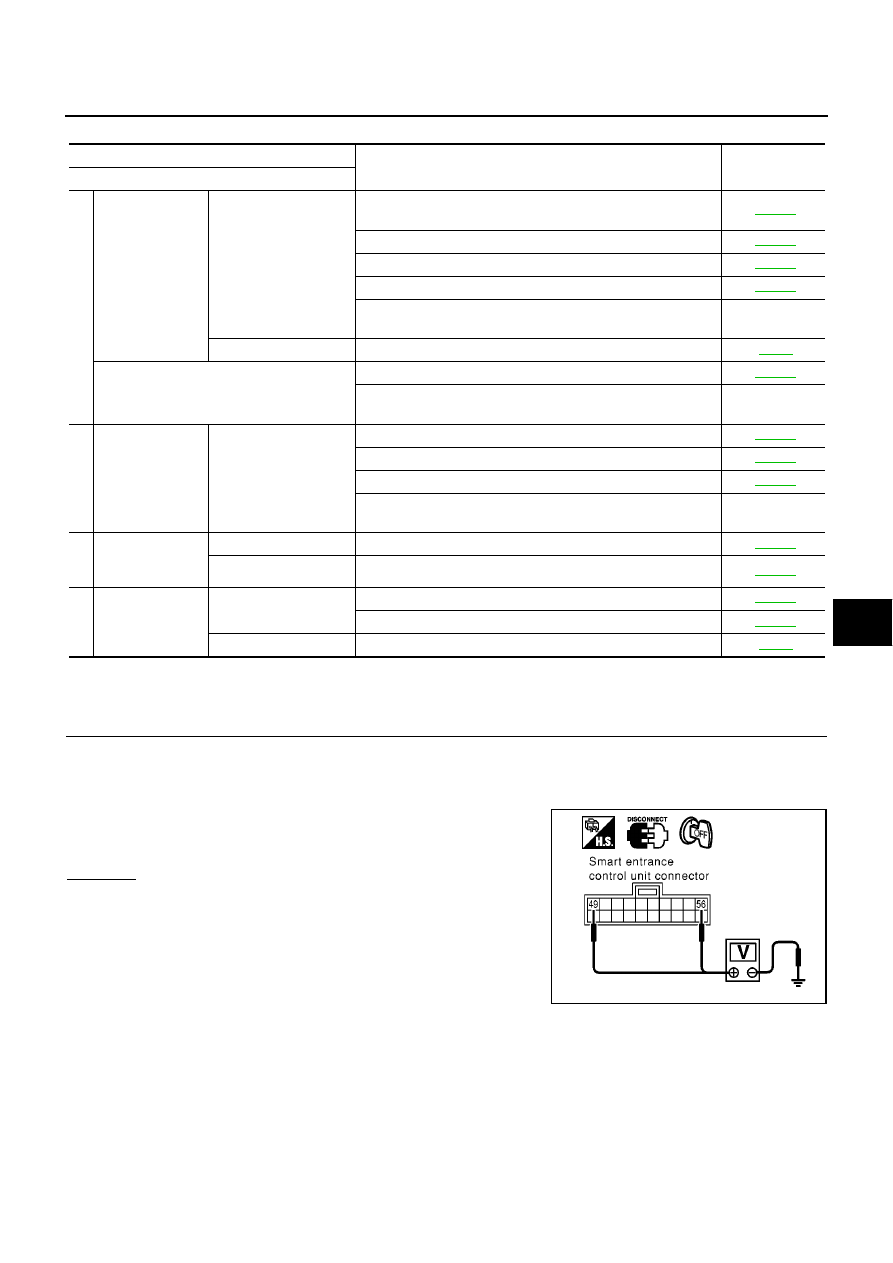

THEFT WARNING SYSTEM

BL-141

C

D

E

F

G

H

J

K

L

M

A

B

BL

SYMPTOM CHART

*1: Make sure the system is in the armed phase.

Power Supply and Ground Circuit Check

EIS005IX

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect smart entrance control unit connector.

3.

Check voltage between smart entrance control unit harness connector M43 terminal 49, 56 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check the following.

40A fusible link (letter B, located in the fusible link and
fuse box)

10A fuse (No. 12, located in the fusible link and fuse
box)

Condition of circuit breaker-1

Harness for open or short smart entrance control unit power supply circuit.

PROCEDURE

Diagnostic procedure

Reference page

SYMPTOM

1

Theft warning
system cannot be
set by ····

AII items

Smart entrance control unit power supply and ground circuit
check

BL-141

Door switch check

BL-142

Hood switch check

BL-146

Trunk room lamp switch or back door switch check

BL-144

If the above systems are “OK”, replace smart entrance control
unit.

Remote controller

Check “MULTI-REMOTE CONTROL” system.

BL-79

Security indicator does not turn “ON”.

Security indicator lamp check

BL-149

If the above systems are “OK”, replace smart entrance control
unit.

2

*1
Theft warning
system does not
alarm when ····

Any door is opened.

Door switch check

BL-142

Hood switch check

BL-146

Trunk room lamp switch or back door switch check

BL-144

If the above systems are “OK”, replace smart entrance control
unit.

3

Vehicle security
alarm does not
activate.

Horn alarm

Vehicle security horn alarm check

BL-148

Hazard lamp alarm

Hazard lamp alarm check

BL-149

4

Theft warning
system cannot be
canceled by ····

Ignition key

Key switch check

BL-147

Check “NATS (NISSAN ANTI-THEFT SYSTEM)” system.

BL-151

Remote controller

Check “MULTI-REMOTE CONTROL” system.

BL-79

49 (W/L) - Ground

: Battery voltage

56 (R/B) - Ground

: Battery voltage

SIIA1564E

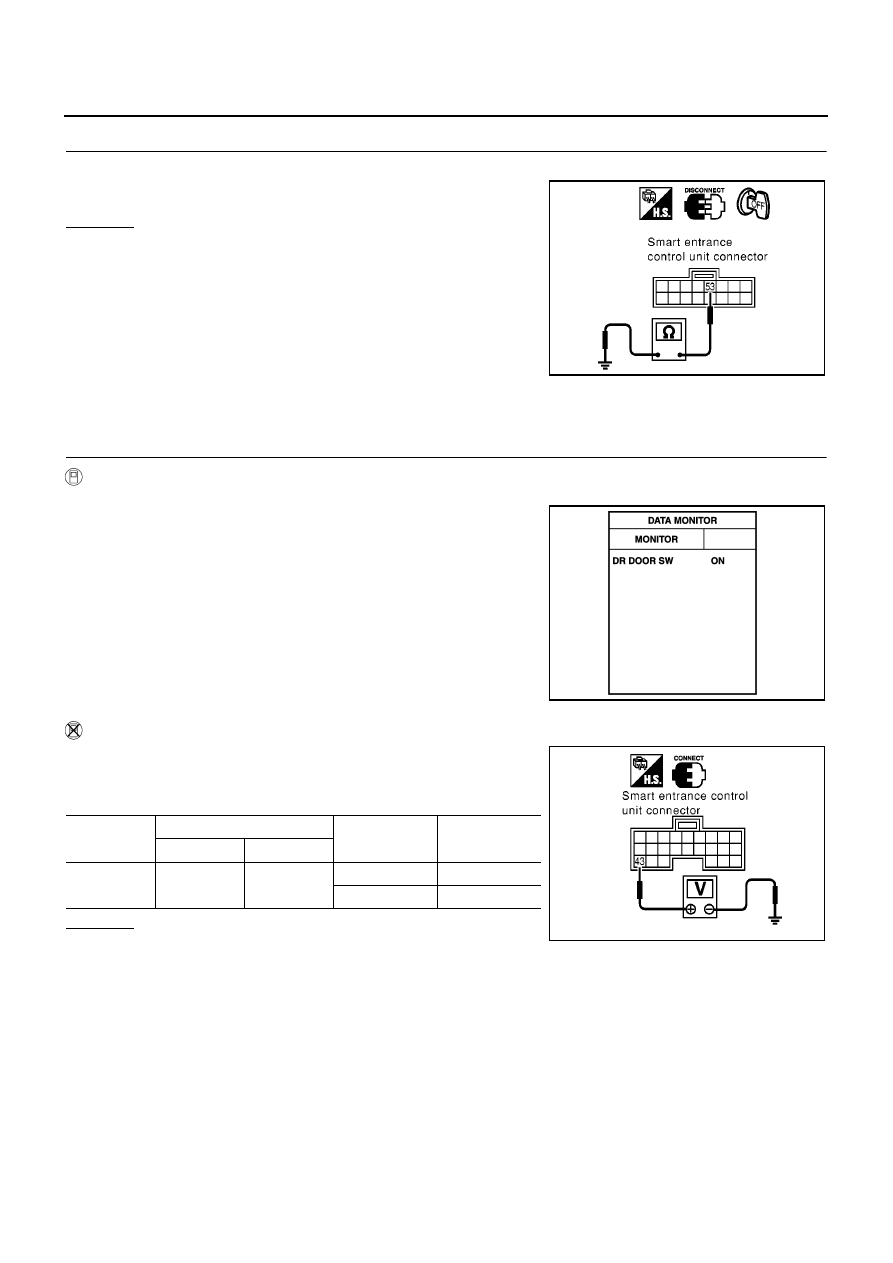

BL-142

THEFT WARNING SYSTEM

2.

CHECK GROUND CIRCUIT

Check continuity between smart entrance control unit harness connector M43 terminal 53 and ground.

OK or NG

OK

>> Smart entrance control unit power supply and ground

circuit are OK.

NG

>> Check smart entrance control unit ground circuit for

open or short.

Door Switch Check

EIS005IY

DRIVER SIDE

1.

CHECK DOOR SWITCH INPUT SIGNAL

WITH CONSULT-II

Check driver door switch signal (“DR DOOR SW”) in “DATA MONITOR” mode with CONSULT-II.

WITHOUT CONSULT-II

1.

Turn ignition switch OFF.

2.

Check voltage between smart entrance control unit harness
connector and ground.

OK or NG

OK

>> Door switch (driver side) is OK.

NG

>> GO TO 2.

53 (B) - Ground

: Continuity should exist.

SIIA1565E

DR DOOR SW

Driver side door is open

: ON

Driver side door is closed

: OFF

MKIB0197E

Connector

Terminal (wire color)

Driver side door

condition

Voltage (V)

(Approx.)

( + )

( - )

M42

43 (R/W)

Ground

Open : (ON)

0

Closed : (OFF)

Battery voltage

MKIB0073E

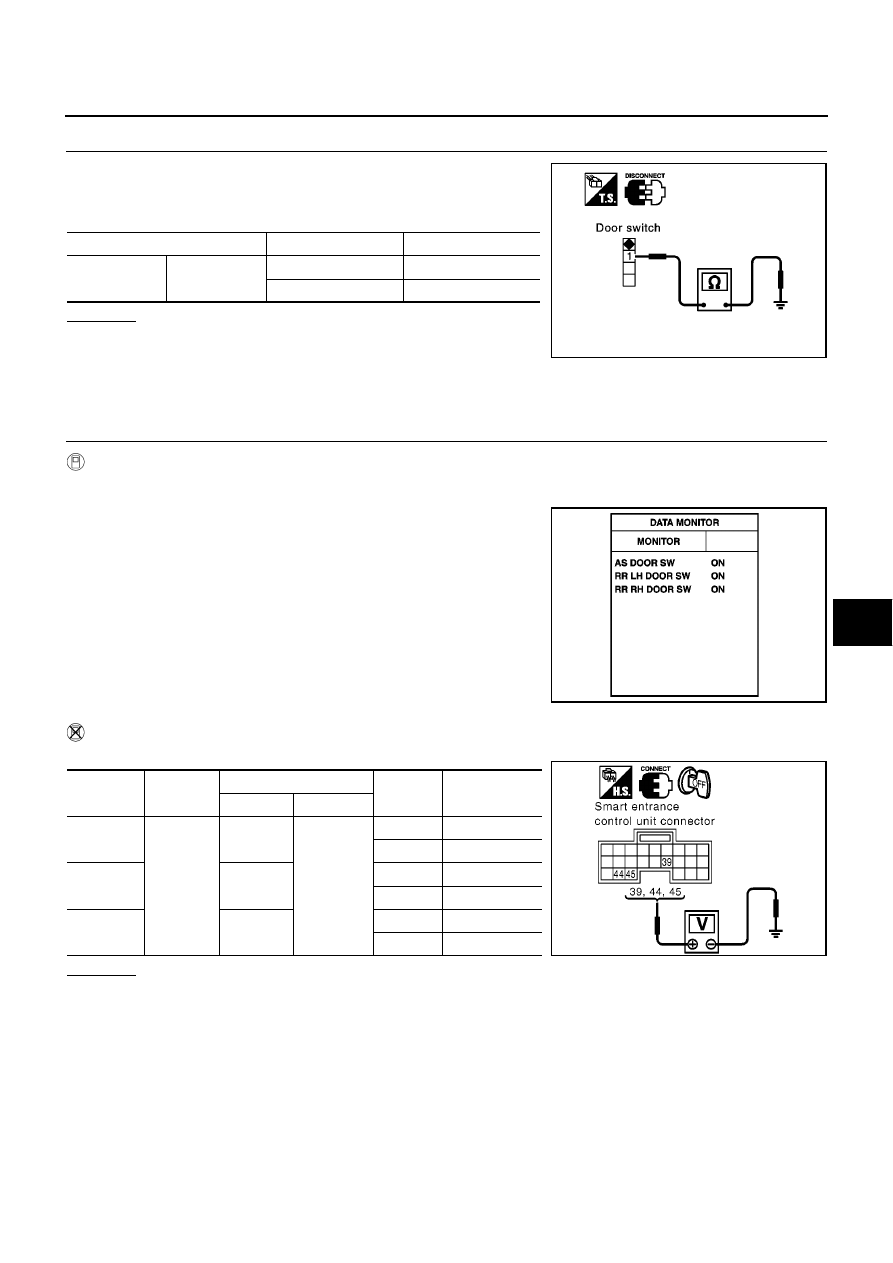

THEFT WARNING SYSTEM

BL-143

C

D

E

F

G

H

J

K

L

M

A

B

BL

2.

CHECK DRIVER SIDE DOOR SWITCH

1.

Disconnect front door switch (driver side) connector.

2.

Check continuity between front door switch (driver side) terminal
1 and ground part of door switch.

OK or NG

OK

>> Check harness for open or short between smart

entrance control unit and front door switch (driver side).

NG

>> Replace front door switch (driver side).

EXCEPT DRIVER SIDE

1.

CHECK OTHER DOORS SWITCHES INPUT SIGNAL

WITH CONSULT-II

Check other doors switch signal (“AS DOOR SW”, “RR DOOR SW” or “RR RH DOOR SW”) in “DATA MONI-
TOR” mode with CONSULT-II.

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Door switch OK.

NG

>> GO TO 2.

Terminal

Door switch

Continuity

1

Ground part of
door switch

Pushed

No

Released

Yes

PIIA3351E

Each DOOR SW

Each door is open

: ON

Each door is closed

: OFF

MKIB0199E

Item

Connector

Terminal (wire color)

Condition

Voltage (V)

(Approx.)

(+)

(

)

Rear door
LH or RH

M42

39 (BR/W)

Ground

Open

0

Closed

Battery voltage

Passenger
side

44 (L/OR)

Open

0

Closed

Battery voltage

Rear door
LH or RH

45 (R/Y)

Open

0

Closed

Battery voltage

MKIB0583E

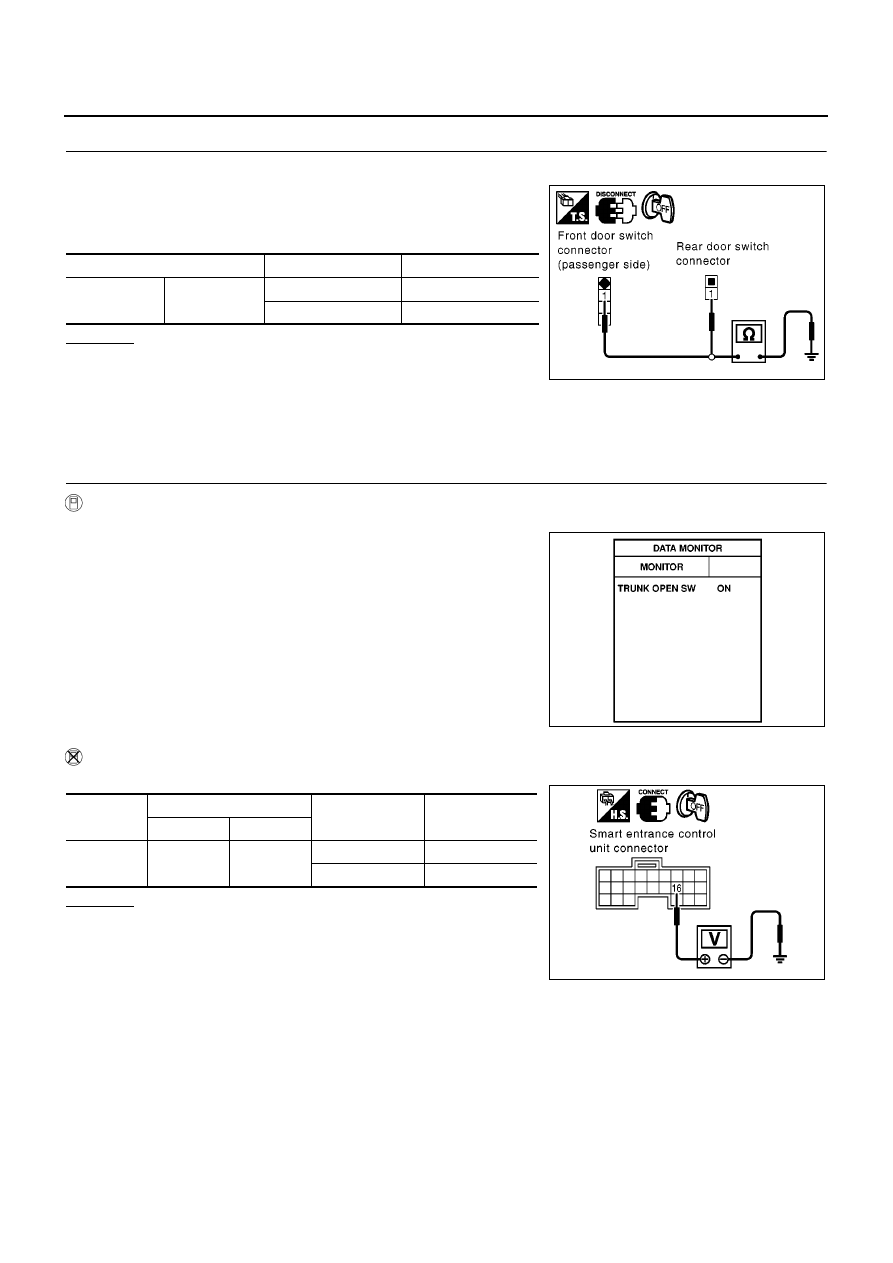

BL-144

THEFT WARNING SYSTEM

2.

CHECK DOOR SWITCHES

1.

Turn ignition swtich OFF.

2.

Disconnect each door switches harness connector.

3.

Check continuity between door switch terminal 1 and ground
part of door switch.

OK or NG

OK

>> Check harness for open or short between smart

entrance control unit and door switch.

NG

>> Replace malfunction door switch.

Trunk Room Lamp Switch or Back Door Switch Check

EIS005IZ

TRUNK ROOM LAMP SWITCH

1.

CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL

With CONSULT- II

Check door switch “TRUNK OPEN SWITCH” in “DATA MONITOR” mode with CONSULT- II.

Without CONSULT- II

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Trunk room lamp switch is OK.

NG

>> GO TO 2

Terminal

Condition

Continuity

1

Ground part of

door switch

Pushed

No

Released

Yes

MKIB0584E

TRUNK OPEN SW

Trunk lid open

: ON

Trunk lid close

: OFF

SIIA1635E

Connector

Terminal (wire color)

Trunk lid

Voltage (V)

(Approx.)

(+)

(–)

M41

16 (G)

Ground

Closed

5

Open

0

SIIA1636E
