MULTI-REMOTE CONTROL SYSTEM

BL-105

C

D

E

F

G

H

J

K

L

M

A

B

BL

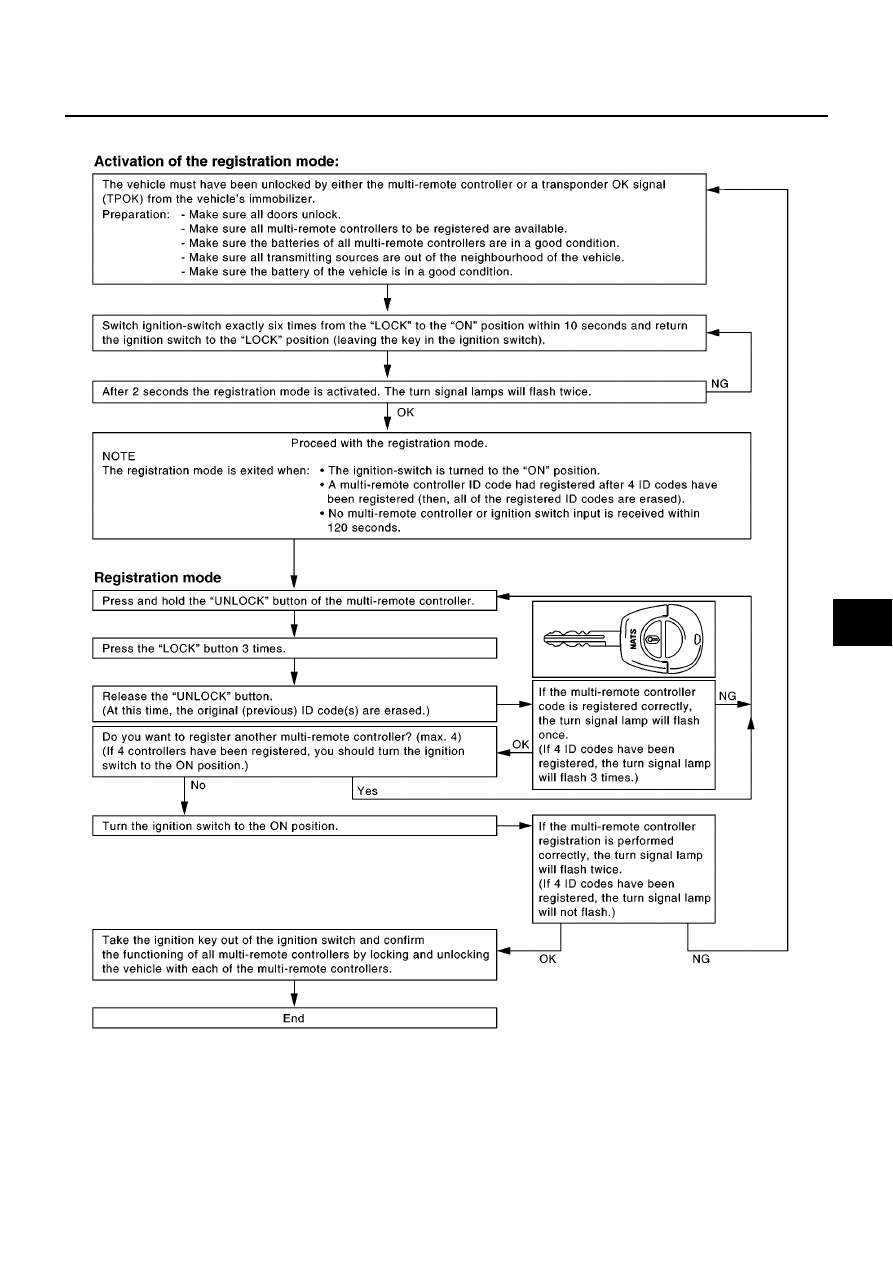

REMOTE CONTROLLER ID SET UP WITHOUT CONSULT- II

SEL497X

BL-106

MULTI-REMOTE CONTROL SYSTEM

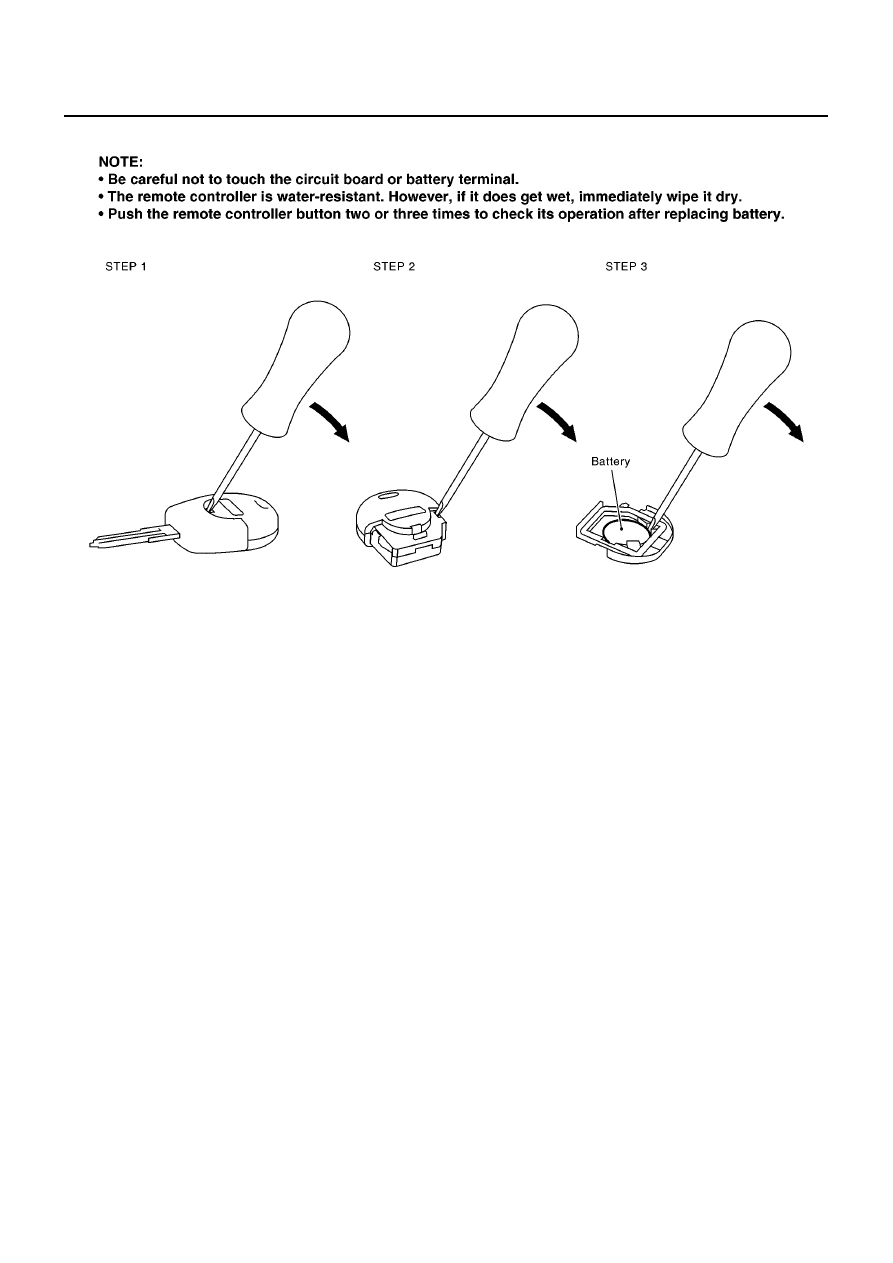

Remote Controller Battery Replacement

EIS005I4

SEL241X

FRONT DOOR LOCK

BL-107

C

D

E

F

G

H

J

K

L

M

A

B

BL

FRONT DOOR LOCK

PFP:80502

Component Parts

EIS005I5

Removal and Installation

EIS005I6

REMOVAL

1.

Remove door finisher. Refer to EI section in P12 ESM (SM2E00-1P12E0E).

2.

Remove front door glass. Refer to

GW-64, "FRONT DOOR GLASS AND REGULATOR"

.

3.

Remove front door module assembly. Refer to

GW-64, "FRONT DOOR GLASS AND REGULATOR"

.

4.

Disconnect inside release cable at the joint.

5.

Remove front door lock key cylinder assembly mount screw.

6.

Remove front door lock key cylinder cap (driver side).

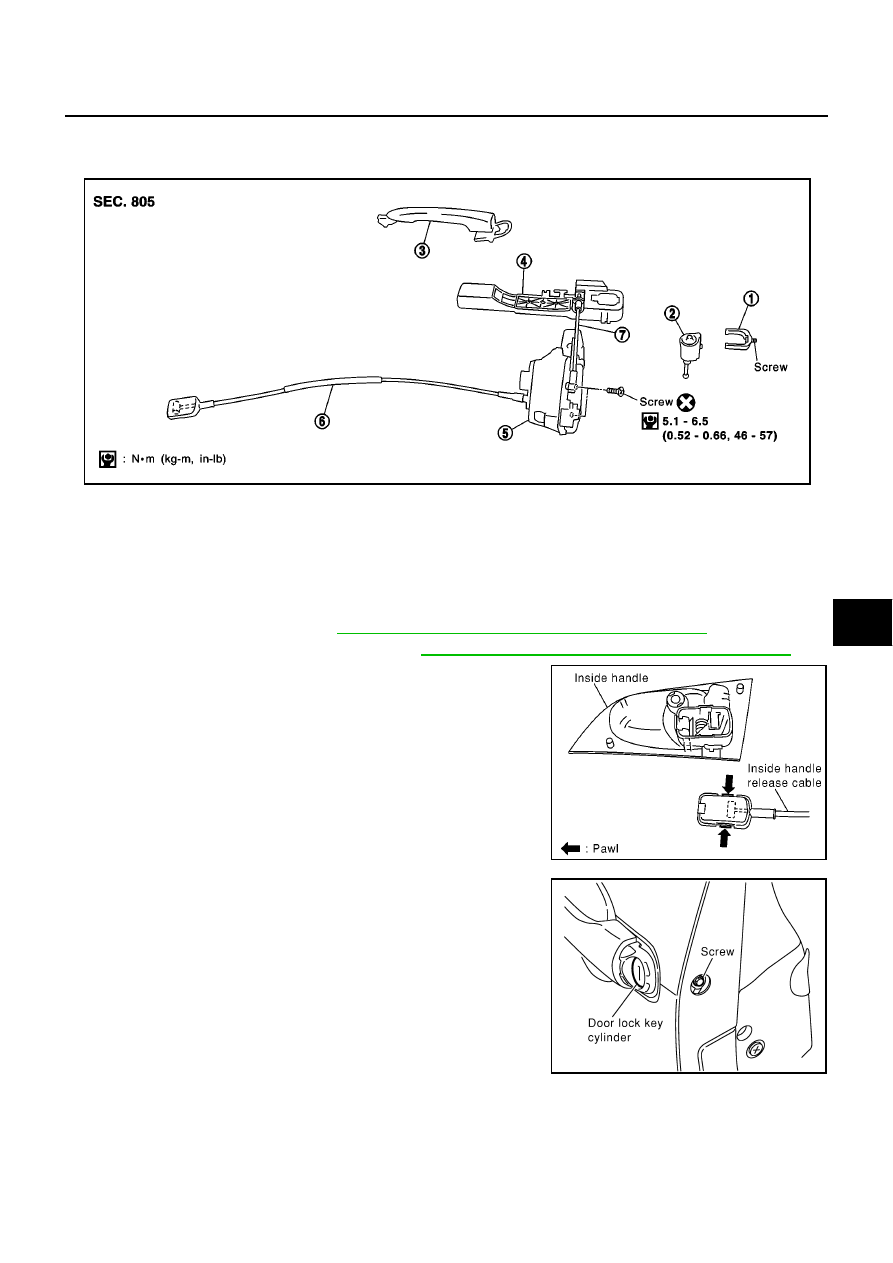

1

: Fixing bracket

2

: Key cylinder (Driver side)

3

: Door outside handle grip

4

: Door outside handle bracket

5

: Door lock assembly

6

: Inside handle release cable

7

: Outside handle release cable

PIIA0823E

PIIA0825E

PIIA0828E

BL-108

FRONT DOOR LOCK

7.

Working through the access hole, disconnect outside handle
release cable (on the handle) at the joint.

8.

Remove outside handle grip.

9.

Remove outside handle bracket and front door lock key cylinder.

10. Disconnect door lock actuator connector.

11. Remove mount screw and remove door lock assembly through

the access hole.

INSTALLATION

Install in the reverse order of removal.

NOTE:

Install the outside handle by pressing it forward and downward while tightening the bolts.

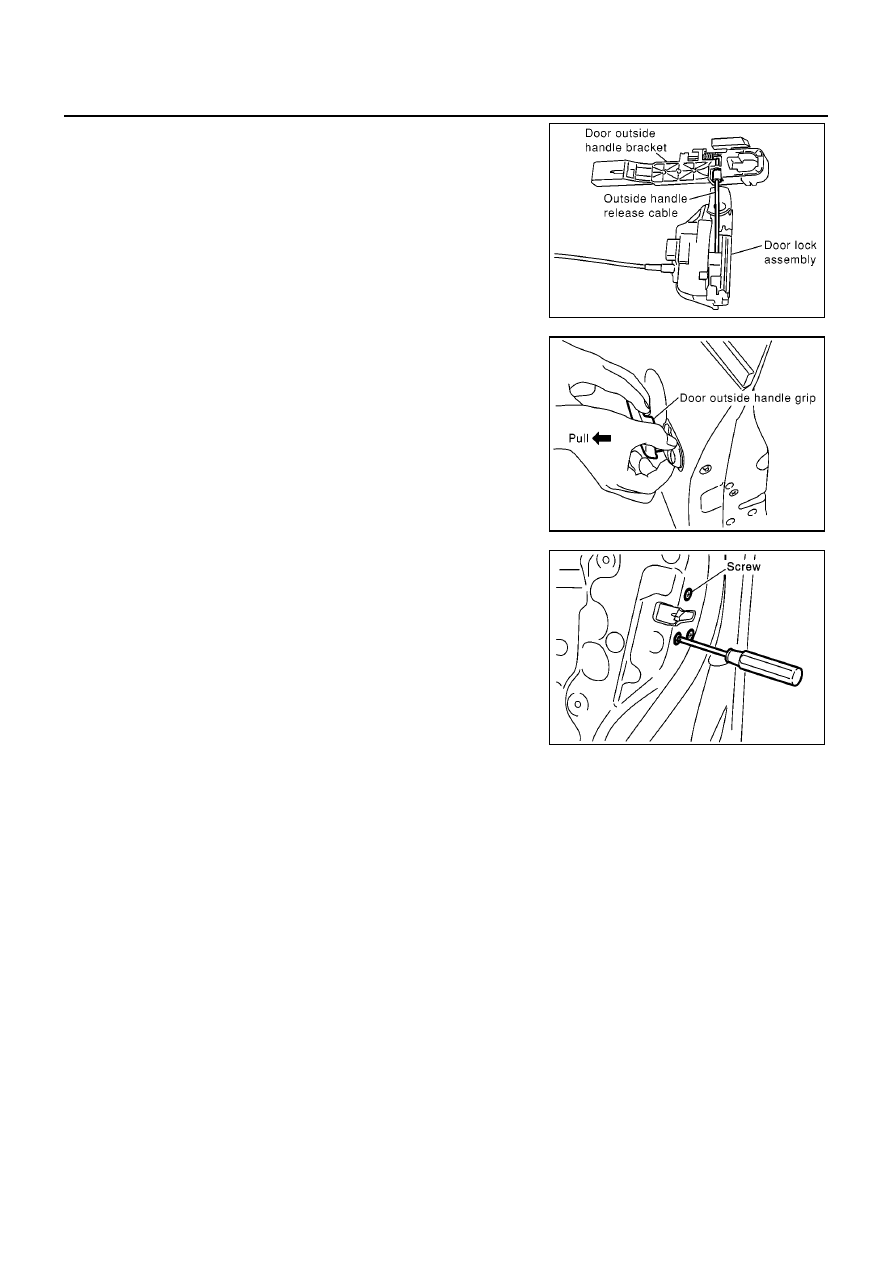

PIIA0824E

PIIA0826E

PIIA0829E
