MULTI-REMOTE CONTROL SYSTEM

BL-101

C

D

E

F

G

H

J

K

L

M

A

B

BL

Key Switch Check

EIS005I1

1.

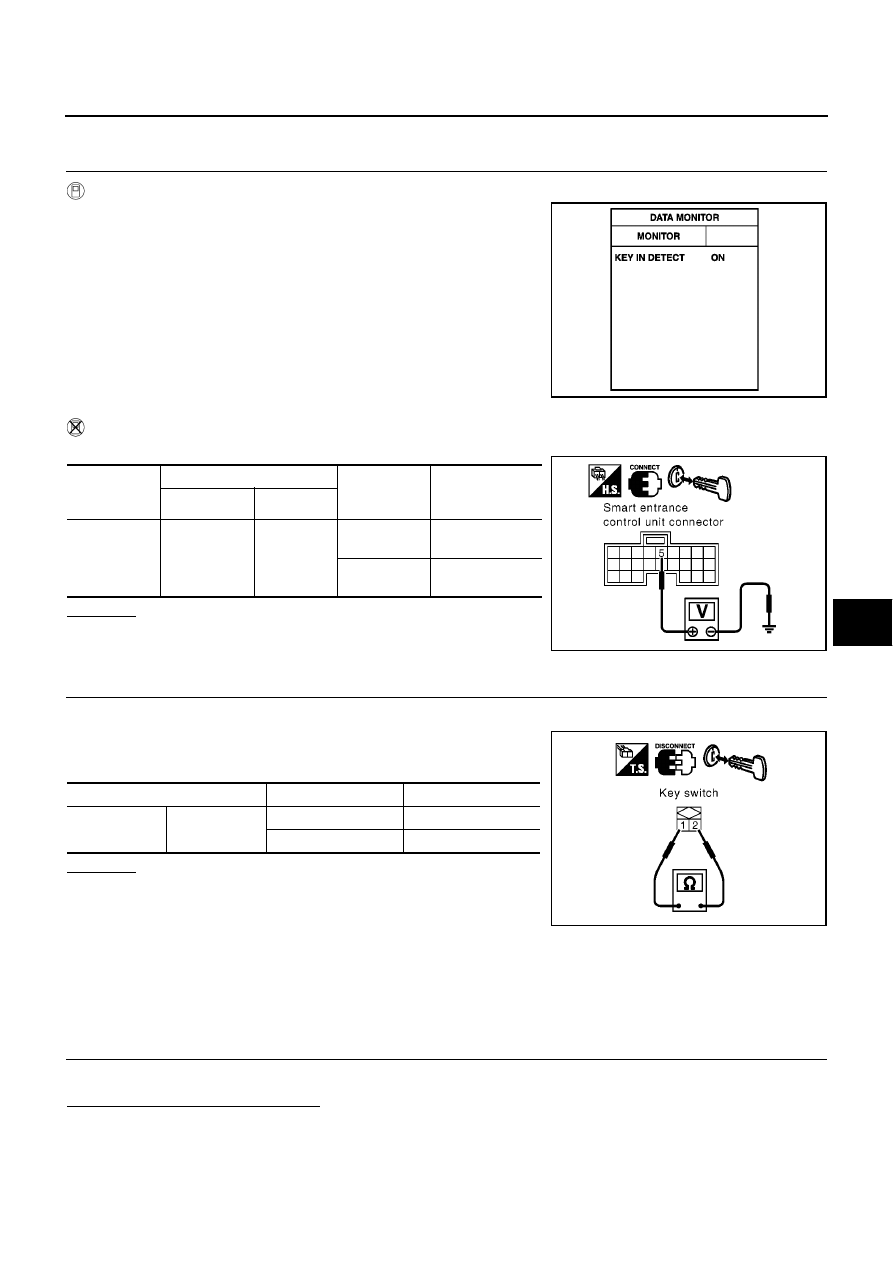

CHECK KEY SWITCH INPUT SIGNAL

WITH CONSULT-II

Check key switch signal (“KEY IN DETECT”) in “DATA MONITOR”
mode with CONSULT-II.

WITHOUT CONSULT-II

Check voltage between smart entrance control unit harness connector M41 terminal 5 and ground.

OK or NG

OK

>> Key switch is OK.

NG

>> GO TO 2.

2.

CHECK KEY SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect key switch connector.

3.

Check continuity between key switch terminal 1 and 2.

OK or NG

OK

>> Check the following.

10A fuse [No. 12, located in fuse block (J/B)]

Harness for open or short between key switch and
fuse

Harness for open or short between smart entrance control unit and key switch

NG

>> Replace key switch.

Hazard Reminder Check

EIS005I2

1.

CHECK HAZARD WARNING LAMP

Check if hazard warning lamp flashes with hazard switch.

Does hazard warning lamp operate?

Yes

>> GO TO 2.

No

>> Check hazard warning lamp circuit.

KEY IN DETECT

Key is inserted in ignition cylinder

: ON

Key is removed from ignition key cylinder

: OFF

MKIB0200E

Connector

Terminals (wire color)

Condition

(Door lock/

unlock switch)

Voltage (V)

(Approx.)

(+)

(

)

M41

5 (B/R)

Ground

Key is

inserted

Battery voltage

Key is

removed

0

MKIB0585E

Terminal

Condition

Continuity

1

2

Key is inserted

Yes

Key is removed

Yes

MKIB0586E

BL-102

MULTI-REMOTE CONTROL SYSTEM

2.

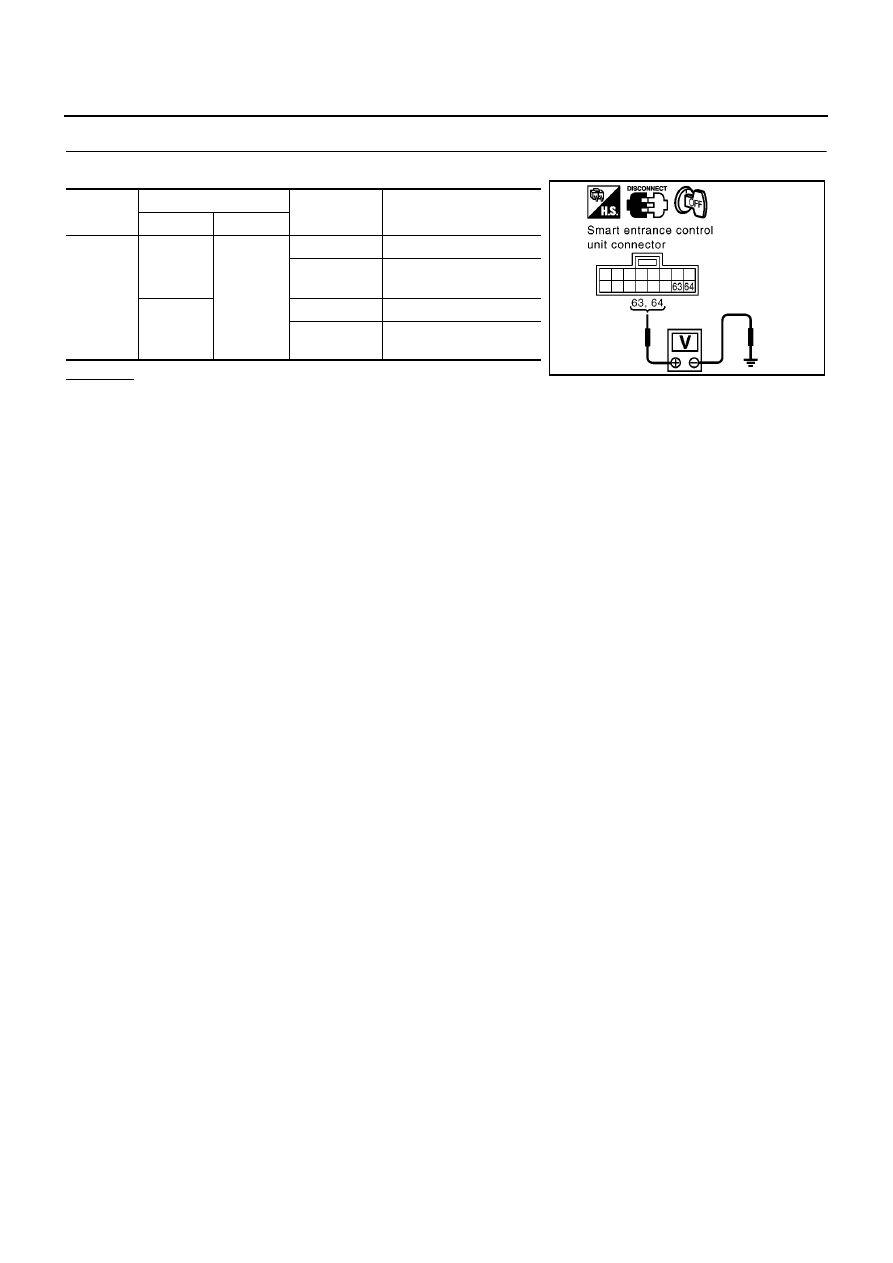

CHECK HAZARD REMINDER OPERATION

Check voltage between smart entrance control unit harness connector and ground.

OK or NG

OK

>> Check harness for open or short between smart entrance control unit and hazard switch.

NG

>> Replace smart entrance control unit.

Connector

Terminals (wire color)

Remote con-

troller

Voltage (V)

(Approx.)

(+)

(

)

M43

63 (G/Y)

Ground

Lock

0

Battery voltage

0

Unlock

0

Battery voltage

0

Battery voltage

0

64 (G/B)

Lock

0

Battery voltage

0

Unlock

0

Battery voltage

0

Battery voltage

0

MIIB0473E

MULTI-REMOTE CONTROL SYSTEM

BL-103

C

D

E

F

G

H

J

K

L

M

A

B

BL

ID Code Entry Procedure

EIS005I3

REMOTE CONTROLLER ID SET UP WITH CONSULT-II

NOTE:
If a remote controller is lost, the ID code of the lost remote controller must be erased to prevent unau-
thorized use. When the ID code of a lost remote controller is not known, all controller ID codes should
be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers
must be re-registered.

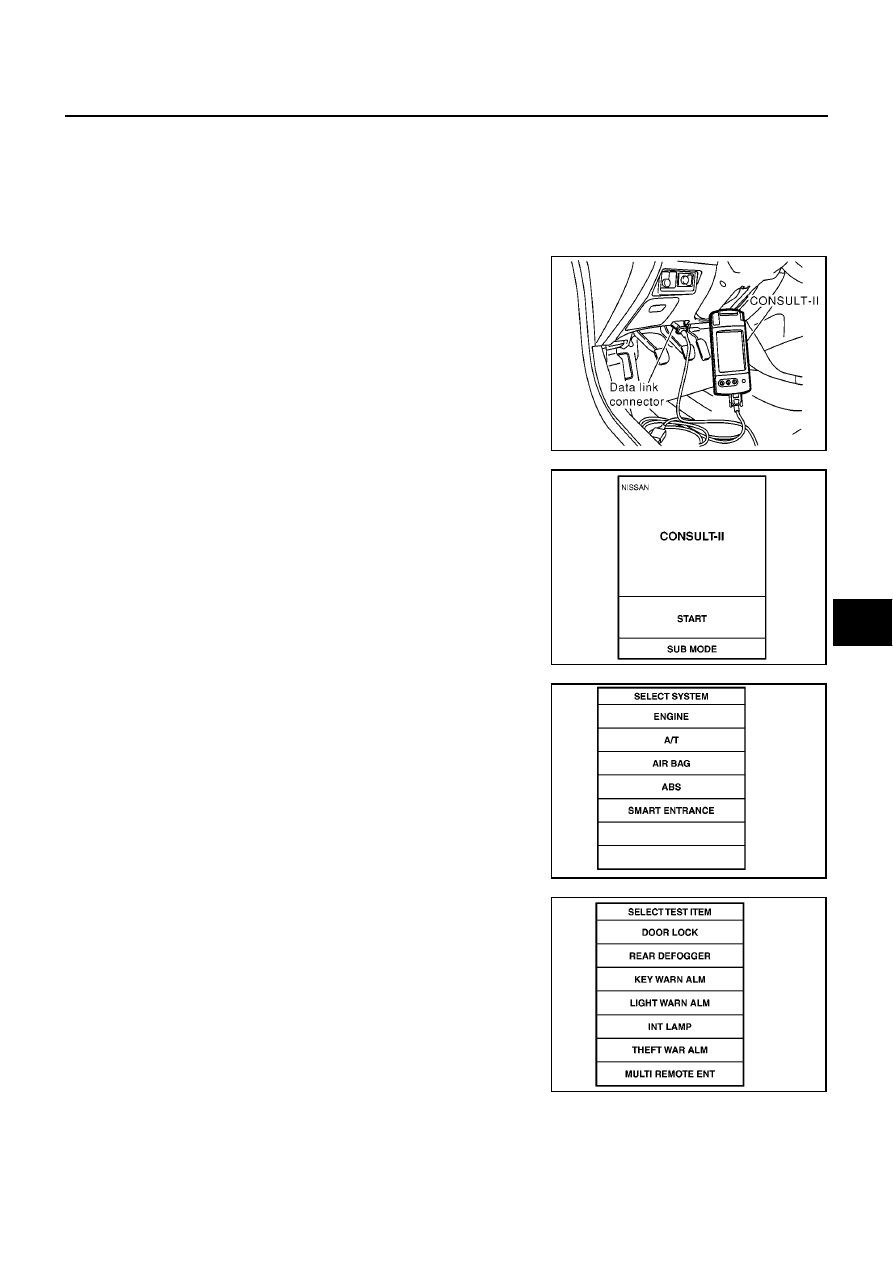

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to the data link connector.

3.

Turn ignition switch “ON”.

4.

Touch “START”.

5.

Touch “SMART ENTRANCE”.

6.

Touch “KEYLESS ENTRY”.

SIIA1645E

PBR455D

SEL845W

SEL846W

BL-104

MULTI-REMOTE CONTROL SYSTEM

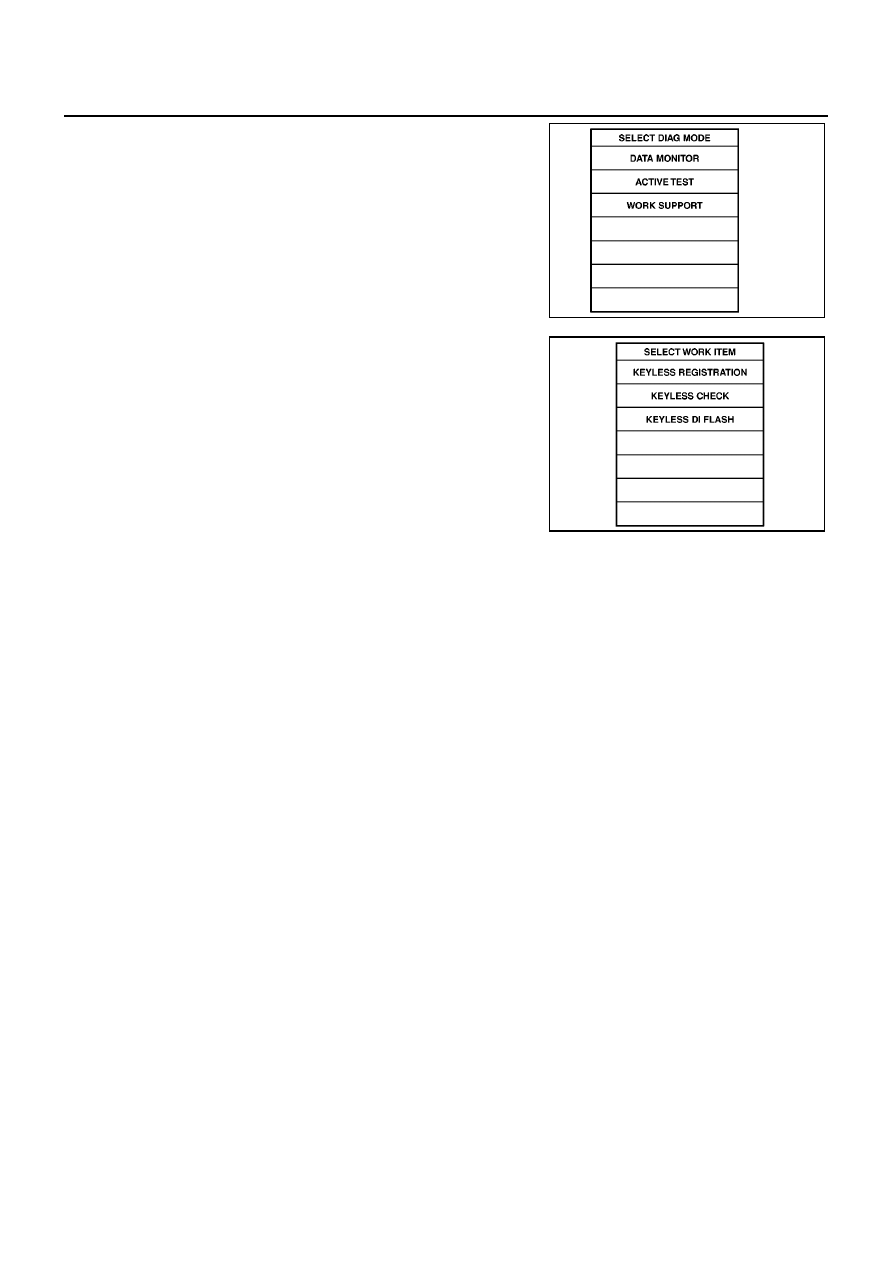

7.

Touch “WORK SUPPORT”.

8.

The items are shown on the figure at left can be set up.

“KEYLESS CHECK”
Use this mode to confirm if a remote controller ID code is reg-
istered or not.

“KEYLESS REGISTRATION”
Use this mode to register a remote controller ID code.

NOTE:
Register the ID code when remote controller or smart
entrance control unit is replaced, or when additional remote
controller is required.

“KEYLESS DI FLASH”
This mode can be setting remote controller function.

SEL274W

SIIA1681E
