Qashqai J11. Security control system - part 13





COMPONENT PARTS

SEC-193

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

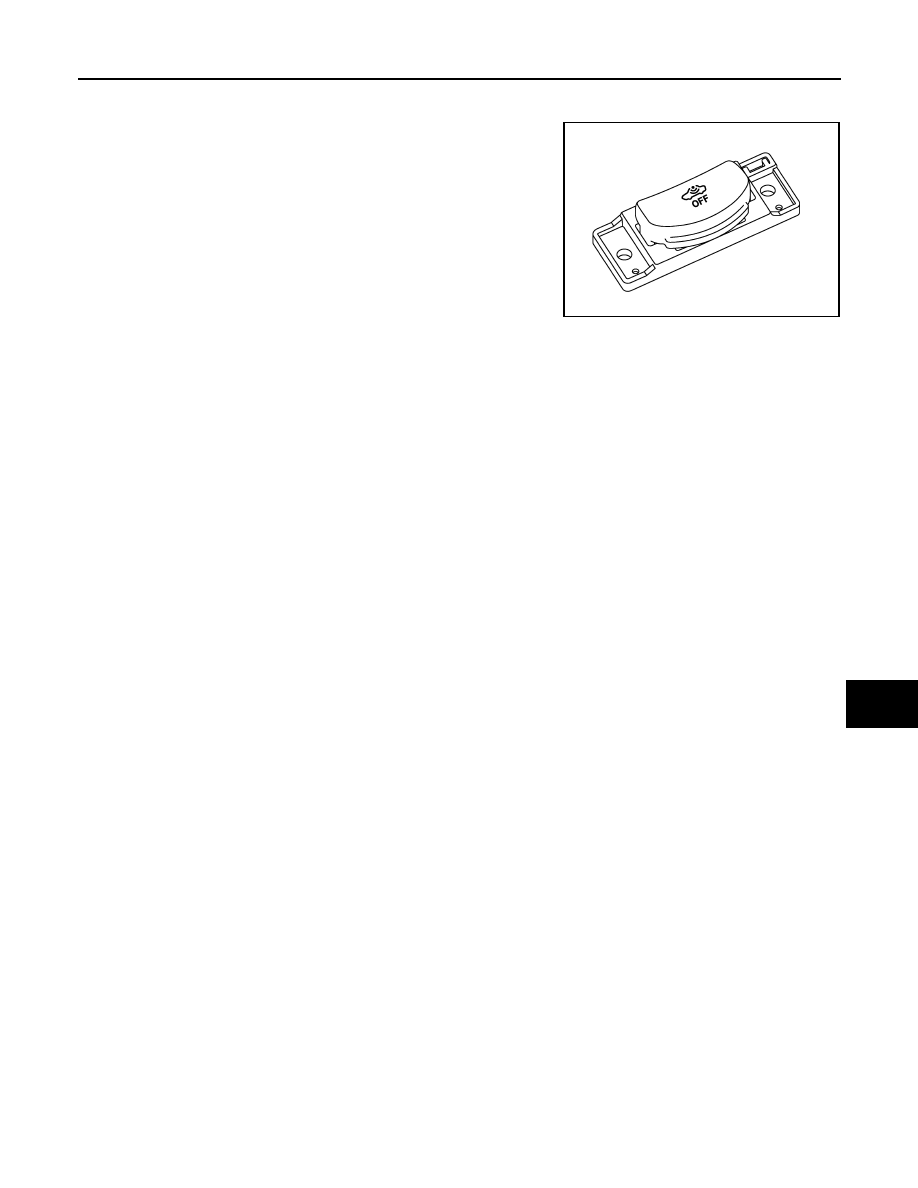

Sensor Cancel Switch

INFOID:0000000010479734

BCM deactivates intruder sensor for the vehicle security system
when BCM receives sensor cancel switch ON signal.

JMKIB3261ZZ

SEC-194

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

NISSAN ANTI-THEFT SYSTEM

NISSAN ANTI-THEFT SYSTEM : System Description

INFOID:0000000010338033

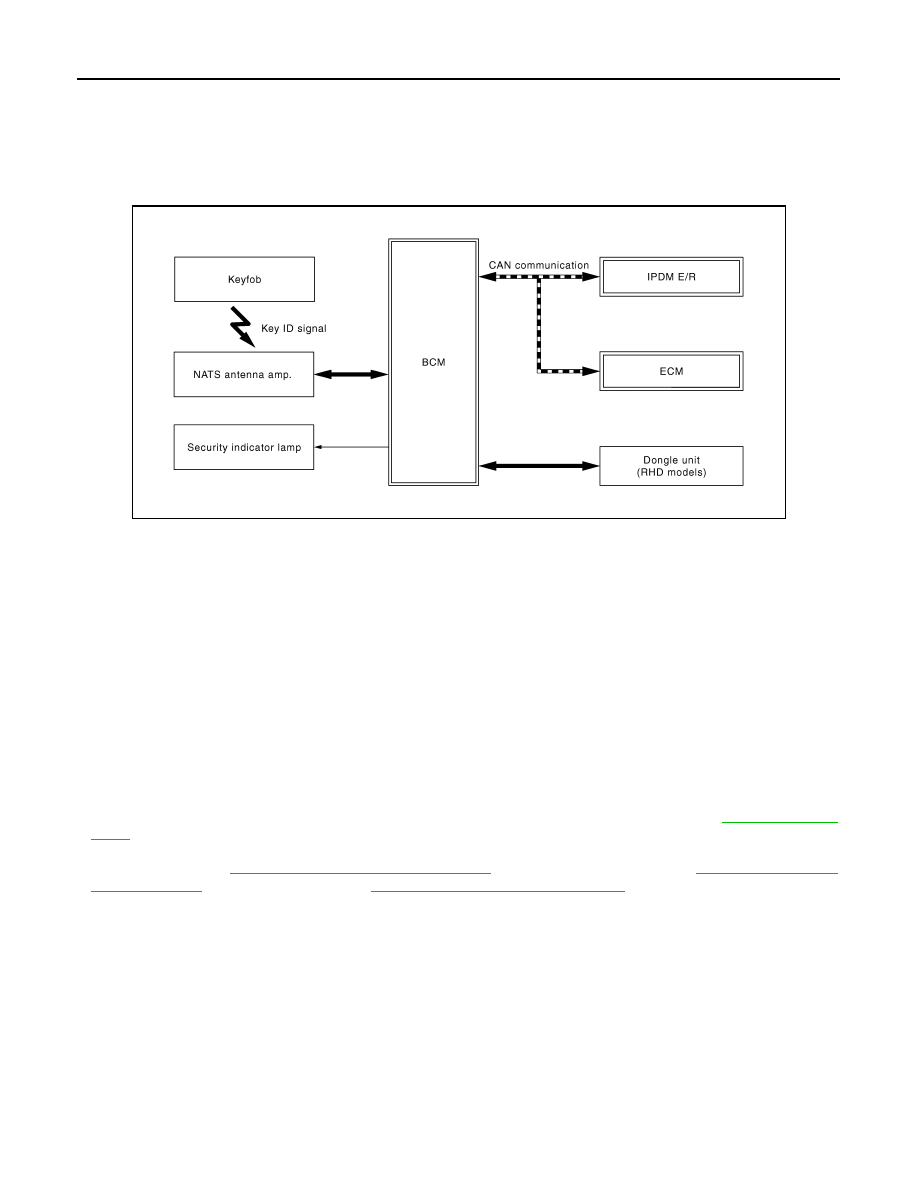

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

Nissan Anti-Theft System (NATS) has the following immobilizer functions:
• NATS shows high anti-theft performance to prevent engine from starting by anyone other than the owner

who has the registered ignition key.

• The ignition key has NATS ID and only ignition key which has the same ID as the ID registered in BCM and

ECM can start engine. This makes high anti-theft performance to prevent the vehicle from being stolen using
a copied ignition key.

• Security indicator lamp always blinks when ignition switch is in any position other than ON. Therefore, NATS

warns outsiders that the vehicle is equipped with the anti-theft system.

• If the system detects a malfunction, security indicator lamp illuminates when ignition switch is turned ON.
• If the owner requires, ignition key ID can be registered for up to 5 keys.
• During trouble diagnosis, when additional ignition key is needed, or when the following components are

replaced, the ID registration is required.

- BCM
- Ignition key
• Possible symptom of NATS malfunction is “Engine cannot start”. The engine also can not be started

because of other than the NATS malfunction, so start the trouble diagnosis according to

SEC-237, "Work

Flow"

.

• If ECM other than Genuine NISSAN parts is installed, the engine cannot be started. For ECM replacement

procedure, refer to

ECH-320, "Removal and Installation"

(HRA2DDT engine models),

ECK-398, "Removal

and Installation"

(K9K engine models) or

EC9-409, "Removal and Installation"

(R9M engine models).

SECURITY INDICATOR LAMP

• Security indicator lamp is located on combination meter and warns that the vehicle is equipped with NATS.
• Security indicator lamp always blinks, when the ignition switch is in any position other than ON.
• Security indicator lamp turns OFF when the ignition switch is turned ON.

OPERATION WHEN IGNITION KEY IS INSERTED INTO IGNITION KEY CYLINDER

1.

When ignition switch is turned ON, BCM activates NATS antenna amp. to start NATS ID verification with
the ignition key (transponder is integrated).

2.

BCM receives the NATS ID signal from ignition key via NATS antenna amp. and verifies it with the regis-
tered ID.

3.

When the NATS ID verification result is OK, BCM performs the ID verification between BCM and ECM.

4.

When the verification result is OK, BCM transmits the verification OK signal to ECM, and then ECM can
start the engine.

JMKIB3228GB

SYSTEM

SEC-195

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

VEHICLE SECURITY SYSTEM : System Description

INFOID:0000000010506849

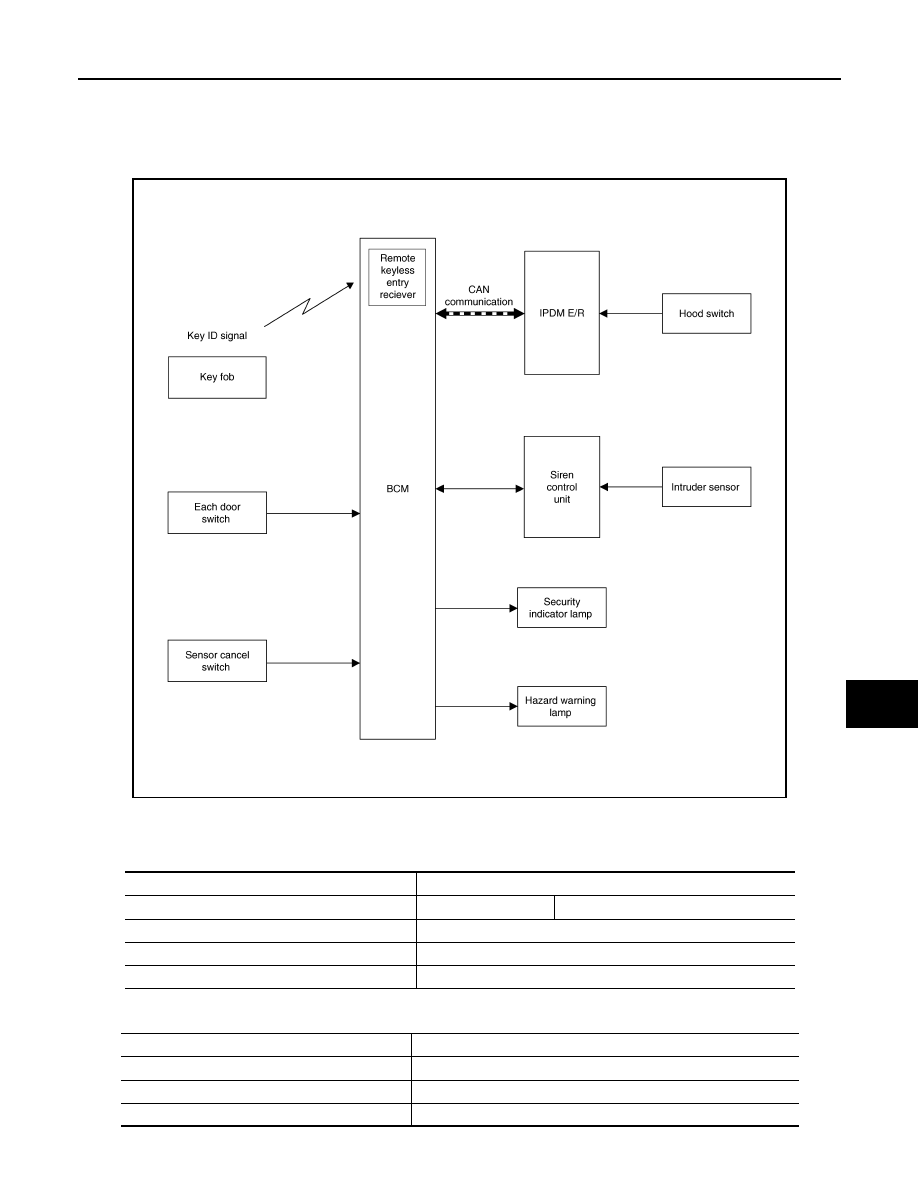

SYSTEM DIAGRAM

BCM INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Output Signal Item

JMKIB3230GB

Transmit unit

Signal name

IPDM E/R

CAN communication

Hood switch signal

Each door switch

Door switch signal

Siren control unit

Alarm link signal

Sensor cancel switch

Sensor cancel switch signal

Reception unit

Signal name

Combination meter (security indicator lamp)

Security indicator lamp signal

Siren control unit

Alarm link signal

Hazard warning lamp

Hazard warning lamp signal

SEC-196

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM DESCRIPTION

• The system reduces the possibility of a theft or mischief by sounding siren and blinking hazard warning lamp

continuously. The system activates siren and hazard warning lamp when detecting that the door or hood is
opened, or there is an illegal attempt to enter into the passenger room, while the system is in the ARMED
phase.

• Security indicator lamp on combination meter always blinks when ignition switch is any position other than

ON to warn that the vehicle is equipped with a VEHICLE SECURITY SYSTEM.

• Anti-theft function is improved by the adoption of intruder sensor that detects an attempt to enter into the

passenger room.

• Activation or deactivation of intruder sensor can be selected by sensor cancel switch.
• Siren control unit equips a built-in battery. Replace siren control unit once every 10 years because the war-

ranty for built-in battery expires after 10 years.

• Each time the system switches to the ARMED phase from the PRE-ARMED phase, the self-diagnosis is per-

formed by the siren control unit and each sensor. If any malfunction is detected, the siren sounds* 5 times to
inform the driver that a malfunction is detected and the vehicle security system does not function properly.
Malfunctioning part can be checked by “SIREN” in “ACTIVE TEST” mode of “THEFT ALM” of “BCM” using
CONSULT. Refer to

SEC-207, "Diagnosis Description"

.

*: Siren sounds for 0.2 seconds and sound interval is 0.4 seconds.

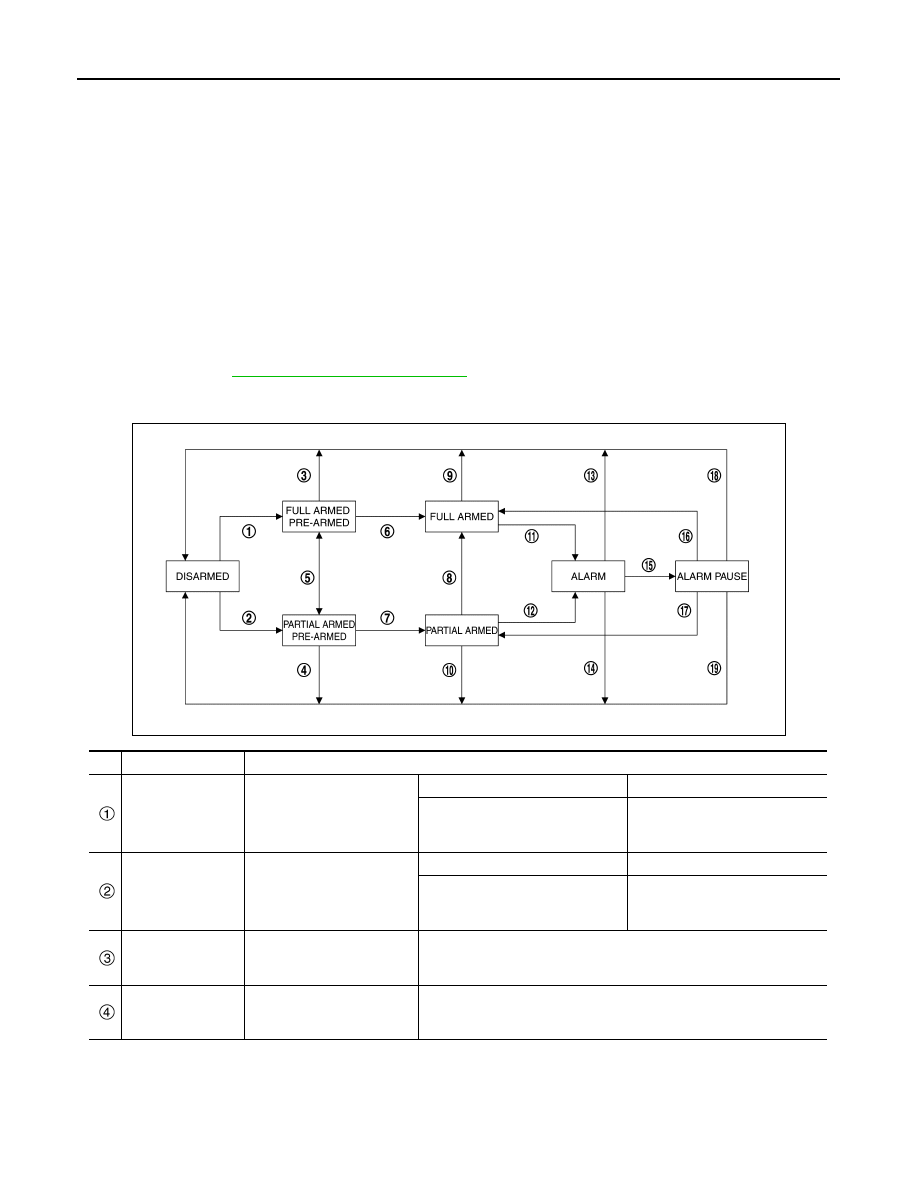

Operation Flow

JMKIB1929GB

No.

System state

Switching condition

DISARMED to
FULL PRE-
ARMED

When all conditions of A and
one condition of B is satis-
fied.

A

B

• Ignition switch: OFF
• All doors: Closed
• Hood: Closed

All doors are locked by:
• LOCK button of Key fob
• Door lock and unlock switch

DISARMED to
PARTIAL PRE-
ARMED

When all conditions of A and
one condition of B is satis-
fied.

A

B

• Ignition switch: OFF
• Hood or any door: Open

All doors are locked by:
• LOCK button of Key fob
• Door lock and unlock switch

FULL PRE-
ARMED to DIS-
ARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Key fob: ON
• Door lock and unlock switch: ON

PARTIAL PRE-
ARMED to DIS-
ARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Key fob: ON
• Door lock and unlock switch: ON

SYSTEM

SEC-197

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NOTE:

• To lock/unlock all doors by operating remote controller button of Key fob for details, refer to

DLK-389, "System Description"

.

Disarmed Phase

VEHICLE SECURITY SYSTEM switches to the DISARMED phase while any doors or hood is open because it
is assumed that the owner is in or nearby the vehicle.

Pre-armed Phase

• VEHICLE SECURITY SYSTEM switches to the PRE-ARMED phase and blinks security indicator lamp

quickly for approximately 20 seconds when all doors are locked by Key fob, while all doors and hood are
closed.

• VEHICLE SECURITY SYSTEM that is in the PRE-ARMED phase switches to the DISARMED phase when

all doors are unlocked by Key fob.

• VEHICLE SECURITY SYSTEM does not activate siren when door or hood is open while VEHICLE SECU-

RITY SYSTEM is in the PRE-ARMED phase. When the door or hood is closed again, VEHICLE SECURITY
SYSTEM stays in the PRE-ARMED phase.

PARTIAL PRE-
ARMED to FULL
PRE-ARMED

When all of the following
conditions are satisfied.

• All doors: Closed
• Hood: Closed

FULL PRE-
ARMED to PAR-
TIAL PRE-ARMED

When one of the following
condition is satisfied.

• Any door: Opened
• Hood: Opened

FULL PRE-
ARMED to FULL
ARMED

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: OFF
• All doors: Locked
• Hood: Closed

PARTIAL PRE-
ARMED to PAR-
TIAL ARMED

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: OFF

PARTIAL to FULL
ARMED

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: OFF
• All doors: Closed
• Hood: Closed

FULL ARMED to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Key fob: ON
• Door lock and unlock switch: ON

PARTIAL ARMED
to DISARM

FULL ARMED to
ALARM

When one of the following
condition is detected.

• Any door or hood is opened
• Battery is connect and disconnect
• Movement to enter into passenger room
• Communication between BCM and siren control unit is interrupted
• Communication between siren control unit and intruder sensor is in-

terrupted

PARTIAL ARMED
to ALARM

When one of the following
condition is detected.

• Any door or hood is opened
• Battery is connect and disconnect
• Communication between BCM and siren control unit is interrupted
• Communication between siren control unit and intruder sensor is in-

terrupted

ALARM to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Key fob: ON
• Door lock and unlock switch: ON

ALARM to ALARM
PAUSE

27.5 seconds are passed.

ARM PAUSE to
FULL ARMED

5 seconds are passed after deactivating ALARM.

ARM PAUSE to
PARTIAL ARMED

ALARM PAUSE to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Key fob: ON
• Door lock and unlock switch: ON

No.

System state

Switching condition

SEC-198

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

Armed Phase

VEHICLE SECURITY SYSTEM switches to the ARMED phase from the PRE-ARMED phase after approxi-
mately 20 seconds, and blinks security indicator lamp slowly.

Alarm Phase

• VEHICLE SECURITY SYSTEM activates siren for approximately 27.5 seconds when any of the following

conditions is fulfilled while VEHICLE SECURITY SYSTEM is in the ARMED phase.

- When any door or hood is open
- When power supply to siren control unit is blocked
- When intruder sensor detects an attempt to enter into passenger compartment
- When battery connection is disconnected
• VEHICLE SECURITY SYSTEM deactivates siren when door is unlocked by Key fob or ignition switch is turn

ON position while siren is activated.

• VEHICLE SECURITY SYSTEM switches to the ARMED phase automatically when approximately 5 sec-

onds pass after deactivating siren.

SENSOR CANCEL FUNCTION

Perform the following procedure to deactivate intruder sensor.

1.

CHECK SENSOR CANCEL FUNCTION

1.

Turn ignition switch OFF.

2.

Press sensor cancel switch, and before 5 minutes pass, close all doors and hood, and lock all doors using
the Key fob.

3.

Check that VEHICLE SECURY SYSTEM is switched to the PRE-ARMED phase and that the siren sounds
one beep.

NOTE:
Intruder sensor is not cancelled and return to normal operation when any of the following conditions is fulfilled
while the cancellation procedure is being performed.
• When ignition switch turns ON.
• When 5 minutes or more pass after pressing sensor cancel switch.
• When VEHICLE SECURITY SYSTEM switches to the DISARMED phase.

Does security indicator lamp blink quickly?

YES

>> INSPECTION END

NO

>> Check again.

DIAGNOSIS SYSTEM (BCM)

SEC-199

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010479873

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

PTC heater control

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

SEC-200

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 3)

INFOID:0000000010827936

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK KEYLESS
LOCK UNLOCK

NOTE:
This item is displayed, but cannot be used

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

DIAGNOSIS SYSTEM (BCM)

SEC-201

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 4)

INFOID:0000000010827938

WORK SUPPORT

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

Monitor Item

Condition

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

NOTE:
This item is indicated, but not monitored

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

SEC-202

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK KEYLESS
LOCK UNLOCK

NOTE:
This item is displayed, but cannot be used

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

DIAGNOSIS SYSTEM (BCM)

SEC-203

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)

INFOID:0000000010827940

WORK SUPPORT

DATA MONITOR

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

Monitor Item

Condition

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

NOTE:
This item is indicated, but not monitored

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

Reminder function (keyfob) mode can be selected from the following with this mode
• On: S mode (horn non-operation)
• Off: C mode (horn operate)

ANSWER BACK KEYLESS
LOCK UNLOCK

Reminder function (keyfob) mode can be selected from the following with this mode
• On: Horn and hazard warning lamp operate
• Off: Only hazard warning lamp operate

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

SEC-204

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

This test is able to check horn operation
• On: Operates

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

DIAGNOSIS SYSTEM (BCM)

SEC-205

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

THEFT ALM

THEFT ALM : CONSULT Function (BCM - THEFT) (Without Intelligent Key System)

INFOID:0000000010479871

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

WORK SUPPORT

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

Monitored Item

Description

REQ SW -DR

Indicates [ON/OFF] condition of door request switch (driver side).

REQ SW -AS

Indicates [ON/OFF] condition of door request switch (passenger side).

REQ SW -BD/TR

Indicates [ON/OFF] condition of back door opener request switch.

PUSH SW

Indicates [ON/OFF] condition of push-button ignition switch

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-BK

Indicates [ON/OFF] condition of back door switch.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from door lock/unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from door lock/unlock switch.

KEY CYL LK-SW

NOTE:
This item is indicated, but not monitored.

KEY CYL UN-SW

NOTE:
This item is indicated, but not monitored.

KEY CYL SW-TR

NOTE:
This item is indicated, but not monitored.

SEN CANCEL SW

Indicates [ON/OFF] condition of sensor cancel switch.

RKE-LOCK

Indicates [ON/OFF] condition of LOCK signal from Intelligent Key.

RKE-UNLOCK

Indicates [ON/OFF] condition of UNLOCK signal from Intelligent Key.

RKE-TR/BD

NOTE:
This item is indicated, but not monitored.

KEY SW

NOTE:
This item is indicated, but not monitored.

SEC-206

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

IMMU

IMMU : CONSULT Function (BCM - IMMU) (Without Intelligent Key System)

INFOID:0000000010479872

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

WORK SUPPORT

ACTIVE TEST

Service Item

Description

SECURITY ALARM SET

This mode is able to confirm and change vehicle security alarm ON-OFF setting.

SIREN SET

Select the siren function ON or OFF, and siren type.
• MODE 1: Without siren
• MODE 2: With siren
• MODE 3: With external complete protection (with siren)
• MODE 4: Without any external protection (with siren)
• MODE 5: Without external tilt protection (with siren)

THEFT ALM TRG

The switch which triggered vehicle security alarm is recorded.
This mode is able to confirm and erase the record of vehicle security alarm.
The trigger data can be erased by touching “CLEAR” on CONSULT screen.

Test Item

Description

SIREN

Activates the self-diagnosis function for siren control unit.

VEHICLE SECURITY HORN

NOTE:
This item is indicated, but not used

HEAD LAMP

NOTE:
This item is indicated, but not used

Monitor item

Content

PUSH SW

Indicates [ON/OFF] condition of push-button ignition switch.

Service item

Description

CONFIRM DONGLE ID

It is possible to check that dongle unit is applied to the vehicle.

Test item

Description

THEFT IND

This test is able to check security indicator lamp operation.
Security indicator lamp is turned on when “ON” on CONSULT screen touched.

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

SEC-207

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

Diagnosis Description

INFOID:0000000010479870

DIAGNOSIS FUNCTION

Siren control unit has a self-diagnosis function which displays the diagnosis results for the following items.
• Circuit diagnosis: Displays if malfunction exists or not in the circuits between siren control unit and BCM or

siren control unit and sensors.

- Circuits are normal: Hazard warning lamp blinks 3 times.
- Circuit is malfunctioning: Hazard warning lamp does not blink.
• Alarm history: Displays alarm activation history for the maximum 3 items.
- Siren sounds for 0.4 seconds and sound interval is 0.4 seconds.
- When multiple symptoms exist, the interval between each alarm history is 2 seconds.

• Component diagnosis: Displays malfunctioning component (siren control unit or intruder sensor).
- Siren sounds for 1 second and sound interval is 0.4 seconds.
- When multiple symptoms exist, the interval between each diagnosis result is 2 seconds.

SELF-DIAGNOSIS PROCEDURE

1.

Connect CONSULT.

2.

Turn ignition switch ON.

3.

Select “ACTIVE TEST” mode of “THEFT ALM” of “BCM” using CONSULT.

4.

Select “SIREN” and touch “ON” to start self-diagnosis.

5.

Self-diagnosis result is displayed after 2 seconds.

SELF-DIAGNOSIS RESULT DISPLAY

Number of siren sounds

Cause of alarm activation

0

History is not found

1

Battery is disconnected and connected

2

Movement to enter into passenger room is detected

3

Communication between BCM and siren control unit is interrupted

4

Door or hood is opened

5

Difference of ID recognition between siren control unit and BCM

6

Communication between siren control unit and intruder sensor is interrupted

Number of siren sounds

Malfunctioning component

0

Malfunctioning component is not found

1

Siren control unit

2

Intruder sensor

SEC-208

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

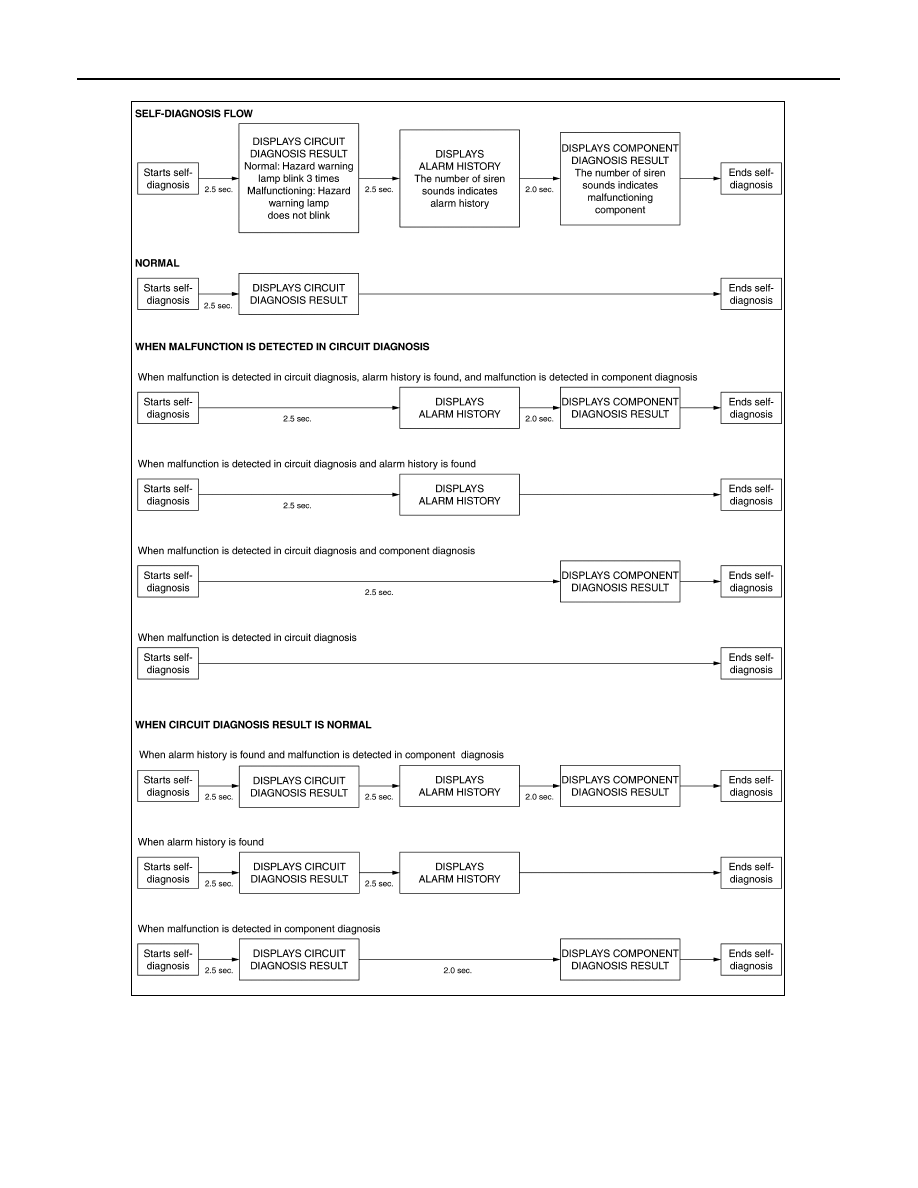

Self-diagnosis is performed as shown in the figure.

DIAGNOSIS PROCEDURE

Precaution for Diagnosis Procedure

• Self-diagnosis result is erased from siren control unit when setting alarm system after performing the self-

diagnosis.

- When performing self-diagnosis, it is advised to record the self-diagnosis result display on a memo pad.
- When replacing siren control unit, never set alarm system after performing the self-diagnosis.

JMKIB1922GB















Content      ..     11      12      13      14     ..
