REAR DRIVE SHAFT

RAX-11

< PERIODIC MAINTENANCE >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REAR DRIVE SHAFT

Inspection

INFOID:0000000010297908

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occur from drive shaft.

RAX-12

< REMOVAL AND INSTALLATION >

[4WD]

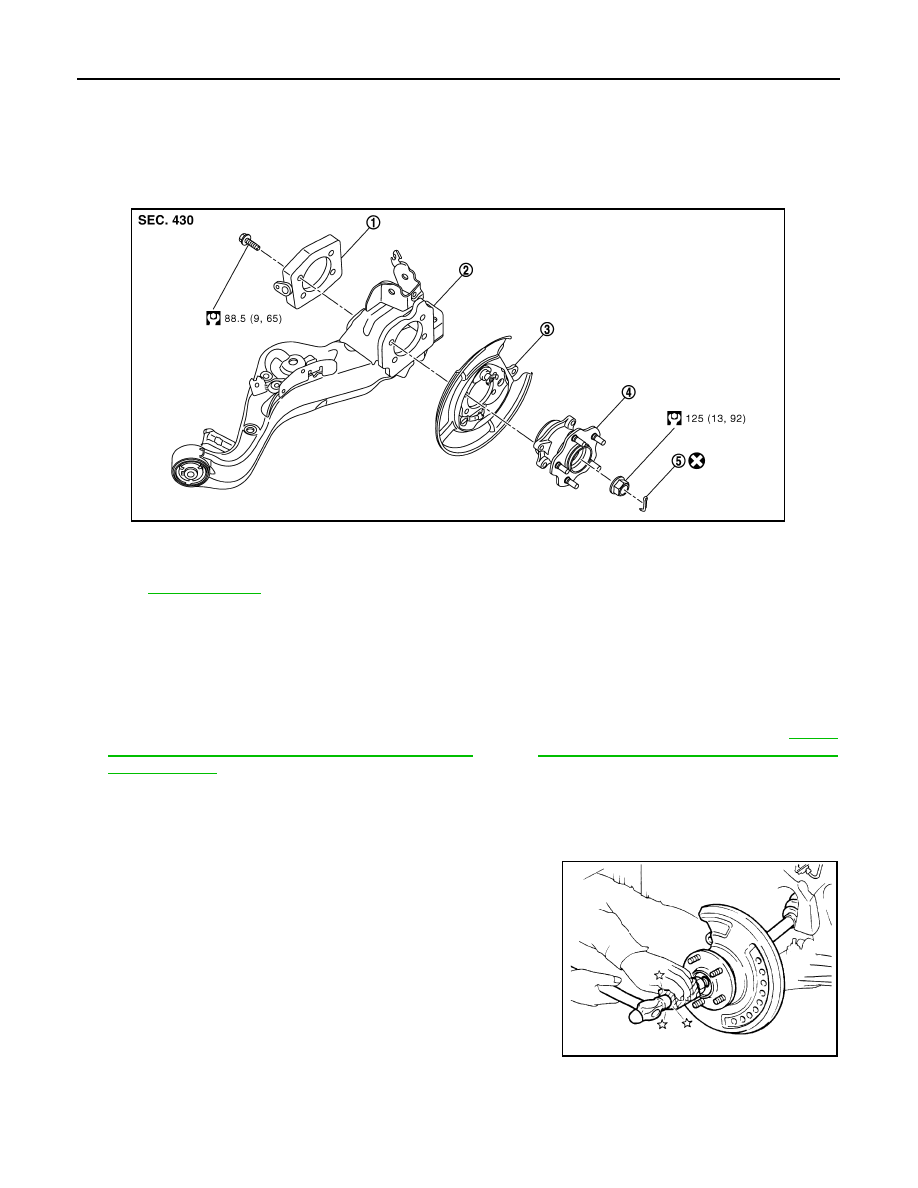

REAR WHEEL HUB AND HOUSING

REMOVAL AND INSTALLATION

REAR WHEEL HUB AND HOUSING

Exploded View

INFOID:0000000010297909

Removal and Installation

INFOID:0000000010297910

REMOVAL

Wheel Hub and Bearing Assembly

1.

Remove tires from vehicle.

2.

Remove torque member mounting bolts. Hang torque member not to interfere with work. Refer to

BR-43,

"BRAKE CALIPER ASSEMBLY : Exploded View"

 (LHD),

BR-86, "BRAKE CALIPER ASSEMBLY :

Exploded View"

 (RHD).

CAUTION:

Never depress brake pedal while brake caliper is removed.

3.

Remove disc rotor.

4.

Remove cotter pin, and then loosen hub lock nut.

5.

Patch hub lock nut with a piece of wood. Hammer the wood to
disengage wheel hub and bearing assembly from drive shaft.
Remove the hub lock nut.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be

careful not to overextend slide joint.

• Never drop drive shaft. Support drive shaft by housing,

joint sub-assembly, shaft etc.

NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive
shaft cannot be separated even after performing the above pro-
cedure.

6.

Remove wheel hub and bearing assembly.

INSTALLTION

Install in the reverse order of removal.

1.

Axle housing

2.

Suspension arm

3.

Back plate

4.

Wheel hub and bearing assembly

5.

Cotter pin

Refer to

GI-4, "Components"

 for symbols in the figure.

E1DIA0226GB

JPDIF0003ZZ

REAR WHEEL HUB AND HOUSING

RAX-13

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

Inspection

INFOID:0000000010297911

INSPECTION AFTER REMOVAL

Check wheel hub and bearing assembly for wear, cracks, and damage. Replace if there are.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to

FSU-7, "Wheel Alignment Inspection"

.

RAX-14

< REMOVAL AND INSTALLATION >

[4WD]

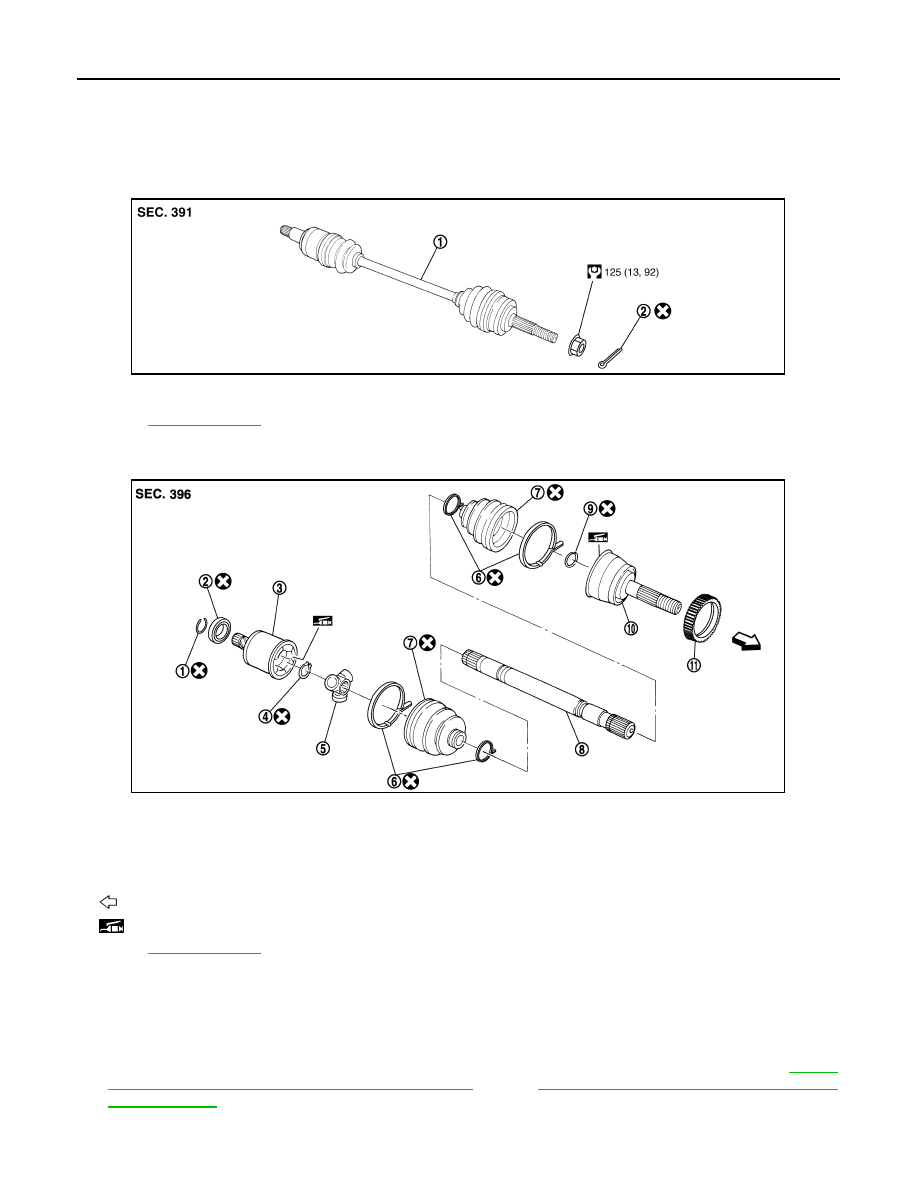

REAR DRIVE SHAFT

REAR DRIVE SHAFT

Exploded View

INFOID:0000000010297912

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000010297913

REMOVAL

1.

Remove tires from vehicle.

2.

Remove torque member mounting bolts. Hang torque member not to interfere with work. Refer to

BR-43,

"BRAKE CALIPER ASSEMBLY : Exploded View"

 (LHD),

BR-86, "BRAKE CALIPER ASSEMBLY :

Exploded View"

 (RHD).

CAUTION:

Never depress brake pedal while brake caliper is removed.

1.

Drive shaft

2.

Cotter pin

Refer to

GI-4, "Components"

 for symbols in the figure.

PDIA1172J

1.

Circular clip

2.

Dust shield

3.

Housing

4.

Snap ring

5.

Spider assembly

6.

Boot band

7.

Boot

8.

Shaft

9.

Circular clip

10. Joint sub-assembly

11.

Sensor rotor

: Wheel side

: Fill NISSAN genuine grease or an equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIG0015ZZ
