REAR WHEEL HUB AND HOUSING

Exploded View

INFOID:0000000010297897

Refer to

RAX-4, "Exploded View"

.

Inspection

INFOID:0000000010297898

MOUNTING INSPECTION

Make sure the mounting conditions (looseness, back lash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of

wheel bearing.

• Rotate wheel hub, and make sure there is no unusual noise or other irregular conditions. If there is any of

irregular conditions, replace wheel hub and bearing assembly.

Standard

Axial end play

: Refer to

RAX-6, "Wheel Bearing"

.

RAX-4

< REMOVAL AND INSTALLATION >

[2WD]

REAR WHEEL HUB

REMOVAL AND INSTALLATION

REAR WHEEL HUB

Exploded View

INFOID:0000000010297899

Removal and Installation

INFOID:0000000010481080

REMOVAL

Wheel Hub and Bearing

1.

Remove the wheel and tire using power tool. Refer to

WT-60, "Wheel Balance Adjustment (Aluminum

Wheel)"

.

2.

Remove the bolt and separate the rear wheel sensor from the wheel hub and bearing. Refer to

BRC-139,

"REAR WHEEL SENSOR : Removal and Installation"

.

CAUTION:

• Failure to separate the rear wheel sensor from the wheel hub and bearing may result in damage

to the rear wheel sensor.

• Pull out the rear wheel sensor, being careful to turn it as little as possible. Never pull on wheel

sensor harness.

3.

Remove torque member bolts using power tool, leaving the brake hose attached. Position brake caliper
aside with wire. Refer to

BR-43, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

4.

Put alignment marks on the disc brake rotor and on the wheel hub and bearing. Remove the disc brake
rotor. Remove disc brake rotor.

CAUTION:

Never drop disc brake rotor.

5.

Remove the hub bolts and the wheel hub and bearing.

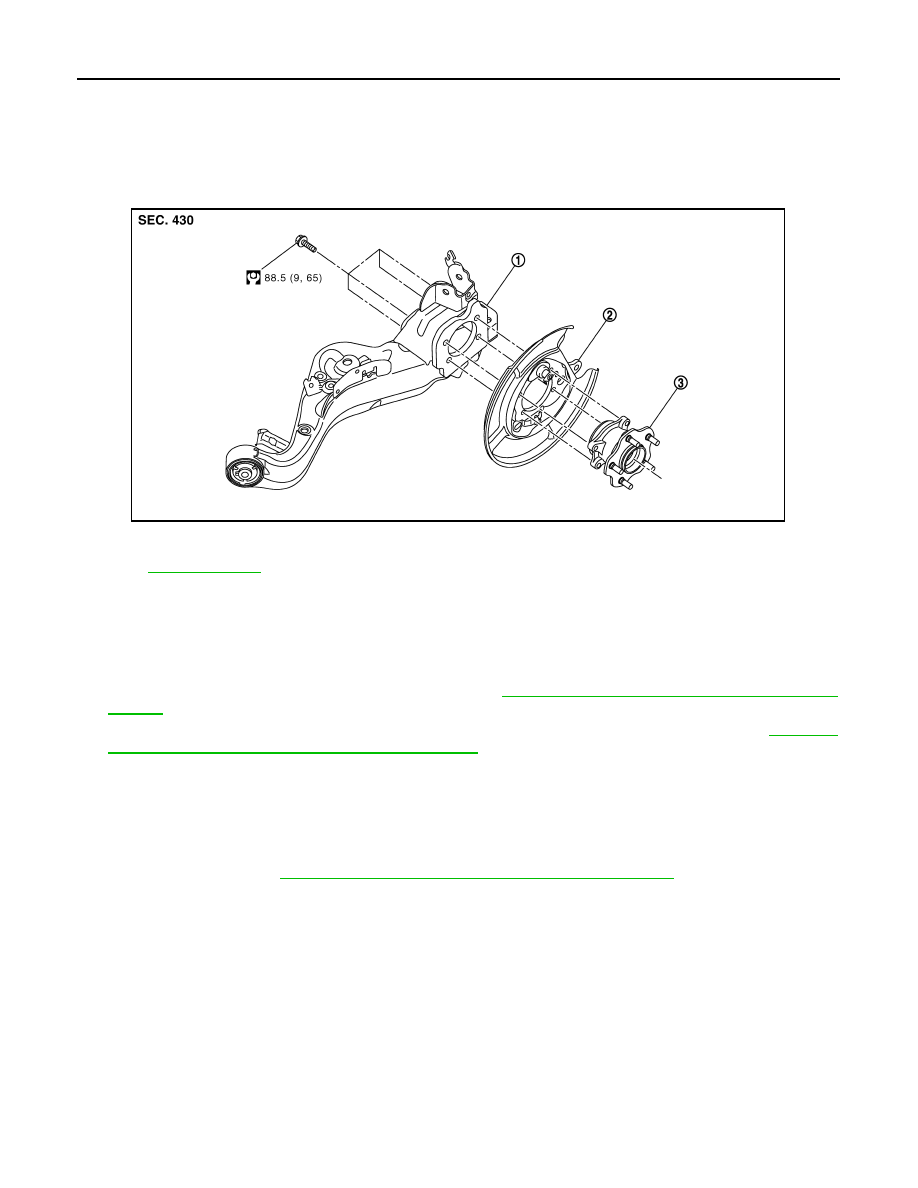

1.

Suspension arm

2.

Back plate

3.

Wheel hub and bearing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

E1DIA0225GB

REAR WHEEL HUB

RAX-5

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

6.

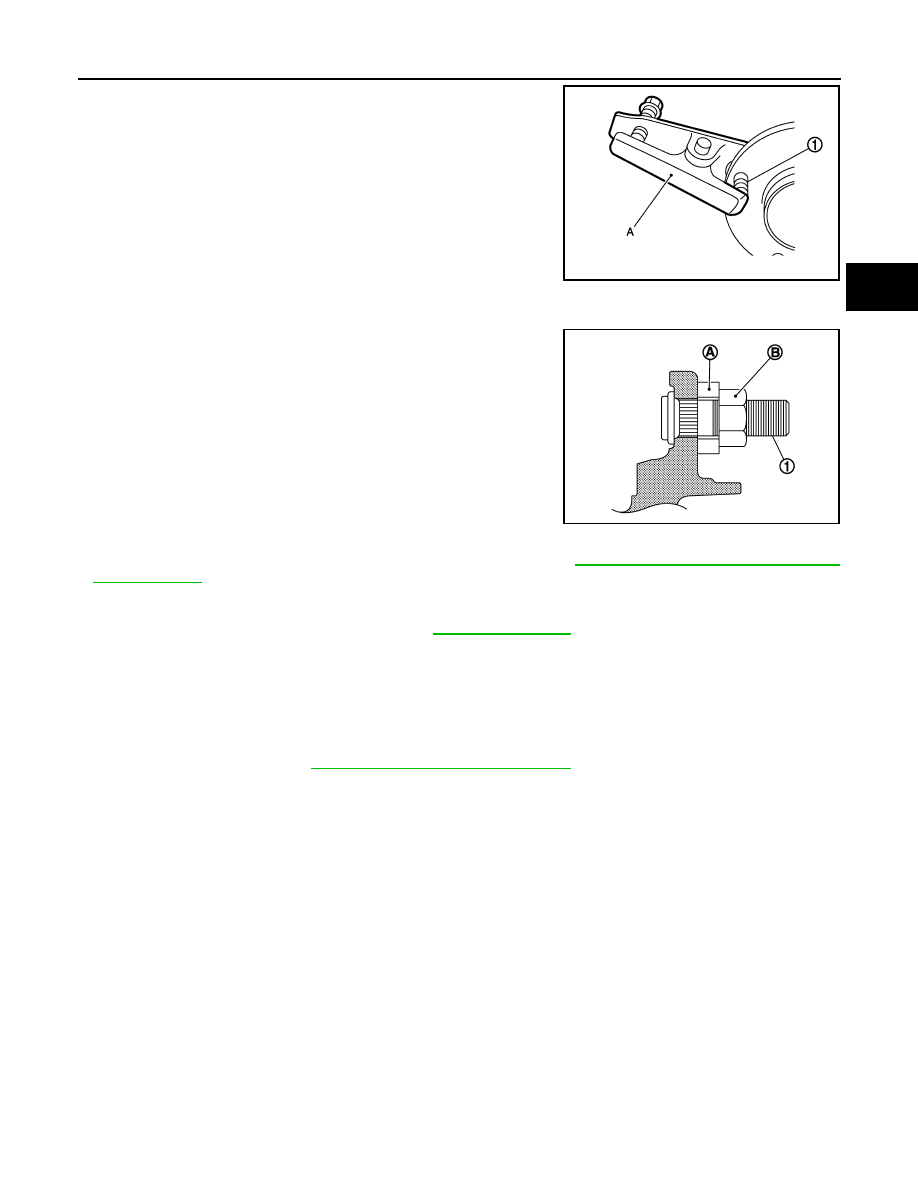

If necessary, remove the wheel studs (1) from the wheel hub
and bearing using a suitable tool (A).

CAUTION:

• Remove the wheel studs only when necessary.
• Never hammer the wheel studs or damage to the wheel

hub and bearing may occur.

• Pull out the wheel studs in a direction perpendicular to

the wheel hub and bearing.

INSTALLATION

Installation is in the reverse order of removal.
• Place a washer (A) as shown to install the wheel studs (1) by using

the tightening force of the nut (B).

CAUTION:

• Never reuse the wheel stud.
• Check that there is no clearance between the wheel stud

and the wheel hub and bearing.

• Before installing, make sure there is no foreign material

such as iron fragments adhered to the pick-up part of the
rear wheel sensor.

• When installing, make sure there is no foreign material such

as iron fragments on and in the hole in the wheel hub and
bearing for the rear wheel sensor. Make sure no foreign
material has been caught in the sensor rotor. Remove any foreign material and clean the mount.

• Install the rear wheel sensor to the wheel hub and bearing. Refer to

BRC-139, "REAR WHEEL SENSOR :

Exploded View"

.

• Align the matching marks made during removal when reusing the disc brake rotor.
• Check that the wheel hub and bearing operates smoothly.
• Perform the inspection after installation. Refer to

RAX-5, "Inspection"

.

Inspection

INFOID:0000000010297901

INSPECTION AFTER REMOVAL

Check wheel hub and bearing assembly for wear, cracks, and damage. Replace if there are.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to

FSU-7, "Wheel Alignment Inspection"

.

JPDIF0299ZZ

JPDIF0300ZZ

RAX-6

< SERVICE DATA AND SPECIFICATIONS (SDS)

[2WD]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000010297902

Axial end play

0.05 mm (0.002 in) or less
