[REAR PROPELLER SHAFT: C-CVJ-C]

REAR PROPELLER SHAFT

8.

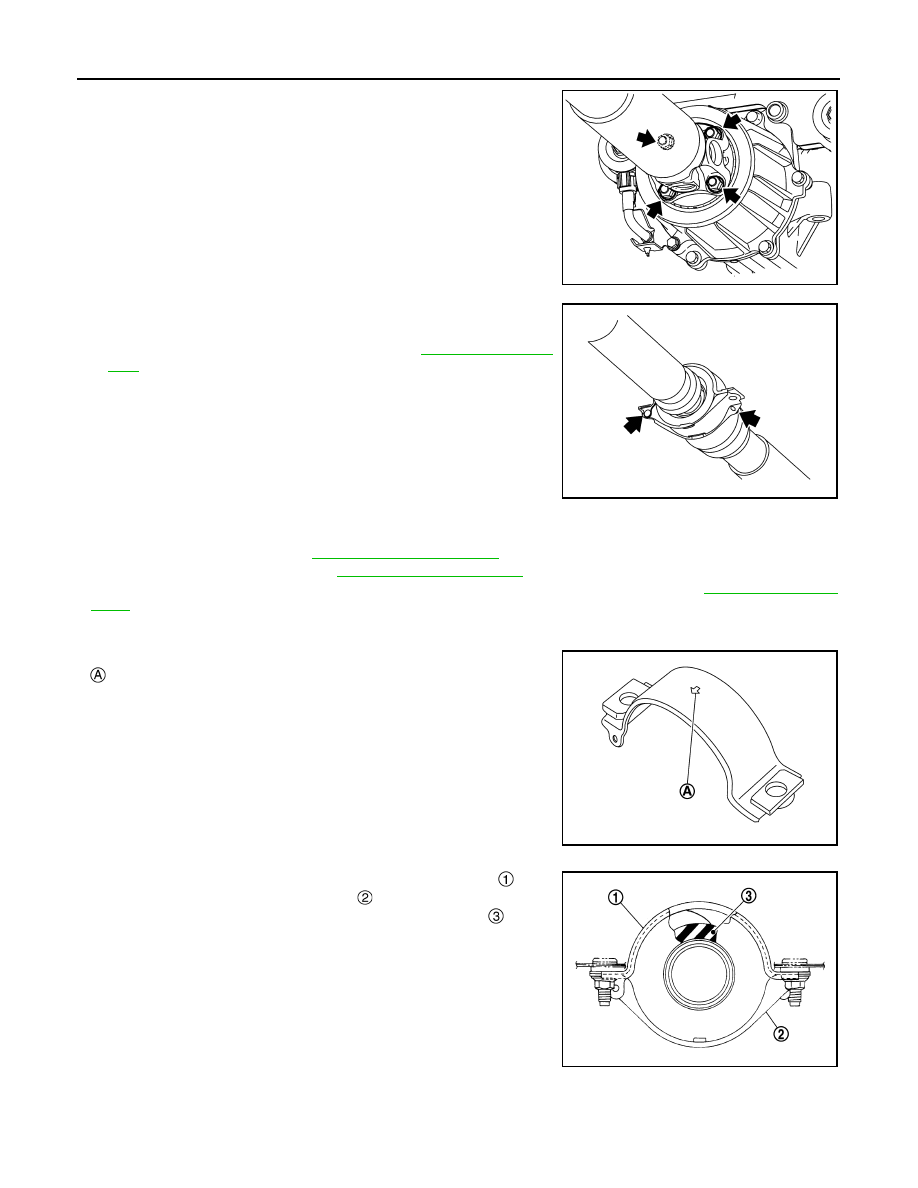

Remove propeller shaft assembly fixing nuts, and separate pro-
peller shaft assembly from electric controlled coupling of final
drive.

9.

Remove center bearing mounting bracket mounting nuts.

10. Remove propeller shaft assembly.

11. Remove clips and then remove center bearing mounting bracket

(upper/lower).

12. Perform inspection after removal. Refer to

DLN-189, "Inspec-

tion"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• For non-reusable parts, refer to

DLN-186, "Exploded View"

.

• For each tightening torque, refer to

DLN-186, "Exploded View"

.

• After removing propeller shaft, replace stud bolts on electric controlled coupling. Refer to

DLN-76, "Exploded

View"

.

• Remove any moisture, oil, or foreign material from matching surface on transfer companion flange, electric

controlled coupling and propeller shaft flange.

• Install center bearing mounting bracket (upper) with its arrow mark

 facing forward.

• Adjust position of center bearing mounting bracket (upper)

, cen-

ter bearing mounting bracket (lower)

 sliding back and forth to

prevent play in thrust direction of center bearing insulator

. Install

center bearing mounting bracket (upper/lower) to vehicle.

• Center bearing mounting bracket fixing nuts must be tightened in

the order from left to right.

JSDIA5330ZZ

JSDIA4492ZZ

JSDIA4491ZZ

JSDIA5331ZZ

REAR PROPELLER SHAFT

DLN-189

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: C-CVJ-C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

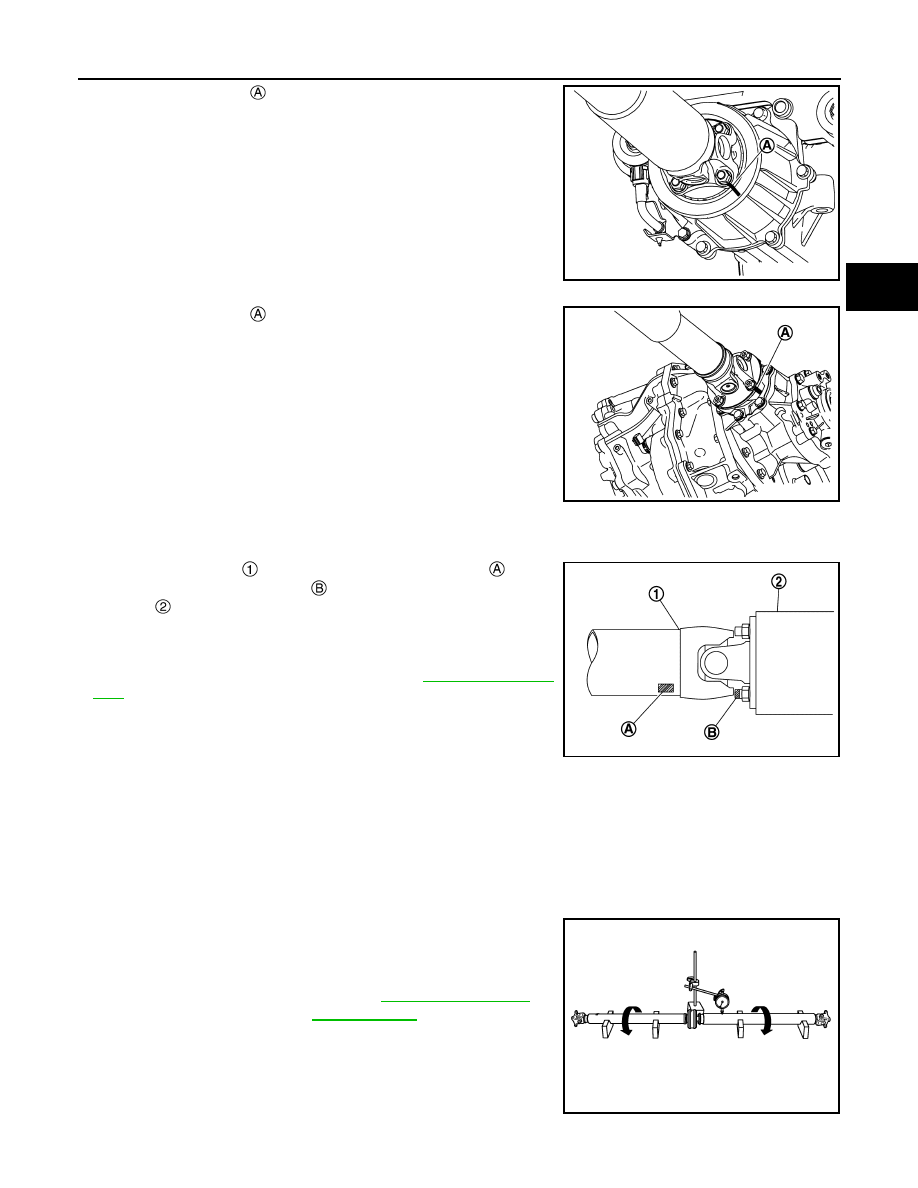

• Align matching marks

 to install propeller shaft flange yoke and

electric controlled coupling of final drive.

• Align matching marks

 to install propeller shaft flange yoke and

transfer companion flange.

• If propeller shaft assembly, final drive assembly or electric controlled coupling has been replaced, connect

propeller shaft assembly and electric controlled coupling of final drive as follows:

- Install propeller shaft

 while aligning its matching mark

 of pro-

peller shaft with matching mark

 on stud bolt of electric controlled

coupling

 as close as possible.

CAUTION:

When replaced stud bolt, use the painted matching mark in
removal as a guide.

• Perform inspection after installation. Refer to

DLN-189, "Inspec-

tion"

.

Inspection

INFOID:0000000010763748

INSPECTION AFTER REMOVAL

Appearance

Check propeller shaft tube surface for dents or cracks. If malfunction is detected, replace propeller shaft
assembly.

Propeller Shaft Runout

Check propeller shaft runout at measuring points with a dial indica-
tor. If runout exceeds specifications, replace propeller shaft assem-
bly.

JSDIA5325ZZ

JSDIA5328ZZ

JSDIA5332ZZ

Propeller  shaft  runout

: Refer to

DLN-191, "Propeller

Shaft Runout"

.

JSDIA0193ZZ

DLN-190

< REMOVAL AND INSTALLATION >

[REAR PROPELLER SHAFT: C-CVJ-C]

REAR PROPELLER SHAFT

• Propeller shaft runout measuring point (Point “ ”).

Journal Axial Play

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If it is outside the standard, replace propeller shaft
assembly.

CAUTION:

Never disassemble joints.

Center Bearing

Check center bearing for noise and damage. If malfunction is detected, replace propeller shaft assembly.

CAUTION:

Never disassemble center bearing.

INSPECTION AFTER INSTALLATION

After assembly, perform a driving test to check propeller shaft vibration. If vibration occurred, separate propel-
ler shaft from final drive. Reinstall propeller shaft by changing the phase between electric controlled coupling
stud bolt and propeller shaft by the one bolt hole at a time. Then perform driving test and check propeller shaft
vibration again at each point.

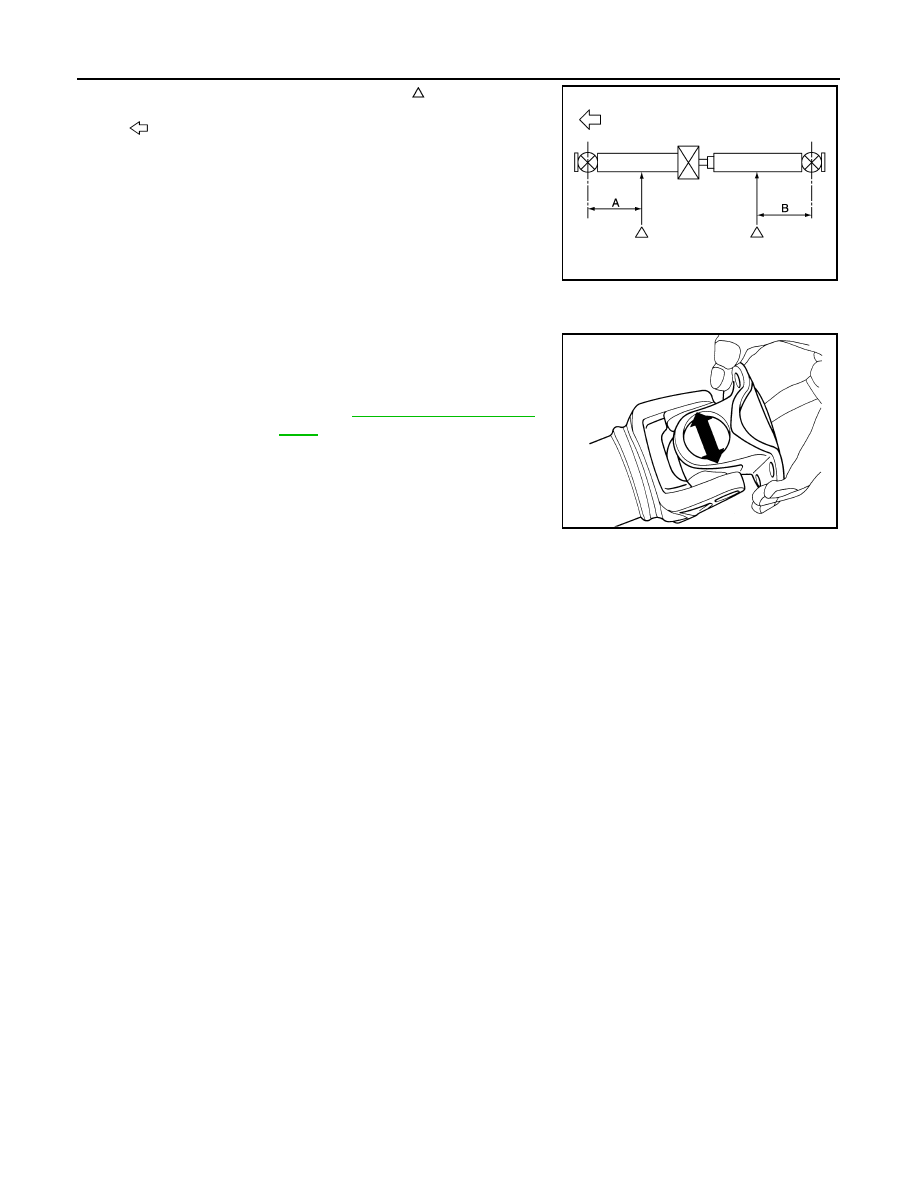

: Front side

Dimension

MR20DD models

A

: 533.5 mm (21.00 in)

B

: 492.0 mm (19.37 in)

R9M models

A

: 541.5 mm (21.32 in)

B

: 488.7 mm (19.24 in)

JPDID0001ZZ

Journal axial play

: Refer to

DLN-191, "Journal Axial

Play"

.

PDA0005D

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-191

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR PROPELLER SHAFT: C-CVJ-C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010763749

MR20DD  and R9M MODELS

Propeller Shaft Runout

INFOID:0000000010763750

Unit: mm (in)

Journal Axial Play

INFOID:0000000010763751

Unit: mm (in)

Applied model

Axle

4WD

Transaxle

CVT and MT

Propeller shaft model

C-CVJ-C

Number of joints

3

Joint type

1st joint

Universal (Shell type)

2nd joint

CVJ type

3rd joint

Universal (Shell type)

Coupling method

Transfer side

Flange type

Rear final drive side

Flange type

Shaft length

1st (Spider to CVJ joint center)

1182 mm (46.54 in)

2nd (CVJ joint center to spider)

983 mm (38.70 in)

Shaft outer diameter

1st shaft

63.5 mm (2.500 in)

2nd shaft

70.0 mm (2.756 in)

Item

Standard

Propeller shaft runout

0.6 (0.024) or less

Item

Standard

Journal axial play

0 (0)
