Nissan Qashqai J11. Manual - part 705





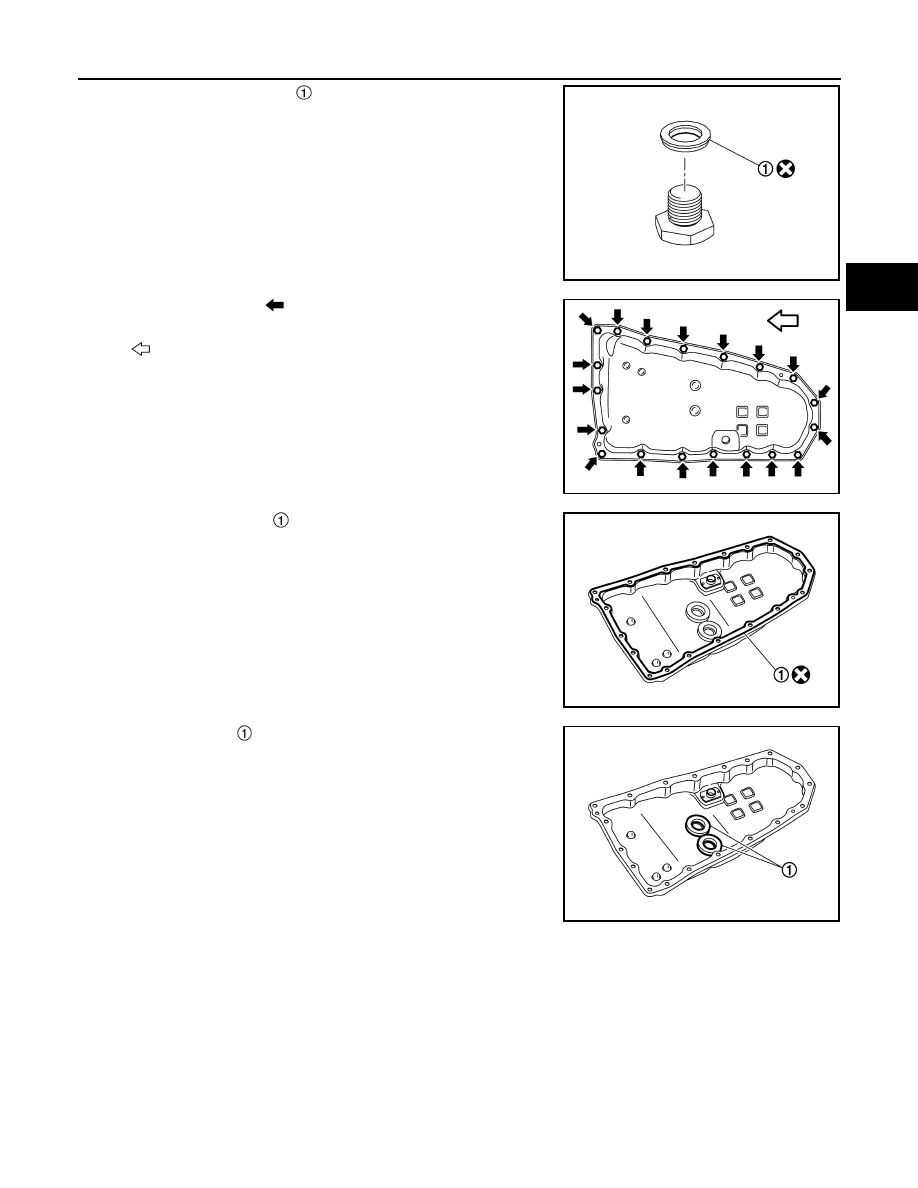

OIL PAN

TM-395

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

Remove drain plug gasket

.

3.

Remove oil pan bolts (

).

4.

Remove oil pan from transaxle case.

5.

Remove oil pan gasket

 from oil pan.

6.

Remove magnets

 from oil pan.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse oil pan gasket.
• Never reuse drain plug gasket.
• Never reuse O-ring.
• Completely clean the iron powder from the magnet area of oil pan and the magnets.
• Install the oil pan to the transaxle case with the following procedure.
1.

Install the oil pan gasket to the oil pan.

CAUTION:

JSDIA5206ZZ

: Vehicle front

JSDIA5207ZZ

JSDIA5208ZZ

JSDIA5209ZZ

TM-396

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

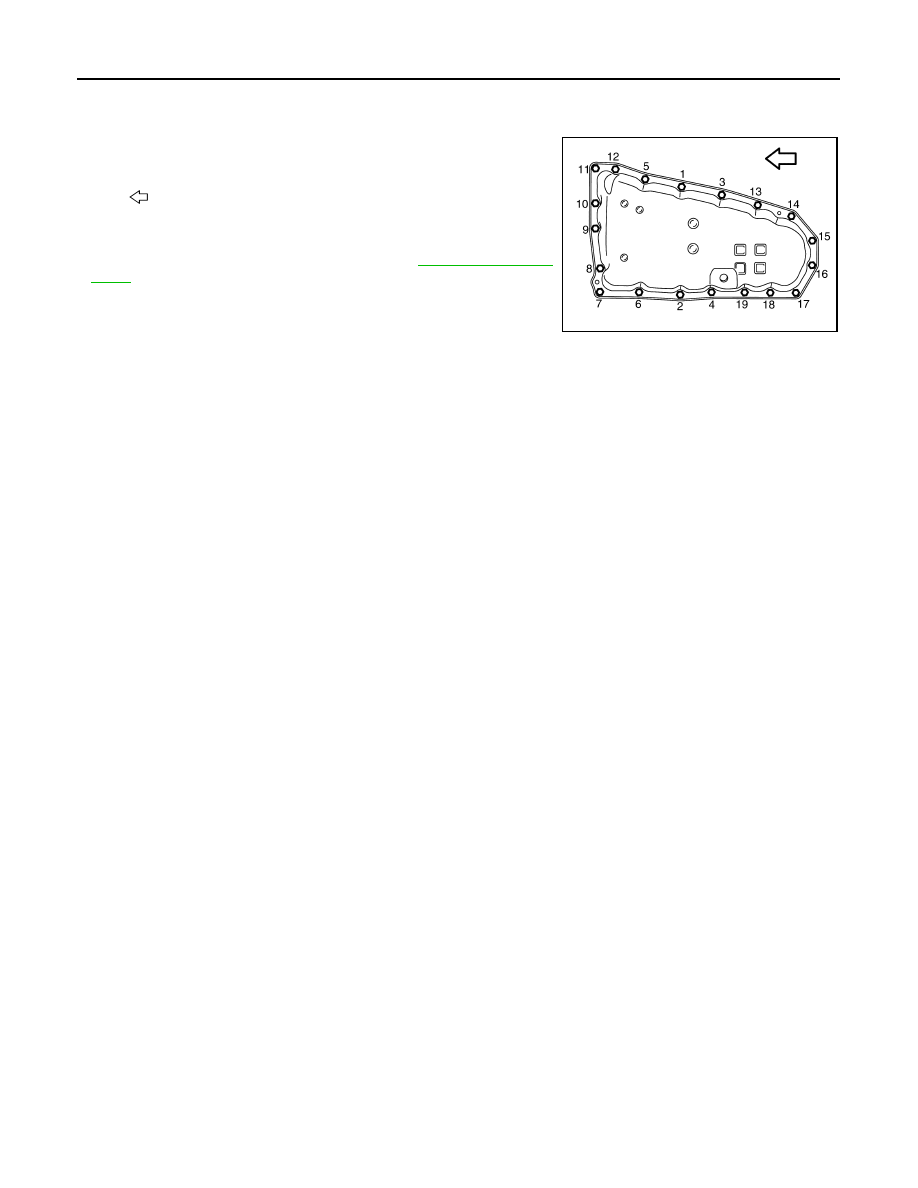

OIL PAN

Completely wipe out any moisture, oil, and old gasket from the oil pan gasket surface and bolt
hole of oil pan and transaxle case.

2.

Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan bolt.

3.

Tighten the oil pan bolts in the order shown to the specified
torque.

4.

Tighten the oil pan bolts again clockwise from (1) shown to the
specified torque.

• Fill with CVT fluid after installation. Refer to

TM-378, "Replace-

ment"

.

Inspection

INFOID:0000000010589381

INSPECTION AFTER REMOVAL

Check oil pan for foreign material.
• If a large amount of worn material is found, clutch plate may be worn.
• If iron powder is found, bearings, gears, or clutch plates may be worn.
• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.
Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

: Vehicle front

JSDIA5211ZZ

INPUT SPEED SENSOR

TM-397

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

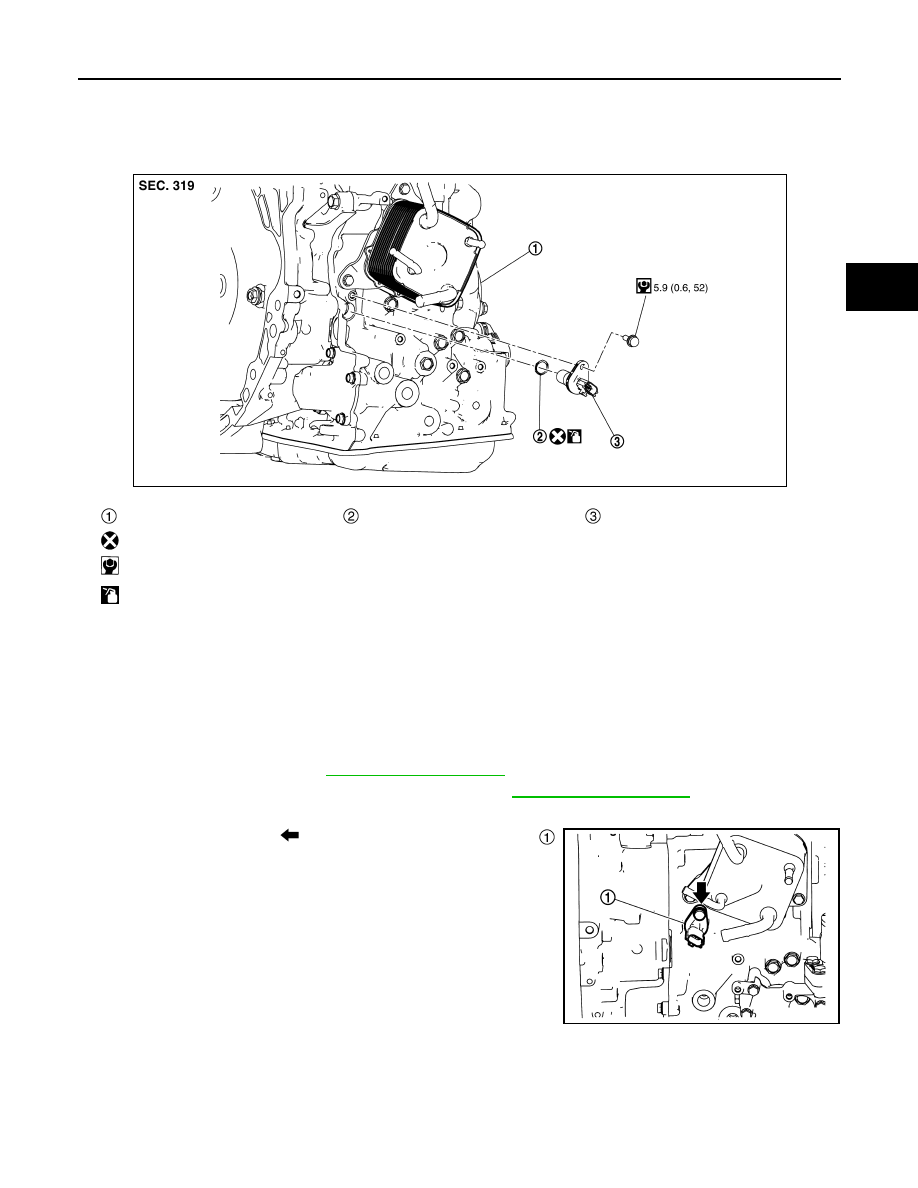

INPUT SPEED SENSOR

Exploded View

INFOID:0000000010589382

Removal and Installation

INFOID:0000000010589383

REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Turn ignition switch OFF.

2.

Remove air duct inlet. Refer to

EM-147, "Exploded View"

.

3.

Pull out fluid cooler hose A from CVT oil warmer. Refer to

TM-408, "Exploded View"

.

4.

Disconnect input speed sensor connector.

5.

Remove mounting bolt (

) and remove input speed sensor

from transaxle assembly.

Transaxle assembly

O-ring

Input speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5264GB

JSDIA5195ZZ

TM-398

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

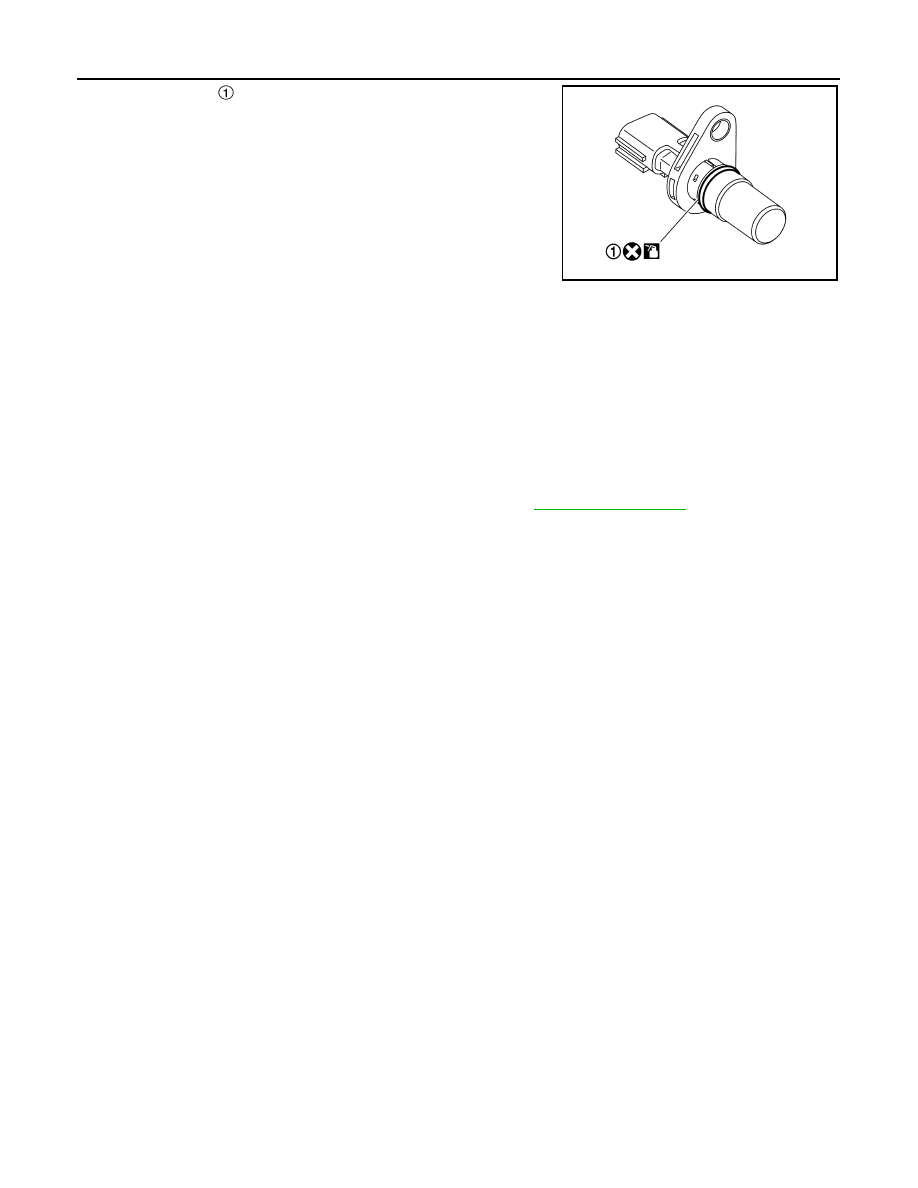

INPUT SPEED SENSOR

6.

Remove O-ring

 from input speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010589384

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-380, "Adjustment"

.

JSDIA5196ZZ
