PRIMARY SPEED SENSOR

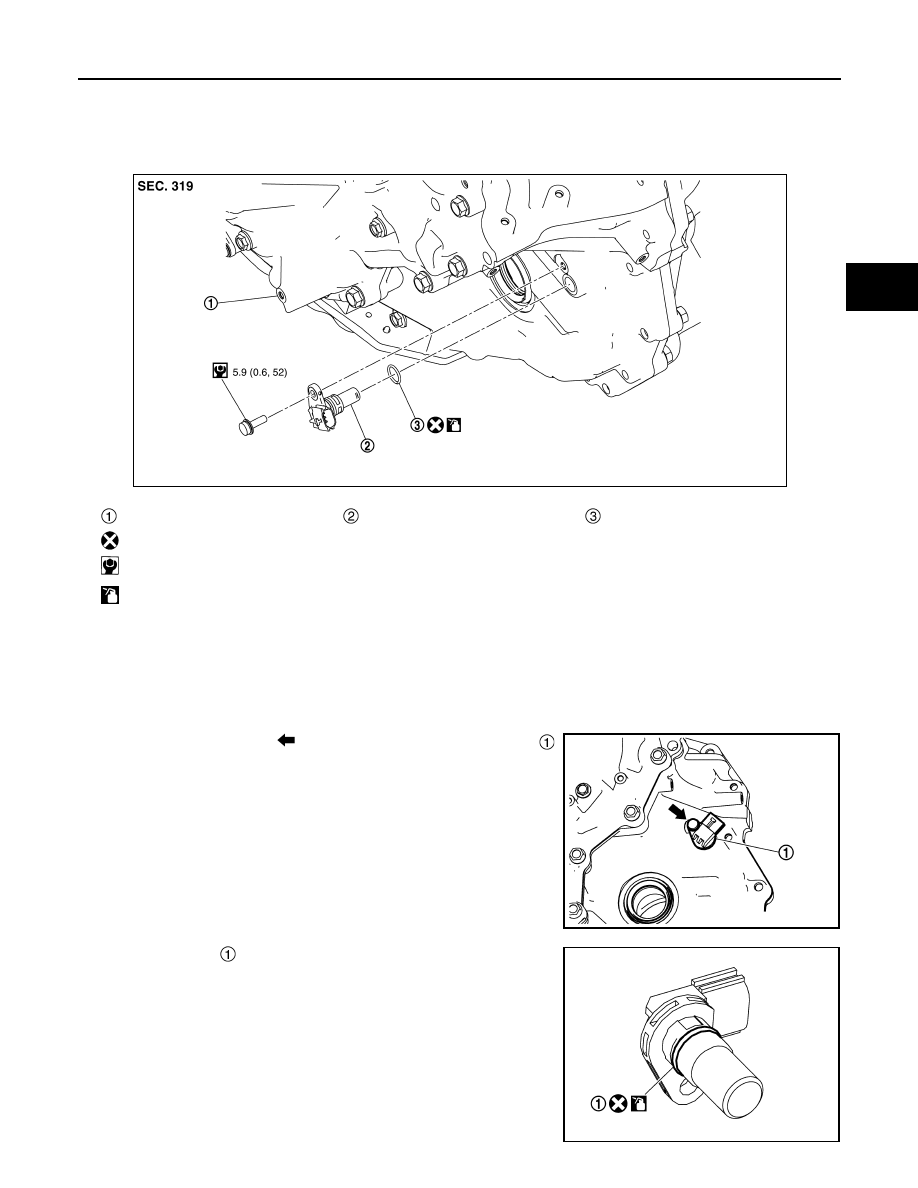

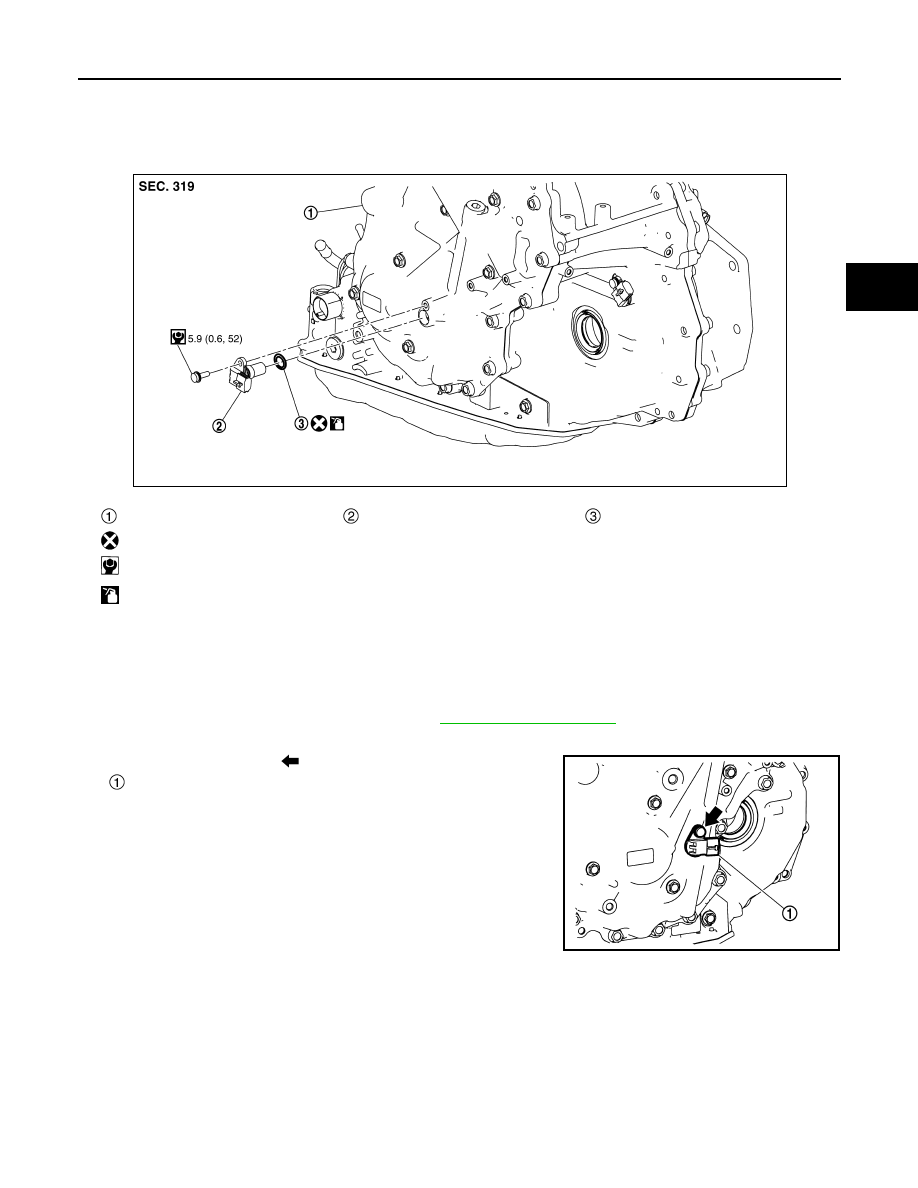

Exploded View

INFOID:0000000010589385

Removal and Installation

INFOID:0000000010589386

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove hoodledge splashguard (LH). Refer to

EXT-31, "Exploded View"

.

3.

Disconnect primary speed sensor.

4.

Remove mounting bolt (

) and remove primary speed sensor

 from transaxle assembly.

Transaxle assembly

Primary speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5141GB

JSDIA5198ZZ

TM-400

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

PRIMARY SPEED SENSOR

5.

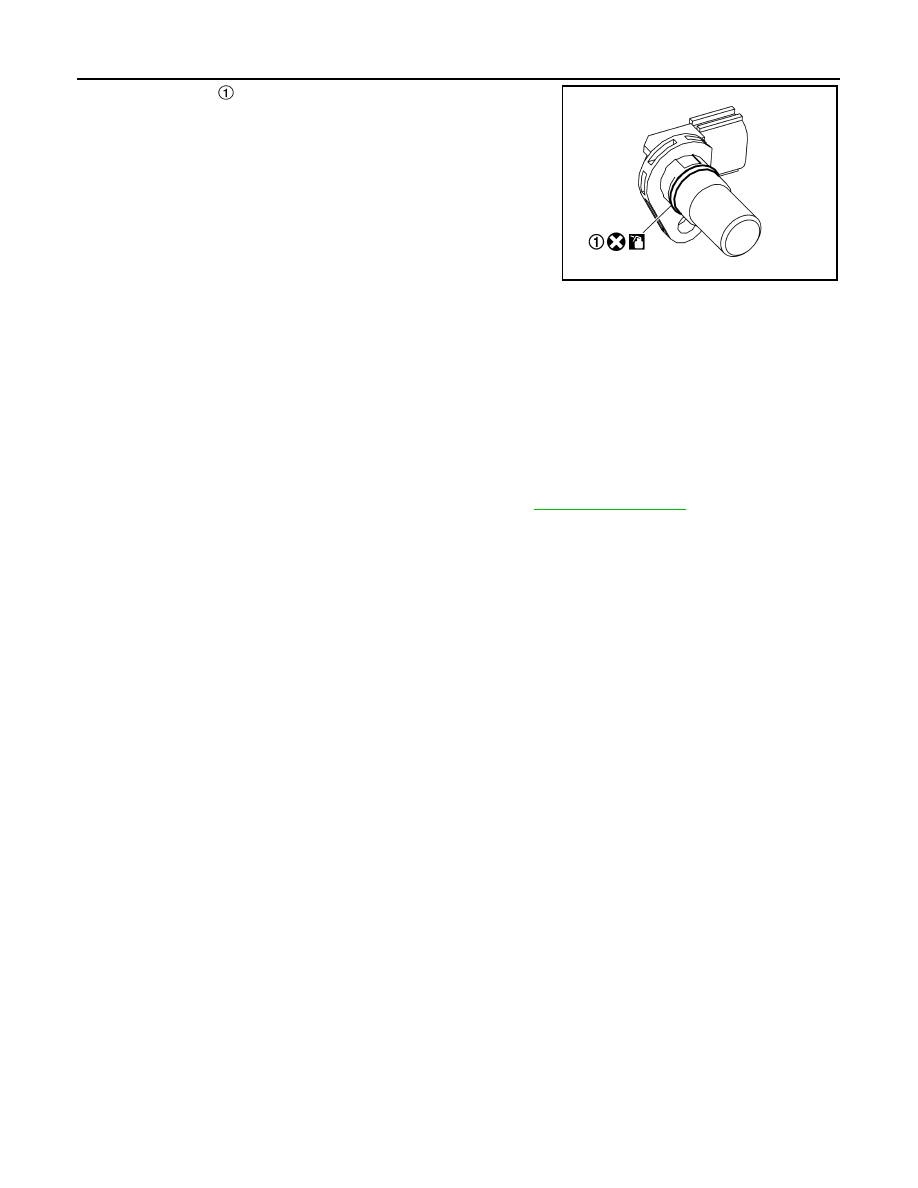

Remove O-ring

 from primary speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010589387

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-380, "Adjustment"

.

JSDIA5199ZZ
