TCM

TM-391

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

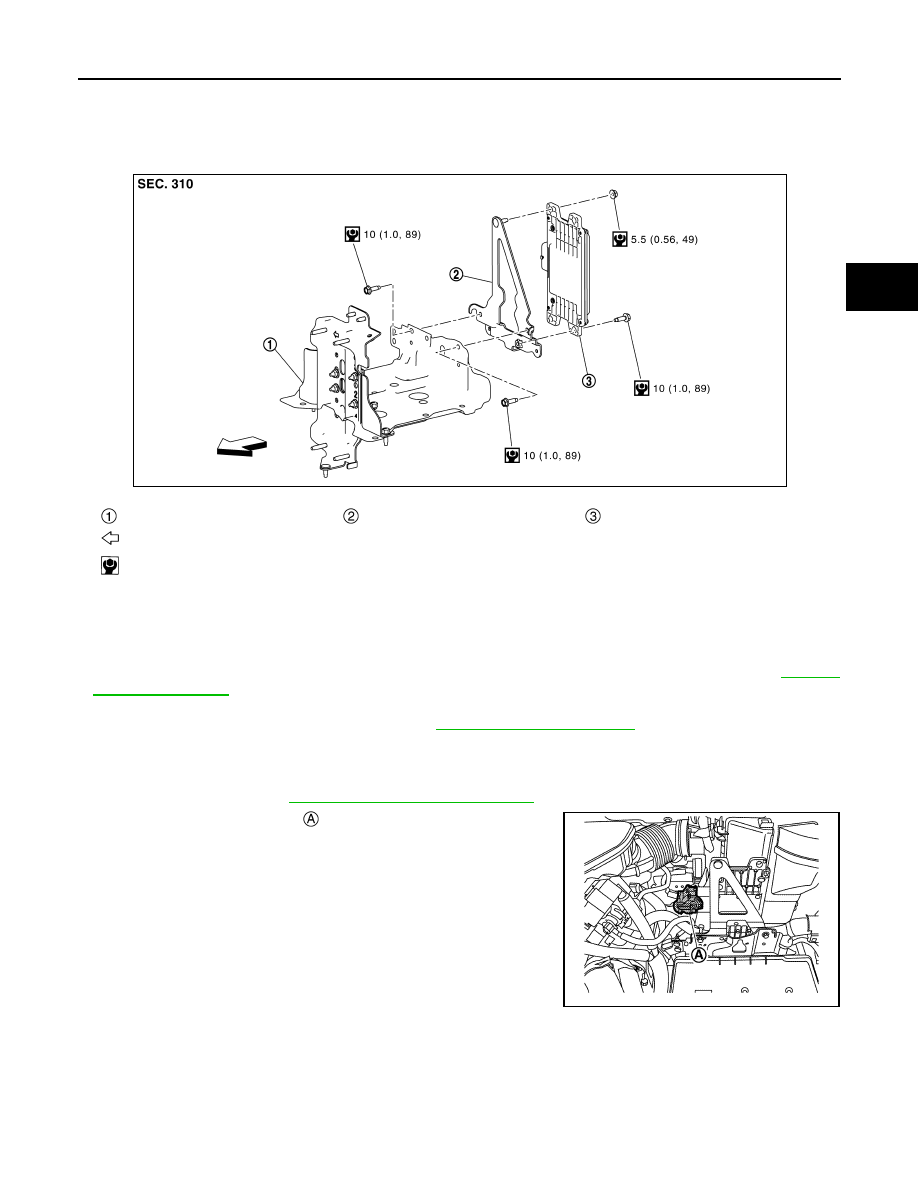

TCM

Exploded View

INFOID:0000000010589374

Removal and Installation

INFOID:0000000010589375

CAUTION:

• Never impact the tool when removing or installing TCM.
• Before replacing TCM, perform “ADDITIONAL SERVICE WHEN REPLACING TCM”. Refer to

TM-280,

"Work Procedure"

.

• Before replacing TCM and transaxle assembly, perform “ADDITIONAL SERVICE WHEN REPLACING

TCM AND TRANSAXLE ASSEMBLY”. Refer to

TM-284, "Work Procedure"

.

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove battery. Refer to

PG-155, "Removal and Installation"

.

3.

Disconnect TCM connector

.

Battery mounting bracket assembly

TCM bracket

TCM

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA6040GB

JSDIA5189ZZ

TM-392

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

TCM

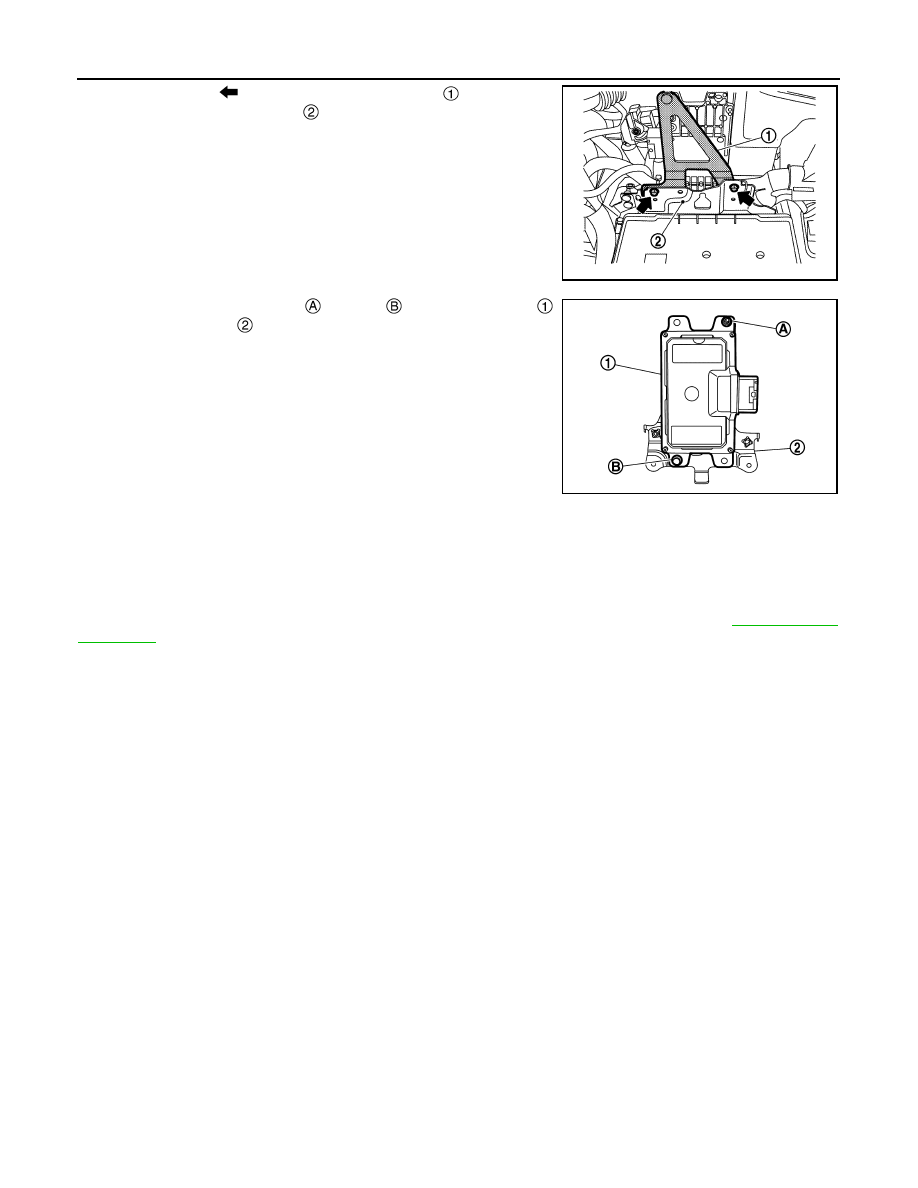

4.

Remove bolts (

) and remove TCM bracket

 from battery

mounting bracket assembly

.

5.

Disconnect harness clips from TCM bracket.

6.

Remove TCM mounting nut

 and bolt

, and remove TCM

from TCM bracket

.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000010589376

ADJUSTMENT AFTER INSTALLATION

When replaced TCM, perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to

TM-280, "Work

Procedure"

.

JSDIA5190ZZ

JSDIA5191ZZ

AIR BREATHER HOSE

TM-393

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

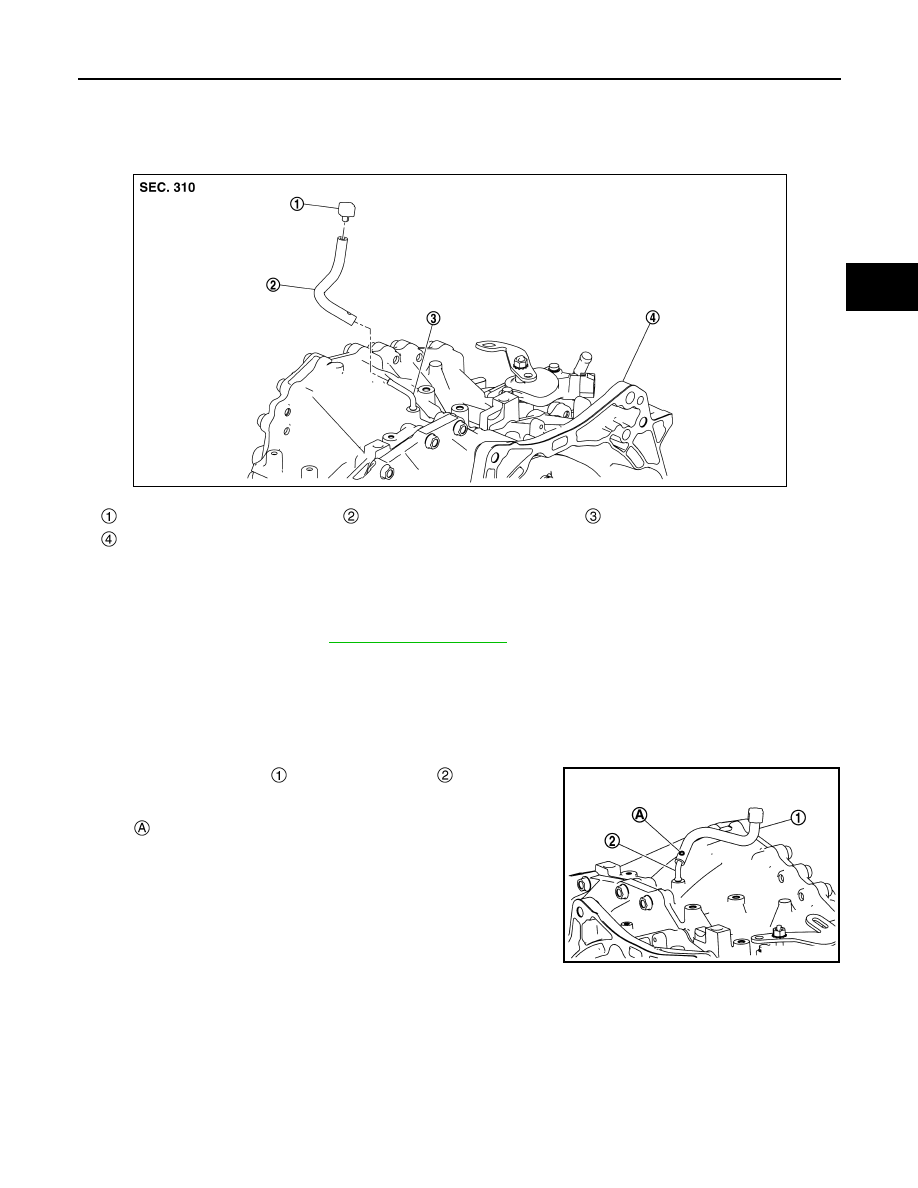

AIR BREATHER HOSE

Exploded View

INFOID:0000000010589377

Removal and Installation

INFOID:0000000010589378

REMOVAL

1.

Remove air resonator. Refer to

EM-147, "Exploded View"

.

2.

Remove air breather hose from transaxle assembly.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never bend the air breather hose to prevent damage to the hose.
• Insert air breather hose to the end of air breather.
• Insert air breather hose

 to air breather tube

 all the way to

the curve of the tube.

• Insert air breather hose to air breather tube so that the paint

mark

 is facing upward.

Air breather cap

Air breather hose

Air breather tube

Transaxle assembly

JSDIA5130ZZ

JSDIA5229ZZ

TM-394

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

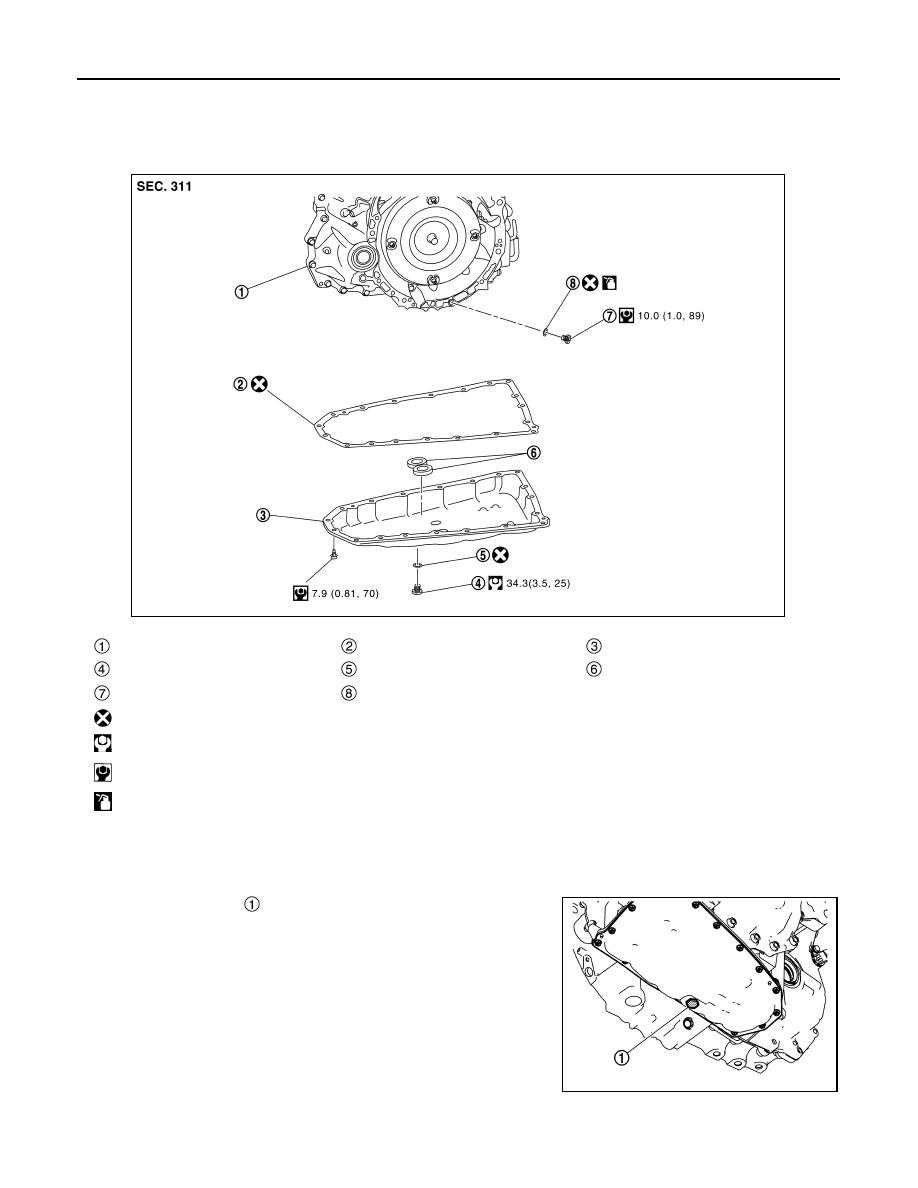

OIL PAN

OIL PAN

Exploded View

INFOID:0000000010589379

Removal and Installation

INFOID:0000000010589380

REMOVAL

1.

Remove drain plug

 from oil pan and then drain the CVT fluid.

Transaxle assembly

Oil pan gasket

Oil pan

Drain plug

Drain plug gasket

Magnet

Overflow plug

O-ring

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply CVT fluid
