Nissan Qashqai J11. Manual - part 657

SHIFT FORK AND FORK ROD

TM-203

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000010288539

Refer to

TM-150, "4WD : Exploded View"

 .

Disassembly

INFOID:0000000010288540

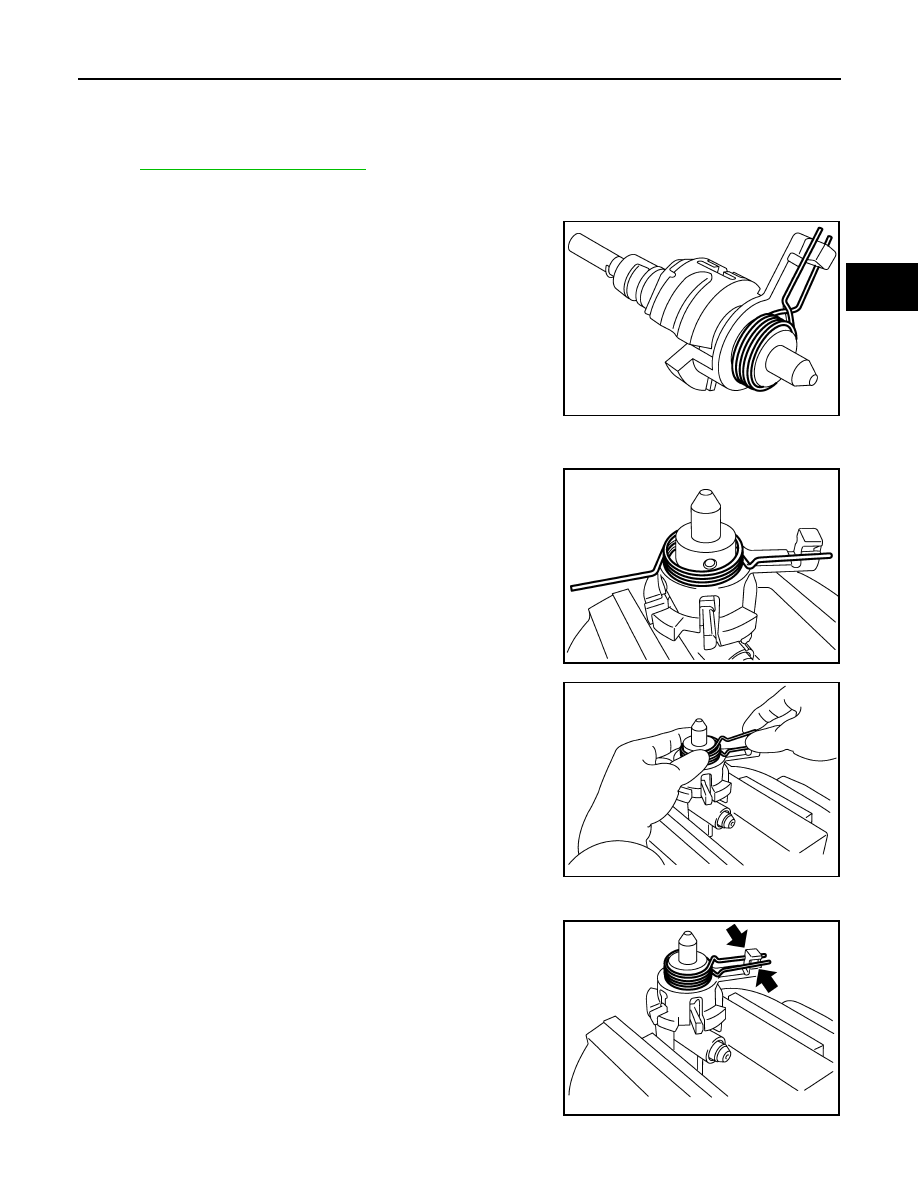

Remove return spring to striking rod assembly.

Assembly

INFOID:0000000010288541

1.

Temporarily install return spring to striking rod assembly.

CAUTION:

Be careful with the orientation of return spring.

2.

Attach one end of the return spring to striking interlock of striking
rod assembly while holding return spring.

CAUTION:

When installing, check that return spring is securely seated
in the groove of striking interlock of striking rod assembly.

PCIB1867E

PCIB1830E

PCIB1831E

PCIB1833E

TM-204

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

SHIFT FORK AND FORK ROD

Inspection

INFOID:0000000010288542

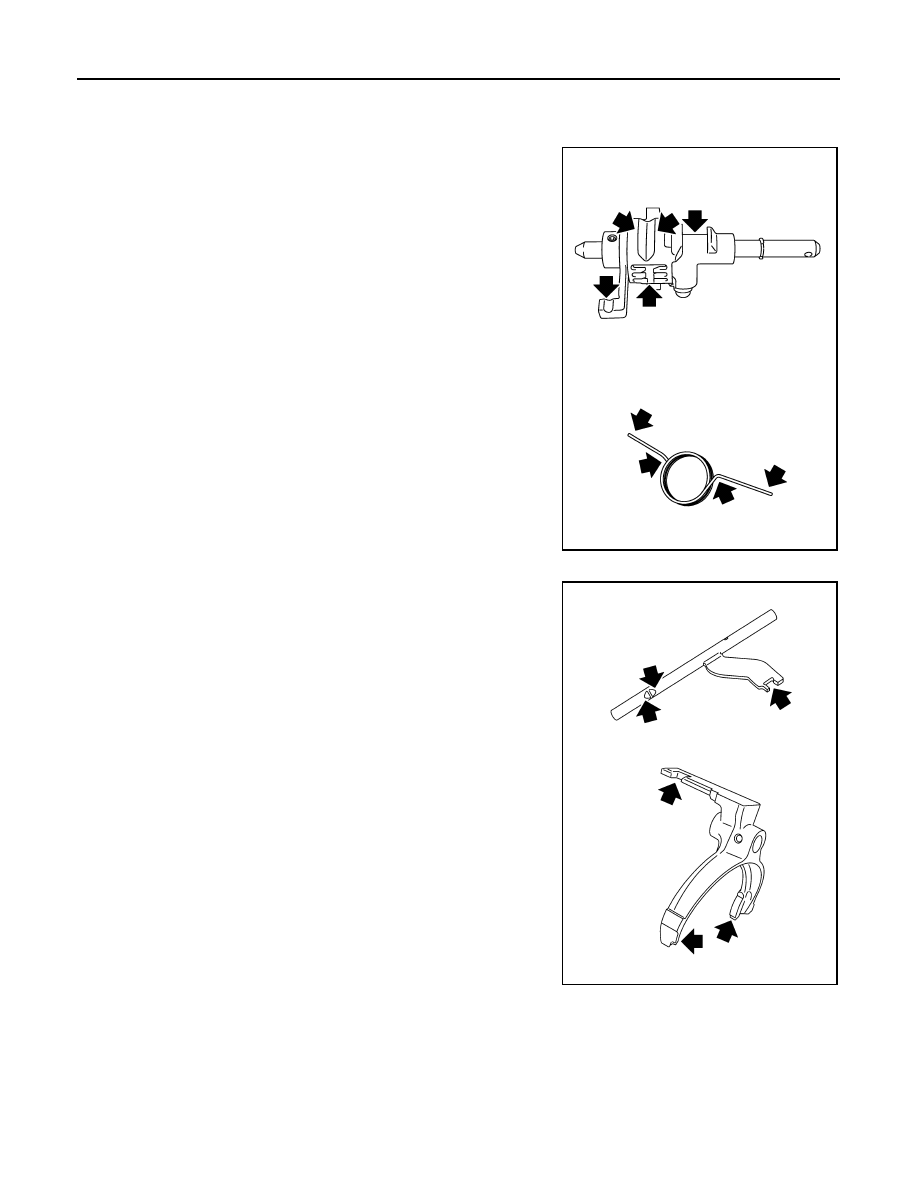

STRIKING ROD ASSEMBLY AND RETURN SPRING

Check contact surfaces and sliding area for wear, damage, bending,
etc. If necessary, replace parts.

FORK ROD AND SHIFT FORK

• Check contact surfaces and sliding area for wear, damage, bend-

ing, etc. If necessary, replace parts.

JPDIC0145ZZ

PCIB1869E

SHIFT FORK AND FORK ROD

TM-205

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

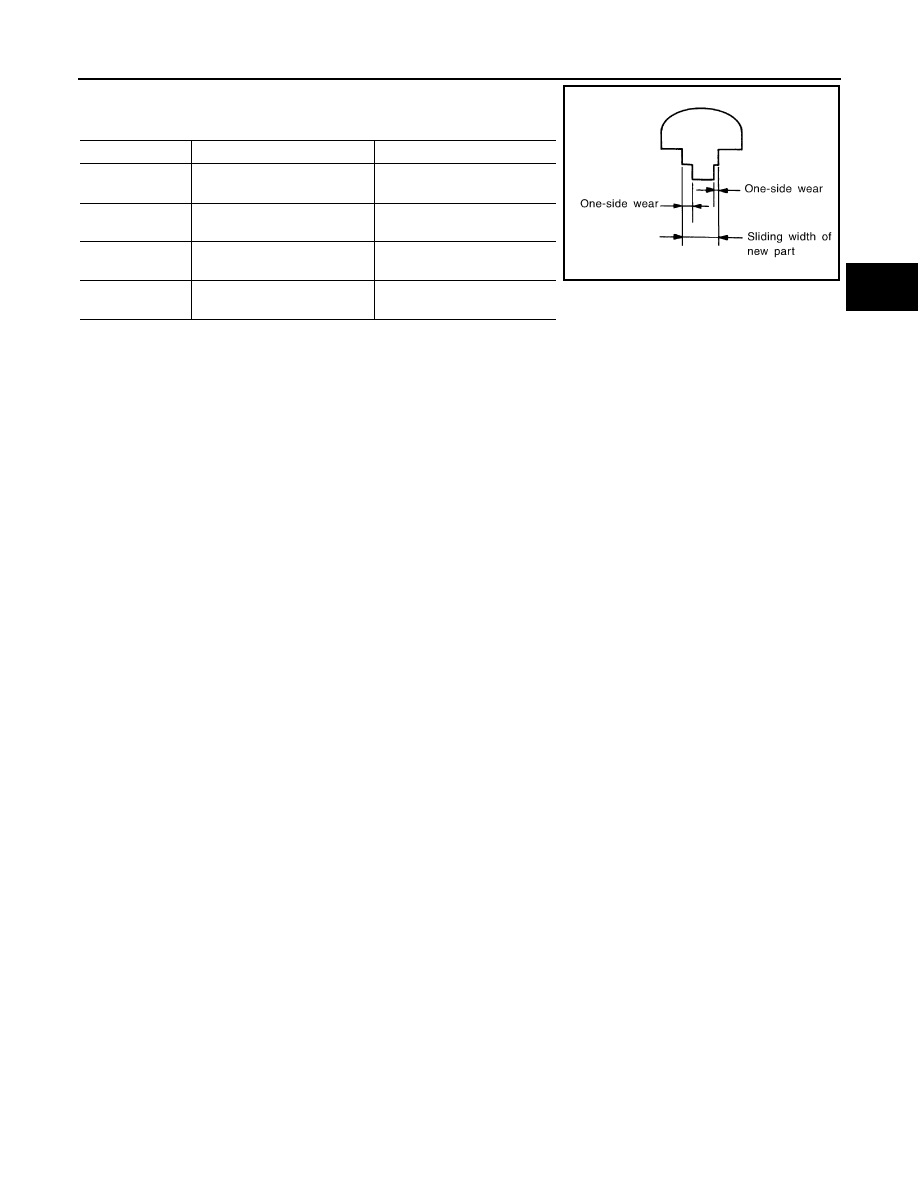

• Check if the width of shift fork hook (sliding area with coupling

sleeve) is within allowable specification below.

Item

One-side wear specification

Sliding width of new part

1st-2nd

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

3rd-4th

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

5th-6th

0.2 mm (0.008 in)

6.10 - 6.23 mm

(0.2402 - 0.2453 in)

Reverse

0.2 mm (0.008 in)

12.80 - 12.93 mm

(0.5039 - 0.5091 in)

SMT801D

TM-206

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010288543

TRANSAXLE

Engine type

R9M

Transaxle model

RS6F52A

Axle type

4WD

Model code number

JA60A

Number of speed

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.727

2nd

2.043

3rd

1.322

4th

0.947

5th

0.723

6th

0.596

Reverse

3.641

Number of teeth

Input gear

1st

11

2nd

20

3rd

31

4th

38

5th

47

6th

52

Reverse

11

Main gear

1st

41

2nd

39

3rd

41

4th

36

5th

34

6th

31

Reverse

39

Reverse idler gear

Front

37

Rear

39

Oil level “L”

mm (in)

87.0 - 92.0 (3.425 - 3.622)

Oil capacity (Reference)

 (Imp pt)

2.0 (3-1/2)

PCIB1769E
