TRANSAXLE ASSEMBLY
TM-179
< UNIT DISASSEMBLY AND ASSEMBLY >
[6MT: RS6F52A]
C
E
F
G
H
I
J
K
L
M
A
B
TM
N
O
P
5.

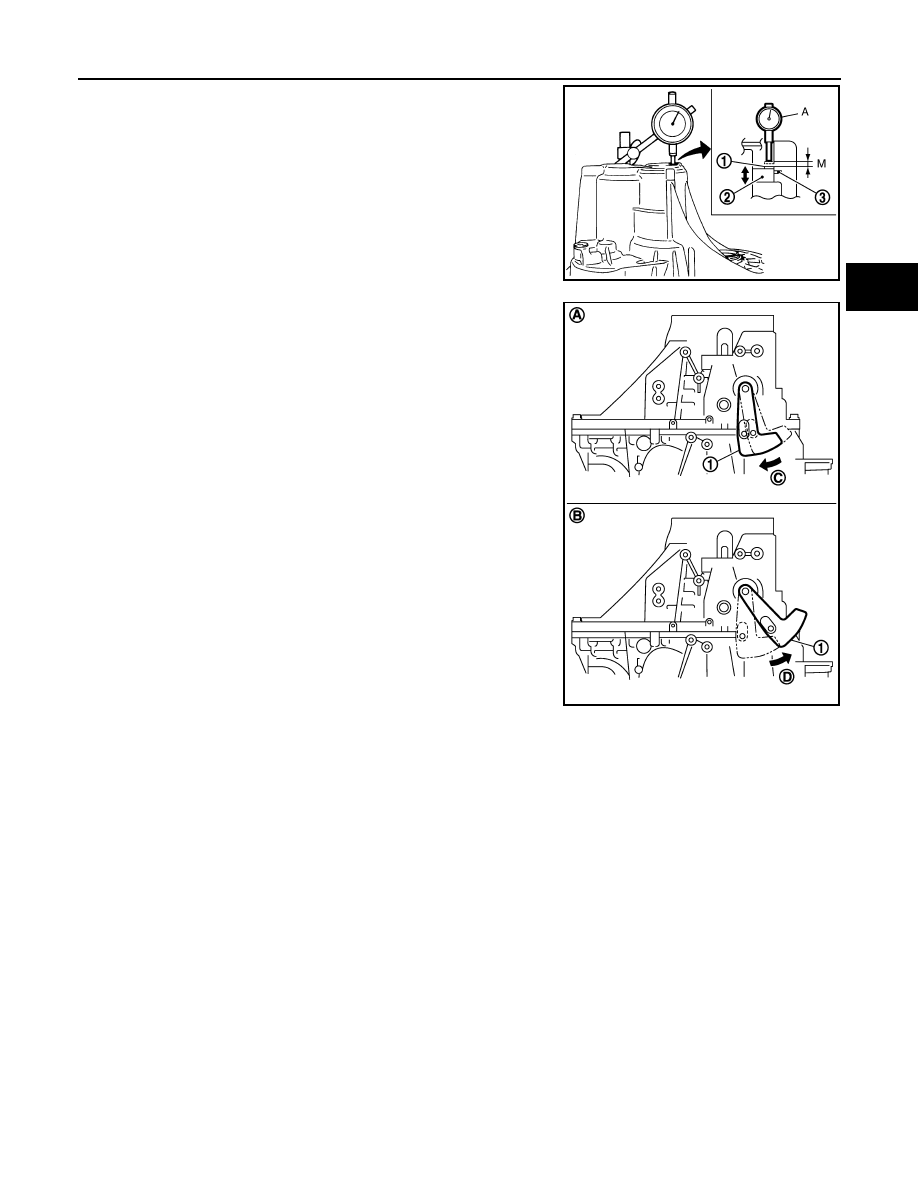

Set the dial indicator (A) to dummy adjusting shim (1) through
the bore plug mounting hole.
6.
Shift the shifter lever A (1) to 2nd gear position (A), and then
rotate it in the direction of the arrow (C) in the figure until it stops.
Using this position as the reference point, measure the amount
of movement when shifting shifter lever A to 1st gear position (B)
and rotating it in the direction of the arrow (D) in the figure until it
stops. This measurement is the "M" dimension.
7.
When measurement "M" is 0 - 0.06 mm (0 - 0.0024 in), adjust-
ment terminates, and the dummy adjusting shim becomes regu-
lar adjusting shim. Select adjusting shim from the computed
expressions when measurement "M" is over 0.06 mm (0.0024
in).
2
: Mainshaft rear bearing
3
: Snap ring
PCIB1827E
PCIB1935E
