Nissan Qashqai J11. Manual - part 650

TRANSAXLE ASSEMBLY

TM-175

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

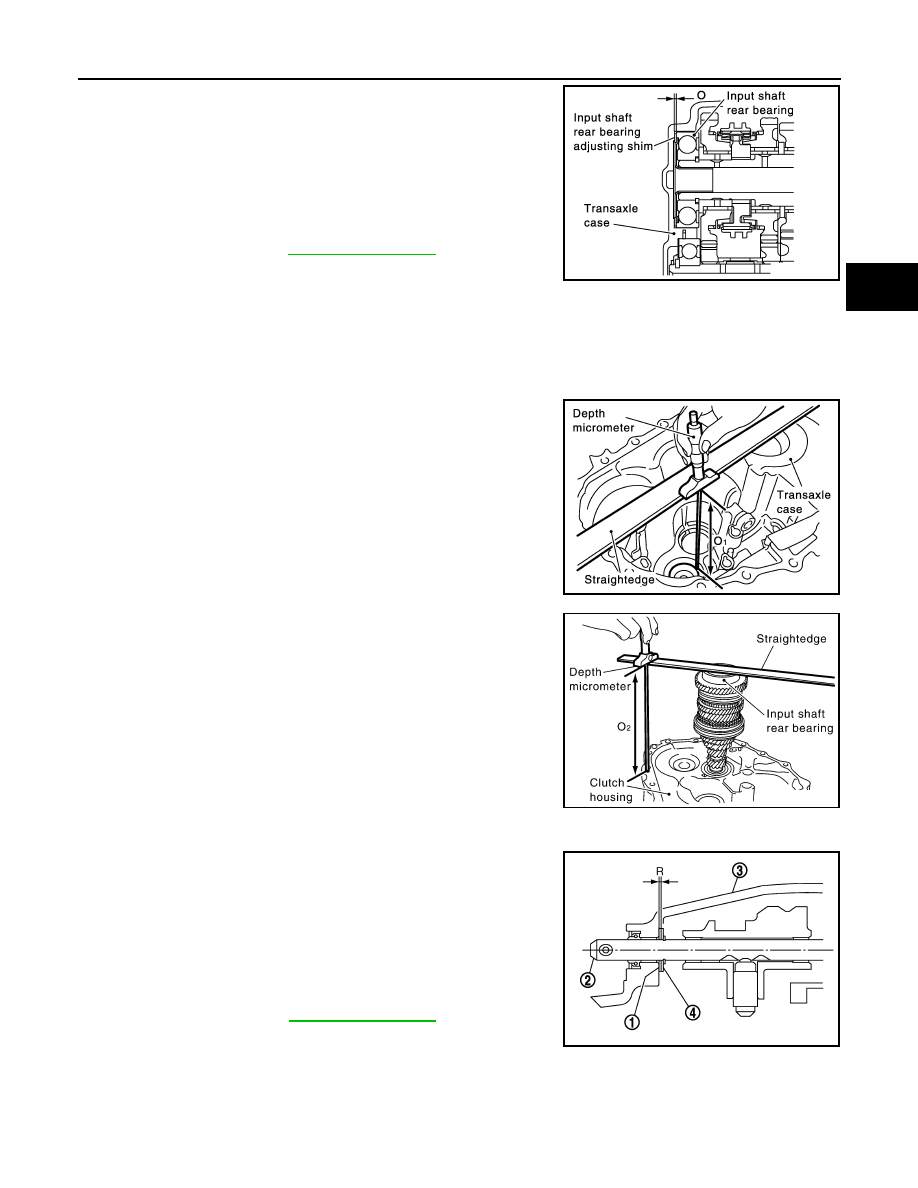

• When adjusting input shaft end play, select adjusting shim for input

shaft rear bearing. To select adjusting shim, measure clearance
between transaxle case and input shaft rear bearing.

CAUTION:

Only 1 adjusting shim can be selected.

• Calculate dimension “O” (thickness of adjusting shim) using the fol-

lowing procedure to satisfy specification of end play for input shaft
rear bearing.

1.

Using a depth micrometer and straightedge, measure dimension
“O

1

” between transaxle case end face and mounting face of

adjusting shim.

CAUTION:

“O

1

”: Measure at 4 point by approximately 90 degrees and

use the average value.

2.

Using a depth micrometer and straightedge as shown in the fig-
ure, measure dimension “O

2

” between clutch housing end face

and end face of input shaft rear bearing.

CAUTION:

“O

2

”: Measure at 4 point by approximately 90 degrees and

use the average value.

3.

Install selected input shaft rear bearing adjusting shim onto input
shaft.

STRIKING ROD END PLAY

• When adjusting striking rod end play, select adjusting shim (1) for

striking rod (2). To select adjusting shim, measure clearance
between transaxle case (3) and striking rod shim (4).

CAUTION:

Only 1 adjusting shim can be selected.

• Calculate dimension “R” (thickness of adjusting shim) using the fol-

lowing procedure to satisfy specification of end play for striking
rod.

End play

: Refer to

TM-207, "End Play"

.

Dimension “O” = (O

1

 - O

2

) - End play

O

: Thickness of adjusting shim

O

1

: Distance between transaxle case end face
and mounting face of adjusting shim

O

2

: Distance between clutch housing end face
and end face of input shaft rear bearing

SCIA1001E

SCIA1002E

PCIB0792E

End play

: Refer to

TM-207, "End Play"

.

Dimension “R” = (R

1

 - R

2

) - End play

R

: Thickness of adjusting shim

PCIB1823E

TM-176

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

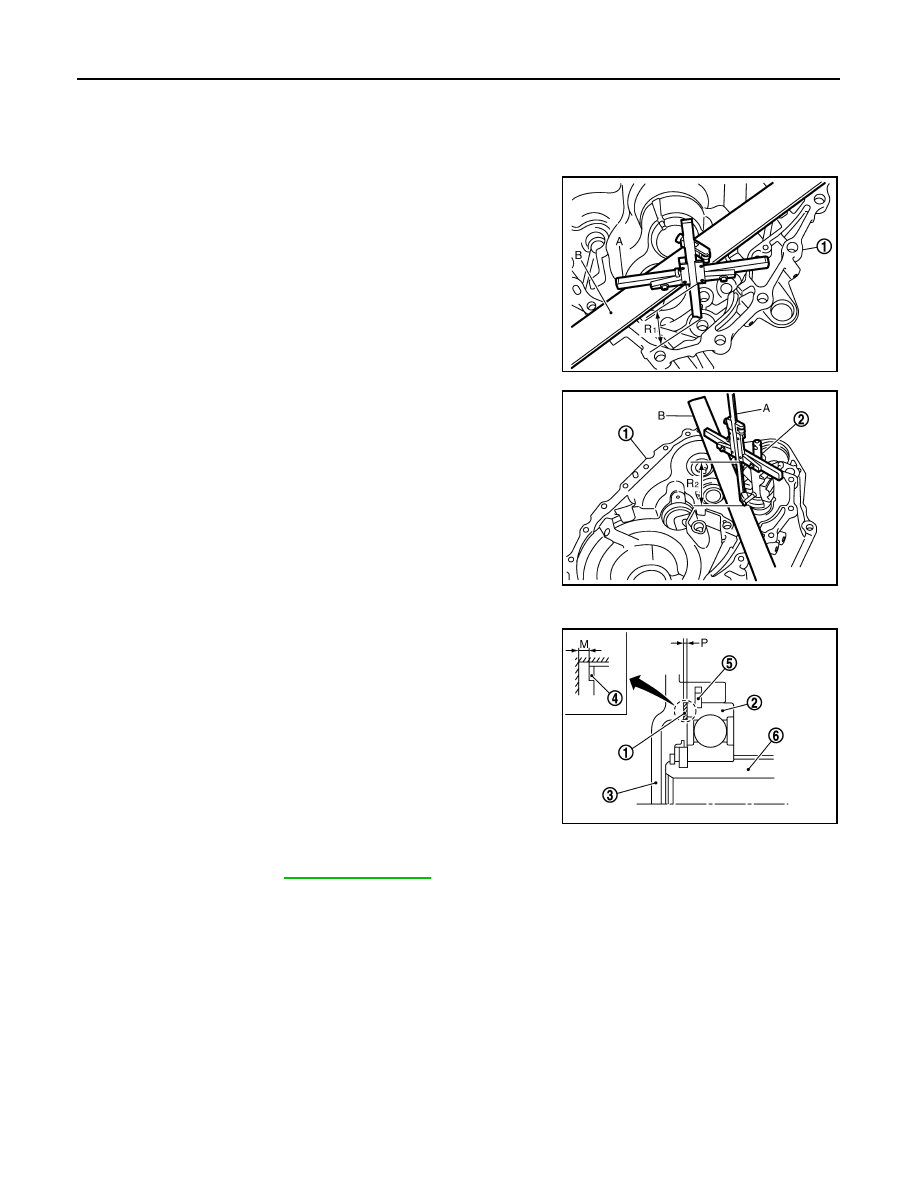

1.

Using a depth micrometer (A) and straightedge (B), measure
dimension “R

1

” between transaxle case (1) end face and mount-

ing face of adjusting shim.

CAUTION:

“R

1

”: Measure at 4 point by approximately 90 degrees and

use the average value.

2.

Using a depth micrometer (A) and straightedge (B) as shown in
the figure, measure dimension “R

2

” between clutch housing (1)

end face and end face of striking rod shim (2).

CAUTION:

• “R

2

”: Measure at 4 point by approximately 90 degrees and

use the average value.

• When measuring, be careful for the inclination of striking

rod assembly and striking rod shim.

3.

Install selected striking rod adjusting shim onto striking rod
assembly.

MAINSHAFT END PLAY

• When adjusting mainshaft end play, select adjusting shim (1) for

mainshaft rear bearing (2). To select adjusting shim, measure
clearance “M” between transaxle case (3) and dummy adjusting
shim (4) on mainshaft rear bearing.

CAUTION:

Only 1 adjusting shim can be selected.

• Calculate dimension “P” (thickness of adjusting shim) using the fol-

lowing procedure to satisfy specification of end play for mainshaft
rear bearing.

*: Refer to the latest parts information to use a dummy adjusting shim of which part number is the thinnest in thickness.

1.

Install transaxle case following the procedures below.

R

1

: Distance between transaxle case end face
and mounting face of adjusting shim

R

2

: Distance between clutch housing end face
and end face of striking rod shim

PCIB1824E

PCIB1825E

5

:  Snap  ring

6

:  Mainshaft

End play

: Refer to

TM-207, "End Play"

.

Dimension “P” = (M + N) - End play

P

: Thickness of adjusting shim

M

: Distance between dummy adjusting shim on
mainshaft rear bearing end face and transaxle
case end face

N*

: Thickness of dummy adjusting shim

JPDIC0146ZZ

TRANSAXLE ASSEMBLY

TM-177

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

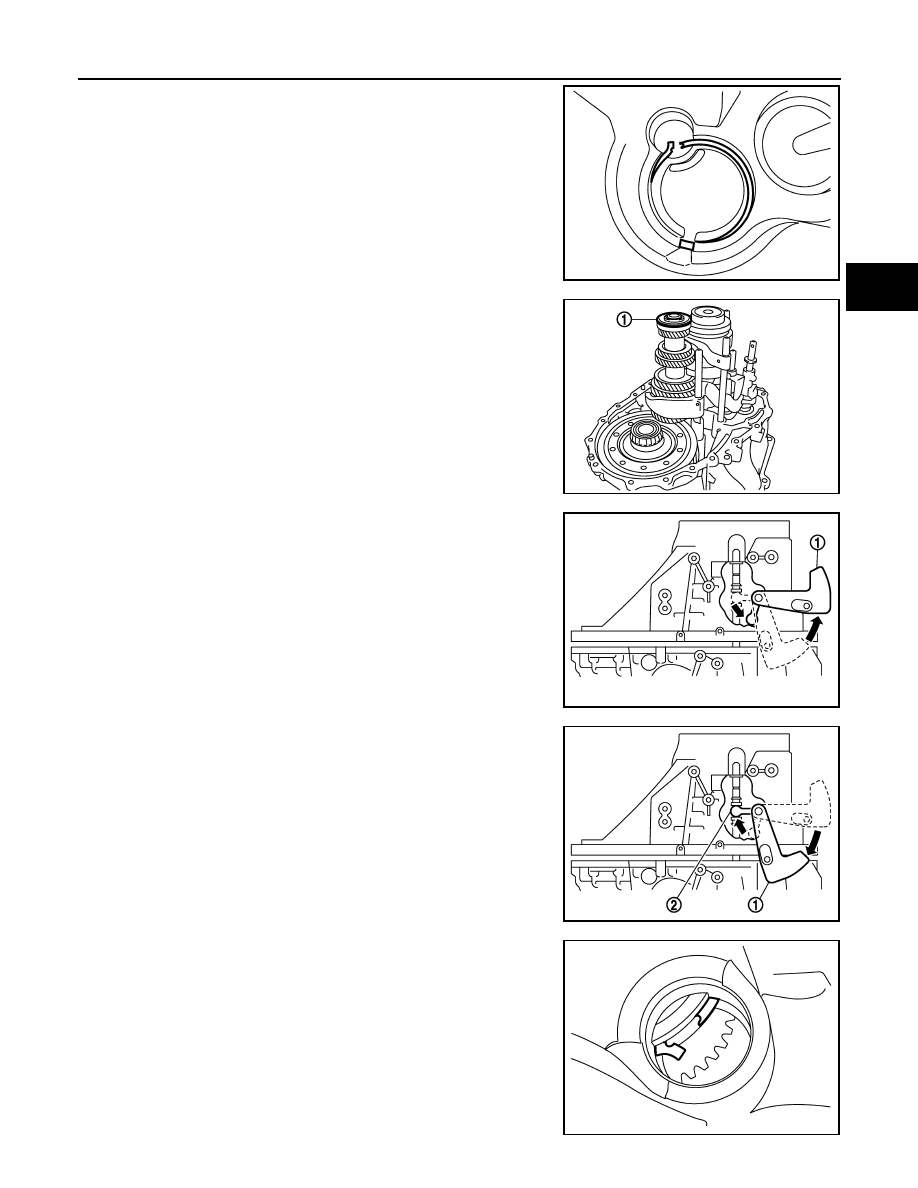

a.

Temporarily install snap ring of mainshaft rear bearing into tran-
saxle case.

CAUTION:

Never reuse snap ring.

b.

Install dummy adjusting shim (1) to mainshaft assembly.

c.

With shifter lever A (1) held in the position shown in the figure,
temporarily assemble transaxle case to clutch housing.

CAUTION:

Never damage striking rod oil seal.
NOTE:
Make sure to hold shifter lever A in the position shown in the fig-
ure. Otherwise transaxle case cannot be installed to clutch
housing.

d.

While rotating shifter lever A (1) in the direction of the arrow
shown in the figure, assemble transaxle case to clutch housing.

e.

Accessing from the bore plug hole, expand snap ring at main-
shaft rear bearing so that the ring catches the periphery of main-
shaft rear bearing.

f.

Temporarily tighten transaxle case mounting bolts.

PCIB1842E

PCIB1826E

JPDIC0140ZZ

2

: Shifter lever B

JPDIC0141ZZ

PCIB1840E

TM-178

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

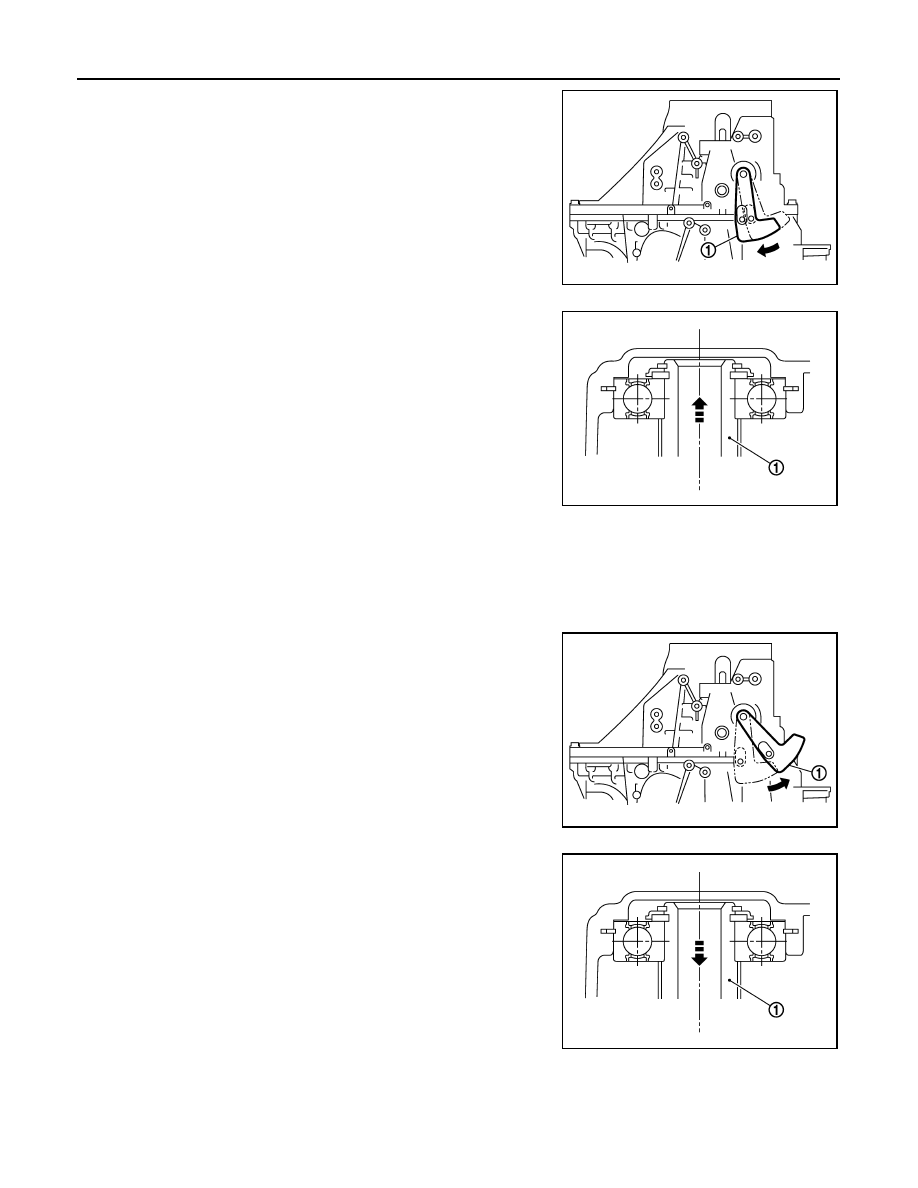

2.

Shift the shifter lever A (1) to 2nd gear position.
NOTE:
• The 2nd gear position is attained when shifter lever A is in the

position shown in the figure.

• When transaxle is shifted to the 2nd gear position, mainshaft

assembly (1) is lifted.

3.

Seat snap ring in the groove on mainshaft rear bearing. If snap ring is not seated in the groove on main-
shaft rear bearing, remove transaxle case and repeat the procedure 1 from step c.

4.

Shift the shifter lever A to 1st gear position, and then shift it to 2nd gear position. Repeat 3 times.
NOTE:
• The mainshaft rear bearing position will be stabilized by shifting between 1st gear position and 2nd gear

position alternately.

• The 1st gear position is attained when shifter lever A (1) is in

the position shown in the figure.

• When transaxle is shifted to the 1st gear position, mainshaft

assembly (1) is declined.

PCIB1809E

PCIB1923E

PCIB1881E

PCIB1934E
