Nissan Qashqai J11. Manual - part 631

TRANSAXLE ASSEMBLY

TM-99

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

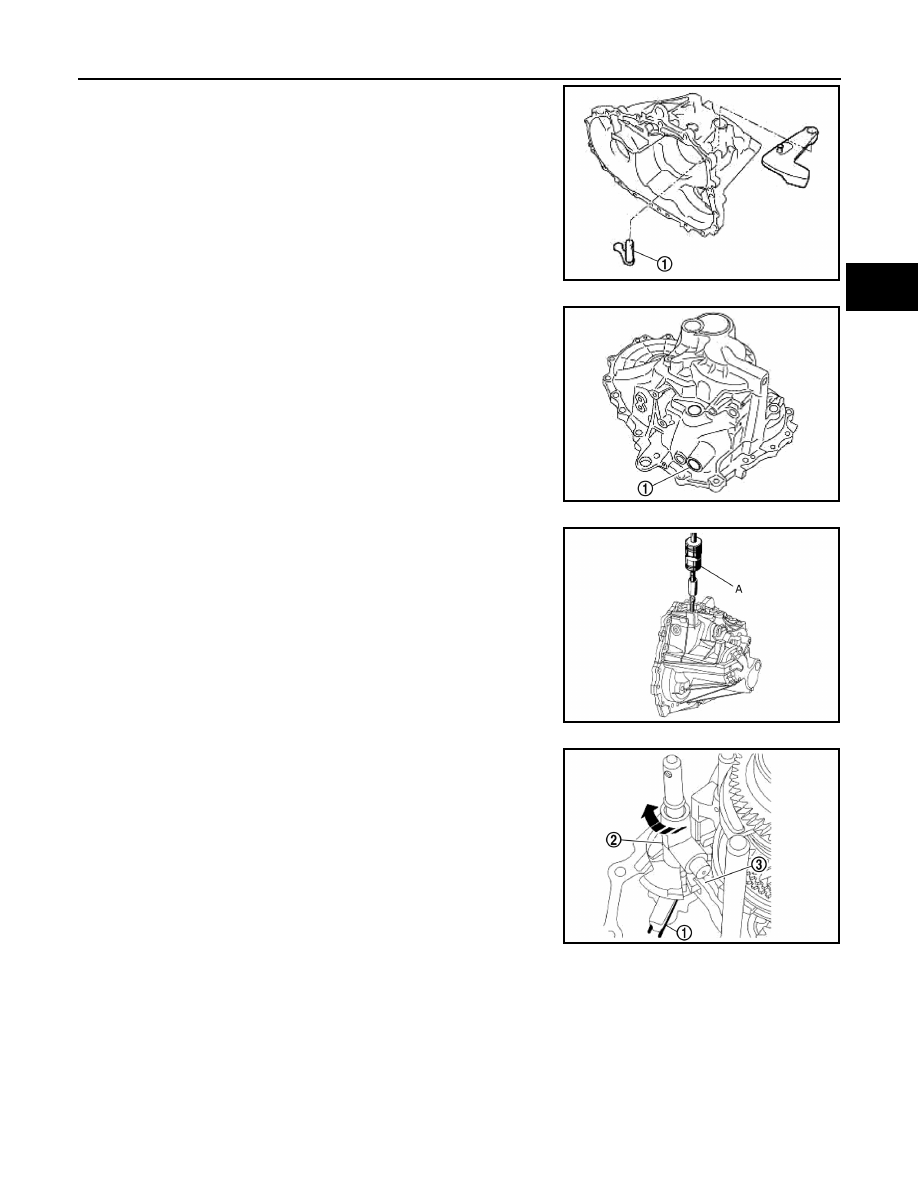

12. Remove the selector shaft (1) from the mechanism housing.

13. Remove the control lever shaft seal (1) using a screwdriver.

14. Remove the control lever shaft rings using a slide hammer (A)

with a  diameter 16 mm (0.63 in).

15. Raise the spring (1) and rotate the control module (2) clockwise

until the claw (3) of the reverse gear shaft is freed from any
restriction.

E1DIA0310ZZ

E1DIA0311ZZ

E1DIA0312ZZ

E1DIA0273ZZ

TM-100

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

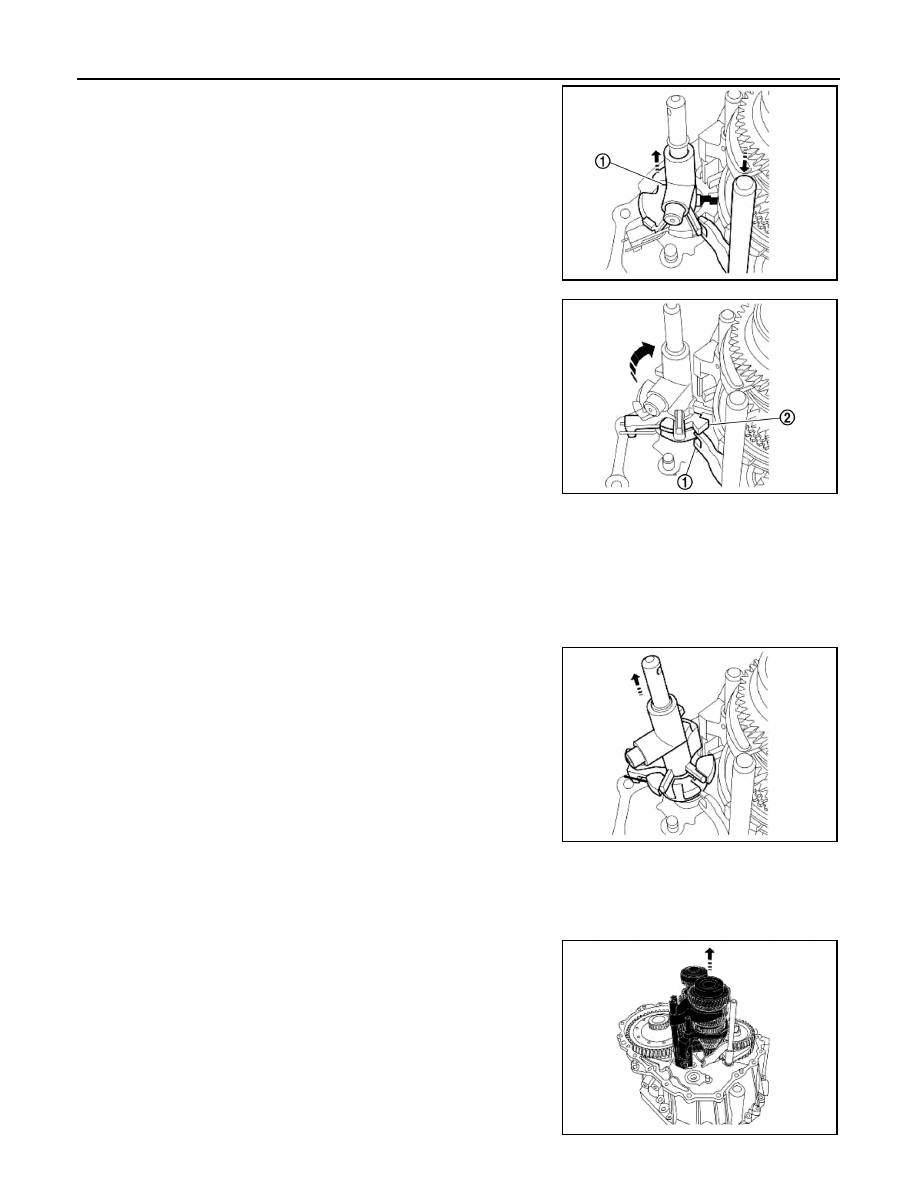

16. Engage reverse gear by pushing on the fork.

17. Put the part (1) of the selector shaft in the top position.

18. Pass the part (2) of the control module over the claw (1) of the

reverse gear shaft.

NOTE:
It is possible that the control module will attach to the claw of the 5-6 fork claw during the rotation. In this
case, pull gently upwards to allow it to pass.

19. Slightly raise forks 1-2, 3-4 and 5-6 and pivot the control module clockwise again until it stops on the claw

of fork 3-4.

20. Raise the control module to remove it from the clutch housing.

21.

NOTE:
This operation requires two people.

Remove the “input shaft - output shaft - shafts and forks” assem-
bly by raising the reverse gear intermediate pinions and shaft
slightly.

E1DIA0274ZZ

E1DIA0275ZZ

E1DIA0276ZZ

E1DIA0277ZZ

TRANSAXLE ASSEMBLY

TM-101

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

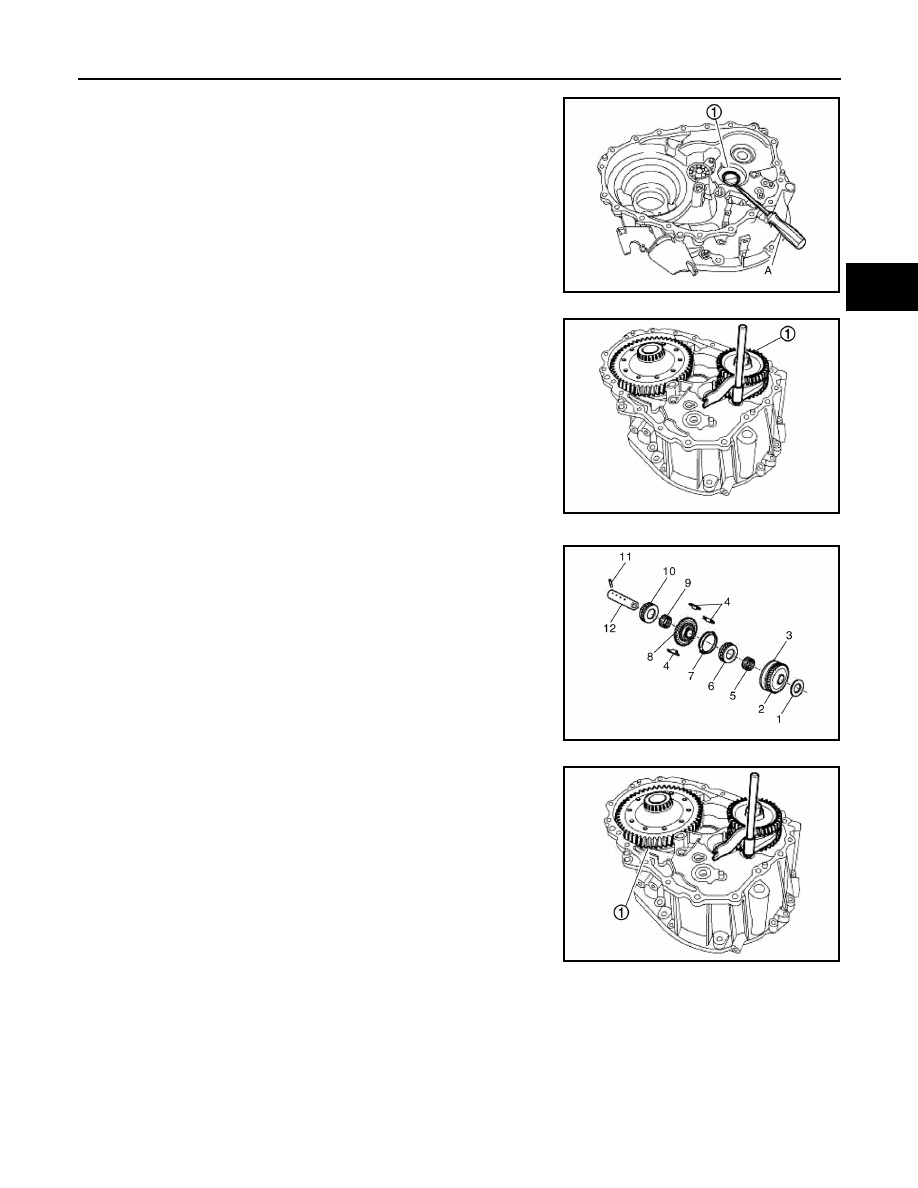

22. Remove the input shaft lip seal (1) using a screwdriver (A) .

CAUTION:

Never damage mechanism housing.

23. Remove the reverse gear “fork and shaft - pinions” assembly (1)

.

24. Remove:

• the permanent shim (1) ,
• the reverse gear sprocket (2),
• the synchroniser hub (3),
• the engagement clips (4),
• the needle bearing cage (5),
• the stop needle bearing cage (6),
• the synchroniser ring (7),
• the reverse gear sprocket (8),
• the needle bearing cage (9),
• the stop needle bearing cage (10),
• the pin (11) from the reverse gear shaft (12) .

25. Remove differential assembly (1).

26. Remove:

E1DIA0278ZZ

E1DIA0319ZZ

E1DIA0320ZZ

E1DIA0324ZZ

TM-102

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

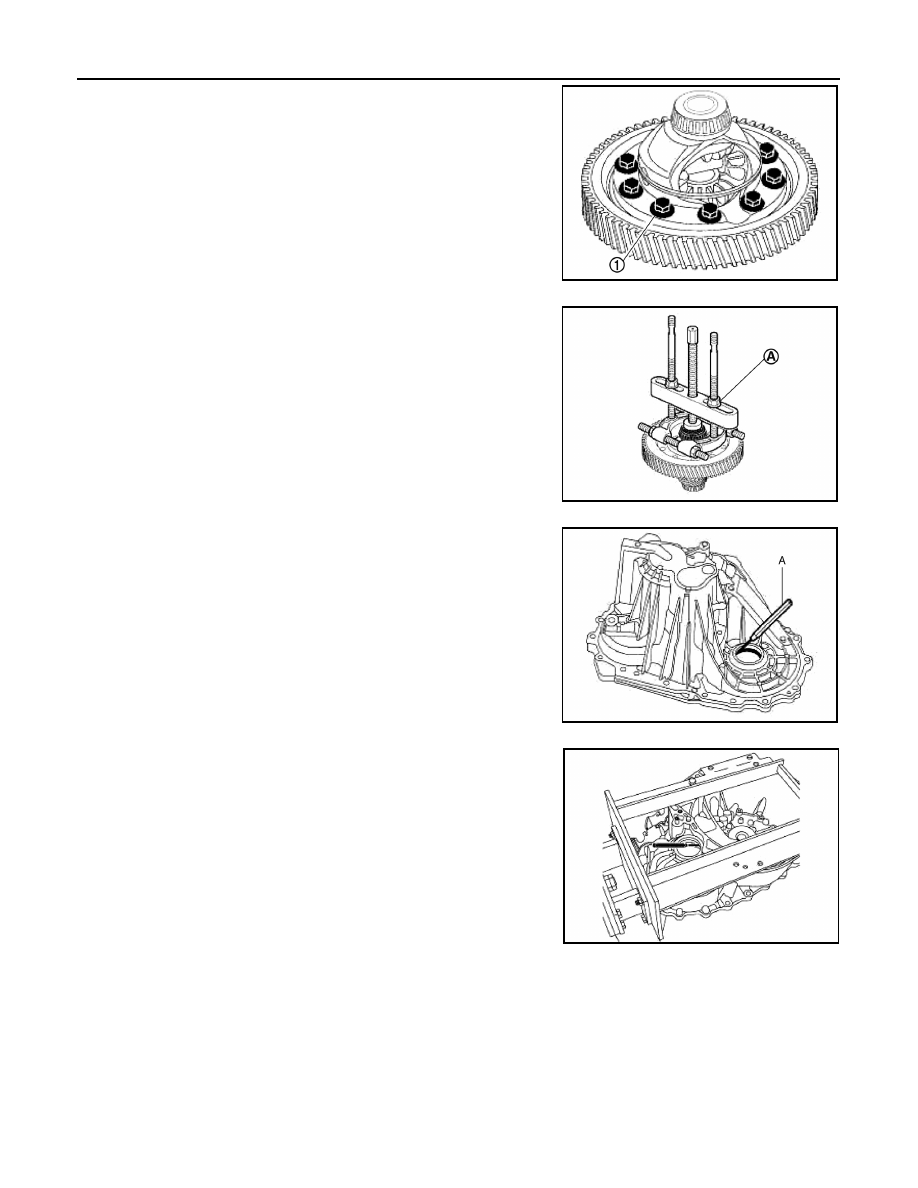

• the bolts (1) of the differential crownwheel,
• the differential unit of the differential crownwheel.

27. Remove differential bearings using a separator (A).

28. Remove the differential bearing housing using a roll pin punch

(A).

29. Remove:

E1DIA0325ZZ

E1DIA0328ZZ

E1DIA0271ZZ

E1DIA0306ZZ
