TRANSAXLE ASSEMBLY

TM-91

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000010428784

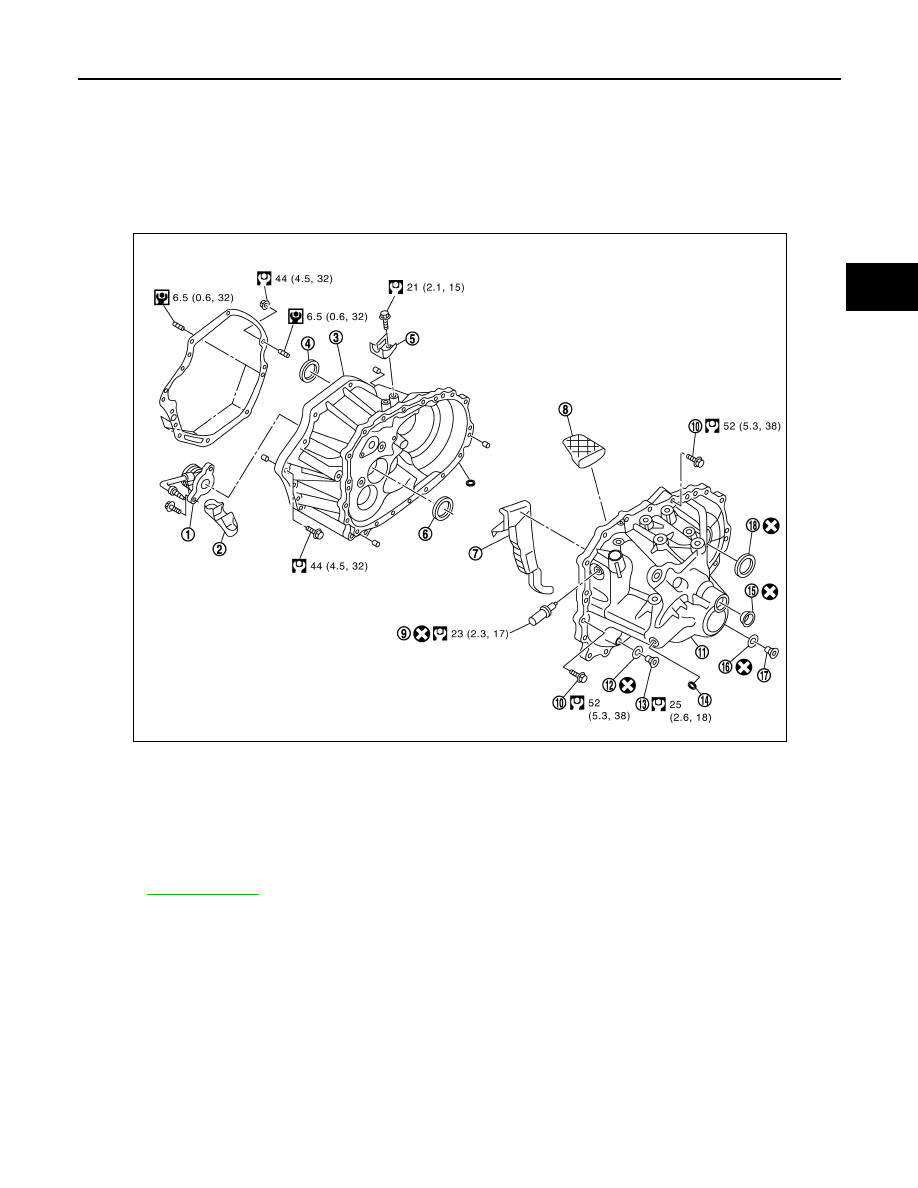

CASE AND HOUSING

SHAFT AND GEAR

1.

Clutch slave cylinder

2.

Gear control sheath stop

3.

Clutch housing

4.

Differential output seal

5.

Gear control sheath stop

6.

Input shaft output seal

7.

Lubrication neck

8.

Oil deflector bowl

9.

Dual function switch

10. Mechanism housing bolt

11. Mechanism housing

12. Seal

13. Cap

14. Blanking cover cap

15. Blanking cover cap

16. Seal

17. Cap

18. Differential output seal

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1DIA0248GB

TM-92

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

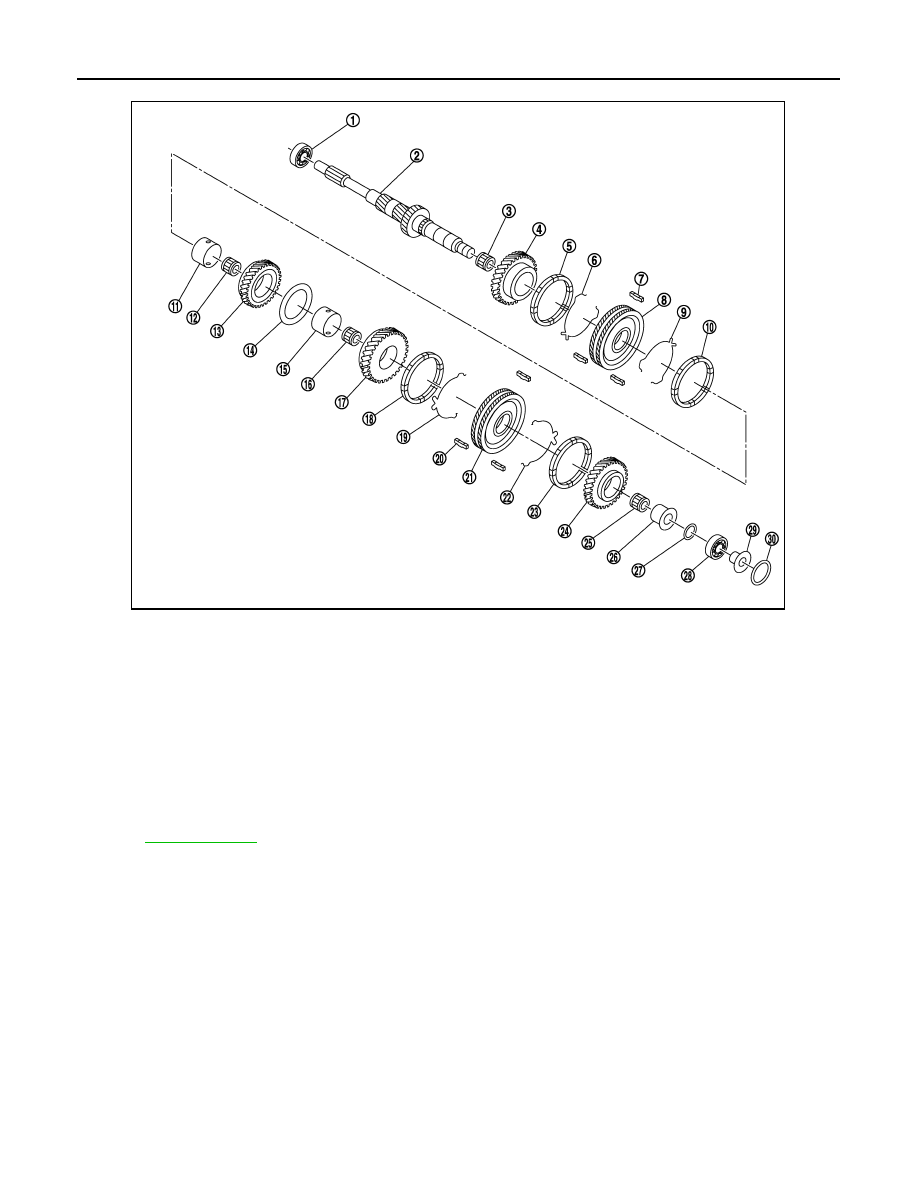

1.

Bearing

2.

Primary shaft

3.

Needle bearing

4.

Third gear pinion

5.

Synchromesh ring

6.

Synchronising spring

7.

Rollers

8.

Third-fourth gear synchroniser hub

9.

Synchronising spring

10. Synchromesh ring

11. Sprocket supporting ring

12. Needle bearing

13. Fourth gear pinion

14. Adjusting shim

15. Sprocket supporting ring

16. Needle bearing

17. Fifth gear pinion

18. Synchromesh ring

19. Synchronising spring

20. Rollers

21. Fifth-sixthgear synchroniser hub

22. Synchronising spring

23. Synchromesh ring

24. Sixth gear pinion

25. Needle bearing

26. Sprocket supporting ring

27. Locking spring ring Bearing

28. Bearing

29. Oil deflector

30. Adjusting shim

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1DIA0244ZZ

TRANSAXLE ASSEMBLY

TM-93

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

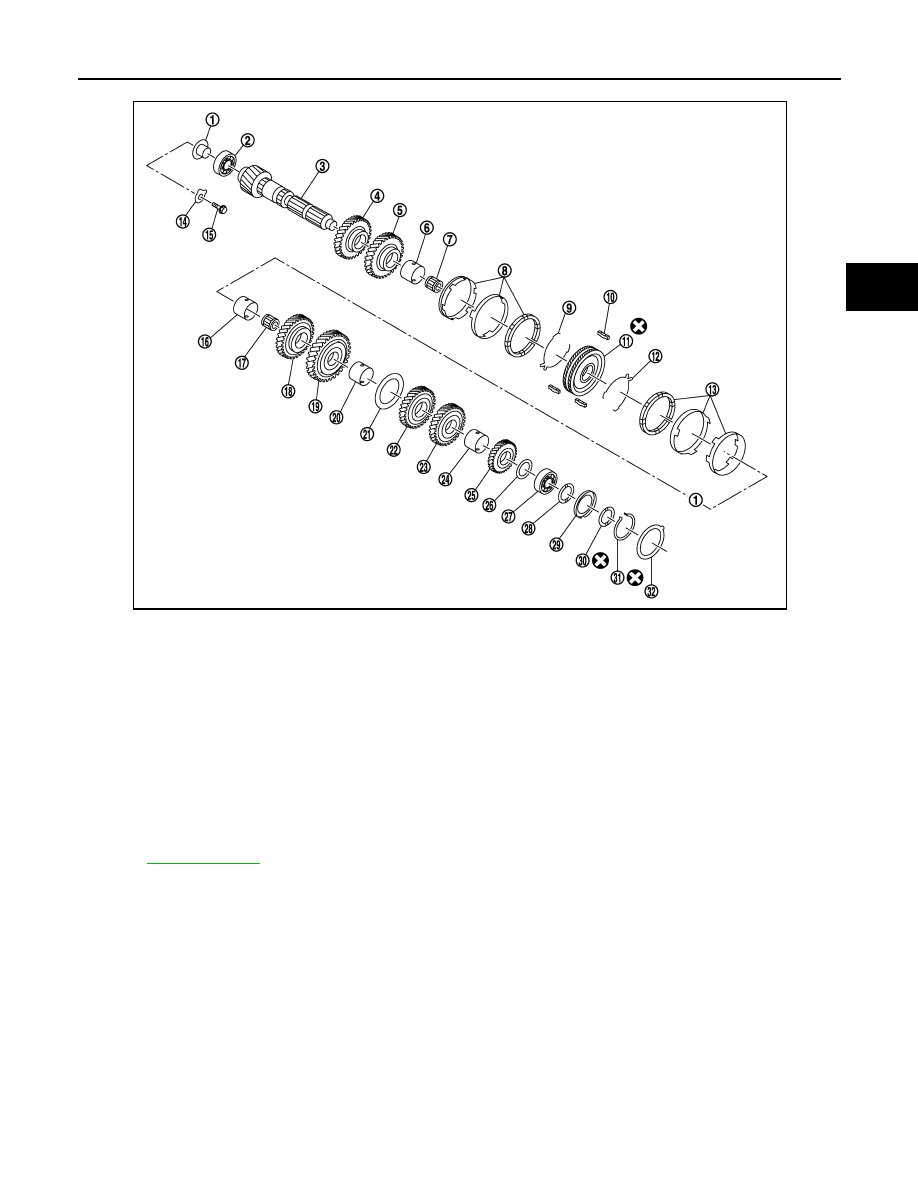

1.

Oil deflector

2.

Bearing

3.

Output shaft

4.

Reverse gear sprocket

5.

First gear pinion

6.

Sprocket supporting ring

7.

Needle bearing

8.

Triple-cone synchroniser rings

9.

Synchronising spring

10.

Rollers

11. First-second gear synchroniser hub

12. Synchronising spring

13.

Triple-cone synchroniser rings

14. Retaining shim

15. Bolt

16.

Sprocket supporting ring

17. Needle bearing

18. Second gear pinion

19.

Third gear pinion

20. Spacer

21. Adjusting shim

22.

Fourth gear pinion

23. Fifth gear pinion

24. Spacer

25.

Sixth gear pinion

26. Adjusting shim

27. Bearing

28.

Half-shim

29. Closure washer

30. Locking spring ring

31.

Bearing locking spring ring

32. Adjusting shim

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1DIA0246ZZ

TM-94

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

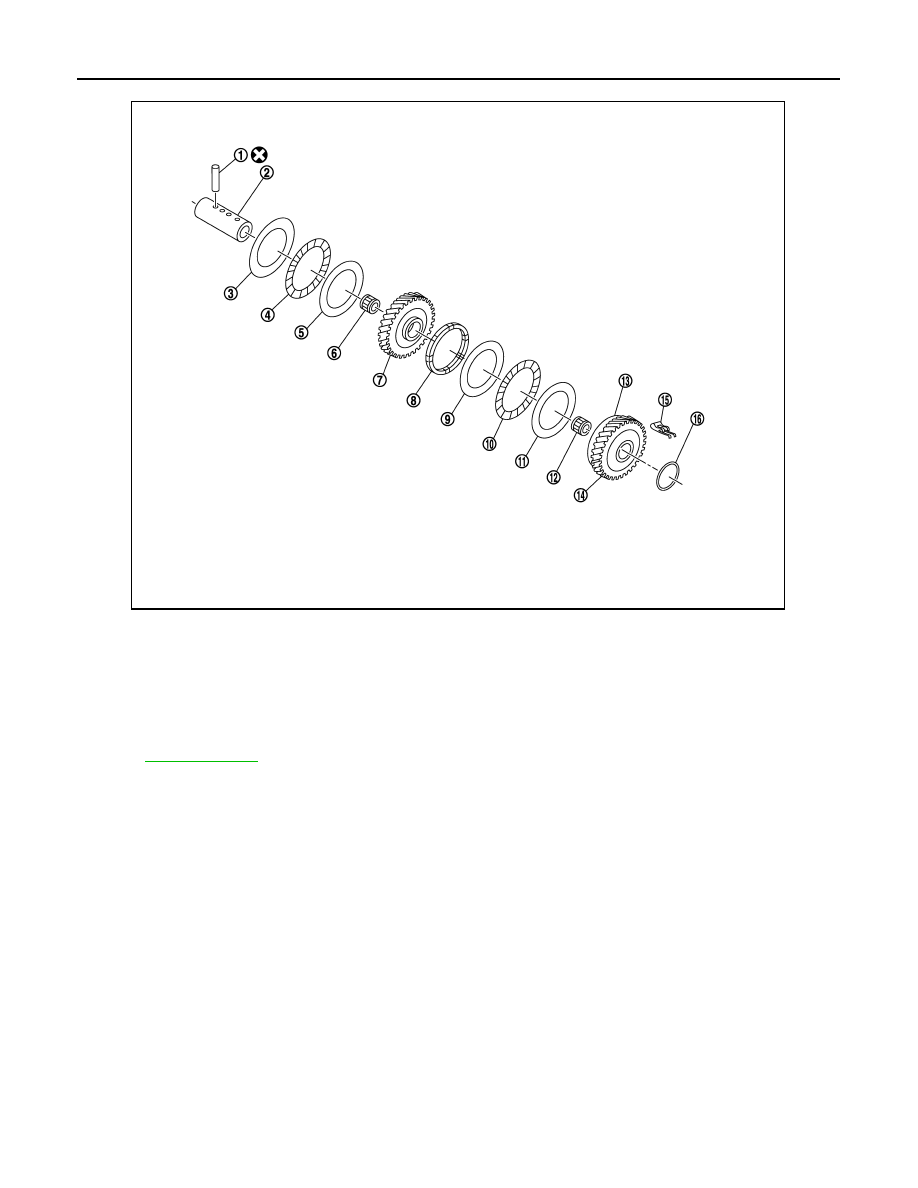

SHIFT FORK AND FORK ROD

1.

Retaining pin

2.

Reverse gear shaft

3.

Washer

4.

Needle washer

5.

Washer

6.

Needle bearing

7.

Reverse gear sprocket

8.

Synchromesh ring

9.

Washer

10.

Needle washer

11. Washer

12. Needle bearing

13.

Synchroniser hub

14. Reverse gear sprocket

15. Engagement clip

16.

Adjusting shim

Refer to

GI-4, "Components"

 for the symbols in the figure.

E1DIA0245ZZ
