AIR BREATHER HOSE

TM-87

< REMOVAL AND INSTALLATION >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AIR BREATHER HOSE

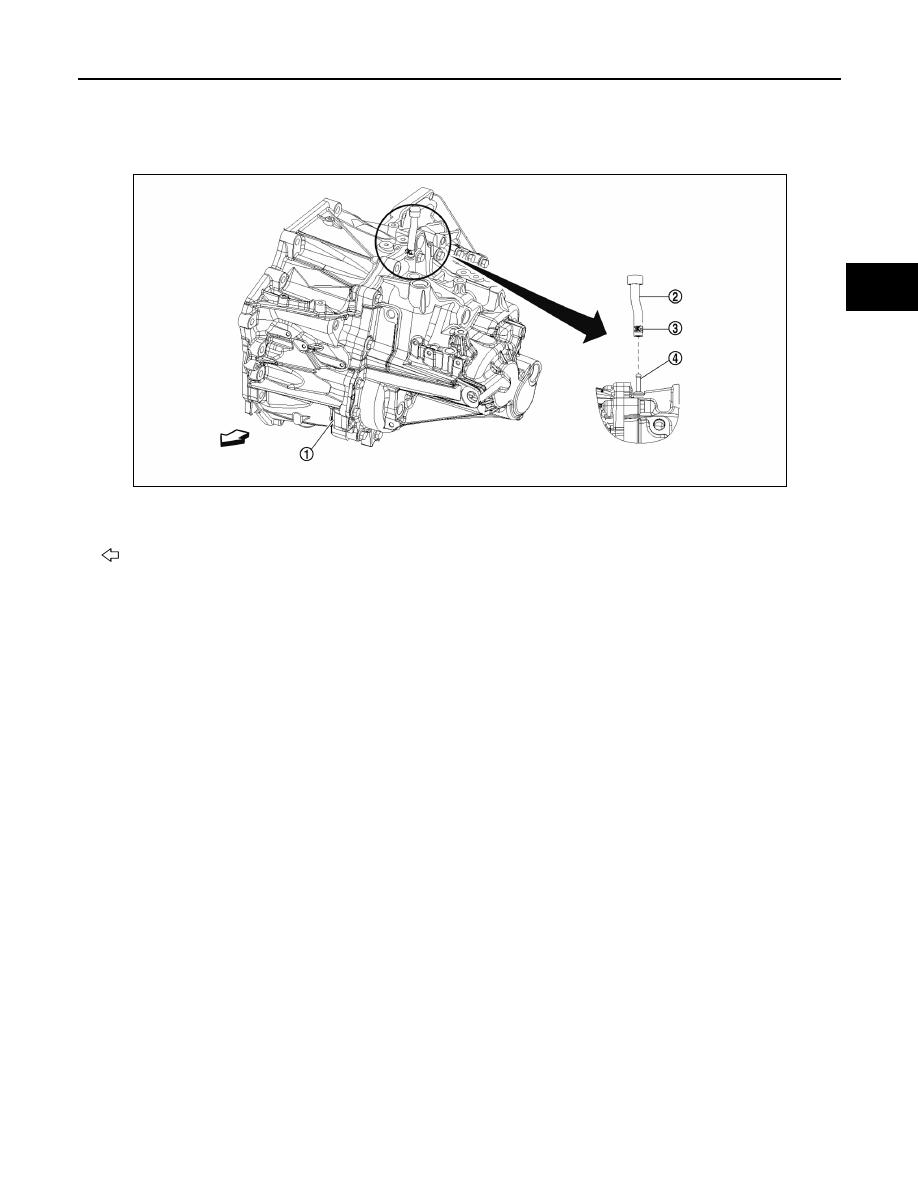

Exploded View

INFOID:0000000010428780

Removal and Installation

INFOID:0000000010428781

REMOVAL

Refer to the figure for removal procedure.

INSTALLATION

Refer to the figure for installation procedure.
• The hook of the clamp shall face frontward direction of the vehicle.

1.

Transaxle assembly

2.

Air breather hose

3.

Clamp

4.

Connecting tube

: Vehicle front

E1DIA0337ZZ

TM-88

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

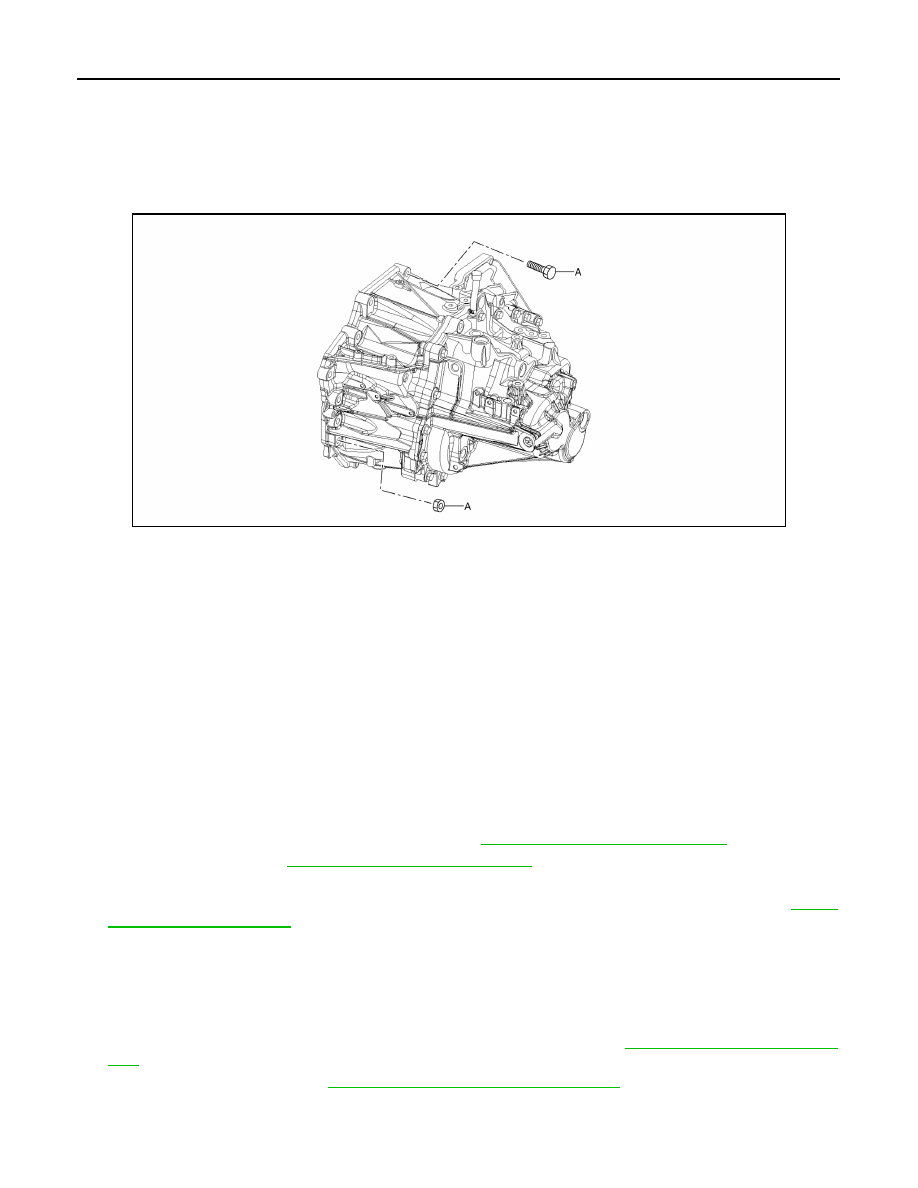

Exploded View

INFOID:0000000010428782

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder). Return CSC insert to orig-
inal position to remove transaxle assembly. Dust on clutch disc sliding parts may damage seal of CSC and may cause clutch
fluid leakage.

Removal and Installation

INFOID:0000000010428783

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).
Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding parts
may damage seal of CSC and may cause clutch fluid leakage.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove air cleaner case and air duct (inlet). Refer to

EM-380, "Removal and Installation"

 .

3.

Remove battery. Refer to

PG-155, "Removal and Installation"

.

4.

Remove battery bracket .

5.

Drain clutch fluid and then remove clutch tube from CSC (Concentric Slave Cylinder). Refer to

CL-17,

"Removal and Installation"

.

CAUTION:

Never depress clutch pedal during removal procedure.

6.

Disconnect position switch harness connector.

7.

Disconnect ground cable.

8.

Remove wire harnesses from transaxle assembly.

9.

Disconnect select cable and shift cable from transaxle assembly. Refer to

TM-83, "Removal and Installa-

tion"

.

10. Remove starter motor. Refer to

STR-32, "R9M : Removal and Installation"

.

11. Remove engine under cover.

12. Cap or plug transmission assembly opening(s) to prevent fluid from spilling.

E1DIA0339ZZ

1.

Transaxle assembly

A: For the tightening torque, refer to “INSTALLATION”.

TRANSAXLE ASSEMBLY

TM-89

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

13. Remove exhaust front tube. Refer to

EX-22, "Removal and Installation"

 .

14. Remove front drive shafts. Refer to

FAX-22, "Removal and Installation (LH)"

  or

FAX-26, "Removal and

Installation (RH)"

 .

NOTE:
Insert a suitable plug into differential side oil seal after removing front drive shaft.

15. Remove rear engine mounting brackets and rear torque rod.  Refer to

EM-431, "Removal and Installa-

tion"

.

16. Remove suspension member and suspension member stay. Refer to

EM-431, "Removal and Installation"

.

17. Set a suitable jack to transaxle assembly and then set a suitable jack to engine assembly.

CAUTION:

When setting a suitable jack, be careful so that it does not contact with the switch.

18. Remove transaxle assembly mounting bolts.

19. Remove engine mounting through bolt-securing nut. Refer to

EM-431, "Removal and Installation"

 .

20. Remove transaxle assembly from the vehicle.

CAUTION:

• Secure transaxle assembly to a suitable jack while removing it.
• The transaxle assembly must not interfere with the wire harnesses and clutch tube.

21. Remove CSC (Concentric Slave Cylinder). Refer to

CL-17, "Removal and Installation"

.

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylin-
der). Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc
sliding parts may damage seal of CSC and may cause clutch fluid leakage.

INSTALLATION

Note the following, and install in the reverse order of removal.

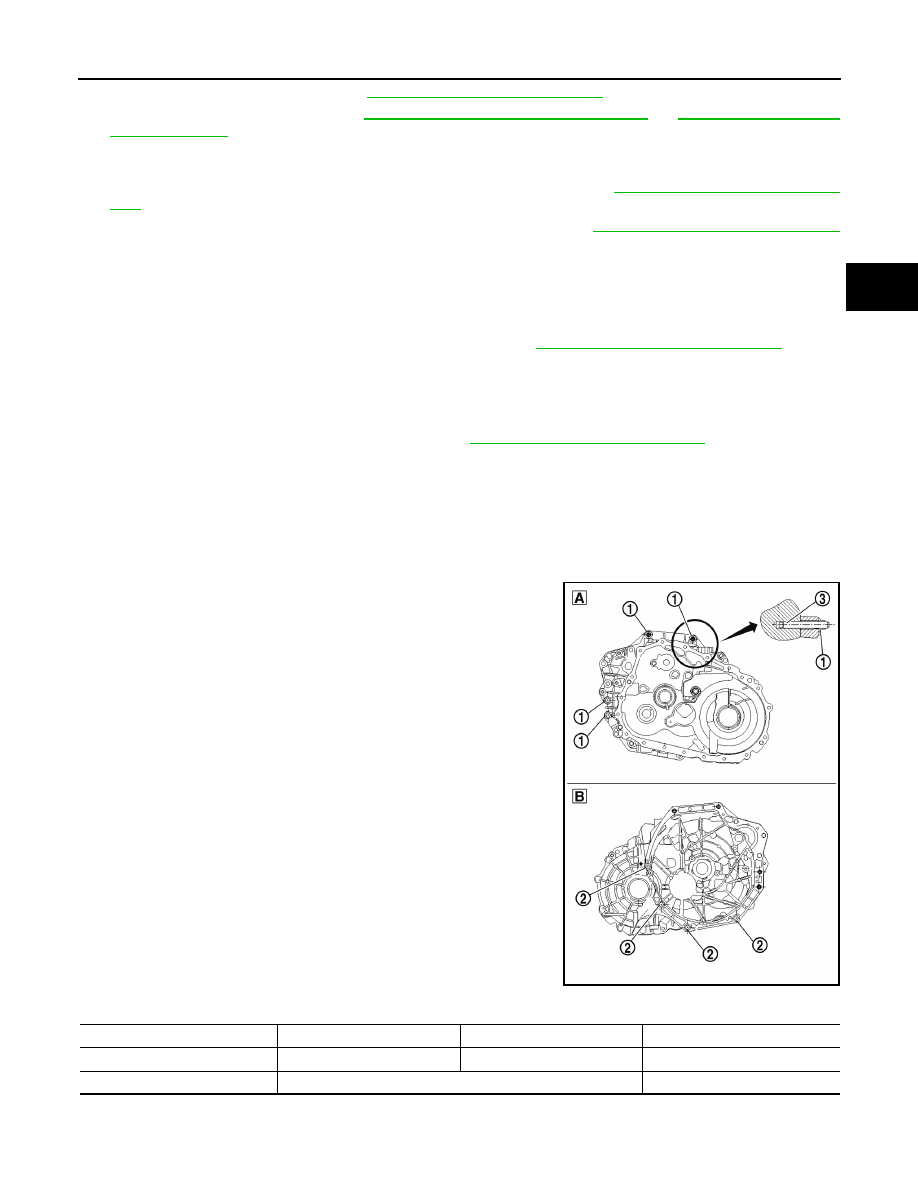

• Tighten transaxle assembly mounting bolts to the specified torque. The figure is the view from the engine.
-

CAUTION:

A

: Transaxle to engine

B

: Engine to transaxle

E1DIA0338ZZ

Nuts/ Bolts/ Studs symbol

(1 )

(2)

(3)

Quantity

4

4

4

Tightening torque

44.0 (4.5, 32) N·m (kg-m, ft-lb)

6.5 (0.66, 58) N·m (kg-m, in-lb)

TM-90

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.
• When installing transaxle assembly, never bring input shaft into contact with clutch cover.
• Refer to

CL-17, "Removal and Installation"

  for CSC (Concentric Slave Cylinder) installation procedure.

• Refer to

TM-83, "Removal and Installation"

 for select cable and shift cable installation procedure.

• Bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

.

• After installation, check for oil leakage and oil level. Refer to

TM-81, "Inspection"

.
