PRECAUTIONS

TM-79

< PRECAUTION >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Service Notice or Precautions for Manual Transaxle

INFOID:0000000010428768

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage seal of CSC and may cause clutch fluid leakage.

• Never reuse transaxle gear oil, once it has been drained.
• Check oil level or replace gear oil with vehicle on level surface.
• During removal or installation, keep inside of transaxle clear of dust or dirt.
• Check for the correct installation status prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts they are applied.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, use it.

• Never damage sliding surfaces and mating surfaces.

TM-80

< PREPARATION >

[6MT: RS6F95R]

PREPARATION

PREPARATION

PREPARATION

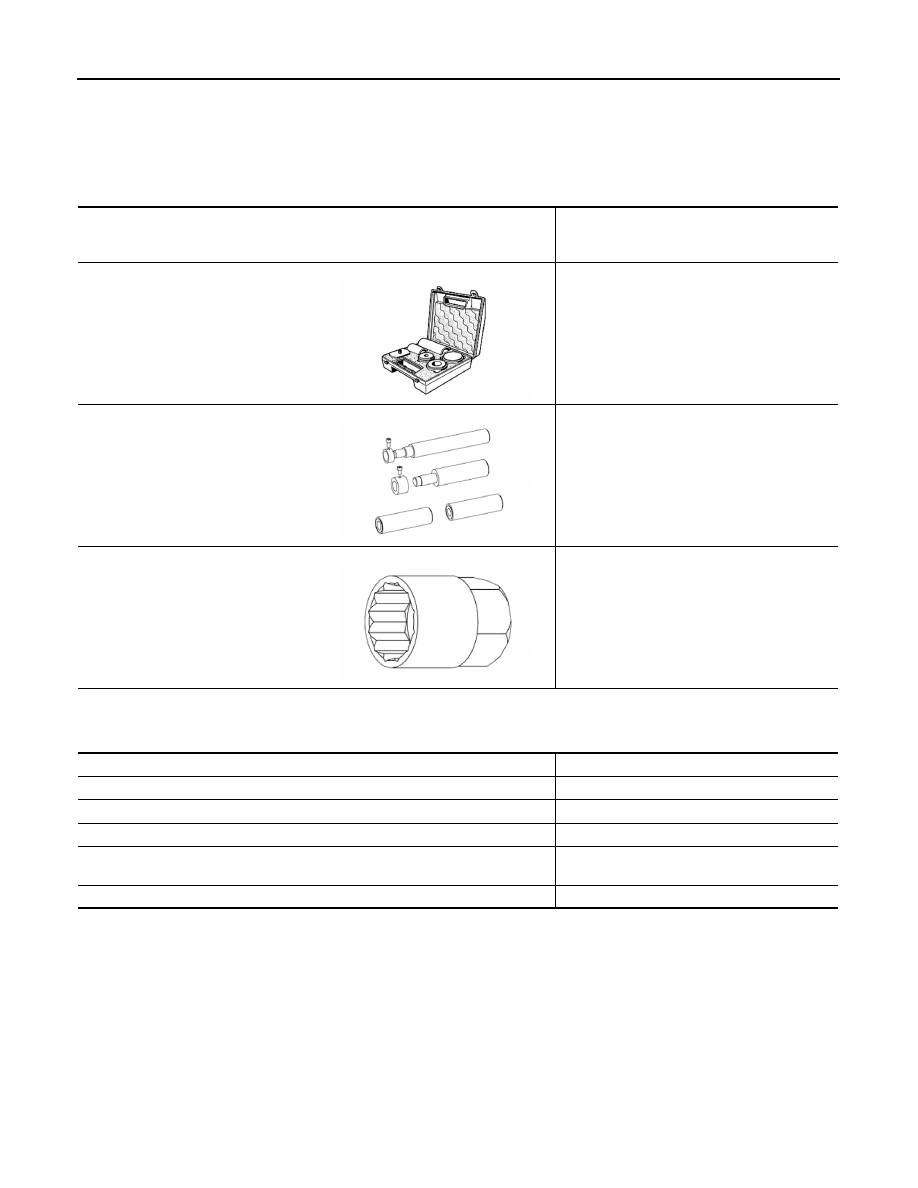

Special Service Tools

INFOID:0000000010428769

Commercial Service Tools

INFOID:0000000010428770

Tool number
Renault tool number
Tool name

Description

KV32910340
Bvi.1683
Gearbox repair kit

Tool kit for repairing RS6F95R gearbox

Bvi.1902
Gearbox renovation kit

Gearbox renovation kit
Use in addition to KV32910340 (Bvi. 1683)

Bvi.1934
Reverse gear switch socket

Tool for installing gear switch

E1DIA0334ZZ

E1DIA0336ZZ

E1DIA0335ZZ

Tool name

Description

Roll pin punch

Removing differential bearing

Feeler gauge

Determine the thickness

Slide hammer 16 mm (0.63 in) dia.

Removing the control lever shaft

Slide hammer 14 mm (0.55 in) dia.

Removing the fork shaft bearing and selector
lever shaft ring

Separator

Removing differential bearings

GEAR OIL

TM-81

< PERIODIC MAINTENANCE >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PERIODIC MAINTENANCE

GEAR OIL

Exploded View

INFOID:0000000010428771

Refer to

TM-91, "Exploded View"

.

Draining

INFOID:0000000010428772

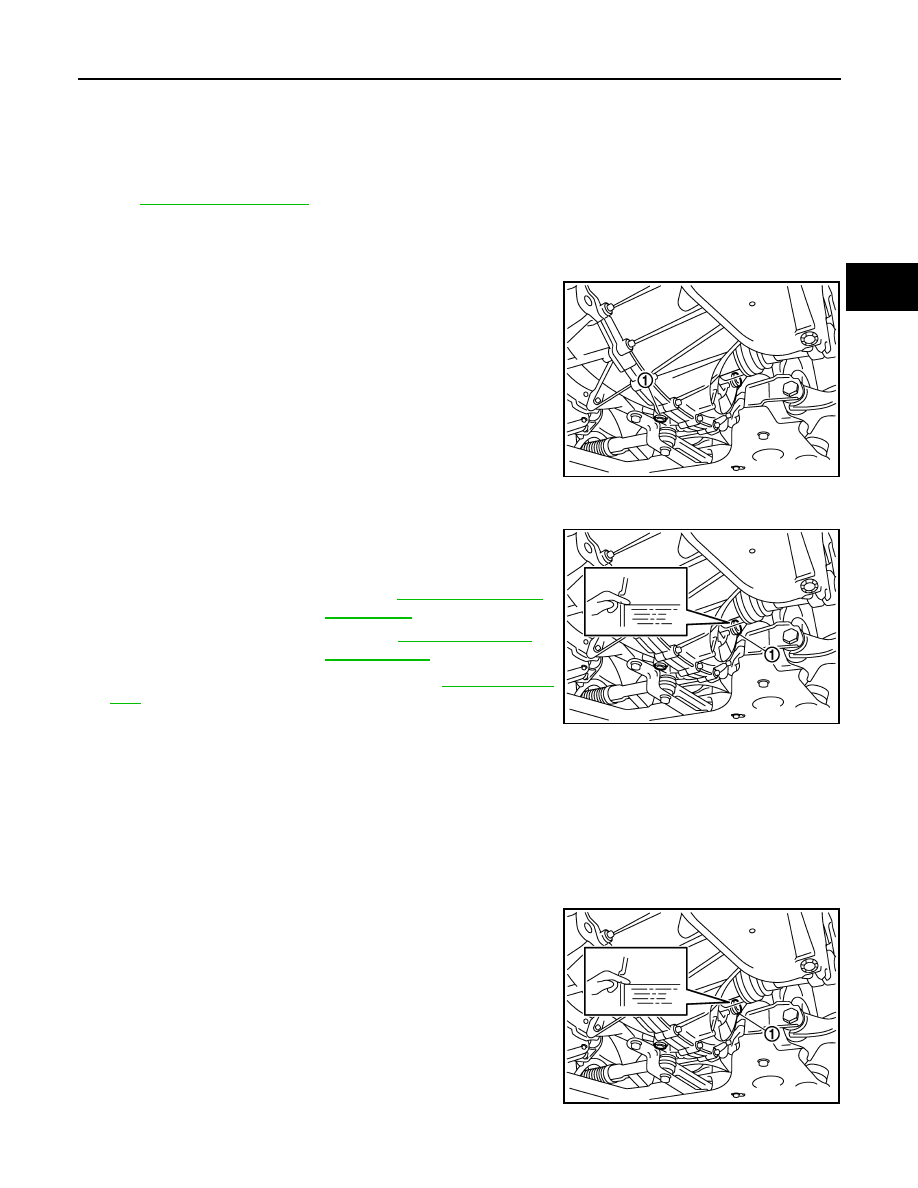

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and then drain gear oil.

3.

Set a gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

Refilling

INFOID:0000000010428773

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified limit at filler plug hole as shown.

2.

After refilling gear oil, check oil level. Refer to

TM-81, "Inspec-

tion"

.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

Inspection

INFOID:0000000010428774

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Never start engine while checking oil level.

2.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque.

SCIA7622E

Oil grade and viscosity

: Refer to

MA-59, "Fluids and

Lubricants"

.

Oil capacity

: Refer to

TM-126, "General

Specification"

.

SCIA7623E

SCIA7623E

TM-82

< REMOVAL AND INSTALLATION >

[6MT: RS6F95R]

DIFFERENTIAL OUTPUT SEAL

REMOVAL AND INSTALLATION

DIFFERENTIAL OUTPUT SEAL

Exploded View

INFOID:0000000010428775

Refer to

TM-91, "Exploded View"

.

Removal and Installation

INFOID:0000000010428776

REMOVAL

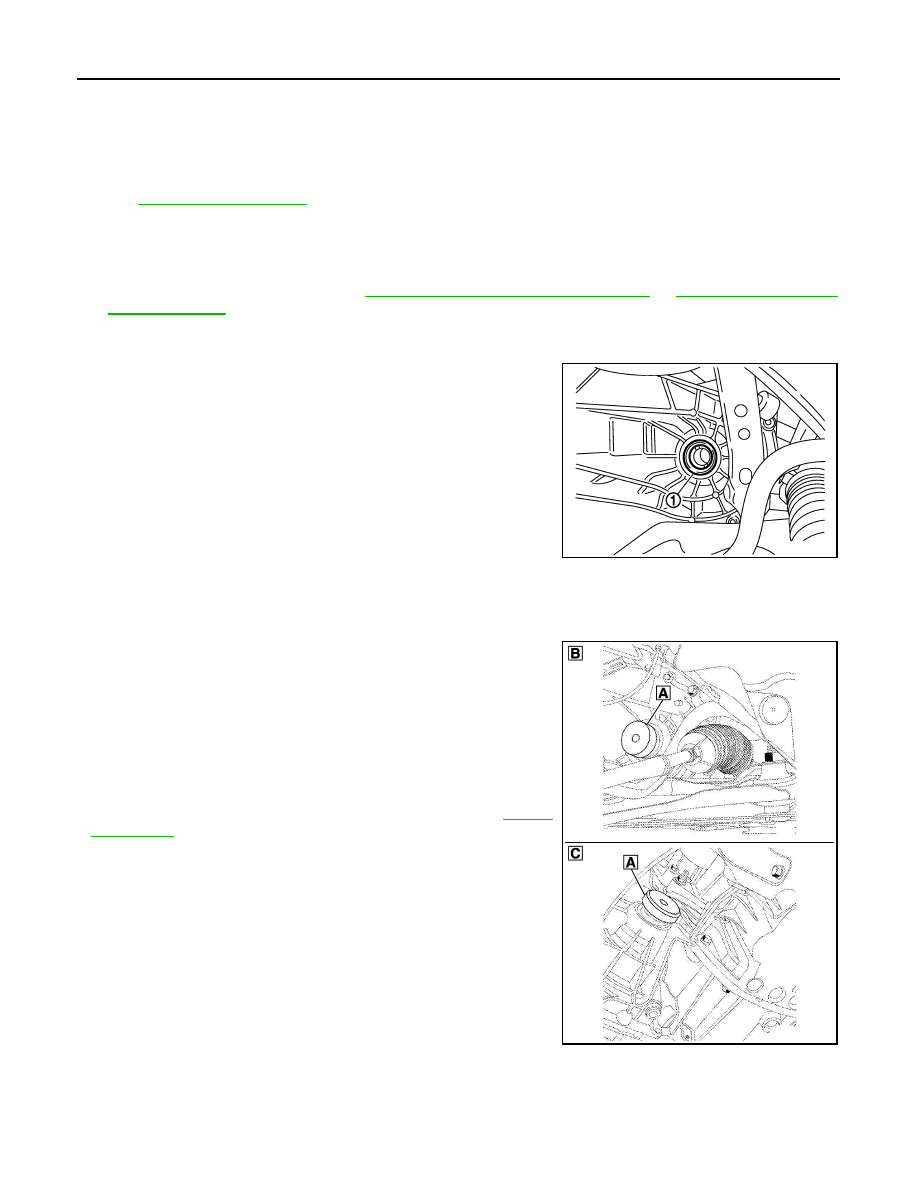

1.

Remove front drive shafts. Refer to

FAX-22, "Removal and Installation (LH)"

 or

FAX-26, "Removal and

Installation (RH)"

.

2.

Tap the base of the differential output seal using a roll pin punch and a small hammer to rotate it in its
housing.

3.

Remove differential output seals (1) using pliers, taking care not
to damage the splines.

CAUTION:

Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Lubricate differential output seals before installing
• Install differential output seals (1) to clutch housing and transaxle

case using the drift (A) [SST: Bvi. 1689].

CAUTION:

• Never reuse differential side oil seal.
• When installing, never incline differential output seals.
• Never damage clutch housing and transaxle case.

•  Check oil level and oil leakage after installation. Refer to

TM-81,

"Inspection"

.

SCIA7625E

B

: Transaxle case side

C

: Clutch housing side

E1DIA0341ZZ
