TRANSAXLE ASSEMBLY

TM-95

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

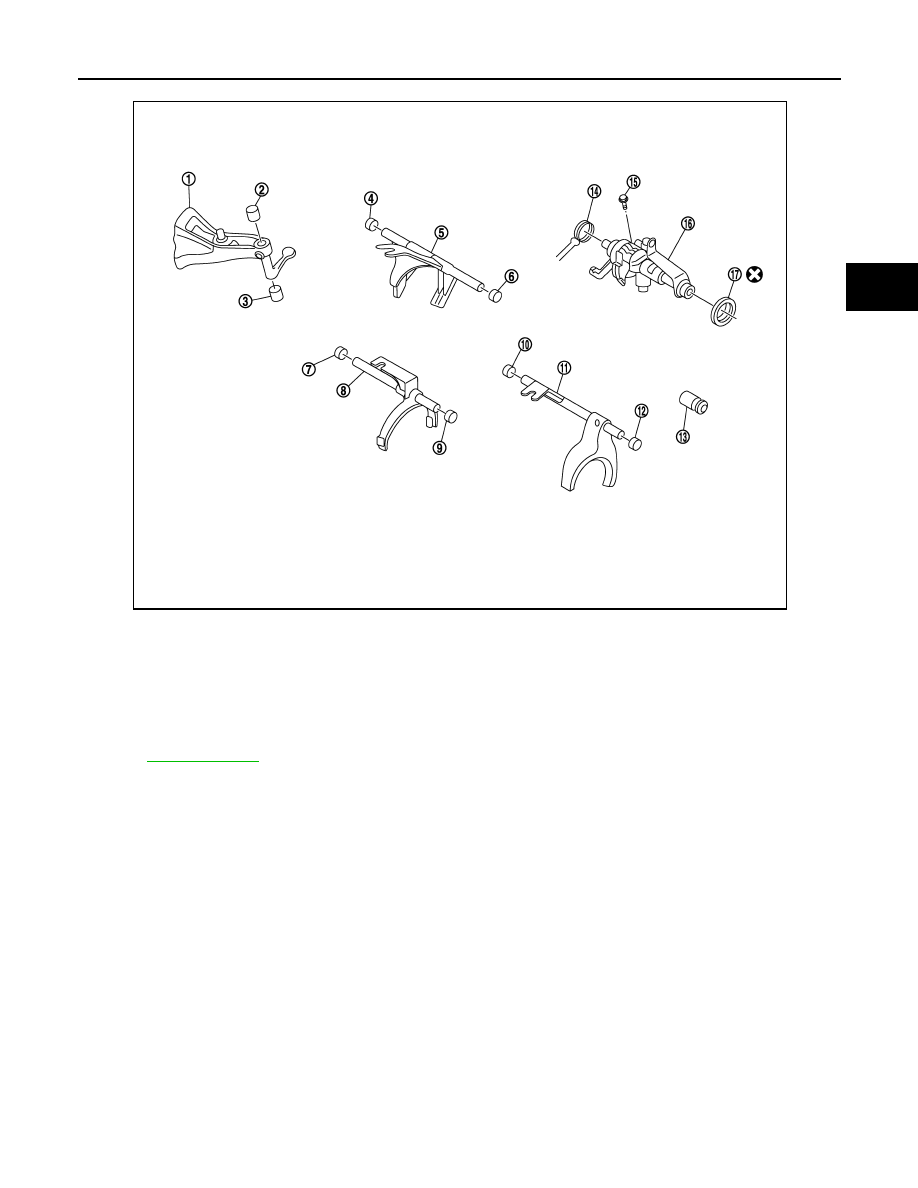

FINAL DRIVE

1.

Assembled gear change lever

2.

Rolled ring

3.

Rolled ring

4.

Ball bearing

5.

First - second gear shift fork

6.

Ball bearing

7.

Fork shaft ring

8.

Third - fourth gear shift fork

9.

Fork shaft ring

10. Fork shaft ring

11. Fifth - sixth gear shift fork

12. Fork shaft ring

13. Neutral return shaft

14. Gear selection return spring

15. Gear selection guide finger

16. Fitted internal selector shaft

17. Selector seal

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1DIA0247ZZ

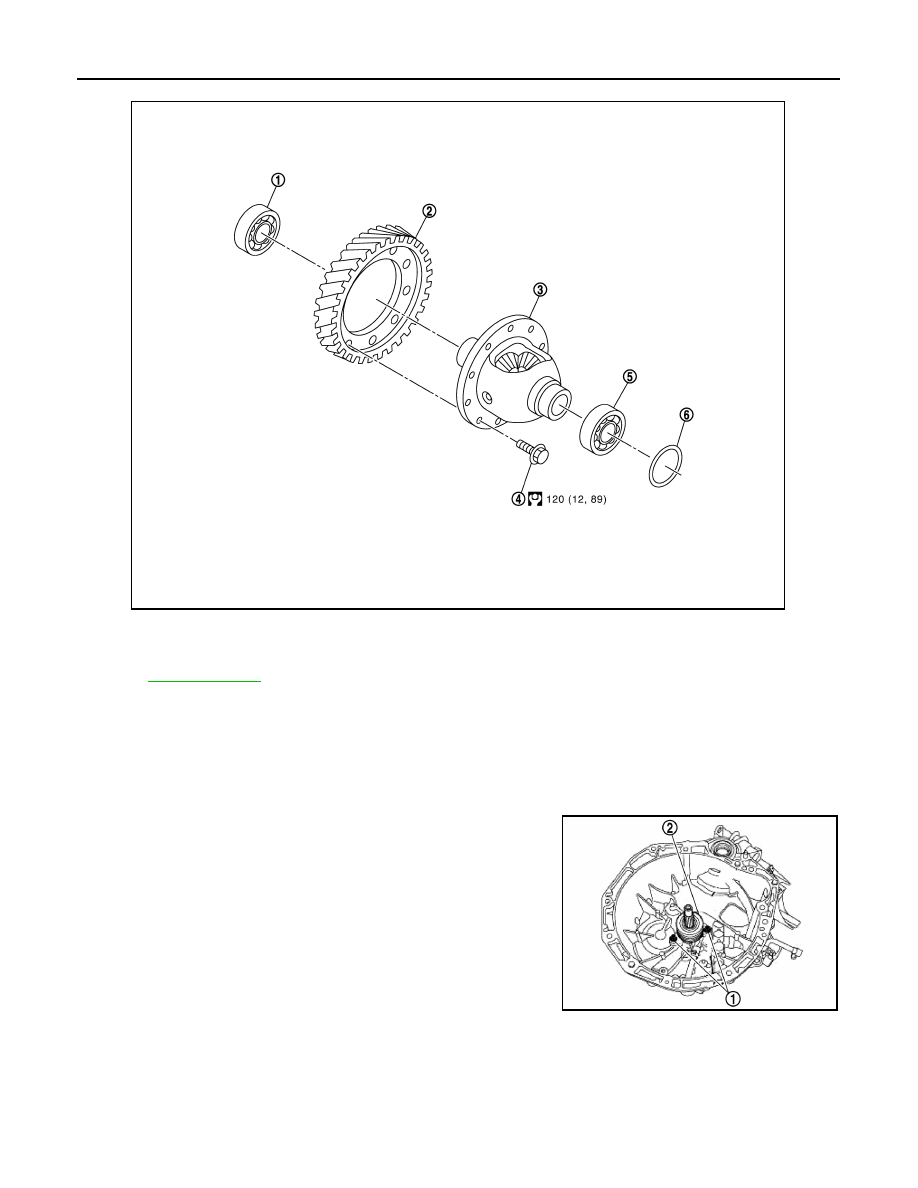

TM-96

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

Disassembly

INFOID:0000000010428785

1.

Remove drain plug and gasket from clutch housing using the socket [Commercial service tool] and then
drain gear oil.

2.

Remove filler plug and gasket from transaxle case.

3.

Remove:

• the clutch thrust bearing bolts (1),
• the hydraulic clutch thrust bearing (2).

4.

Remove:

1.

Bearing

2.

Differential ring gear

3.

Differential unit

4.

Ring gear bolt

5.

Bearing

6.

Adjustment washer

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1DIA0249GB

E1DIA0254ZZ

TRANSAXLE ASSEMBLY

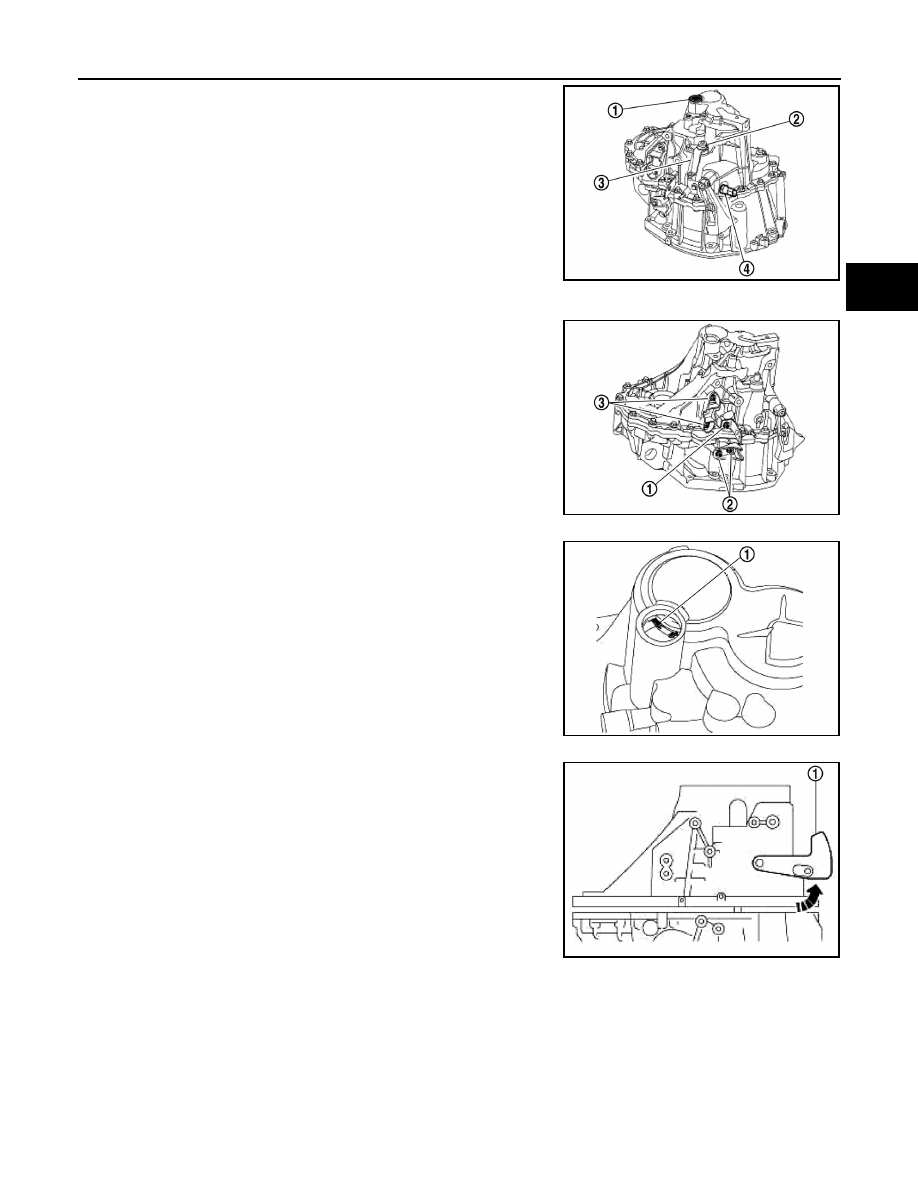

TM-97

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• the blanking cover (1)
• the selector lever pin (2),
• the gear lever (3),
• the dual function switch (4) .

5.

Remove:

• the bolt (1) from the lifting eye,
• the lifting eye,
• the gear shift cable sheath stop bolts (2) ,
• the gear shift cable sheath stop,
• the selector cable sheath stop bolts (3) ,
• the selector cable sheath stop,
• the mechanism housing bolts.

6.

Separate the retaining stop ring (1) of the output shaft.

7.

Remove the mechanism housing with the gear lever (1) turned.

8.

Remove:

E1DIA0255ZZ

E1DIA0256ZZ

E1DIA0257ZZ

E1DIA0258ZZ

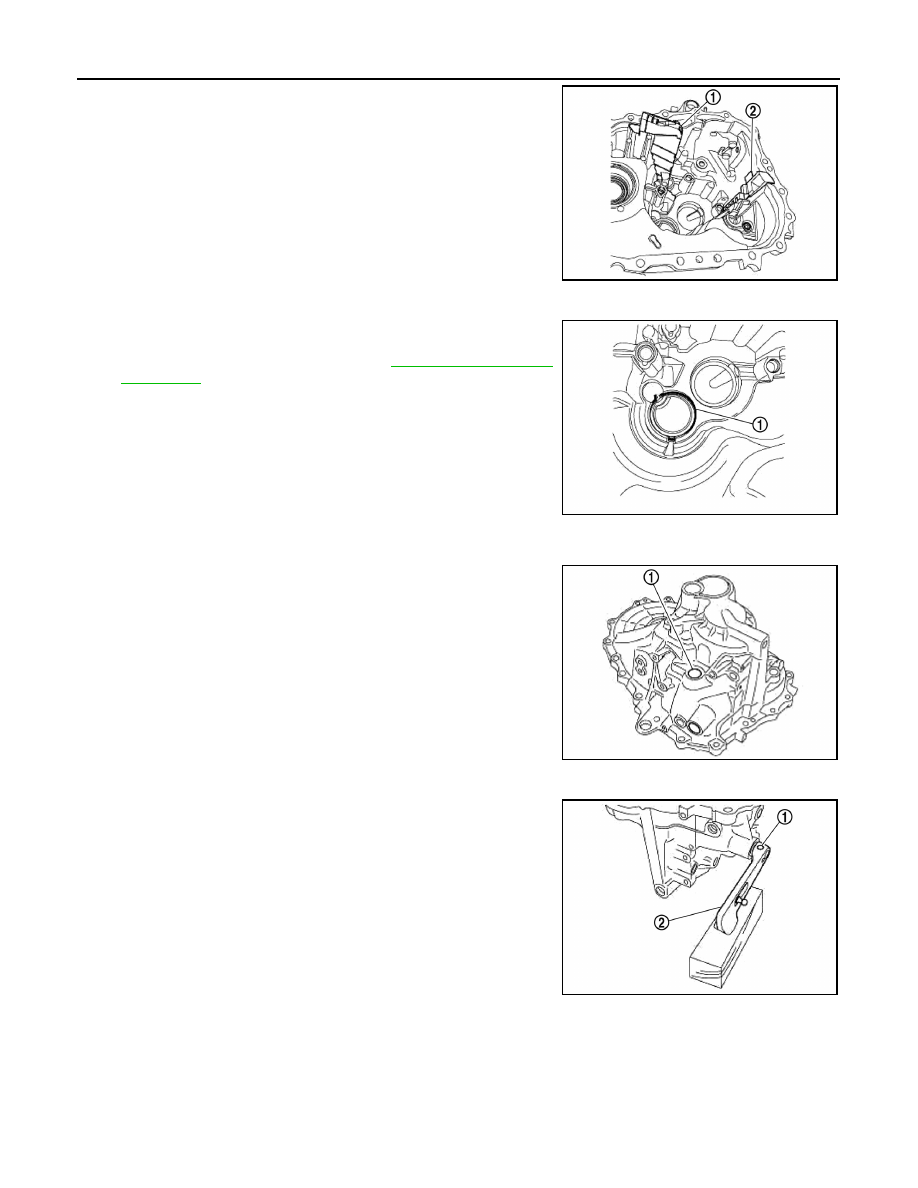

TM-98

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F95R]

TRANSAXLE ASSEMBLY

• the oil neck (1) ,
• the oil neck (2) .

9.

Remove:

• the stop ring (1) ,
• the output shaft adjusting shim,
• the differential output seal, refer to

TM-82, "Removal and

Installation"

,

10. Remove the seal of the selector lever (1) using a screwdriver.

CAUTION:

Never damage mechanism housing.

11. Remove:

• the pin (1),
• the gear lever (2).

E1DIA0259ZZ

E1DIA0260ZZ

E1DIA0261ZZ

E1DIA0309ZZ
