Nissan Qashqai J11. Manual - part 588





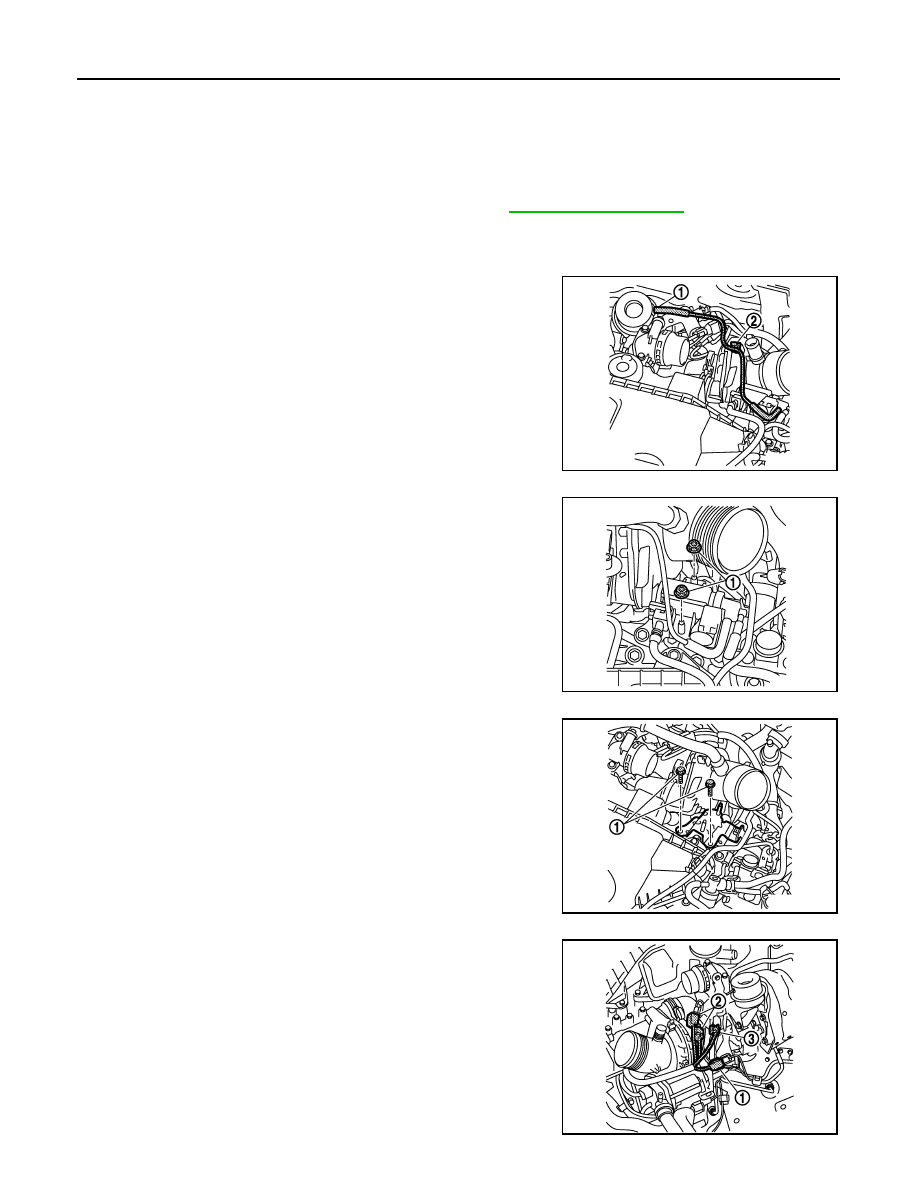

EX-32

< REMOVAL AND INSTALLATION >

[R9M]

PARTICLE FILTER TEMPERATURE SENSORS

PARTICLE FILTER TEMPERATURE SENSORS

Removal and installation

INFOID:0000000010287102

REMOVAL

1.

Disconnect the batterie negative terminal.

2.

Remove cowl top cover and  extension cowl top. Refer to

EXT-29, "Exploded View"

3.

Remove the air inlet pipe

4.

Remove the air duct inlet.

5.

Disconnect the turbocharging pressure regulation vacumm hose
from turbocharger (1).

6.

Unclip the turbocharging pressure regulation vacumm hose (2)

7.

Remove the turbocharging pressure regulation solenoide valve
nuts (1)

8.

Move aside the turbocharging pressure regulation solenoide
valve

9.

Remove the turbocharging pressure regulation solenoide valve
bracket bolts (1)

10. Remove the turbocharging pressure regulation solenoide valve

bracket.

11. Disconnect the particle filter sensor (1), (2) and (3).
12. Remove the particle sensor connector bracket.

E1BIA0625ZZ

E1BIA0626ZZ

E1BIA0627ZZ

E1BIA0628ZZ

PARTICLE FILTER TEMPERATURE SENSORS

EX-33

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

13. Remove the particle filter. Refer to

EX-24, "Removal and installation"

.

14. Remove the particle filter pressure sensor from the Particle filter on the workbench Refer to

EX-24,

"Exploded View"

.

INSTALLATION

• Note the following, and install in the reverse order of removal.

CAUTION:

• Before installing particle filter pressure sensor, clean particle filter thread.
• Be careful not to impact or damage particle filter pressure sensor.
• When installing never use such tools as an air impact wrench.

ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010305308

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.
