Nissan Qashqai J11. Manual - part 589





ACCELERATOR CONTROL SYSTEM

ACC-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

REMOVAL AND INSTALLATION

ACCELERATOR CONTROL SYSTEM

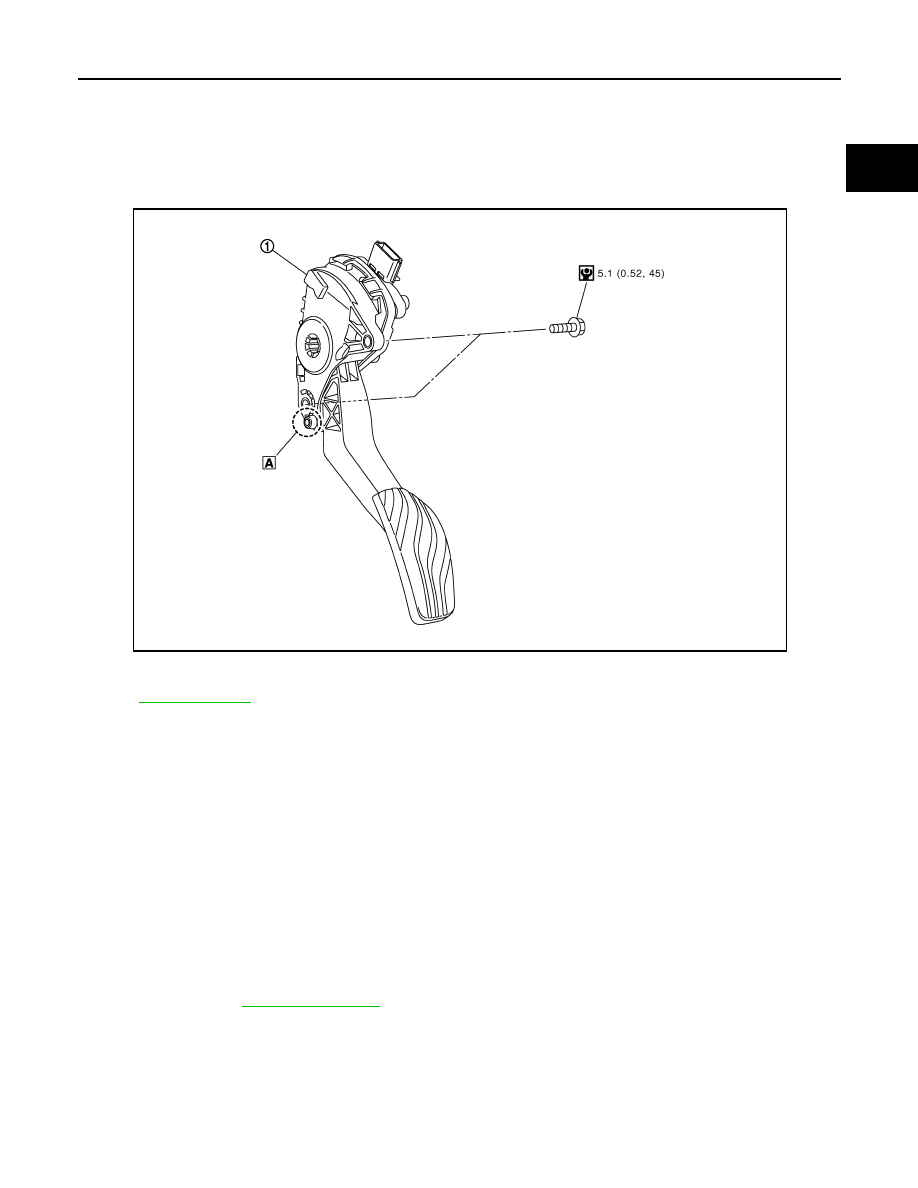

Exploded View

INFOID:0000000010305318

Removal and Installation

INFOID:0000000010305319

REMOVAL

1.

Disconnect the harness connector from the accelerator pedal assembly.

2.

Remove the bolts, then remove accelerator pedal assembly.

CAUTION:

• Never disassemble accelerator lever. Never remove accelerator pedal position sensor from

accelerator lever.

• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator lever away from water.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Insert locating pin into vehicle side to position accelerator pedal assembly. Install mounting bolt to accelera-

tor pedal assembly.

For inspection, refer to

ACC-3, "Inspection"

Inspection

INFOID:0000000010305320

INSPECTION AFTER INSTALLATION

1.

Accelerator pedal assembly

A.

Locating pin

Refer to

GI-4, "Components"

 for symbols in the figure.

E1BIA1033GB

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR CONTROL SYSTEM

• Check that the accelerator pedal moves smoothly within the speci-

fied range.

• Check the accelerator pedal height.

• If accelerator pedal does not meet specified values, check brake pedal height. Refer to

ACC-3, "Inspection"

.

• Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original

released position.

CAUTION:

• Whenever the harness connector of the accelerator pedal position sensor has been disconnected,

perform "Accelerator Pedal Released Position Learning".

• The accelerator pedal should operate smoothly without catching when the pedal operating force is

released. The pedal should return smoothly to the fully raised position. The spring should be free
from damage.

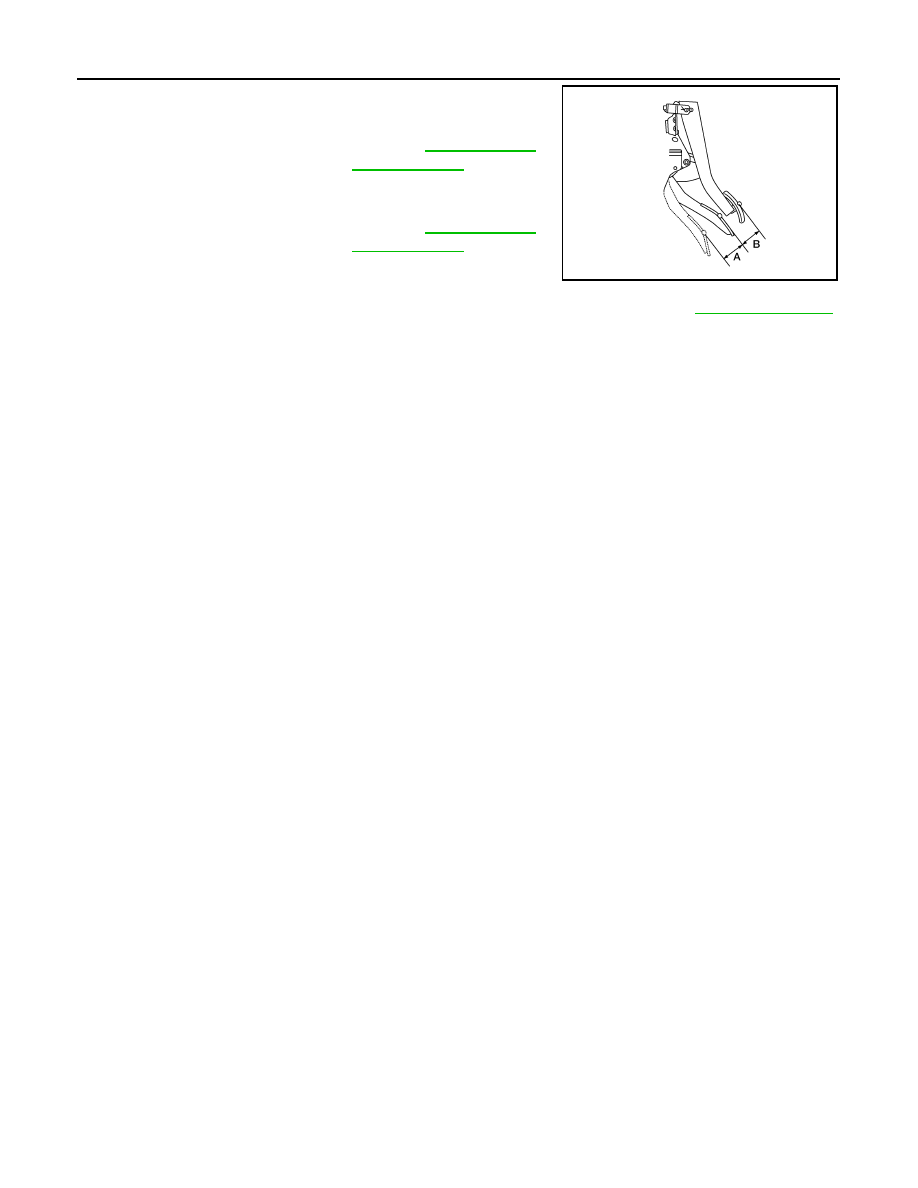

Accelerator pedal stroke (A)

: Refer to

ACC-5, "Accel-

erator Control"

Accelerator pedal stroke (B)

: Refer to

ACC-5, "Accel-

erator Control"

AWBIA1744ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

ACC-5

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

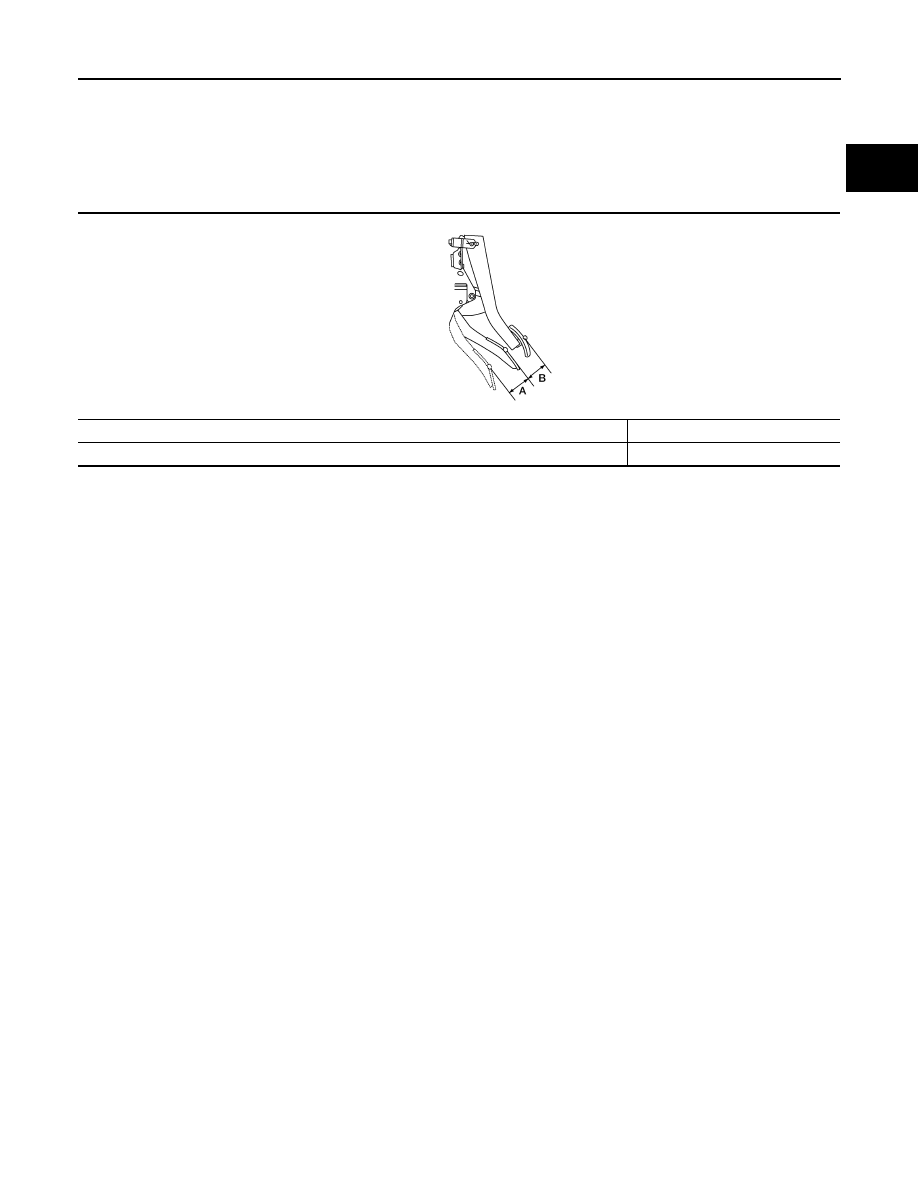

Accelerator Control

INFOID:0000000010427873

Unit: mm (in)

Accelerator pedal stroke (A)

49.6 - 52.4 (1.95 - 2.06)

Pedal height difference between accelerator and brake (B)

35 - 45 (1.38 - 1.77)

AWBIA1744ZZ

STR-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

STR

A

STR

N

O

P

CONTENTS

STARTING SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution for Stop/Start System Service .................

2

Precautions for Removing Battery Terminal  .............

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools  ........................................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Starter motor  .............................................................

6

SYSTEM ..............................................................

7

STARTING SYSTEM  ...................................................

7

STARTING SYSTEM : System Description  ..............

7

WIRING DIAGRAM  .......................................

9

STARTING SYSTEM ...........................................

9

Wiring Diagram  .........................................................

9

BASIC INSPECTION  ...................................

18

DIAGNOSIS AND REPAIR WORK FLOW  ........

18

Work Flow  ...............................................................

18

DTC/CIRCUIT DIAGNOSIS  .........................

20

B TERMINAL CIRCUIT  ......................................

20

Diagnosis Procedure  ...............................................

20

S TERMINAL CIRCUIT  .....................................

22

Diagnosis Procedure  ...............................................

22

SYMPTOM DIAGNOSIS  ..............................

23

STARTING SYSTEM .........................................

23

Symptom Table  .......................................................

23

REMOVAL AND INSTALLATION  ...............

24

STARTER MOTOR  ...........................................

24

HRA2DDT ..................................................................

24

HRA2DDT : Exploded View .....................................

24

HRA2DDT : Removal and Installation  .....................

24

MR20DD .....................................................................

24

MR20DD : Exploded View  .......................................

25

MR20DD : Removal and Installation  .......................

26

MR20DD : Disassembly and Assembly ...................

26

MR20DD : Inspection  ..............................................

27

K9K ............................................................................

30

K9K : Exploded View  ...............................................

30

K9K : Removal and Installation  ...............................

30

R9M ............................................................................

31

R9M : Exploded View  ..............................................

31

R9M : Removal and Installation ...............................

32

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

34

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

34

Starter Motor ...........................................................

34
