EXHAUST GAS TEMPERATURE SENSOR

• Install the exhaust gas temperature sensor on the exhaust gas cooler on the workbench using the tool [SST:

— (Mot.1807)] and the tool [SST: — (Ms.1973)].

• Note the following, and install in the reverse order of removal.

CAUTION:

• Before installing a new exhaust gas temperature sensor, clean exhaust gas cooler thread.
• Be careful not to impact or damage exhaust gas temperature sensor.
• When installing, never use such tools as an air impact wrench

EXHAUST GAS PRESSURE SENSOR

EX-29

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

EXHAUST GAS PRESSURE SENSOR

Removal and installation

INFOID:0000000010287100

REMOVAL

1.

Disconnect the batterie negative terminal.

2.

Remove cowl top cover and  extension cowl top. Refer to

EXT-29, "Exploded View"

3.

Remove the oxygen sensor. Refer to

EX-24, "Exploded View"

4.

Disconnect the exhaust gas pressure sensor connector.

5.

Remove:

-

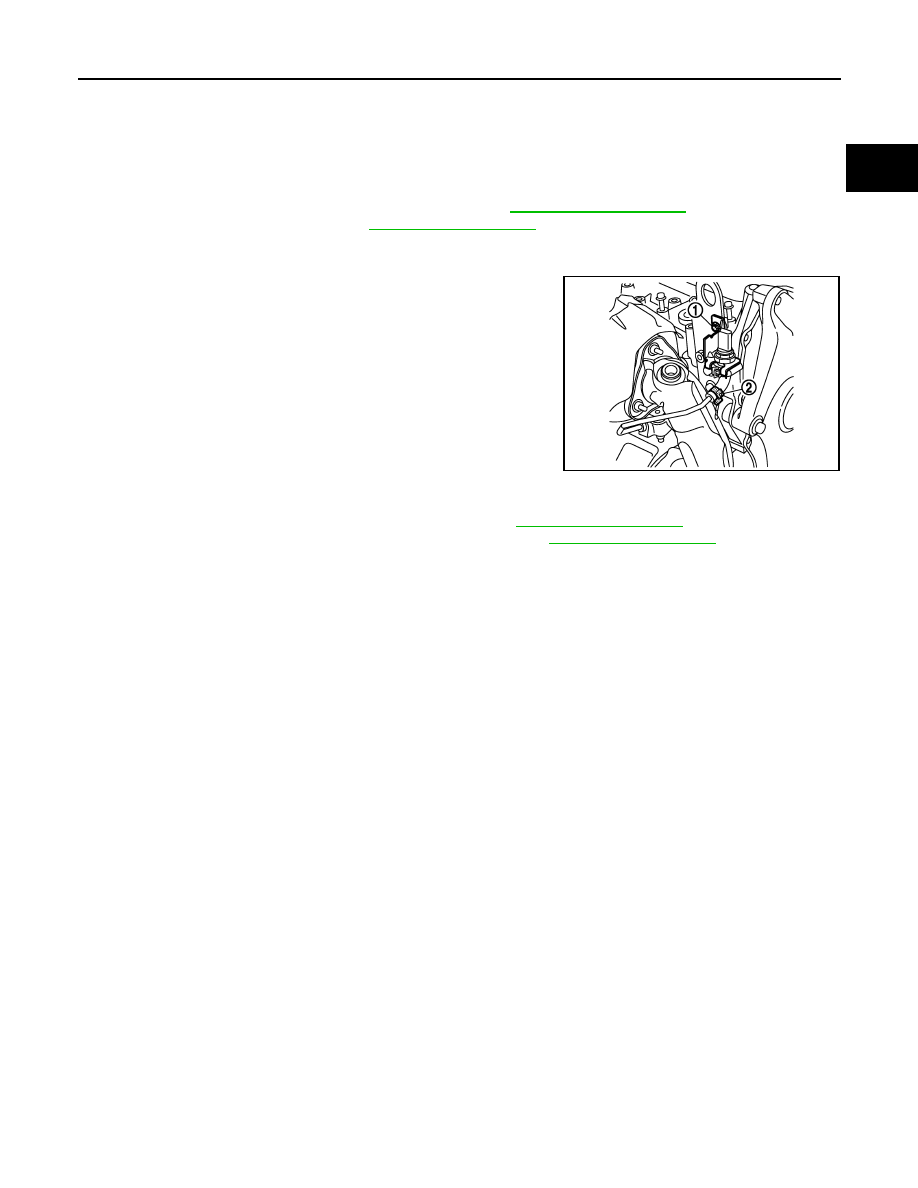

the bolt (1) from the exhaust gas pressure sensor bracket.

-

the clip (2) between the exhaust gas pressure sensor hose and
take-off pipe.

6.

Remove the exhaust gas pressure sensor and hose assembly.

7.

Remove the exhaust gas pressure sensor clamp. Refer to

EX-24, "Exploded View"

8.

Separate the exhaust gas pressure sensor from hose. Refer to

EX-24, "Exploded View"

9.

Separate the exhaust gas pressure sensor from bracket.

INSTALLATION

• Note the following, and install in the reverse order of removal.

NOTE:
Always replace the clamp between the exhaust gas pressure sensor hose and the take-off pipe.

E1BIA0623ZZ

EX-30

< REMOVAL AND INSTALLATION >

[R9M]

PARTICLE FILTER PRESSURE SENSOR

PARTICLE FILTER PRESSURE SENSOR

Removal and installation

INFOID:0000000010287101

REMOVAL

1.

Disconnect the batterie negative terminal.

2.

Remove cowl top cover and  extension cowl top. Refer to

EXT-29, "Exploded View"

3.

Remove the air inlet pipe

4.

Remove the air duct inlet.

5.

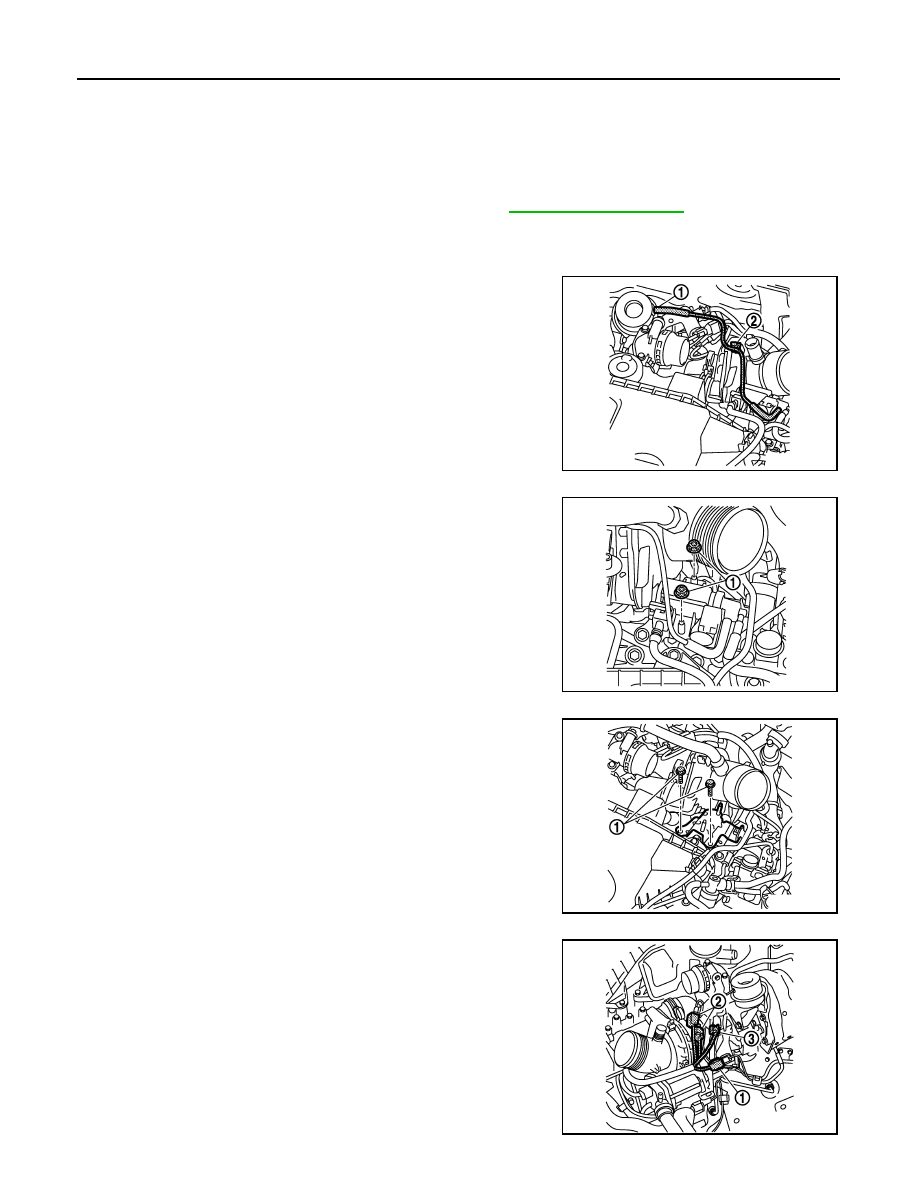

Disconnect the turbocharging pressure regulation vacumm hose
from turbocharger (1).

6.

Unclip the turbocharging pressure regulation vacumm hose (2)

7.

Remove the turbocharging pressure regulation solenoide valve
nuts (1)

8.

Move aside the turbocharging pressure regulation solenoide
valve

9.

Remove the turbocharging pressure regulation solenoide valve
bracket bolts (1)

10. Remove the turbocharging pressure regulation solenoide valve

bracket.

11. Disconnect the particle filter sensor (1), (2) and (3).
12. Remove the particle sensor connector bracket.

E1BIA0625ZZ

E1BIA0626ZZ

E1BIA0627ZZ

E1BIA0628ZZ

PARTICLE FILTER PRESSURE SENSOR

EX-31

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

13. Remove the particle filter. Refer to

EX-24, "Removal and installation"

.

14. Remove the particle filter pressure sensor from the Particle filter on the workbench Refer to

EX-24,

"Exploded View"

.

INSTALLATION

• Note the following, and install in the reverse order of removal.

CAUTION:

• Before installing particle filter pressure sensor, clean particle filter thread.
• Be careful not to impact or damage particle filter pressure sensor.
• When installing never use such tools as an air impact wrench.
