ENGINE MAINTENANCE (R9M)

MA-131

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

2.

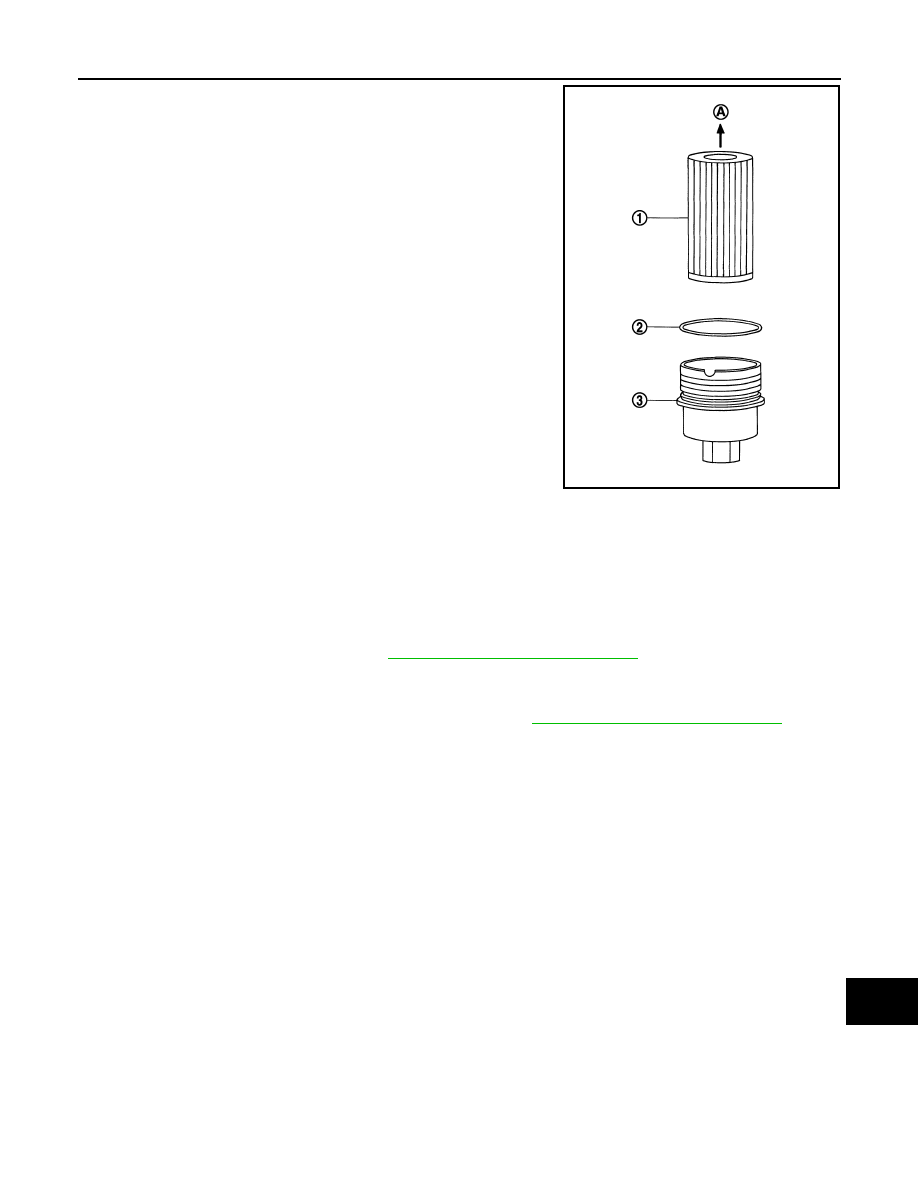

Install oil filter (1) and O-ring (2) to oil filter body (3).

CAUTION:

Be sure to use a new O-ring.
• Securely press the oil filter into the oil filter body.
• When installing an O-ring, apply engine oil all around the O-

ring.

3.

Install oil filter body assembly to oil cooler.

OIL FILTER : Inspection

INFOID:0000000011497369

INSPECTION AFTER INSTALLATION

1.

Check that the engine oil level. Refer to

MA-128, "ENGINE OIL : Inspection"

.

2.

Start the engine, and check that there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check that the engine oil level, and adjust the level. Refer to

MA-128, "ENGINE OIL : Inspection"

.

A

: Oil cooler side

E1BIA0600ZZ

Oil filter body:

25Nm (2.6 kg-m, 18 ft-lb)

MA-132

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

CHASSIS MAINTENANCE

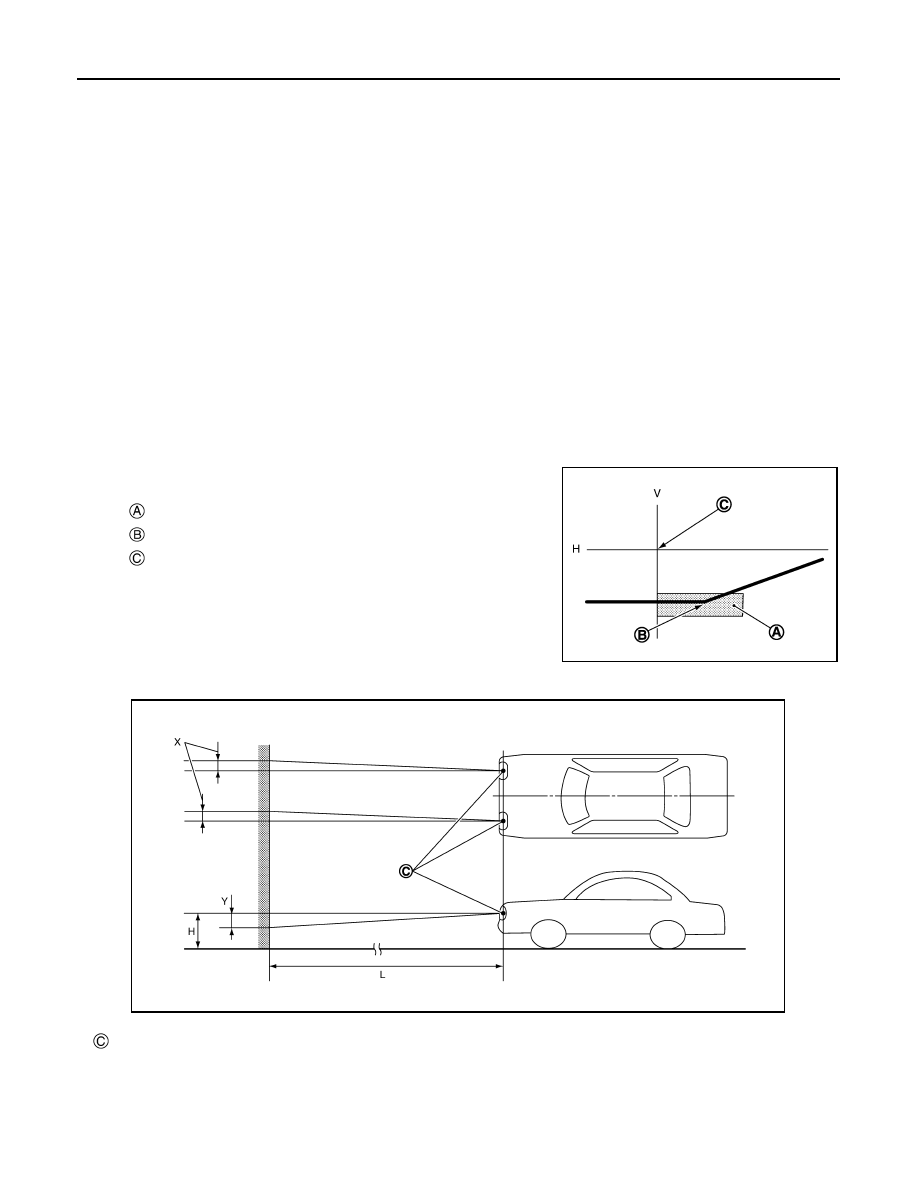

HEADLAMP AIMING ADJUSTMENT (LED TYPE - LHD)

HEADLAMP AIMING ADJUSTMENT (LED TYPE - LHD) : Aiming Adjustment Proce-
dure

INFOID:0000000011497329

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.
Low beam distribution on the screen

Aiming adjustment area

Elbow point

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

JSLIA0030ZZ

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(Lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

JSLIA0031ZZ

CHASSIS MAINTENANCE

MA-133

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Unit: mm (in)

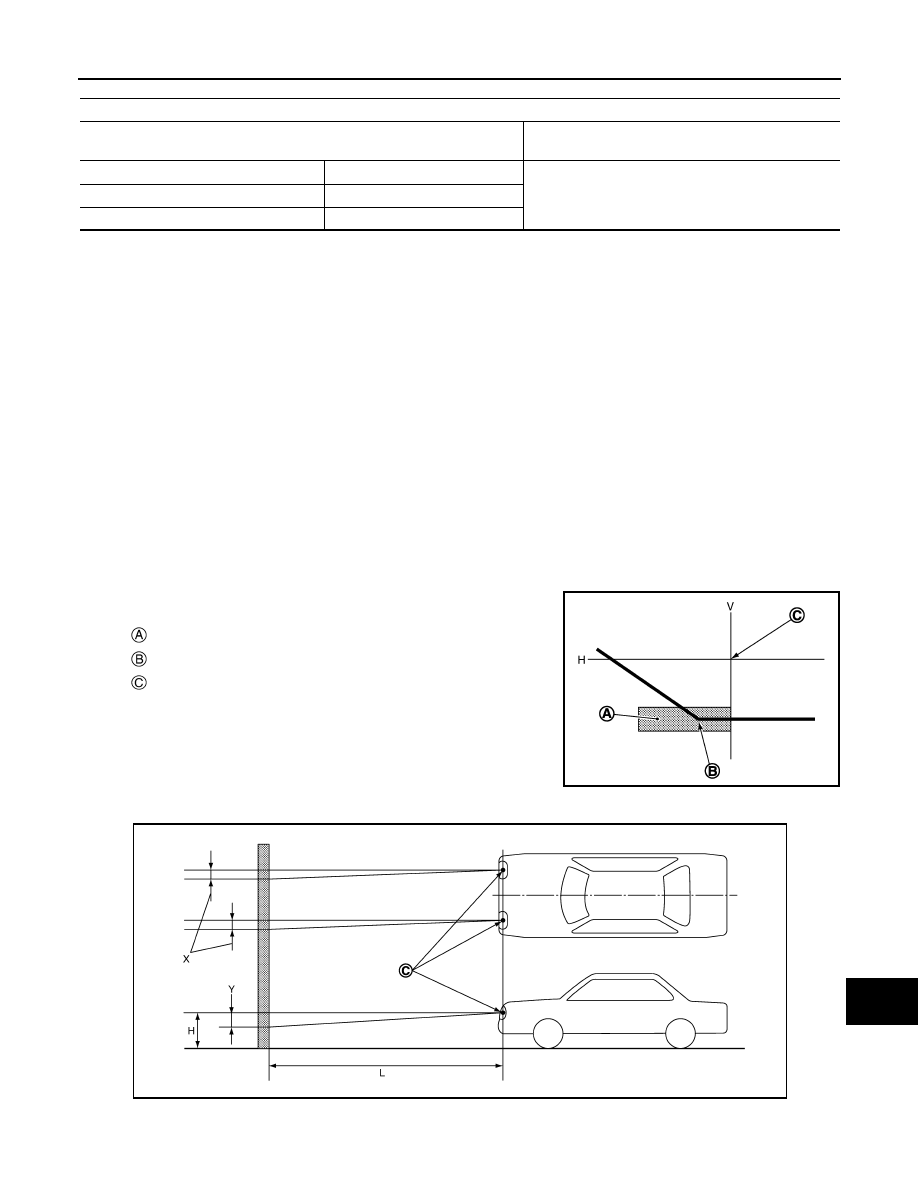

HEADLAMP AIMING ADJUSTMENT (LED TYPE - RHD)

HEADLAMP AIMING ADJUSTMENT (LED TYPE - RHD) : Aiming Adjustment Proce-
dure

INFOID:0000000011497330

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.
Low beam distribution on the screen

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right side from headlamp center line)

Highest light axis

100 (3.94)

0 - 100 (3.94)

Target light axis

100 (3.94)

Lowest light axis

130 (5.12)

Aiming adjustment area

Elbow point

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

JSLIA0028ZZ

JSLIA0029ZZ

MA-134

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

Unit: mm (in)

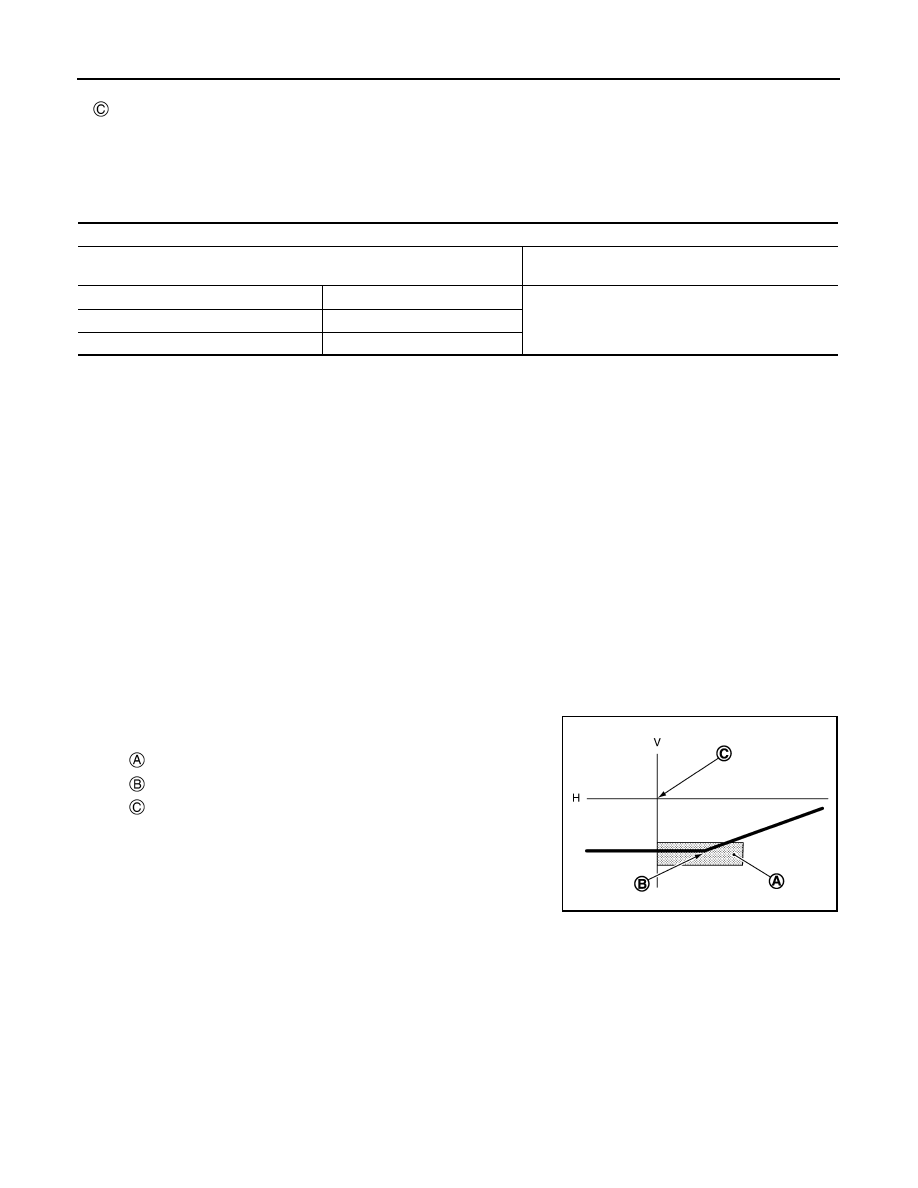

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE - LHD)

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE - LHD) : Aiming Adjustment
Procedure

INFOID:0000000011497334

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.
Low beam distribution on the screen

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(Lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Left side from headlamp center line)

Highest light axis

100 (3.94)

0 - 100 (3.94)

Target light axis

100 (3.94)

Lowest light axis

130 (5.12)

Aiming adjustment area

Elbow point

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

JSLIA0030ZZ
