CHASSIS MAINTENANCE

MA-135

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Unit: mm (in)

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE - RHD)

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE - RHD) : Aiming Adjustment
Procedure

INFOID:0000000011497336

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

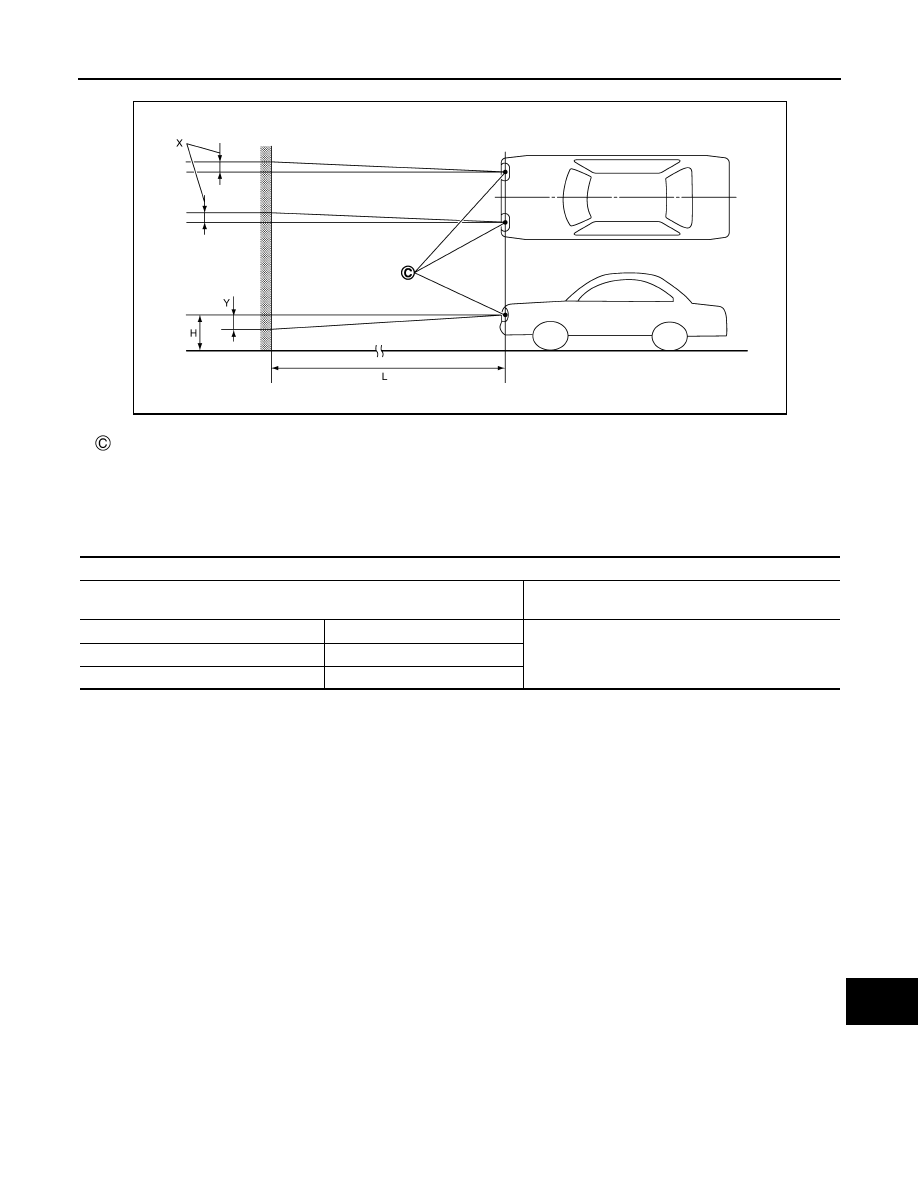

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(Lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right side from headlamp center line)

Highest light axis

100 (3.94)

0 - 100 (3.94)

Target light axis

100 (3.94)

Lowest light axis

130 (5.12)

JSLIA0031ZZ

MA-136

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

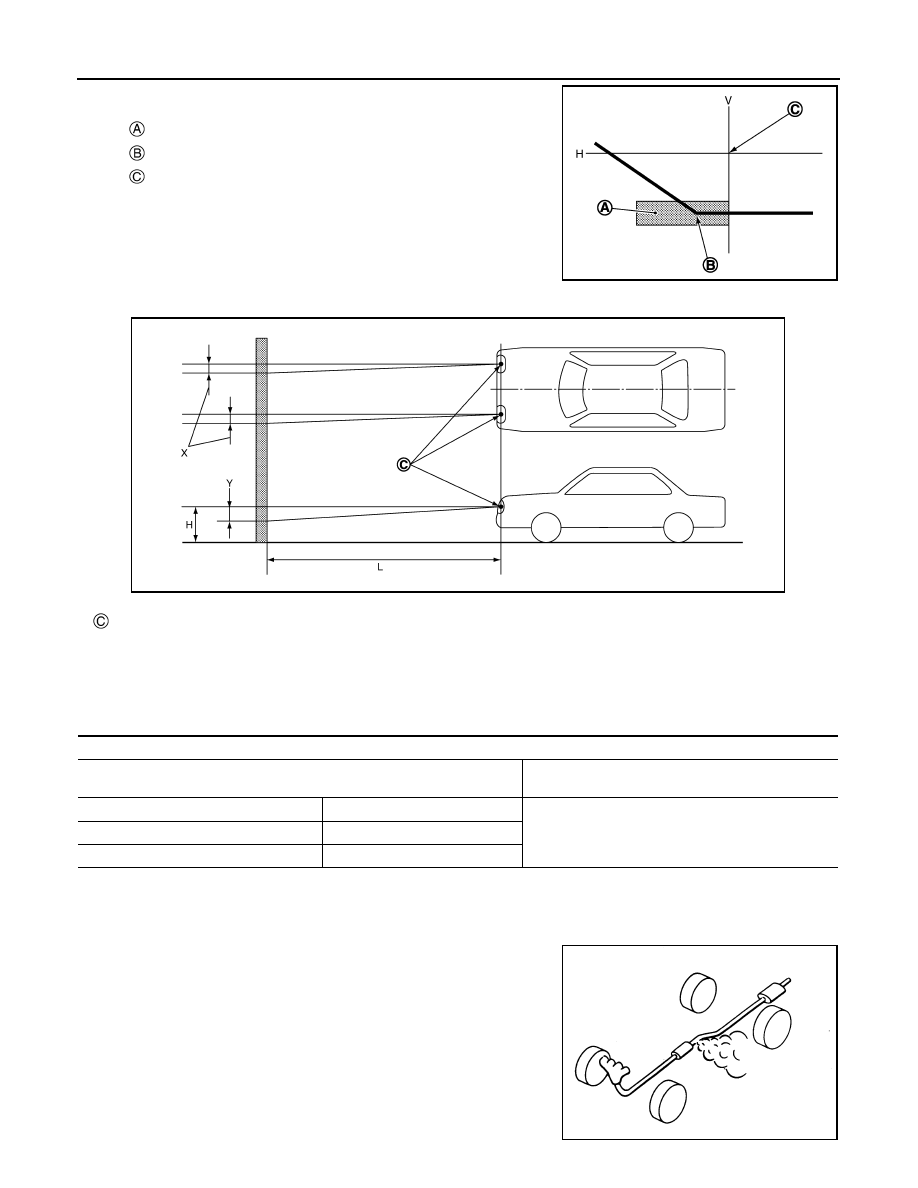

Low beam distribution on the screen

Unit: mm (in)

EXHAUST SYSTEM

EXHAUST SYSTEM : Inspection

INFOID:0000000010355390

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

Aiming adjustment area

Elbow point

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

JSLIA0028ZZ

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(Lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Left side from headlamp center line)

Highest light axis

100 (3.94)

0 - 100 (3.94)

Target light axis

100 (3.94)

Lowest light axis

130 (5.12)

JSLIA0029ZZ

SMA211A

CHASSIS MAINTENANCE

MA-137

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

CVT FLUID (RE0F10G)

CVT FLUID (RE0F10G) : Inspection

INFOID:0000000011497339

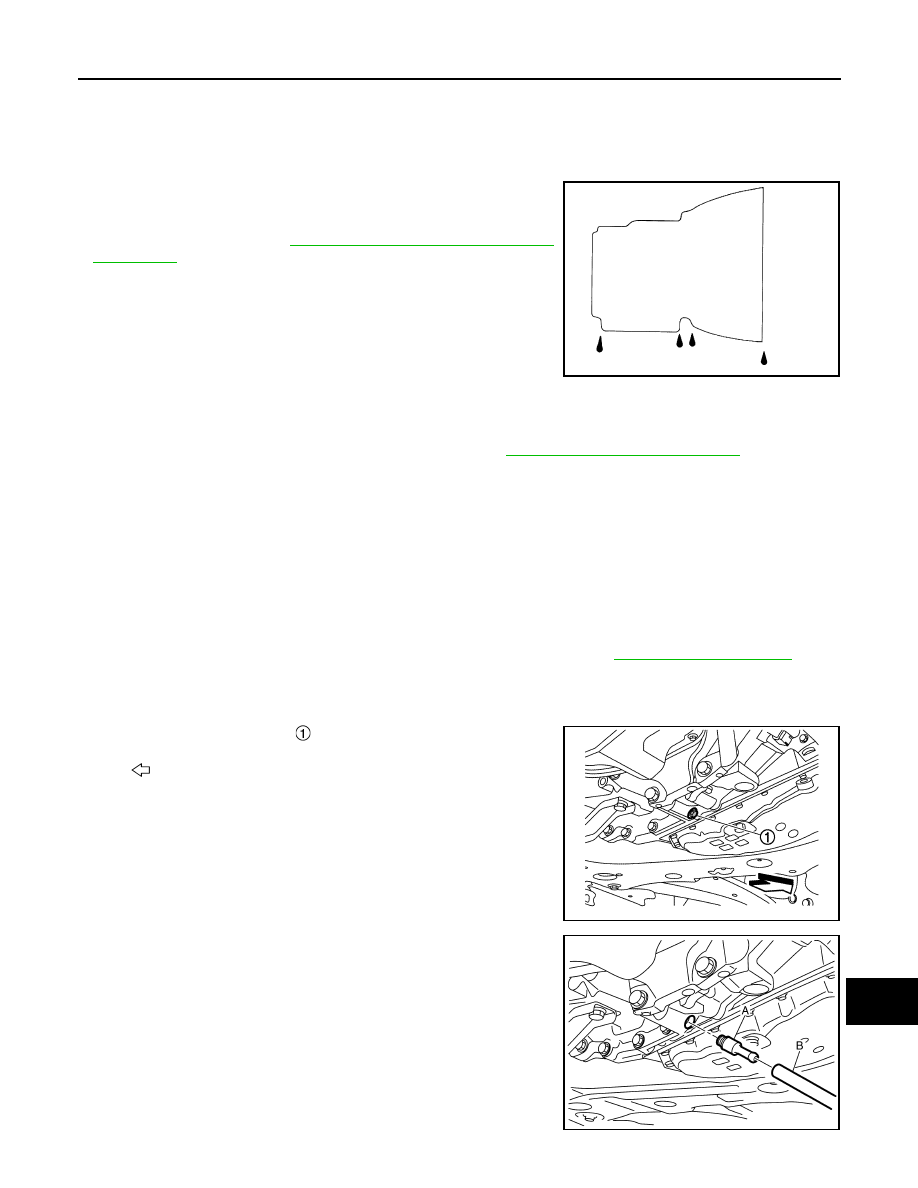

FLUID LEAKAGE

• Check transaxle surrounding area (oil seal and plug etc.)for fluid

leakage.

• If anything is found, repair or replace damaged parts and adjust

CVT fluid level. Refer to

MA-138, "CVT FLUID (RE0F10G) :

Adjustment"

.

CVT FLUID (RE0F10G) : Replacement

INFOID:0000000011497340

CAUTION:

• Always use shop paper. Never use shop cloth.
• Replace a drain plug gasket with new ones at the final stage of the operation when installing.
• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
• After replacement, always perform CVT fluid leakage check.
1.

Select “Data Monitor” in “TRANSMISSION” using CONSULT.

2.

Select “FLUID TEMP” and confirm that the CVT fluid temperature is 40

°

C (104

°

F) or less.

3.

Check that the selector lever is in the “P” position, then completely engage the parking brake.

4.

Lift up the vehicle.

5.

Remove the drain plug and drain the CVT fluid from the oil pan. Refer to

TM-636, "Exploded View"

.

6.

Install the drain plug to oil pan.

CAUTION:

Drain plug gasket use the old one.

7.

Remove the overflow plug

 from converter housing.

8.

Install the charging pipe set (KV311039S0) (A) into the overflow
plug hole.

CAUTION:

Tighten the charging pipe by hand.

9.

Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging
pipe until it stops.

10. Fill approximately 3 liter (2-5/8 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose and charging pipe, then install

the overflow plug.

SMA146B

Recommended fluid and fluid capacity

: Refer to

MA-64, "Fluids and Lubricants"

.

: Vehicle front

JSDIA3714ZZ

JSDIA3713ZZ

MA-138

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

NOTE:
Perform this work quickly because CVT fluid leaks.

12. Lift down the vehicle.

13. Start the engine.

14. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “D”, and shift it

to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.

15. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35

°

C (95

°

F) to 45

°

C (113

°

F).

16. Stop the engine.

17. Lift up the vehicle.

18. Remove the drain plug, and then drain CVT fluid from oil pan.
19. Repeat steps 6 to 18 (one time).

20. Tighten the drain plug to the specified torque. Refer to

TM-636, "Exploded View"

.

21. Remove the overflow plug.
22. Install the charging pipe set (KV311039S0) into the overflow plug hole.

CAUTION:

Tighten the charging pipe by hand.

23. Install the ATF changer hose to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging pipe until it stops.

24. Fill approximately 3 liter (2-5/8 lmp qt) of the CVT fluid.

25. Remove the ATF changer hose and charging pipe, then install the overflow plug.

NOTE:
Perform this work quickly because CVT fluid leaks.

26. Lift down the vehicle.

27. Start the engine.
28. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “D”, and shift it

to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.

29. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35

°

C (95

°

F) to 45

°

C (113

°

F).

30. Lift up the vehicle.
31. Remove the overflow plug and confirm that the CVT fluid is drained from the overflow plug hole.

CAUTION:

Perform this work with the vehicle idling.
NOTE:
If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid.

32. When the flow of CVT fluid slows to a drip, tighten the overflow plug to the specified torque. Refer to

TM-

636, "Exploded View"

.

CAUTION:

Never reuse O-ring.

33. Lift down the vehicle.

34. Select “Data Monitor” in “TRANSMISSION” using CONSULT.

35. Select “CONFORM CVTF DETERIORTN”.
36. Select “Erase”.

37. Perform air bleeding of electric oil pump. Refer to

TM-514, "Work Procedure"

.

38. Stop the engine.

CVT FLUID (RE0F10G) : Adjustment

INFOID:0000000011497341

CAUTION:

Recommended fluid and fluid capacity

: Refer to

MA-64, "Fluids and Lubricants"

.
