DAS-106

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

Change the magnification of print to 250 mm (9.84 in)

×

 250 mm (9.84 in) and print the target mark sample.

JSOIA0633ZZ

DAS

ACTION TEST

DAS-107

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ACTION TEST

LDW

LDW : Description

INFOID:0000000010416827

• Perform action test to verify the customer's concern.
• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for LDW: Refer to

DAS-15, "LDW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Lane Departure Warning"

.

LDW : Inspection Procedure

INFOID:0000000010416828

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for LDW: Refer to

DAS-15, "LDW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Lane Departure Warning"

.

1.

CHECK LDW SYSTEM SETTING

1.

Start the engine.

2.

Check that the LDW system setting can be enabled/disabled on the vehicle information display.

3.

Turn OFF the ignition switch and wait for 30 seconds or more.

4.

Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

2.

ACTION TEST FOR LDW

1.

Enable the setting of the LDW system on the vehicle information display.

2.

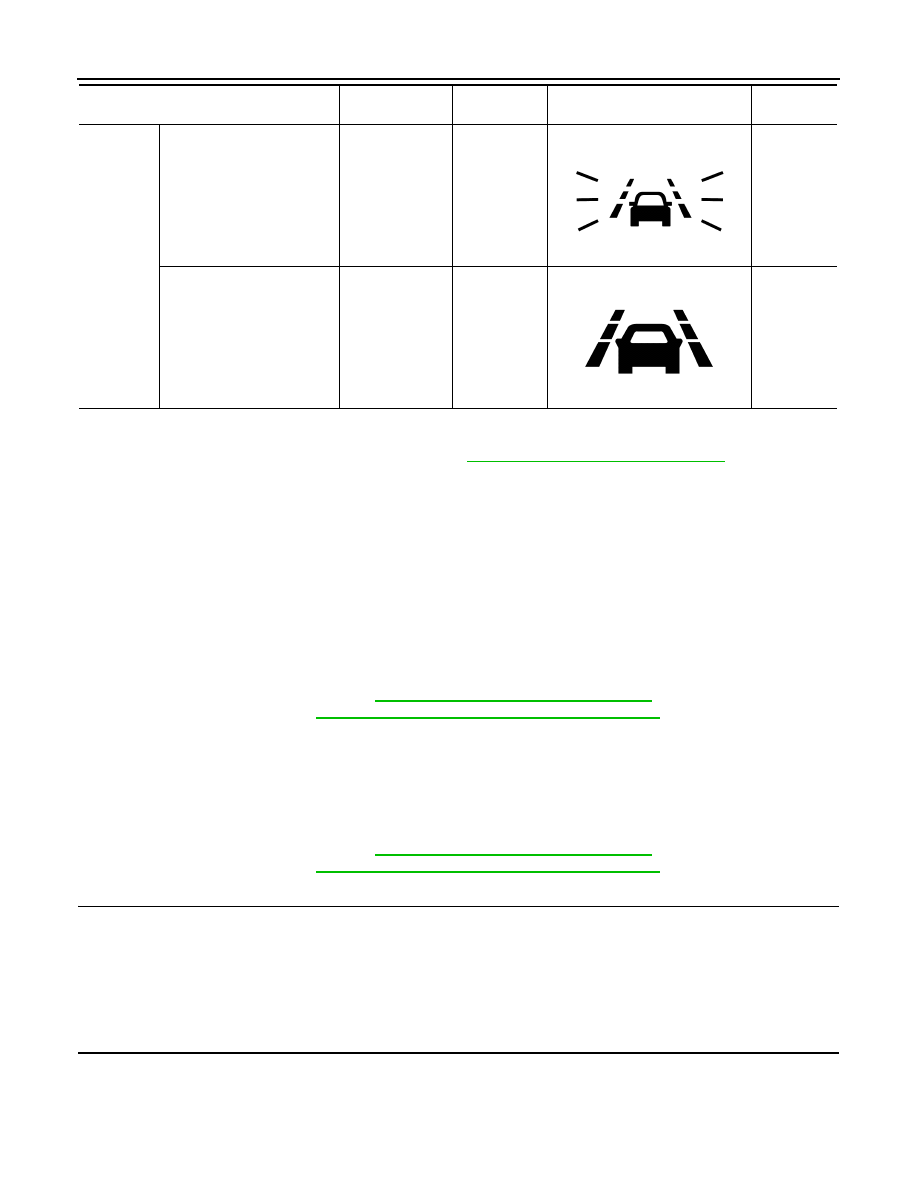

Check the LDW operation according to the following table.

Vehicle condition/ Driver's operation

Action

LDW ON indi-

cator

Indication on the combination

meter

Buzzer

Less than

Approx. 55

km/h (34

MPH)

Close to lane marker

No action

ON

White

OFF

JSOIA1422ZZ

DAS-108

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ACTION TEST

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed
reaches approximately 55 km/h (34 MPH). Refer to

DAS-15, "LDW : System Description"

.

>> Inspection End.

BSW

BSW : Description

INFOID:0000000010416829

• Perform action test to verify the customer

′

s concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for BSW: Refer to

DAS-17, "BSW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Blind Spot Warning"

.

BSW : Inspection Procedure

INFOID:0000000010416830

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for BSW: Refer to

DAS-17, "BSW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Blind Spot Warning"

.

1.

CHECK BSW SYSTEM SETTING

1.

Start the engine.

2.

Check that the BSW system setting can be enabled/disabled on the vehicle information display.

3.

Turn OFF the ignition switch and wait for 30 seconds or more.

4.

Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

2.

ACTION TEST FOR BSW

1.

Enable the setting of the BSW system on the vehicle information display.

2.

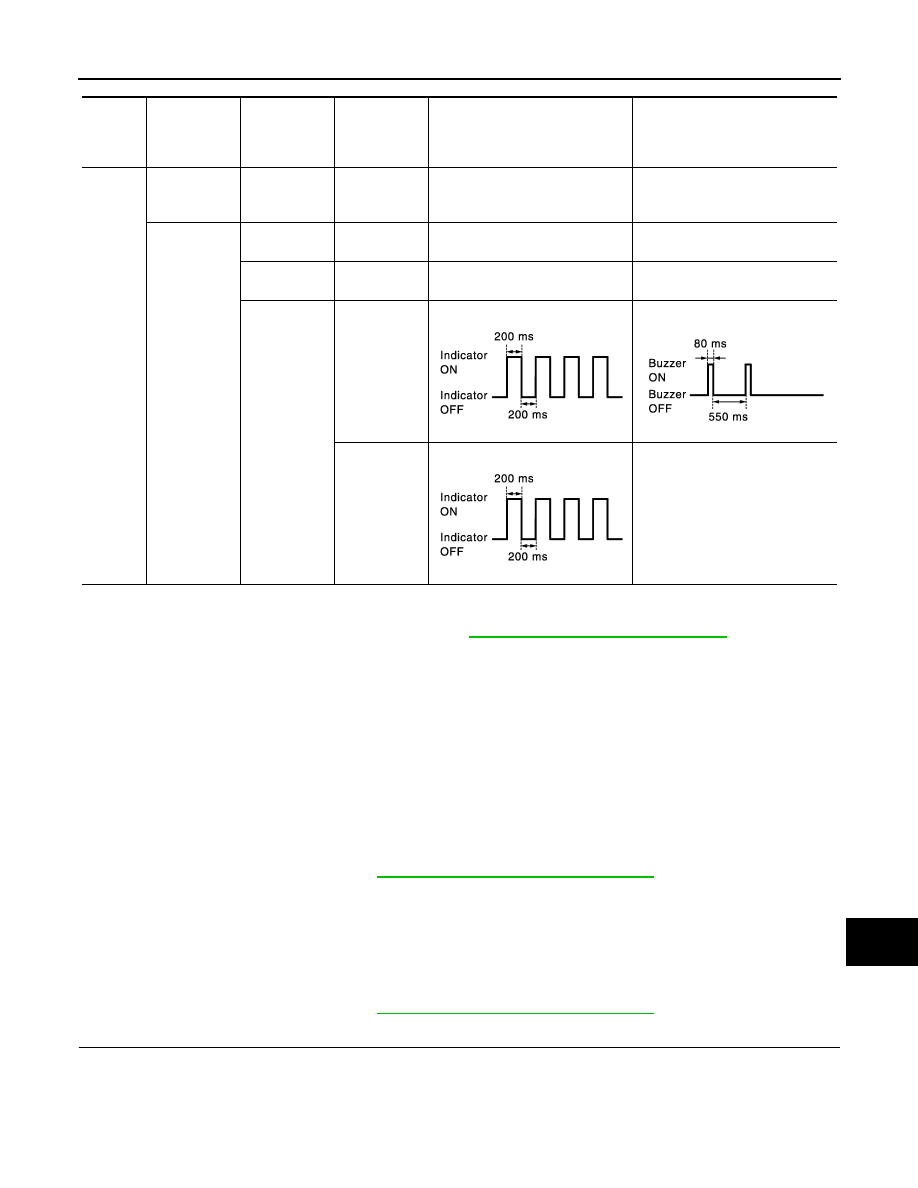

Check the BSW operation according to the following table.

Approx. 60

km/h (37

MPH) or

more

Close to lane marker

Warning

• Buzzer sounds
• Warning lamp

blinks

ON

OFF  (orange) Blink

Short contin-

uous beeps

• Close to lane marker
• Turn signal ON (Deviate

side)

No action

ON

White

OFF

Vehicle condition/ Driver's operation

Action

LDW ON indi-

cator

Indication on the combination

meter

Buzzer

JSOIA1367ZZ

JSOIA1422ZZ

DAS

ACTION TEST

DAS-109

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Vehicle condition/Driver

′

s operation

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed
reaches approximately 29 km/h (18 MPH). Refer to

DAS-17, "BSW : System Description"

.

>> Inspection End.

MOD

MOD : Description

INFOID:0000000010416831

• Perform action test to verify the customer's concern.
• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for MOD: Refer to

DAS-22, "MOD : System Description"

.

MOD : Inspection Procedure

INFOID:0000000010416832

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for MOD: Refer to

DAS-22, "MOD : System Description"

.

1.

CHECK MOD SYSTEM SETTING

1.

Start the engine.

2.

Check that the MOD system setting can be enabled/disabled on the vehicle information display.

3.

Turn OFF the ignition switch and wait for 30 seconds or more.

4.

Check that the previous setting is saved when the engine starts again.

Warning
systems

ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of vehi-

cle detection
within detec-

tion area

Indication on the combination

meter

Buzzer

ON

Less than Ap-

prox. 29 km/h

(18 MPH)

—

—

OFF

OFF

Approx. 32

km/h (20

MPH) or more

—

Vehicle is ab-

sent

OFF

OFF

OFF

Vehicle is de-

tected

ON

OFF

ON (vehicle
detected di-
rection)

Before turn

signal oper-

ates vehicle is

detected

Blink

Short continuous beeps

Vehicle is de-

tected after

turn signal op-

erates

Blink

OFF

JSOIA0251GB

JSOIA0252GB

JSOIA0251GB
