Nissan Qashqai J11. Manual - part 2172





DAS-102

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

>> Refer to

DAS-102, "Work Procedure (Target Setting)"

.

Work Procedure (Target Setting)

INFOID:0000000010619790

CAUTION:

• Perform this operation in a horizontal position where there is a clear view for 3 m (9.84 ft) backward

and 4 m (13.12 ft) wide.

• Place the target in a well-lighted location. (Poor lighting may make it hard to adjust.)
• The target may not be detected when it shines by the reflected light of the sun or lighting.
• The target may not be detected when there is the same pattern of black and white as the target when

the pattern is within 0.5 m (1.64 ft) from either side and upward/downward position from the target. (It
is desirable that the target is positioned on the single-color floor.)

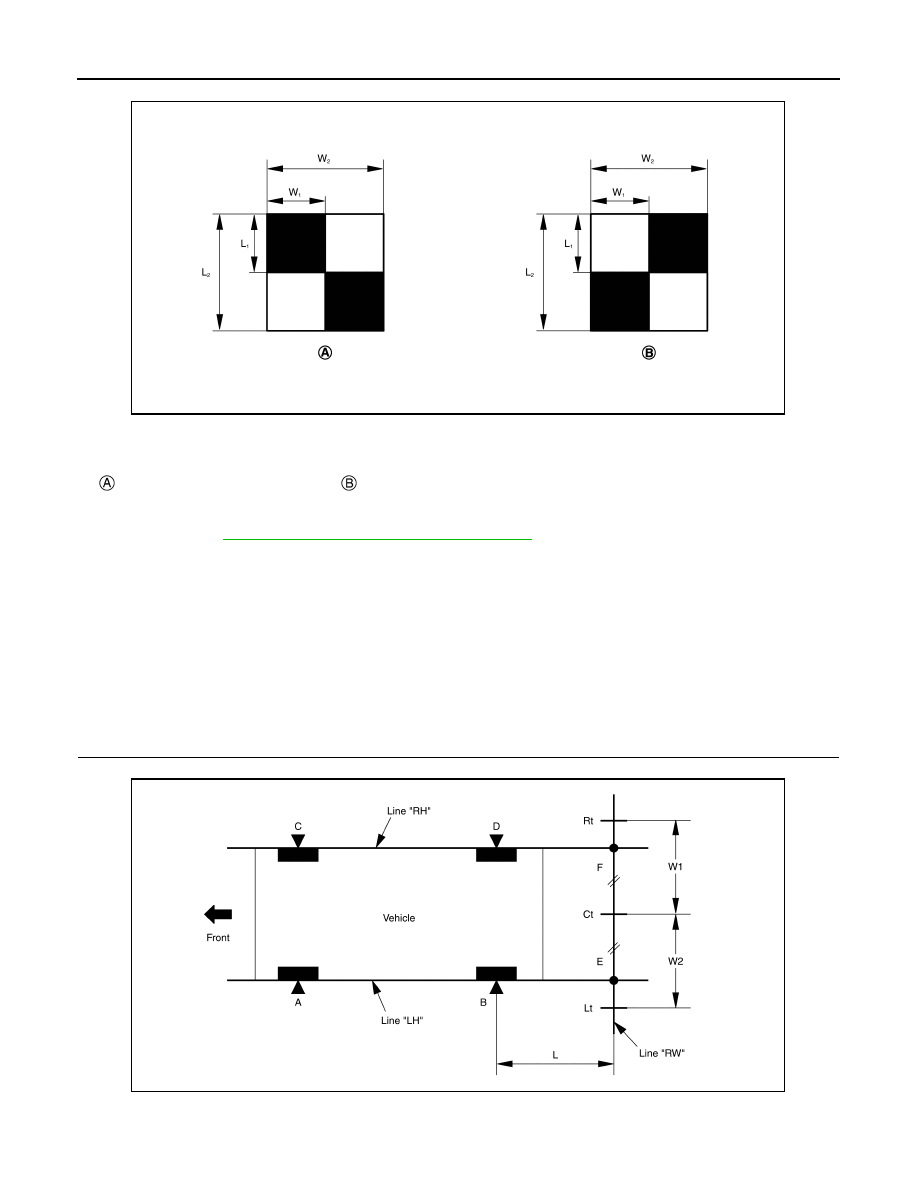

1.

TARGET SETTING

W

1

:250 mm (9.84 in)

W

2

:500 mm (19.69 in)

L

1

:250 mm (9.84 in)

L

2

:500 mm (19.69 in)

Left target and right target

Center target

JSOIA0630ZZ

JSOIA1098GB

DAS

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

DAS-103

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

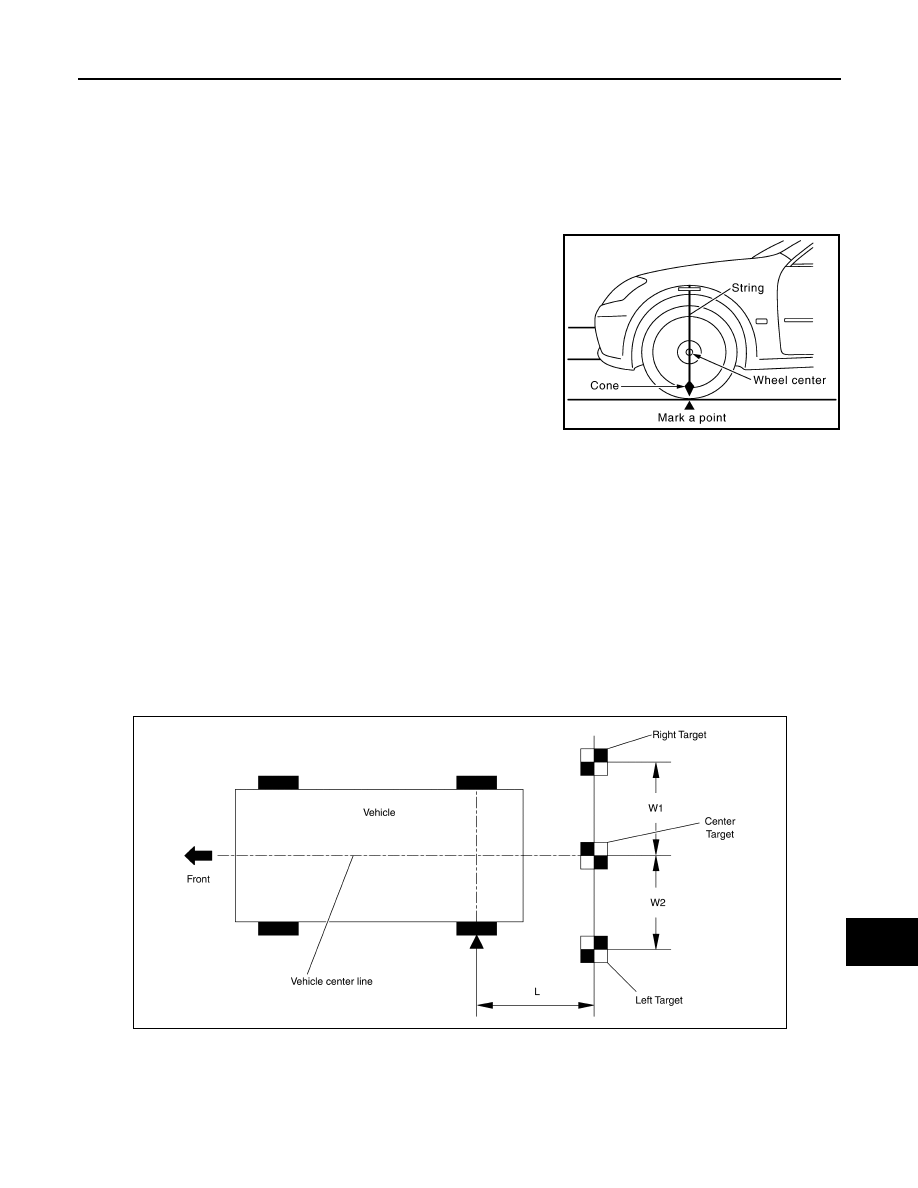

1.

Mark points “A”, “B”, “C” and “D” at the center of the lateral sur-
face of each wheel.
NOTE:
Hang a string with a cone from the fender so as to pass through
the center of wheel, and then mark a point at the center of the
lateral surface of the wheel.

2.

Draw line “LH” passing through points “A” and “B” on the left side
of vehicle.
NOTE:
Approximately 2.2 m (7.22 ft) or more at the rear from the rear
axle.

3.

Mark point “E” on the line “LH” at the positions 1,854 mm (72.99
in) from point “B”.

4.

Draw line “RH” passing through points “C” and “D” on the right side of vehicle in the same way as step 2.
NOTE:
Approximately 2.2 m (7.22 ft) or more at the rear from the rear axle.

5.

Mark point E on the line “RH” at the positions 1,854 mm (72.99 in) from point “D”.

6.

Draw line “RW” passing through the points “E” and “F” on the rear of vehicle.
NOTE:
Approximately 1.8 m (5.91 ft) or more at both left and right sides from vehicle center.

7.

Mark point “Ct” at the center of point “E” and “F” on the line “RW”.

CAUTION:

Make sure that “E” to “Ct” is equal to “F” to “Ct”.

8.

Mark point “Lt” and “Rt” on the line “RW” at the positions 1,450 mm (57.09 in) from point “Ct”.

9.

Position the center of the target mark to point of “Ct”, “Lt” and “Rt”.

CAUTION:

To perform an accurate calibration, check that the black-and-white pattern is as shown in the fig-
ure. The pattern of the center target differs from that of right/left target.

Distance between B and E

: 1,854 mm (72.99 in)

Distance between D and F

: 1,854 mm (72.99 in)

Distance W1

: 1,450 mm (57.09 in)

Distance W2

: 1,450 mm (57.09 in)

Distance L

: 1,854 mm (72.99 in)

W1

: 1,450 mm (57.09 in)

W2

: 1,450 mm (57.09 in)

L

: 1,854 mm (72.99 in)

PKIB7667E

JSOIA1097GB

DAS-104

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

>> Refer to

DAS-104, "Work Procedure (Rear Camera Calibration)"

.

Work Procedure (Rear Camera Calibration)

INFOID:0000000010619791

CAUTION:

For accuracy, perform the calibration under the specified vehicle condition (Fuel full, no-load, speci-
fied tire pressure, etc.). Refer to

DAS-101, "Work Procedure (Preparation)"

.

1.

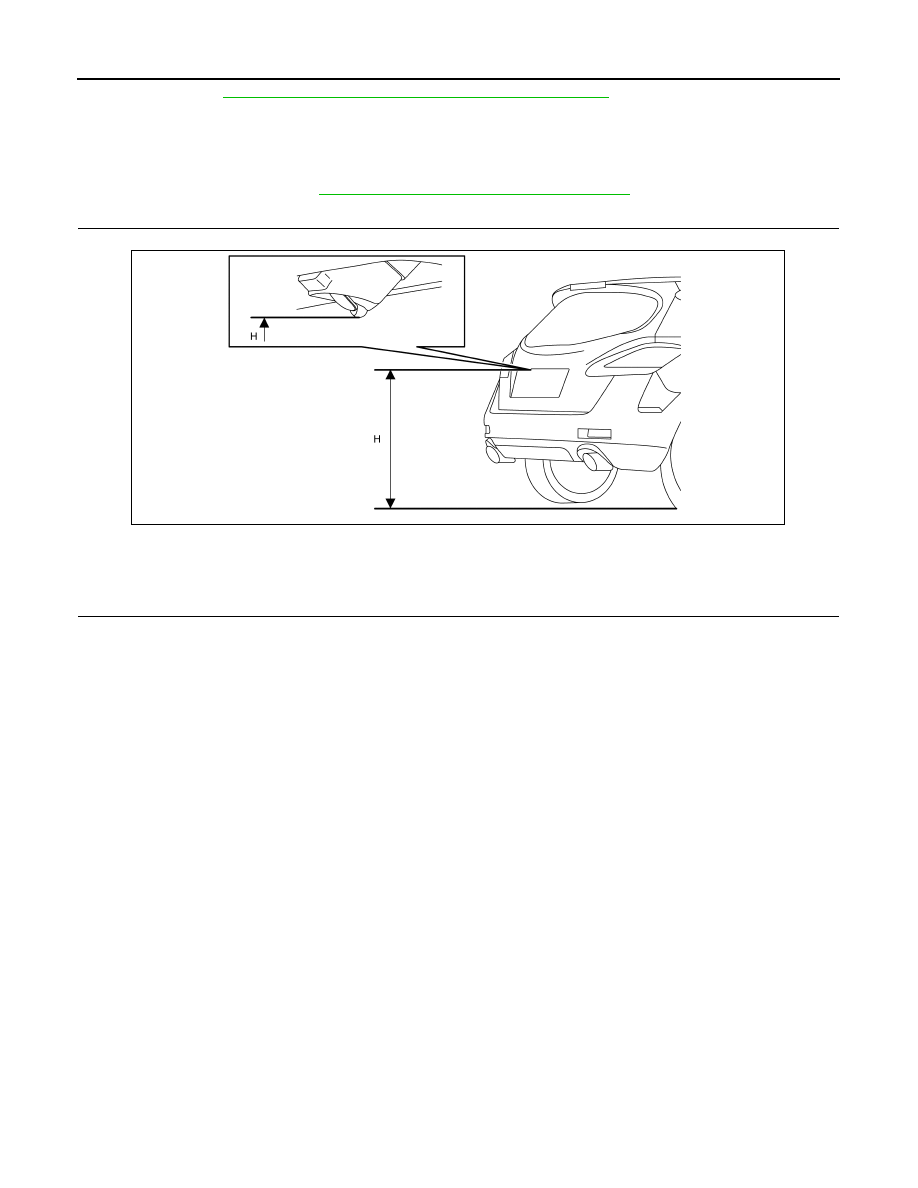

CHECK REAR CAMERA HEIGHT

Measure the rear camera height.

H:Rear camera height.

>> GO TO 2.

2.

REAR CAMERA CALIBRATION

1.

Select “Work Support” on “AVM” with CONSULT.

2.

Select “REAR CAMERA ITS” and then touch “Start”.

3.

Touch“OK”.

4.

Input the rear camera height “H”, and then touch “APPLY”.

5.

Confirm that the same value is displayed on the center display.

6.

Confirm the following items;

-

The target should be accurately placed.

-

The vehicle should be stopped.

-

The vehicle should be under the specified vehicle condition.

7.

Select “Start” to perform camera aiming.

CAUTION:

To properly maintain vehicle attitude, operate CONSULT outside the vehicle with all the doors
closed.

8.

Confirm the displayed item.

-

“Completed”: Select “Completion”.

-

“Not completed”: Perform the following services.

JSOIA0634ZZ

DAS

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

DAS-105

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

>> GO TO 3.

3.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis of around view monitor control unit with CONSULT (AVM).

Is any DTC detected?

YES

>> Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to

DAS-

49, "DTC Index"

.

NO

>> GO TO 4.

4.

ACTION TEST

Test the BSW system operation by action test. Refer to

DAS-108, "BSW : Description"

.

>> WORK END

Work Procedure (Target Mark Sample)

INFOID:0000000010619792

NOTE:

Displayed item

Code

Possible causes

Service procedure

Check the error contents
using the screen of naviga-
tion system.

11

• A target is not-yet-placed. (Center)
• Target mark reflects the light. (Center)

• Position the target appropriately again. (Center)

Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Center)

12

• A target is not-yet-placed. (Right)
• Target mark reflects the light. (Right)

• Position the target appropriately again. (Right)

Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Right)

13

• A target is not-yet-placed. (Left)
• Target mark reflects the light. (Left)

• Position the target appropriately again. (Left)

Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark. (Left)

21

A target is dirty. (Center)

Clean target mark. (Center)

22

A target is dirty. (Right)

Clean target mark. (Right)

23

A target is dirty. (Left)

Clean target mark. (Left)

51

• The position of the target is not correct.

(Center)

• Target mark reflects the light. (Center)
• The position of the rear camera is not

correct.

• Set target mark direction as shown in the figure.

(Center)
Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Center)

• Install rear camera properly

52

• The position of the target is not correct.

(Right)

• Target mark reflects the light. (Right)
• The position of the rear camera is not

correct.

• Set target mark direction as shown in the figure.

(Right)
Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Right)

• Install rear camera properly

53

• The position of the target is not correct.

(Left)

• Target mark reflects the light. (Left)
• The position of the rear camera is not

correct.

• Set target mark direction as shown in the figure.

(Left)
Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark. (Left)
• Install rear camera properly
