Nissan Qashqai J11. Manual - part 2157





DAS-42

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

AROUND VIEW MONITOR CONTROL UNIT

ECU DIAGNOSIS INFORMATION

AROUND VIEW MONITOR CONTROL UNIT

Reference Value

INFOID:0000000010416804

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ST ANGLE SENSOR SIGNAL

Around view monitor control unit is not receiving steering angle
sensor signal.

Off

Around view monitor control unit is receiving steering angle sen-
sor signal.

On

REVERSE SIGNAL

When selector lever is in any position other than R (reverse).

Off

When selector lever in R (reverse).

On

VEHICLE SPEED SIGNAL

While driving, equivalent to speedometer reading

mph, km/h

ILL

Illumination is ON

On

Illumination is OFF

Off

CAMERA SWITCH SIGNAL

CAMERA switch OFF.

Off

CAMERA switch ON.

On

CAMERA OFF SIGNAL

CAMERA switch ON.

Off

CAMERA switch OFF.

On

ST ANGLE SENSOR TYPE

Steering angle sensor type.

Absolute

STEERING GEAR RATIO TYPE

Steering gear ratio type.

Type O

STEERING POSITION

Left hand drive vehicle.

LHD

Right hand drive vehicle.

RHD

REAR CAMERA IMAGE SIGNAL

Rear camera inoperative.

NG

Rear camera operative.

OK

WASH SW

Wash switch signal is pressed

On

Wash switch signal is not pressed

Off

R-CAMERA COMM STATUS

Rear camera serial status is OK

OK

Rear camera serial status is not OK

NG

R-CAMERA COMM LINE

Rear camera serial communication signal is received

OK

Rear camera serial communication signal is not received

NG

F-CAMERA IMAGE SIGNAL

Front camera inoperative.

NG

Front camera operative.

OK

F-CAMERA COMM STATUS

Front camera serial status is OK

OK

Front camera serial status is not OK

NG

F-CAMERA COMM LINE

Front camera serial communication signal is received

OK

Front camera serial communication signal is not received

NG

DR-SIDE CAMERA IMAGE SIG

Driver side camera inoperative.

NG

Driver side camera operative.

OK

DR CAMERA COMM STATUS

Driver side camera serial status is OK

OK

Driver side camera serial status is not OK

NG

DR-SIDE CAMERA COMM LINE

Driver side camera serial communication signal is received

OK

Driver side camera serial communication signal is not received

NG

PA-SIDE CAMERA IMAGE SIG

Passenger side camera inoperative.

NG

Passenger side camera operative.

OK

DAS

AROUND VIEW MONITOR CONTROL UNIT

DAS-43

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

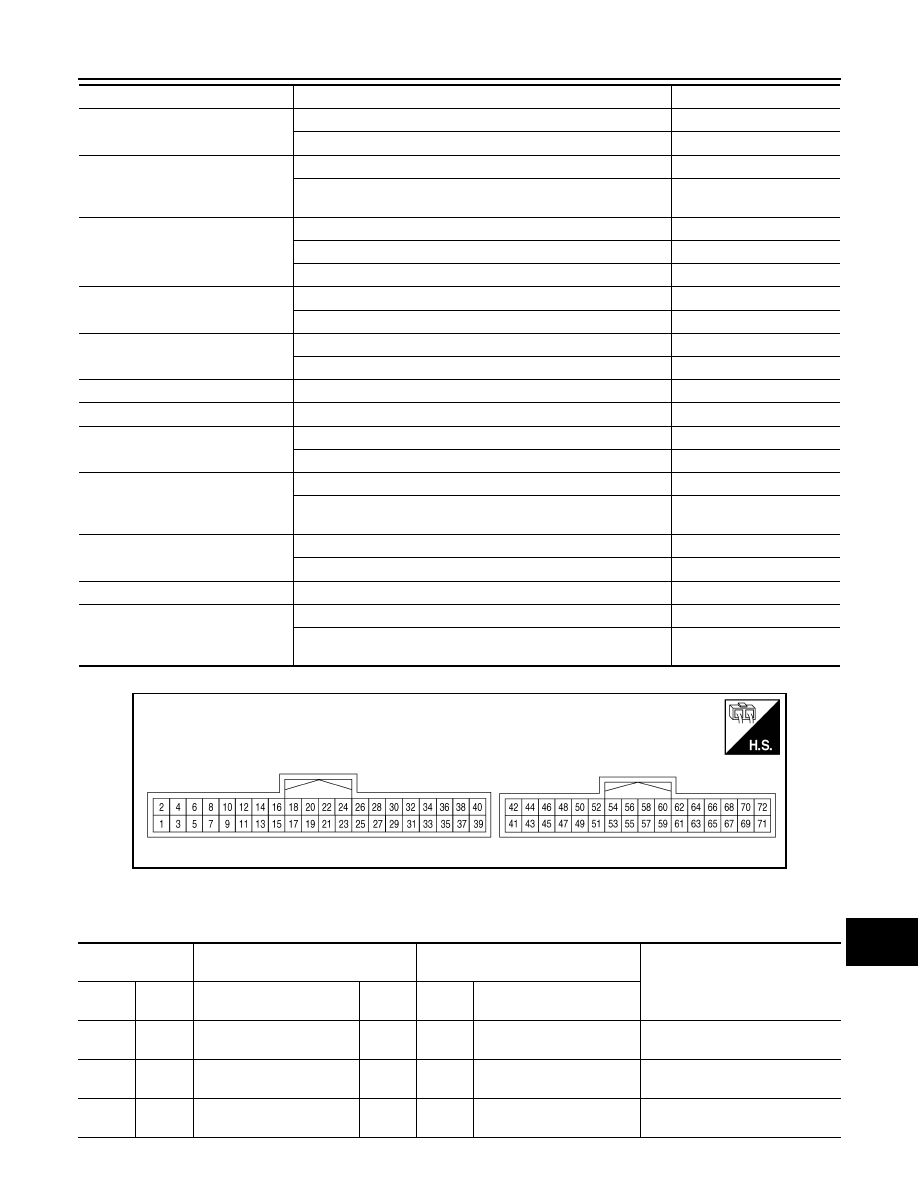

TERMINAL LAYOUT

PHYSICAL VALUES

With Pump Control Unit

PA CAMERA COMM STATUS

Passenger side camera serial status is OK

OK

Passenger side camera serial status is not OK

NG

PA-SIDE CAMERA COMM LINE

Passenger side camera serial communication signal is received

OK

Passenger side camera serial communication signal is not re-
ceived

NG

TURN SIGNAL

Turn signal left is received

Left

Turn signal neutral is received

N

Turn signal right is received

Right

ITS SW 1

ITS switch is pressed

On

ITS switch is not pressed

Off

ITS SW 1 IND

Indicator of ITS switch is lighting

On

Indicator of ITS switch is not lighting

Off

ITS SW 2

For this vehicle, the displaying is fixed

No SET

ITS SW 2 IND

For this vehicle, the displaying is fixed

Off

PUMP COMM STATUS

Pump communication signal is received

On

Pump communication signal is not received

Off

VEHICLE SPEED

Vehicle stopped

0 km/h

Driving

Almost same reading as
speedometer

IDLE STOP STATUS

Stop/start system operates

On

Stop/start system not operates

Off

TRAILER HITCH SW

For this vehicle, the displaying is fixed

Off

STEERING ANGLE

The steering wheel is not steered

Approx. 0 deg

The steering wheel is steered

Displays steering angle
(deg)

Monitor Item

Condition

Value/Status

AWNIA3349ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Ignition

switch

Operation

1

(B)

Ground

Ground

ON

0 V

2

(Y)

Ground

Battery power supply

Input

OFF

Battery voltage

3

(SB)

Ground

Ignition signal

Input

ON

Battery voltage

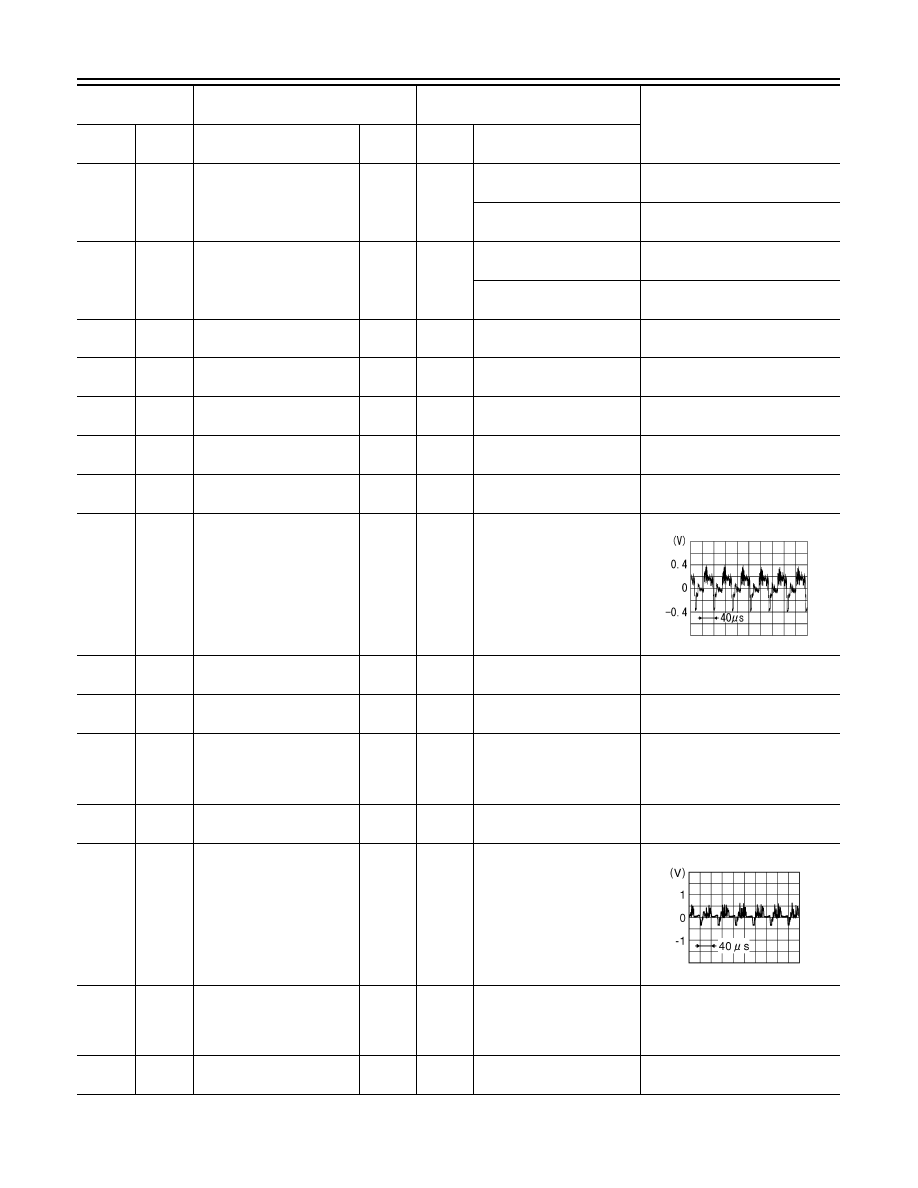

DAS-44

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

AROUND VIEW MONITOR CONTROL UNIT

7

(R)

Ground

BSW LED signal L

Output

LDW/BSW detected (while
driving)

12 V

LDW/BSW is not detected
(while driving)

0 V

8

(P)

Ground

BSW LED signal R

Output

LDW/BSW detected (while
driving)

12 V

LDW/BSW is not detected
(while driving)

0 V

27

(L)

CAN  (H)

Input/

Output

28

(R)

CAN  (L)

Input/

Output

36

(BR)

Ground

Washer signal AVM to
pump

Output

ON

Washer pump operated

5 V

37

(V)

Ground

Pump signal ground

Input

ON

0 V

38

(GR)

Ground

Washer signal pump to
AVM

Input

ON

Washer pump operated

5 V

47

(G)

Ground

Camera image signal

Output

ON

When camera image dis-
play

48

(Shield)

Camera image signal
shield

49

(LG)

Rear camera serial signal

Input/

Output

50

(R)

Ground

Rear camera power supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

52

(B)

Ground

Rear camera ground

ON

0 V

53

(W)

54

(Shield)

Rear camera image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

56

(L)

Ground

Side camera (driver side)
power supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

58

(Y)

Ground

Side camera (driver side)
ground

ON

0  V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Ignition

switch

Operation

SKIB2251J

JSNIA0834GB

DAS

AROUND VIEW MONITOR CONTROL UNIT

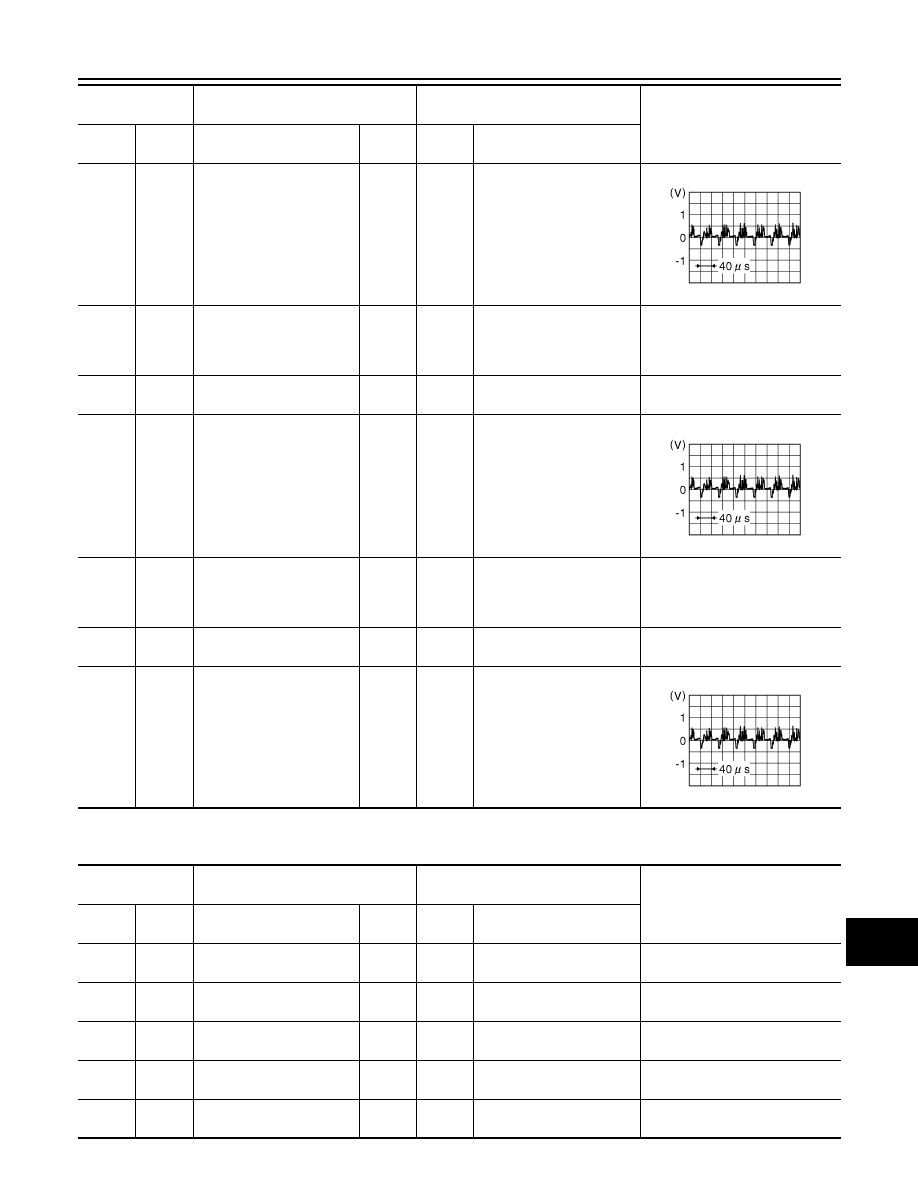

DAS-45

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Without Pump Control Unit

59

(G)

60

(Shield)

Side camera (driver side)
image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

62

(B)

Ground

Side camera (passenger
side) power supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

64

(L)

Ground

Side camera (passenger
side) ground

ON

0  V

65

(Y)

66

(Shield)

Side camera (passenger
side) image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

68

(L)

Ground

Front camera power supply

Output

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

6.0 V

70

(V)

Ground

Front camera ground

ON

0 V

71

(LG)

72

(Shield)

Front camera image signal

Input

ON

CAMERA selected
or
Shift selector in R (reverse)
position.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Ignition

switch

Operation

JSNIA0834GB

JSNIA0834GB

JSNIA0834GB

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Ignition

switch

Operation

1

(B)

Ground

Ground

ON

0 V

2

(Y)

Ground

Battery power supply

Input

OFF

Battery voltage

4

(SB)

Ground

Ignition signal

Input

ON

Battery voltage

10

(R)

CAN  (L)

Input/

Output

12

(L)

CAN  (H)

Input/

Output
