Nissan Qashqai J11. Manual - part 1592

BRM-196

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

Inner Rear Pillar

INFOID:0000000010313681

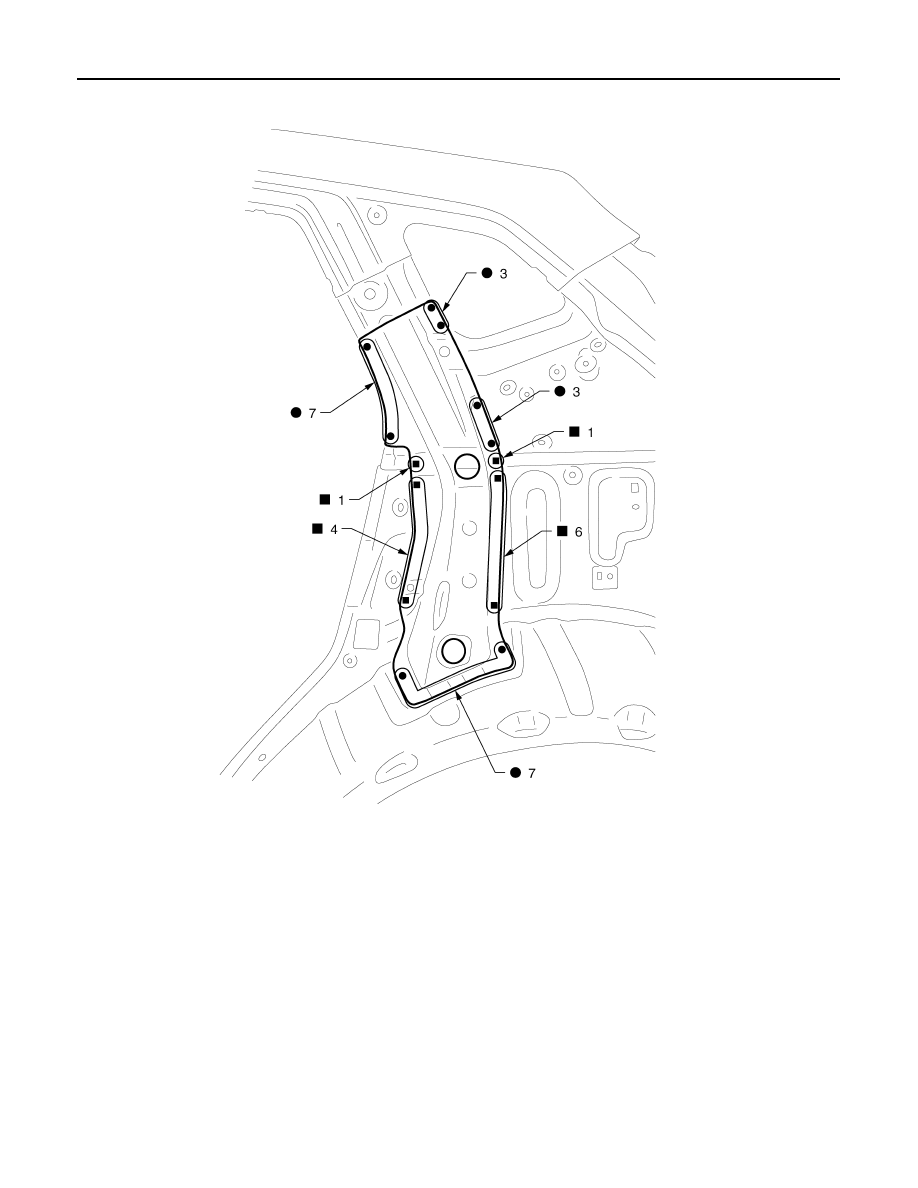

Work after rear fender is removed.
Remove the rear roof rail brace (reusable) and rear seat belt anchor reinforcement (reusable) from the service
part

″

Inner rear pillar assembly

″

 for easier installation.

Replacement part

z

Inner rear pillar reinforcement

JSKIA4026ZZ

REPLACEMENT OPERATIONS

BRM-197

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

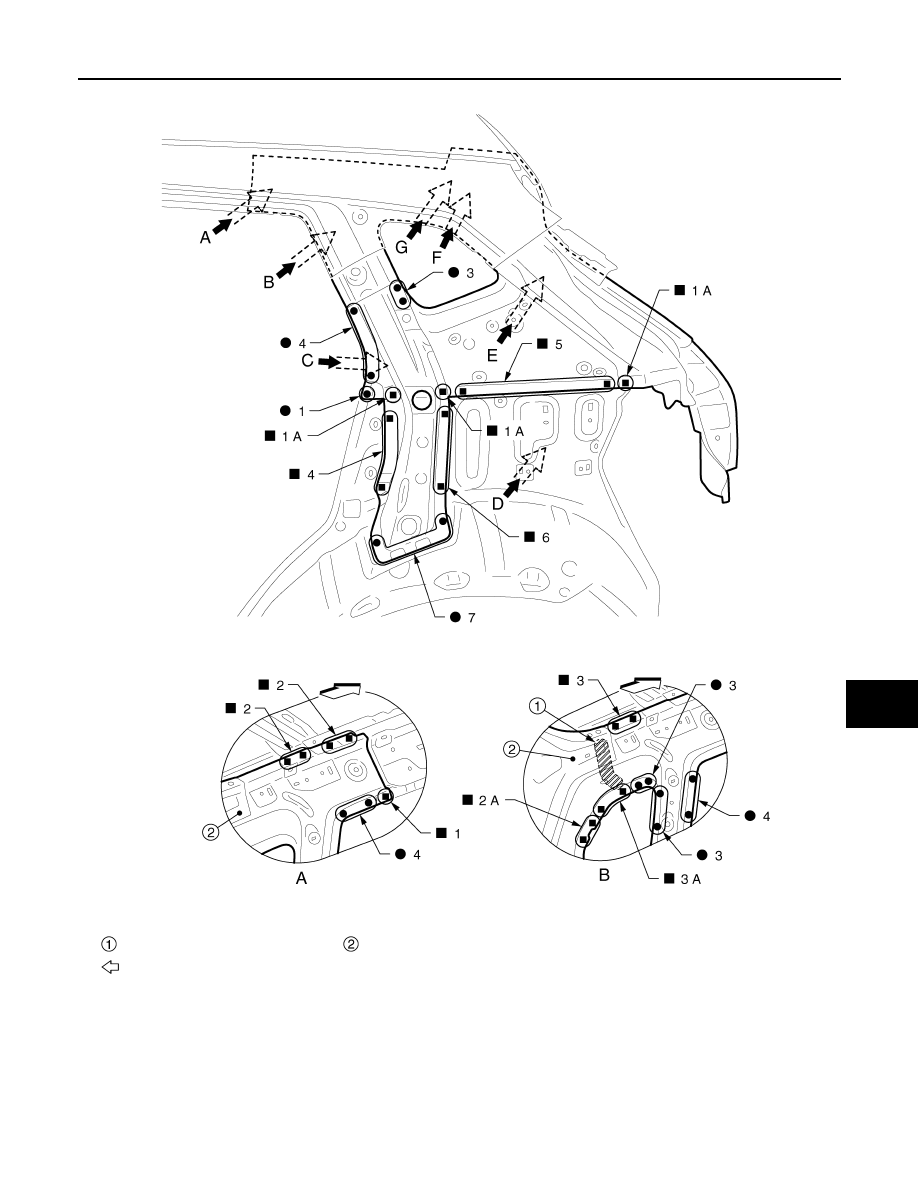

Urethane foam

Rear roof rail brace (reusable)

: Vehicle front.

Replacement part

z

Inner rear pillar assembly

JSKIA4027ZZ

BRM-198

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

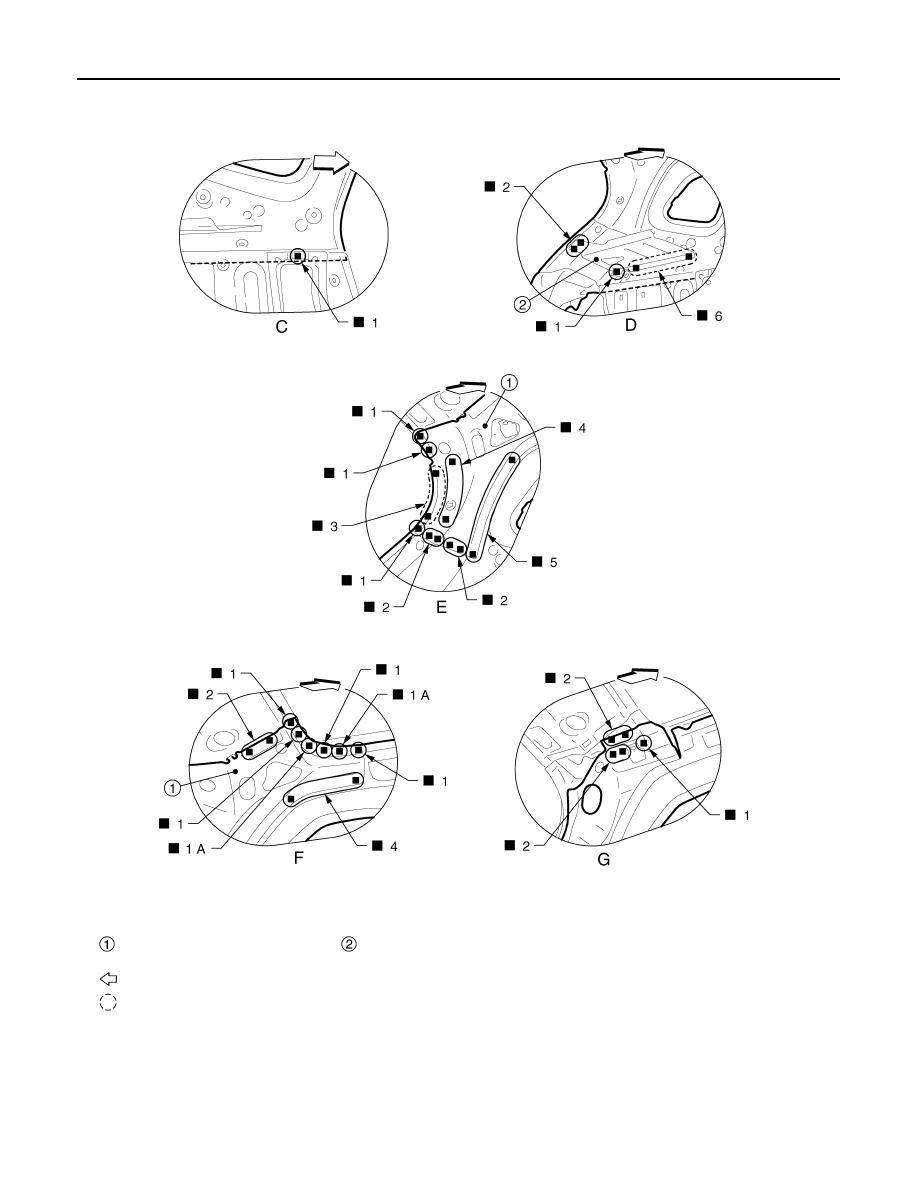

View E: Before installing rear seat belt anchor reinforcement
View G: Before installing rear roof rail brace and rear seat belt anchor reinforcement

Rear roof rail brace (reusable)

Rear seat belt anchor reinforcement
(reusable)

: Vehicle front.

: Weld the parts onto the back of the component part.

JSKIA4028ZZ

REPLACEMENT OPERATIONS

BRM-199

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Panel

INFOID:0000000010313682

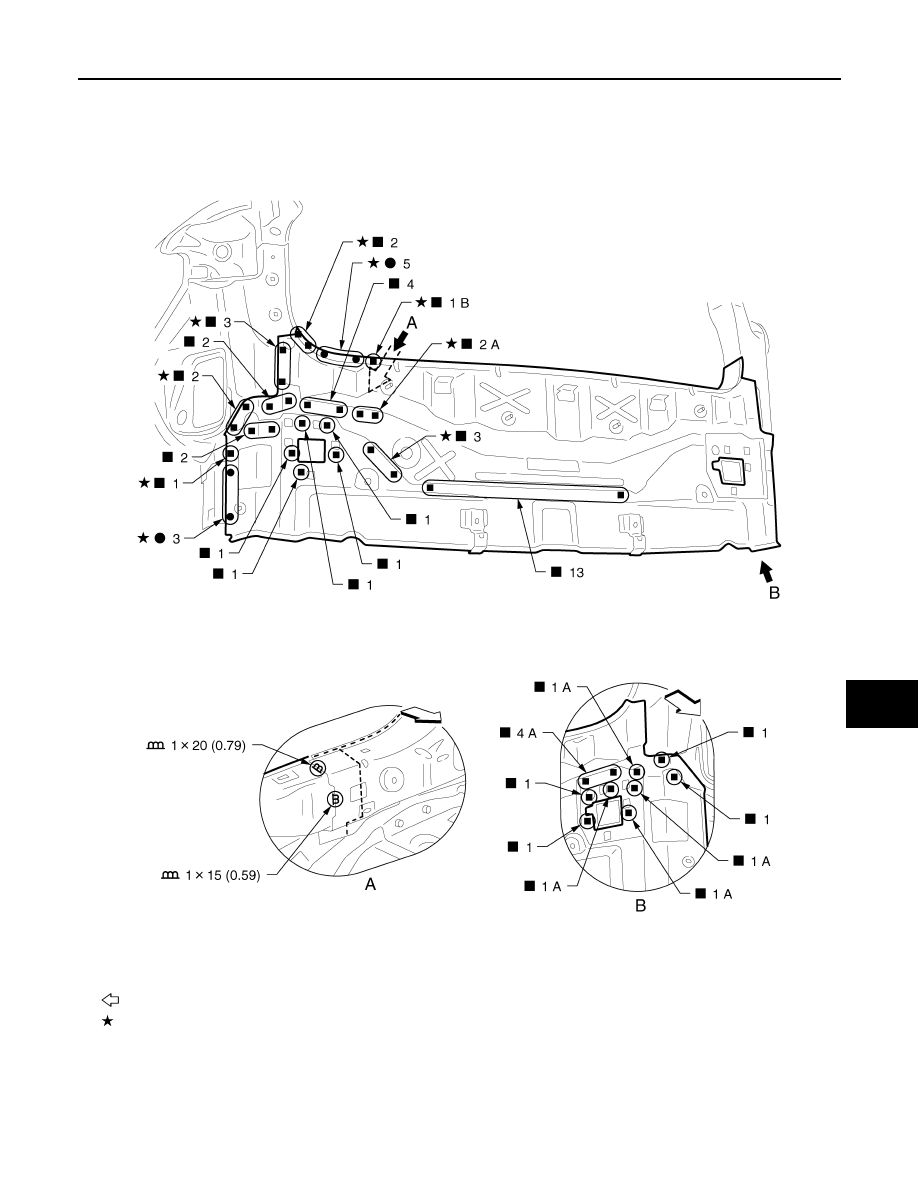

Rear Floor Rear

INFOID:0000000010313683

Work after rear panel is removed.

Unit: mm (in)

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Upper rear panel assembly

JSKIA4029GB
